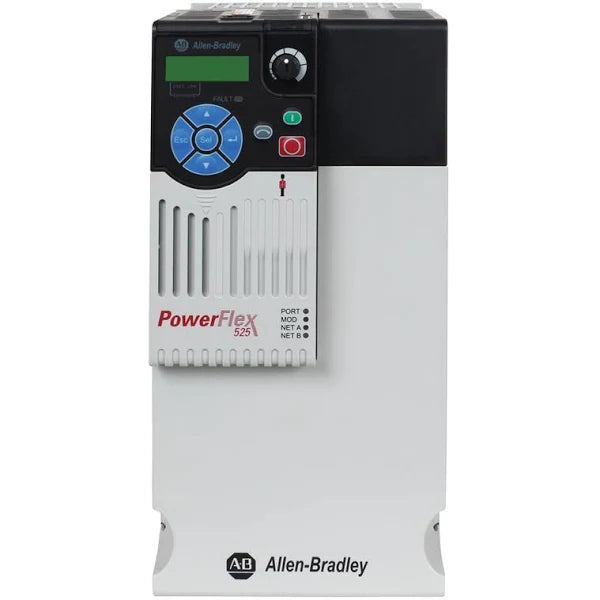

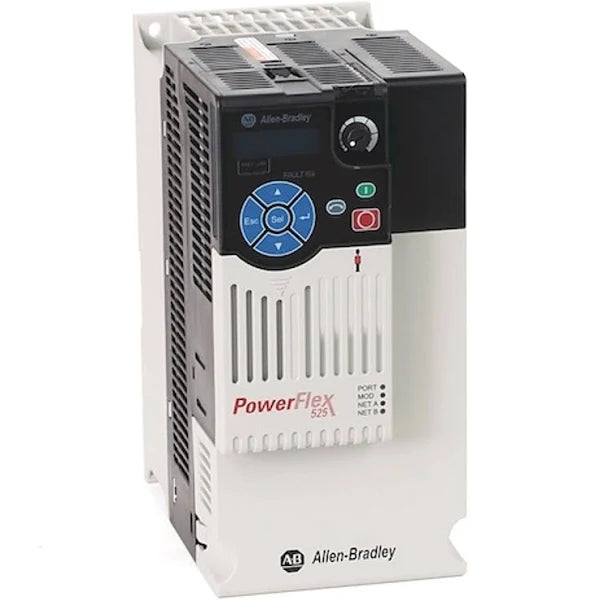

25B-B032N104 | Allen-Bradley PowerFlex 525 AC Drive 240V/10HP/7.5kW
- Regular price
- $2,175.00
- Sale price
- $2,175.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 25B-B032N104
Description
The Allen-Bradley 25B-B032N104 is a PowerFlex 525 variable frequency drive (VFD) designed for motor speed and torque control. It operates on 170–264 VAC three-phase input and delivers 32.2 A output current with 7.5 kW (10 HP) motor power capacity.
Technical Specifications
| Brand | Allen-Bradley |
| Series | PowerFlex 525 Drive |
| Part Number | 25B-B032N104 |
| Manufacturer | Rockwell Automation |
| Product Family | PowerFlex 40P |
| Optional communication protocols | Dual Ethernet I/P; DeviceNet; ProfiBus DP |
| Built-in communication port | Ethernet I/P |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Installation | Panel Mount / DIN Rail |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Output Power | 7.5 kW (10.0 HP) |
| Output Voltage | 0-240VAC |
| Input Current | 34.8 A |
| Input Phase | 3-Phase |
| Input Voltage | 170-264 VAC |
| Output Current | 32.2 A |
| Voltage | Three Phase, 240 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame D |
| EMC Filtering Options | No Filter |
Information About 25B-B032N104
The 25B-B032N104 belongs to the Allen-Bradley PowerFlex 525 drive family, built for flexible motor control applications with advanced communication and control options. It supports multiple control methods, including Volts/Hertz, Sensorless Vector Control (SVC), closed-loop velocity vector control, and permanent magnet motor control (with or without encoder). The drive integrates an Ethernet/IP communication port for direct network connectivity and supports optional protocols such as dual Ethernet/IP, DeviceNet, and Profibus DP. For user interface, it includes a built-in Human Interface Module (HIM) with LCD and keypad. The I/O configuration provides seven discrete inputs, two analog inputs, one analog output, and multiple relay and digital outputs, allowing extensive customization for process requirements. With an IP20/NEMA open-type enclosure, it is suitable for DIN rail or panel mounting, delivering versatility in installation.
Key Features:
- Input Power: Operates on 170–264 VAC, three-phase, with nominal input current of 34.8 A.
- Output Performance: Provides 32.2 A output current and up to 7.5 kW (10 HP) motor power rating for normal and heavy-duty use.
- Control Methods: Supports Volts/Hertz, PWM, Sensorless Vector Control, closed-loop velocity vector control, and permanent magnet motor operation.
- Built-in Communication: Ethernet/IP interface with optional support for dual Ethernet/IP, DeviceNet, and Profibus DP.
- Human Interface: Integrated keypad and LCD display (HIM) for configuration, monitoring, and control.
- I/O Capability: Seven discrete inputs (sink/source), two digital outputs, one N.O./one N.C. relay, two analog inputs (0–10 VDC/0–20 mA), and one analog output (0–10 VDC/0–20 mA).
- Enclosure: IP20, NEMA open-type design suitable for DIN rail or panel mounting.
- Motor Control Range: Supports both induction and permanent magnet motors, with encoder options for precision.
- Power Dissipation: Efficient design ensures reliable operation in continuous industrial duty.
The 25B-B032N104 delivers the reliability and precision required for advanced motor control in industrial automation systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
