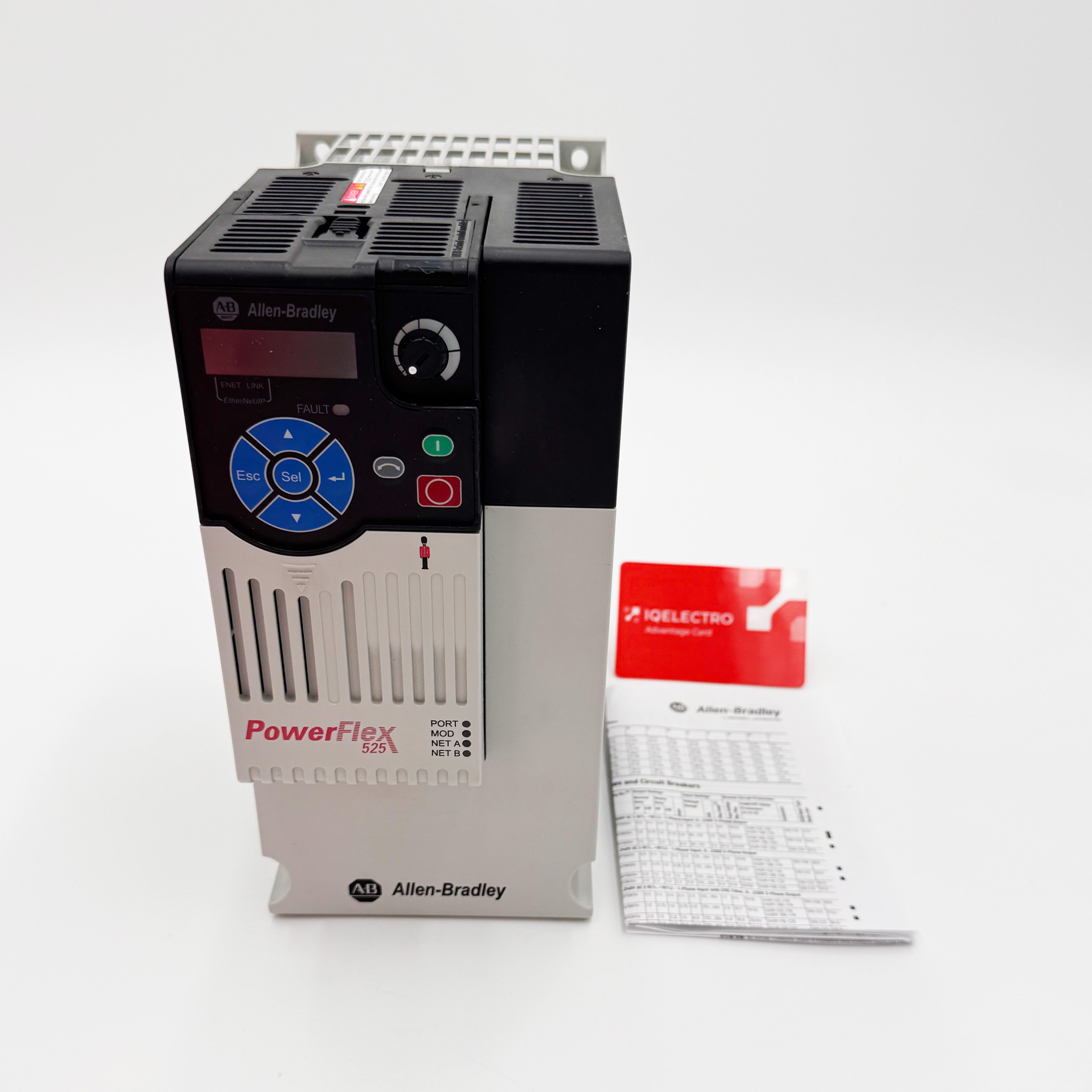

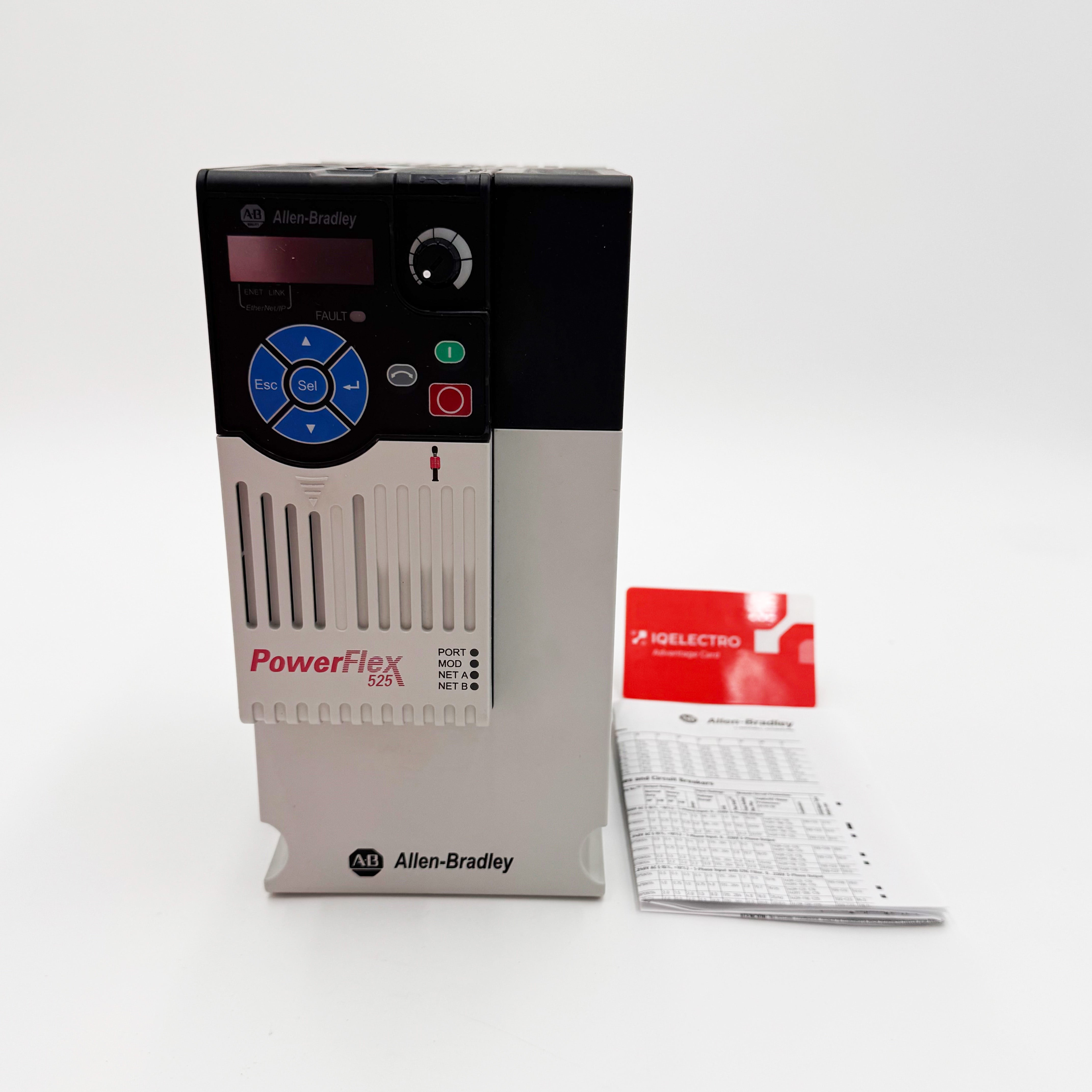

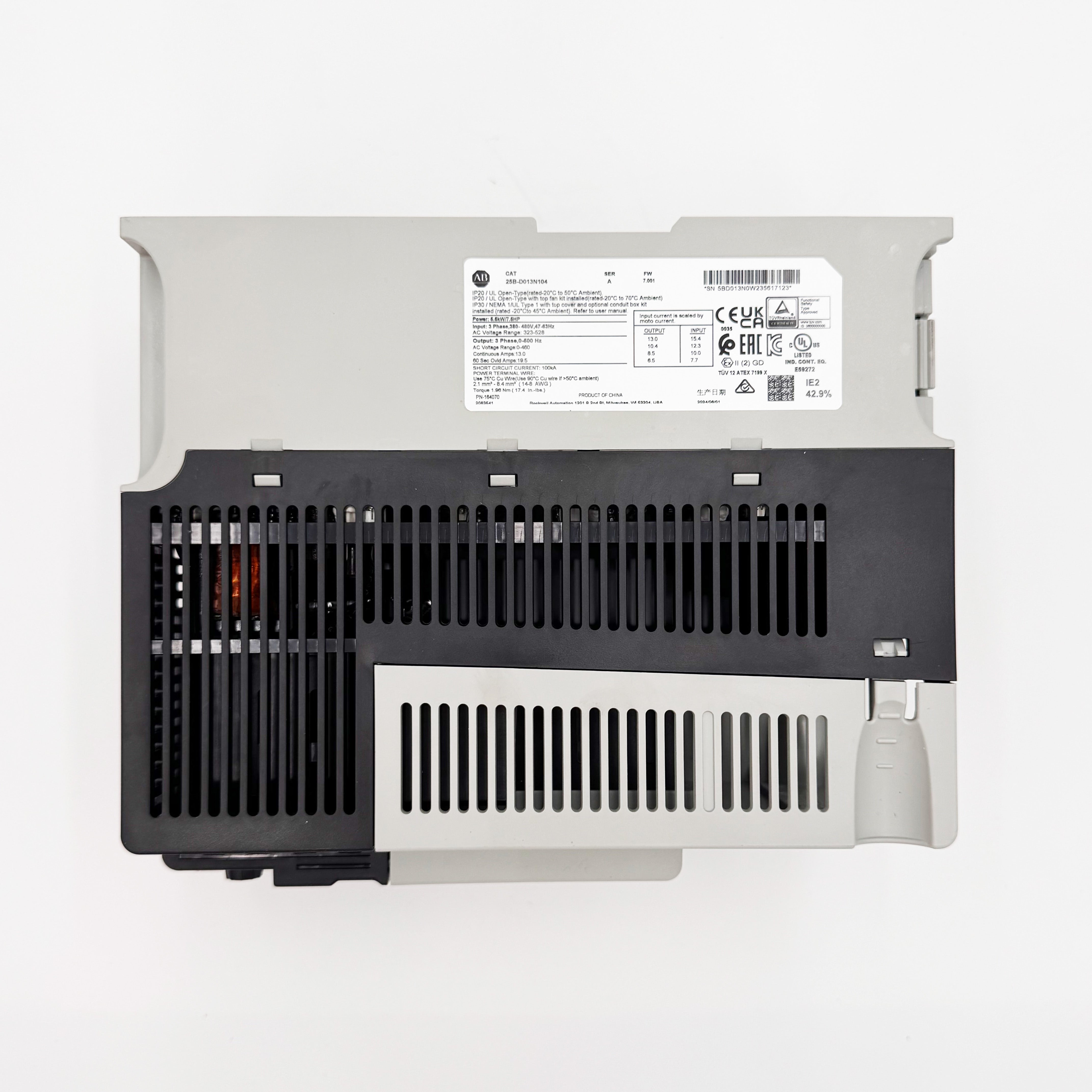

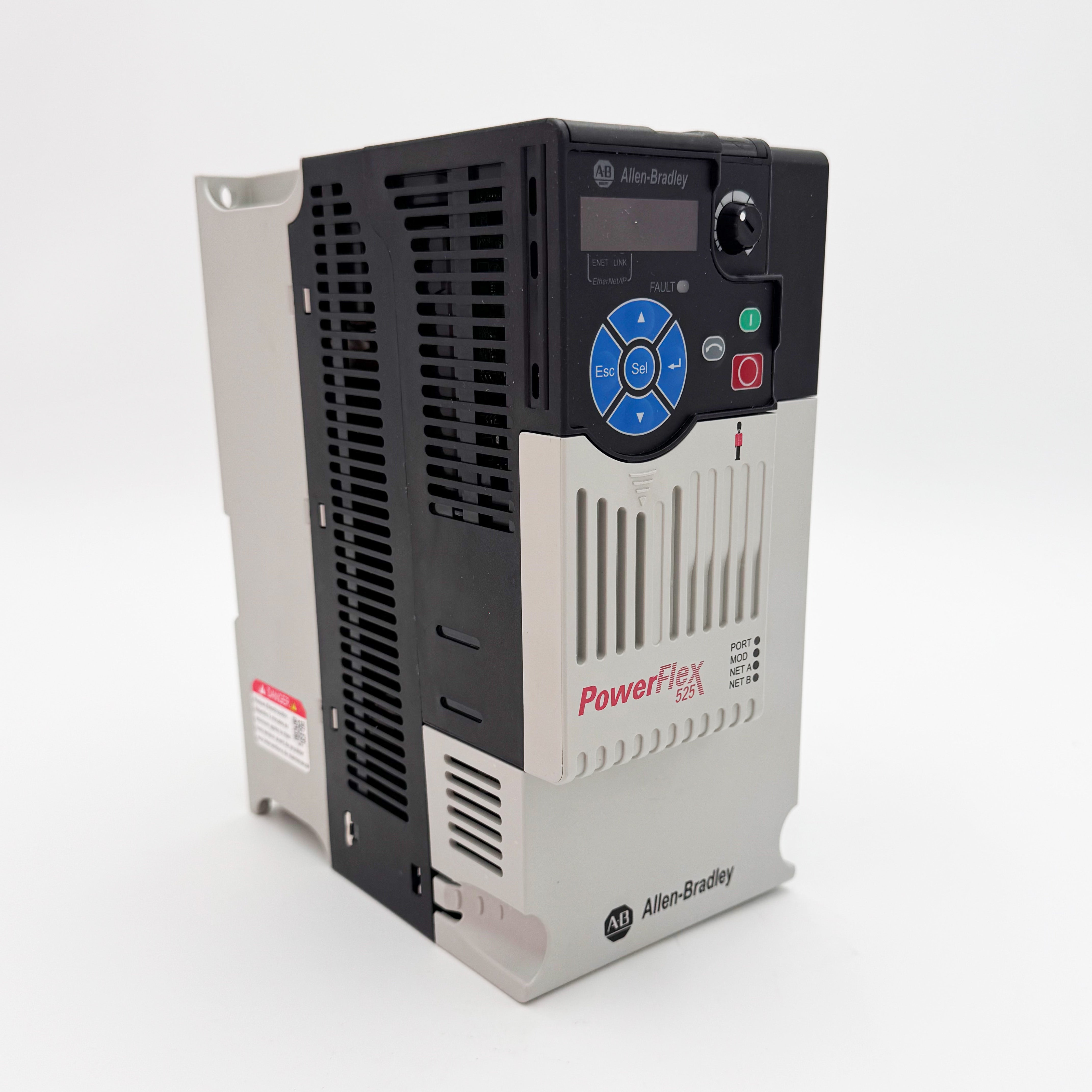

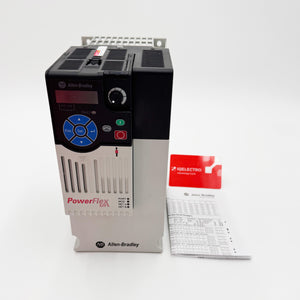

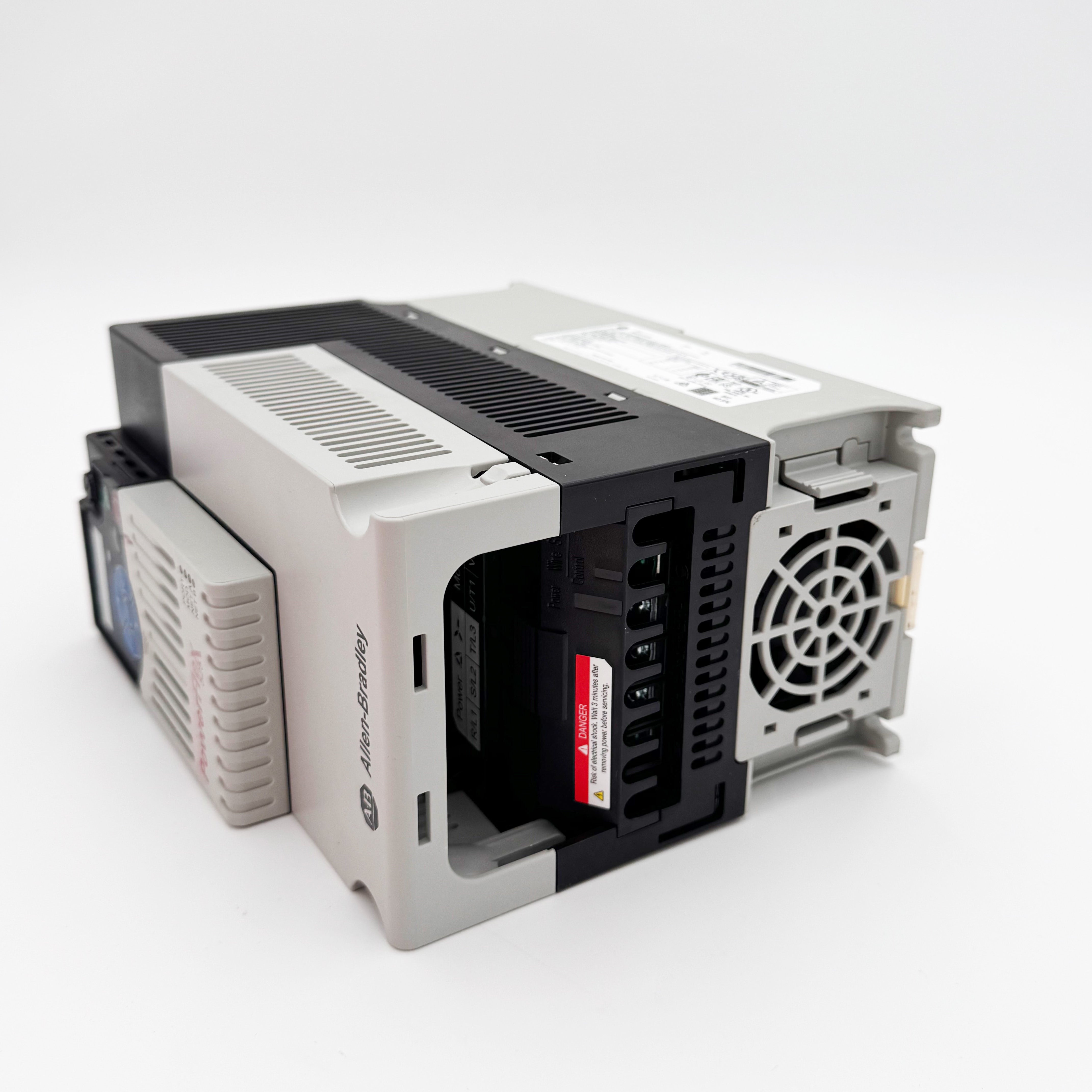

25B-D013N104 | Allen-Bradley PowerFlex 525 AC Drive 480V/13A/7.5HP

Description

The Allen-Bradley 25B-D013N104 is a PowerFlex 525 Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 323-528VAC, 3-phase with applicable motor output 17.0 A and Power of 7.5 kW (5.5 HP) for normal duty and Heavy duty operation.

Technical Specifications

Information About 25B-D013N104

The 25B-D013N104 is a member of Allen-Bradley’s Powerflex 520 series of AC drives. The 25B-D013N104 is a highly versatile device that supports a wide range of features and functions. This makes the 25B-D013N104 feasible for a wide range of industrial situations. The 25B-D013N104 has a voltage rating of 380 to 480 Volts AC as the input rating and a fixed 480 Volts AC output rating. It has a current rating of 13 Amps. The 25B-D013N104 is a 3-phase AC drive that has a wattage rating of 5.5 kilowatts or 7.5 Horsepower.. The power factor rating of the 25B-D013N104 is 0.98. Its frequency rating ranges between 50 to 60 Hertz.

The 25B-D013N104 has a high-quality integrated display which is an integrated keypad, LED lights for signals, as well as a Potentiometer. This allows for the maximization of productivity and efficiency through proper tuning and calibrations. It has a fixed terminal connection type. The 25B-D013N104 AC drive does not ship with EMC filters by default. The controller and power modules for the 25B-D013N104 are detachable, which makes mounting and installation a total breeze. The 25B-D013N104 supports a mount type installation and needs a NEMA-certified open type IP20 enclosure. The 25B-D013N104 is only compatible with C size frames. The 25B-D013N104 responds to Ethernet control, specifically the IP-USB-RS485. The length, width, and depth dimensions of the 25B-D013N104 are 8.66 x 7.24 x 4.29 inches, respectively.

The 25B-D013N104 is a 323-528VAC, 3-phase, adjustable frequency AC drive with current output rating of 17.0 A, frequency of 0-500Hz and applicable motor Power of 7.5 kW (5.5 HP), both for normal duty and Heavy-duty operation. This drive controls and modulate speed of AC motors with the use of Sinusoidal PWM, Volts/Hertz, Sensorless Vector Control, Economizer SVC motor control, Closed Loop Velocity Vector Control, Surface Mount and Interior Permanent Magnet Motor (without encoder), Interior Permanent Magnet Motor (with encoder) control methods. When used with the embedded encoder, the performance ratings of this control method increases to +/-1% of base speed compared to +/-0.5% of base speed when used without the embedded encoder. This drive features multiple programming stop modes such as Ramp, Coast, DC-Brake, and Ramp-to-Stop. It also has Four independently programmable accel and decel times with each parameters may be programmed from 0...600 s in 0.01 s increments.

The 25B-D013N104 has Seven (7) Sink / Source Discrete Inputs, One (1) N.O. One (1) N.C. Contacts; Two (2) Digital / Optocoupler discrete outputs, Two (2) Analog Input 0-10VDC; 0-20mA analog input and One (1) Analog Input 0-10VDC; 0-20mA analog output.
