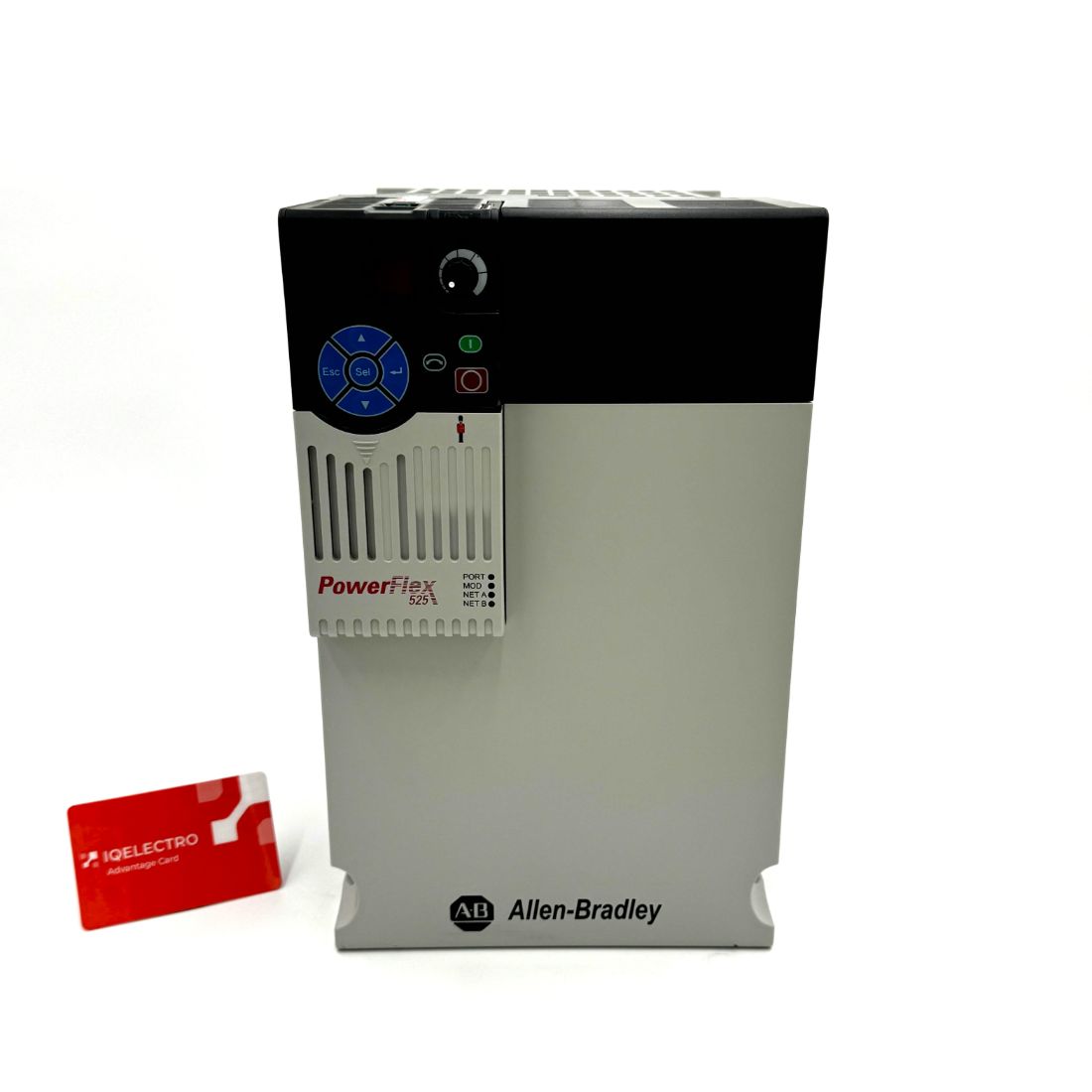

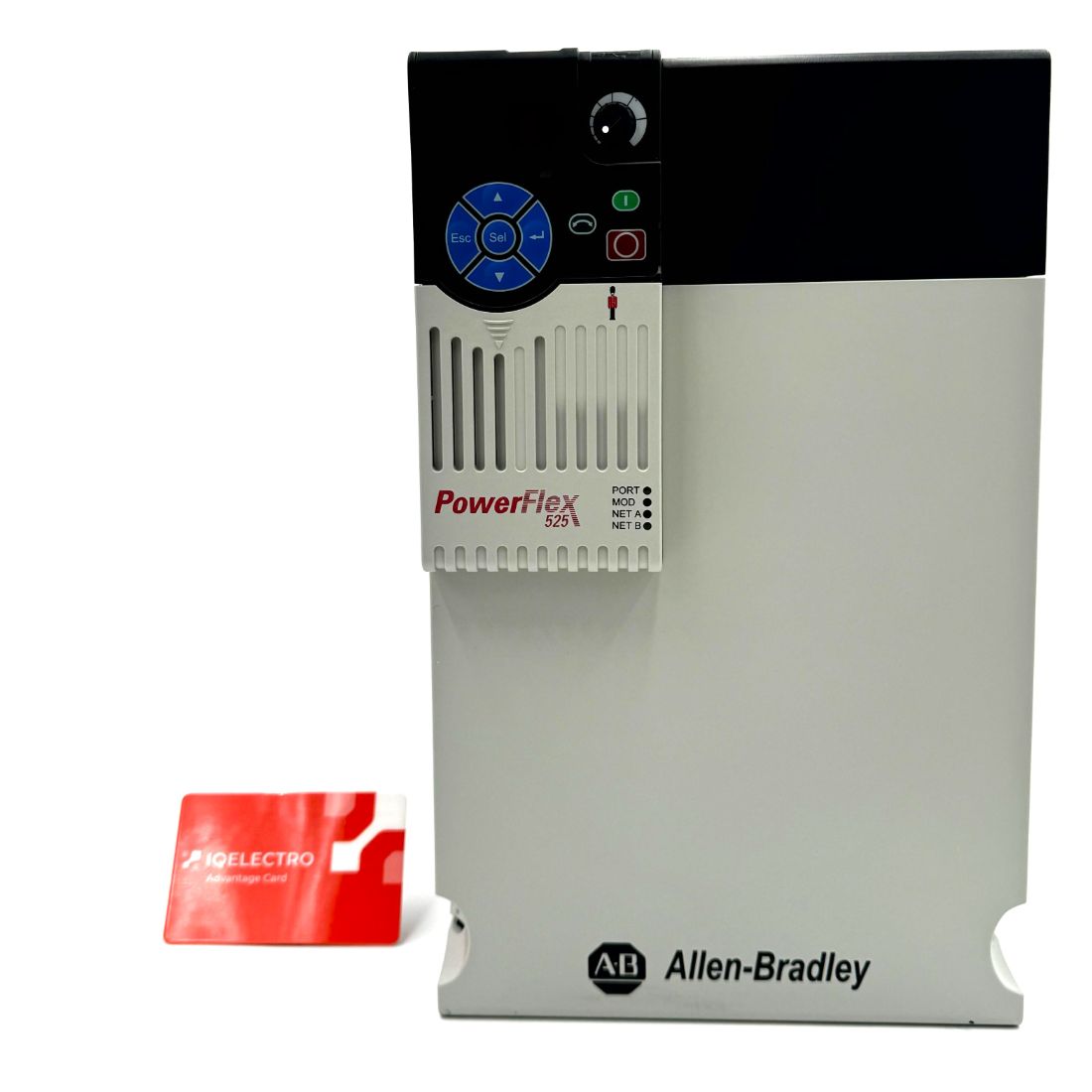

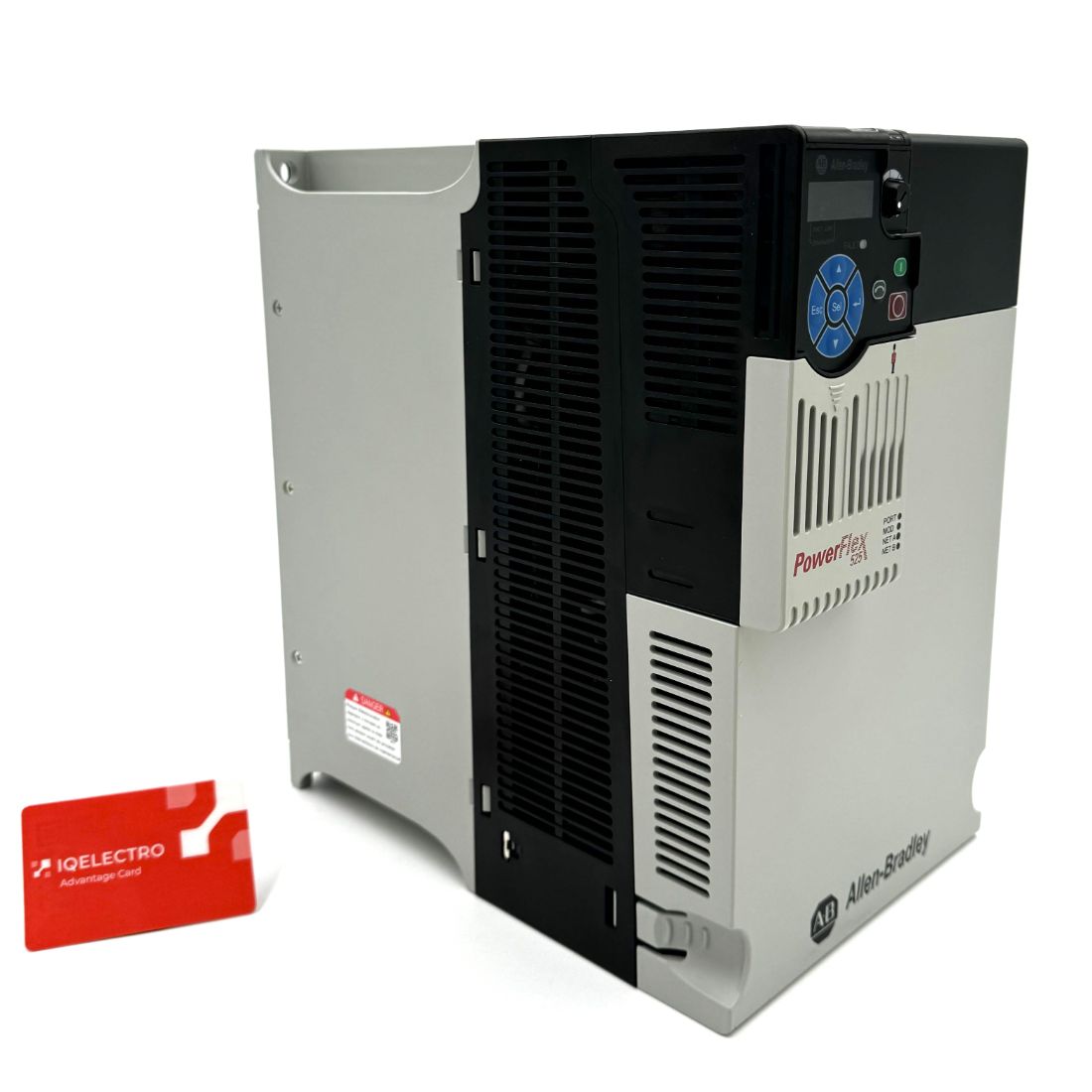

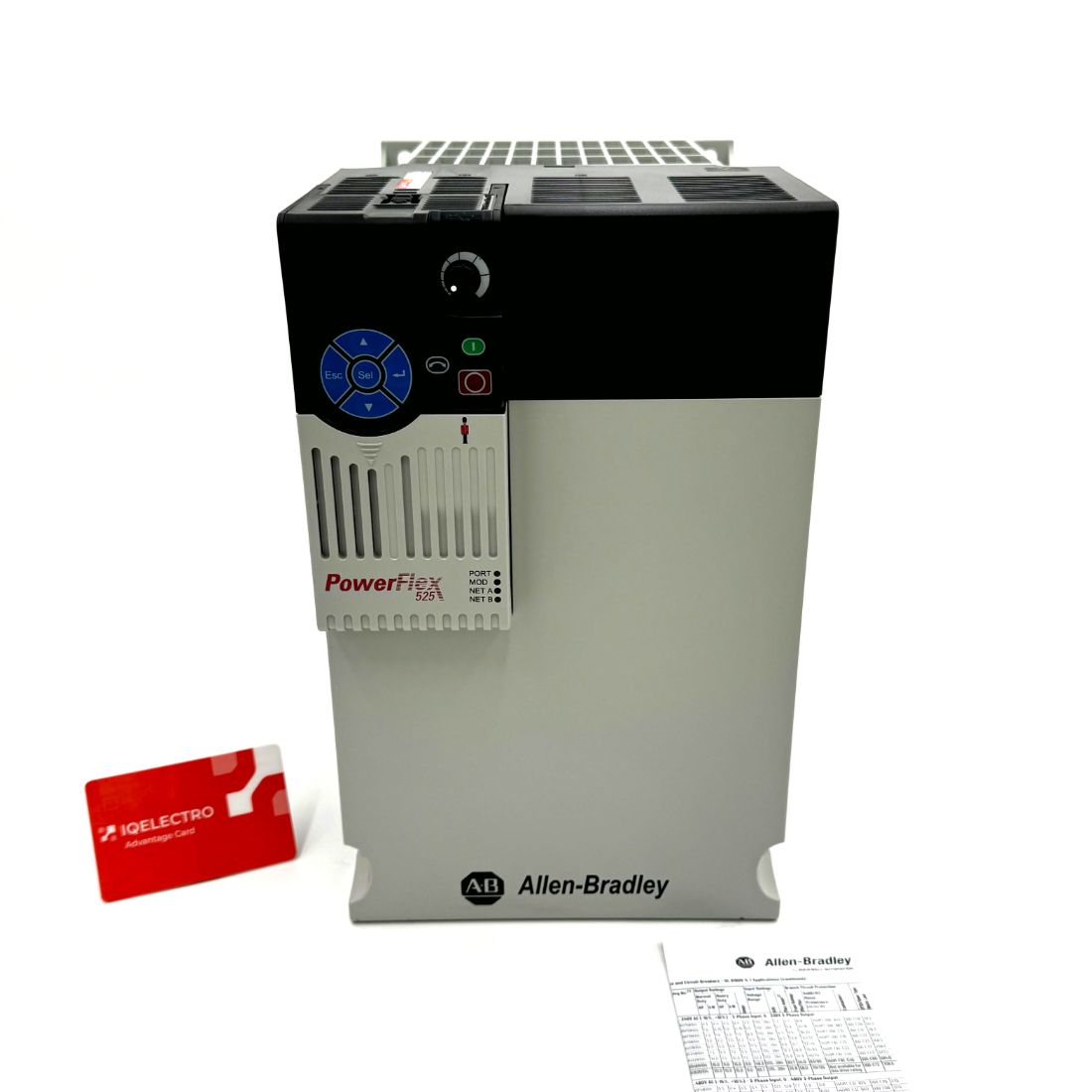

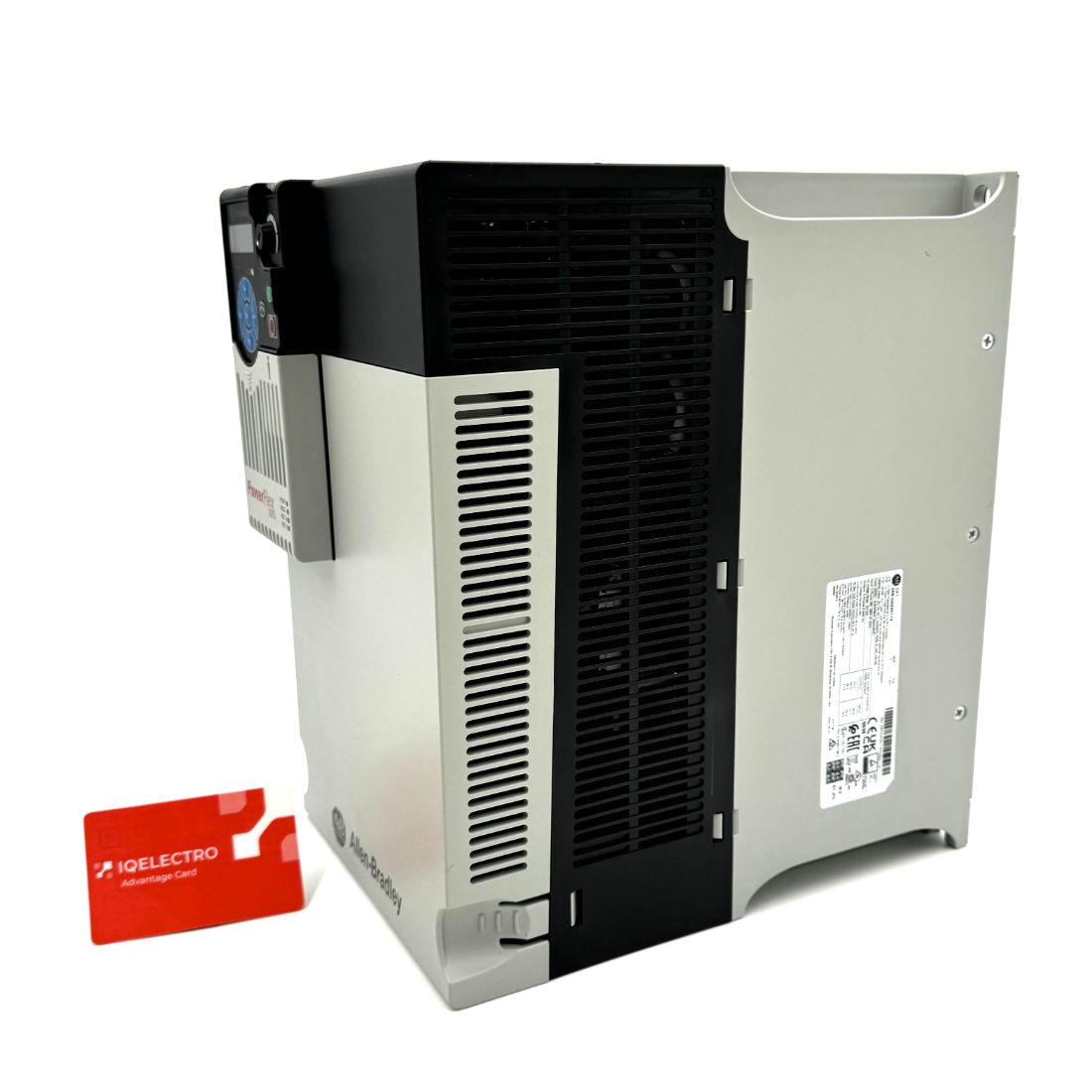

25B-D043N114 | Allen-Bradley PowerFlex 525 AC Drive 480V/43A/30HP
- Regular price
- $2,299.00
- Sale price
- $2,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 25B-D043N114
Description
The Allen-Bradley/Rockwell Automation 25B-D043N114 drive is an adjustable frequency drive or AFD. It has been designed and manufactured as part of the PowerFlex 525 drive series. The 25B-D043N114 adjustable frequency drive supports normal-duty power ratings of 30 Horsepower or 22 kilowatts. It also supports heavy-duty power ratings of 25 Horsepower or 18.5 kilowatts. The 25B-D043N114 adjustable frequency drive has a Size E frame and an output current rating of 43 Amps.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Series | PowerFlex 525 Drive |
| Part Number | 25B-D043N114 |
| Manufacturer | Rockwell Automation |
| Input Voltage | 380-480VAC |
| EMC Filter | Integrated |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| Optional communication protocols | ProfiBus; Ethernet; DeviceNet; |
| Built-in communication port | RS485; Ethernet |
| Control Method | Volts / Hertz Control; Sensorless Vector Control |
| Frame | B |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Installation | Panel Mount |
| I/O | Discrete Inputs: Seven (7) Inputs Discrete Outputs: Two (2) Opto Outputs and Two (2) Relay Outputs Analog Input: Two (2) Analog Input Analog output: One (1) analog output |
| Output Power | 22 kW (30.0 HP) for normal operation; 18.5 kW (25.0 HP) heavy-duty operation |
| Output Voltage | 0-460VAC |
| Input Phase | 3-Phase |
| Product Family | PowerFlex 525 Adjustable Frequency AC Drive |
| Output Current | 43 A |
| Voltage | Three Phase, 480V AC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame E |
| EMC Filtering Options | Filter |
Information About 25B-D043N114
The Allen-Bradley 25B-D043N114 PowerFlex 525 is a Frame E Adjustable Frequency Drive. This drive has an input voltage range of 380-480VAC, -15% and + 10 % input voltage tolerance along input frequency range of 47-63 Hz. It delivers output Voltage, frequency, Current and power of 0-460VAC, 3-Phase, 0-500 Hz fully programmable frequency, Current of 43.0 A and Power of 22 kW (30.0 HP) for normal operation and 18.5 kW (25.0 HP) heavy-duty operation, respectively.
This drive is a compact and highly-cost effective device as it can implement motor control, speed control and protective functions via a variety of control methods and supplemental features such as Volts / Hertz, Sensorless Vector Control (SVC), Closed loop velocity vector control and Permanent Magnet motor control method. Supplemental but equally important features include PointStop, Closed loop feedback with an optional encoder card, Point-to-point positioning mode for Positioning control as well as Integral Proportional + Integral + Derivative (PID) control wherein up to Two (2) control loops may be controlled by the drive automatically.
The 25B-D043N114 supports an efficient and cost-effective installation as it is directly installed to an enclosure subpanel and compatible for Zero stacking installation method wherein drives may be installed with very minimum spacing, saving panel space. It also comes with a Removable Metal Oxide Varistor (MOV) that allows the drive to be used in ungrounded distribution systems. It also comes with a relay precharge that limits inrush current, integral braking resistor for dynamic braking and dual overload rating which are 10% overload for 60 seconds INormal Duty) or 150% for 3 seconds (Heavy-Duty) and 150% overload for 60 seconds or 180% overload (200% programmable) for 3 seconds provides robust overload protection.
The 25B-D043N114 PowerFlex drive offers motor speed control and dynamic braking capabilities that make it suitable for a wide array of applications, including standalone equipment and simple system integration. Some motor control options it offers include the sensorless vector control, permanent magnet motor control, and the closed loop velocity control. It also offers basic position control via the StepLogic application and it provides standard safe torque-off to protect equipment and personnel and for faster restarting. The I/O features on the 25B-D043N114 PowerFlex drive include 7 digital inputs, 6 of which are fully programmable, 2 independently isolated analog inputs that can be toggled through a digital input, 1 10-bit jumper-selectable analog output that is ideal for metering to other drives, and 2 relay outputs and 2 opto outputs which indicate the status of logic conditions, other drives, and motors. The control module and power modules of the 25B-D043N114 PowerFlex drive are both detachable. It has an EMC Filter and is designed to be mounted vertically (upright) on a flat surface. To meet space-saving requirements, the 25B-D043N114 PowerFlex drive allows zero stacking when mounting multiple drives but a space of about 20 inches should be allowed at the top and bottom of each drive. Its environmental ratings can be increased when it is adapted to an IP30 (NEMA 1) conduit box.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
