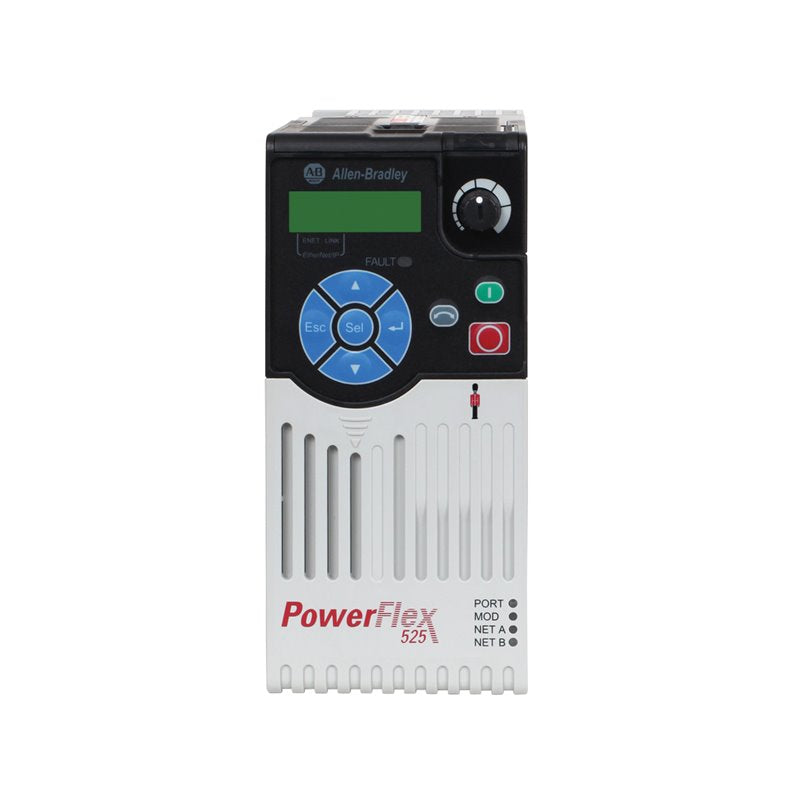

25B-D1P4N114 | Allen-Bradley PowerFlex 525 AC Drive 480V/1.4A/0.5HP
- Regular price
- $307.00
- Sale price
- $307.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 25B-D1P4N114
Description
The 25B-D1P4N114 is a PowerFlex 525 Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with voltage of 480VAC, 3-Phase. It delivers output power of 04 kW or 0.5 HP for both normal and heavy-duty operation. The drive’s output Current is 1.4 Amperes with an IP20 NEMA / Open rated enclosure. It has an integral EMC filter.
Technical Specifications
| Brand | Allen-Bradley |
| Series | PowerFlex 525 Drive |
| Part Number | 25B-D1P4N114 |
| Input Voltage | 323-528 VAC |
| Built-in communication port | Ethernet I/P / RS485 |
| Integrated safety | Safe-Torque Off (STO) functionality |
| PointStop Technology | Integrated |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control. |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Zero Stacking | Supported |
| Installation | Panel Mount / DIN Rail |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Output Power | 0.4 kW or 0.5 HP |
| Output Voltage | 0-460VAC |
| Input Phase | 3-Phase |
| Product Family | PowerFlex 525 |
| Manufacturer | Rockwell Automation |
| Output Current | 1.4 A |
| Voltage | Three Phase, 480V AC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | Filter |
Information About 25B-D1P4N114
The Allen-Bradley 25B-D1P4N114 is part of the PowerFlex 525 adjustable frequency AC drive product family. This drive is used to implement motor control, covering basic and advanced functionalities as well as maybe used as an energy saving equipment. As an alternative to soft-starters, the programmable capabilities of this electronic device benefits the user from increased operation efficiency, simplified maintenance and increase control system uptime.
The 25B-D1P4N114 is part of the 480VAC, 3-Phase operated drives within the PowerFlex 525 family. In terms of output capacity, it has the lowest output characteristics, delivering 1.4 Amperes, 0.4 kW or 0.5 HP and fully-programmable frequency of 0-500 Hz.
This drive supports Zero Stacking which is an effective panel-space saving measure. It belongs to A Frame drives which support DIN rail or direct panel mounting methods. These mounting options provide flexibility and contributes to ease of installation and effectively reduces cost of installation and engineering of the device.
This drive comes with bus overvoltage trip rating of 810V DC bus (equivalent to 575V AC incoming line) and undervoltage trip rating of 390V DC bus (equivalent to 275V AC incoming line. Additionally, it has an overcurrent rating of 200% hardware limit, 300% instantaneous fault, Ground Fault Trip of Phase-to-ground on drive output and Short Circuit Trip of Phase-to-phase on drive output.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
