Part #: 25B-D2P3N114 Manufactured by: Allen-Bradley
Regular price
$399.00
Sale price
$399.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen Bradley PowerFlex 525 Drive with Three Phase, 480 VAC voltage and 2.3 Amperes Output Current
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 25B-D2P3N114
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 25B-D2P3N114

Description / Specifications

Description

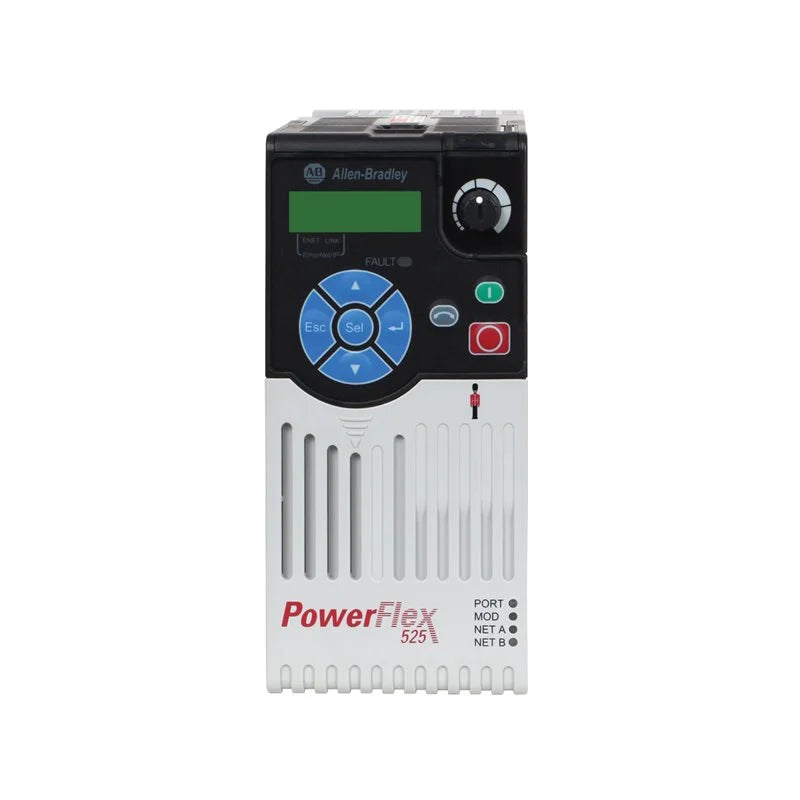

The 25B-D2P3N114 is a PowerFlex 525 Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with voltage of 480VAC, 3-Phase. It delivers output power of 0.75 kW or 1.0 HP for both normal and heavy-duty operation. The drive’s output Current is 2.3 Amperes with an IP20 NEMA / Open rated enclosure. It has an integral EMC filter.



Technical Specifications



Brand Allen-Bradley
Series PowerFlex 525 Drive
Part Number 25B-D2P3N114
Input Voltage 323-528 VAC
Built-in communication port Ethernet I/P / RS485
Integrated safety Safe-Torque Off (STO) functionality
PointStop Technology Integrated
Control Method Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control.
Enclosure Rating IP20 / NEMA UL Type Open
Zero Stacking Supported
Installation Panel Mount / DIN Rail
I/O Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA
Output Power 0.75 kW or 1.0 HP
Output Voltage 0-460VAC
Input Phase 3-Phase
Product Family PowerFlex 525
Manufacturer Rockwell Automation
Output Current 2.3 A
Voltage Three Phase, 480V AC
Enclosure Type IP20 NEMA / Open Type
Interface Module Standard
Frame Size Frame A
EMC Filtering Options Filter





Information About 25B-D2P3N114

The Allen-Bradley 25B-D2P3N114 is a Variable Frequency Drive (VFD) from Allen-Bradley. This drive is specifically part of the PowerFlex 525 Adjustable Frequency Drive product family that is fitted for use in industrial applications and meets modern integration and connectivity requirements for operational flexibility and efficiency.

Other plant personnel refer to this device as Variable Speed Drive (VFD), Adjustable Speed Drive, Frequency inverter, inverter or simply, motor drive. All these terms refer to this electronic device that implements basic motor control as well as modulating speed control of an AC motor. This drive operates at an input supply voltage of 480VAC, 3-Phase along an input frequency range of 47-63Hz. It delivers an output power of 0.75 kW or 1.0 HP, 2.3 Amperes and fully-programmable frequency of 0-500 Hz.

For drive configuration, it is provided with an integrated Human Interface Module (HI) with LCD display and embedded keys that allow local operation, configuration and troubleshooting of drive in the event of error.

Other built-in features of this drive include an integrated EMC filter, built-in I/O terminals composed of Seven (7) Sink / Source discrete inputs, One (1) N.O., One (1) N.C. Contacts relay contact output, Two (2) Digital / Optocoupler outputs, Two (2) 0-10VDC; 0-20mA analog inputs, One (1) 0-10VDC; 0-20mA analog output and Potentiometer terminal.

It features CustomView, AppView, MainsFree, and QuickView programming and configuration tools and it combines a wide range of communication and motor control options that make it ideal for different applications in different industries. Its compact design and zero stacking capability in atmospheric temperatures between 0 and 45 degrees Celsius help to maximize panel space during installation. The detachable control modules of the 25B-D2P3N114 PowerFlex drive can be connected to a PC through USB cables for fast uploading and downloading of drive data and configuration through MainsFree configuration and this drive supports the use of up to 2 accessory cards simultaneously without altering its footprint. To provide trouble-free operation in ungrounded distribution systems, the 25B-D2P3N114 PowerFlex drive leverages the power of its removable Metal Oxide Varistor (MOV) that is connected to the ground. It incorporates some other protective features including the BUS under-voltage trip, BUS overvoltage trip, 100 milliseconds power ride through, motor overload protection, over-current protection, and the phase-to-phase and phase-to-ground protection on the drive output. Four (4) independently programmable acceleration and deceleration times are available on the 25B-D2P3N114 PowerFlex drive and they can be configured to any setting between 0 and 600 seconds. This drive has an A-frame size and it is housed in an IP20 NEMA enclosure suitable for use in different environments provided it is not exposed to corrosive gases, vapor, or direct rain and sunlight.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The 25B-D2P3N114 is a PowerFlex 525 Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with voltage of 480VAC, 3-Phase. It delivers output power of 0.75 kW or 1.0 HP for both normal and heavy-duty operation. The drive’s output Current is 2.3 Amperes with an IP20 NEMA / Open rated enclosure. It has an integral EMC filter.



Technical Specifications



Brand Allen-Bradley
Series PowerFlex 525 Drive
Part Number 25B-D2P3N114
Input Voltage 323-528 VAC
Built-in communication port Ethernet I/P / RS485
Integrated safety Safe-Torque Off (STO) functionality
PointStop Technology Integrated
Control Method Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control.
Enclosure Rating IP20 / NEMA UL Type Open
Zero Stacking Supported
Installation Panel Mount / DIN Rail
I/O Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA
Output Power 0.75 kW or 1.0 HP
Output Voltage 0-460VAC
Input Phase 3-Phase
Product Family PowerFlex 525
Manufacturer Rockwell Automation
Output Current 2.3 A
Voltage Three Phase, 480V AC
Enclosure Type IP20 NEMA / Open Type
Interface Module Standard
Frame Size Frame A
EMC Filtering Options Filter





Information About 25B-D2P3N114

The Allen-Bradley 25B-D2P3N114 is a Variable Frequency Drive (VFD) from Allen-Bradley. This drive is specifically part of the PowerFlex 525 Adjustable Frequency Drive product family that is fitted for use in industrial applications and meets modern integration and connectivity requirements for operational flexibility and efficiency.

Other plant personnel refer to this device as Variable Speed Drive (VFD), Adjustable Speed Drive, Frequency inverter, inverter or simply, motor drive. All these terms refer to this electronic device that implements basic motor control as well as modulating speed control of an AC motor. This drive operates at an input supply voltage of 480VAC, 3-Phase along an input frequency range of 47-63Hz. It delivers an output power of 0.75 kW or 1.0 HP, 2.3 Amperes and fully-programmable frequency of 0-500 Hz.

For drive configuration, it is provided with an integrated Human Interface Module (HI) with LCD display and embedded keys that allow local operation, configuration and troubleshooting of drive in the event of error.

Other built-in features of this drive include an integrated EMC filter, built-in I/O terminals composed of Seven (7) Sink / Source discrete inputs, One (1) N.O., One (1) N.C. Contacts relay contact output, Two (2) Digital / Optocoupler outputs, Two (2) 0-10VDC; 0-20mA analog inputs, One (1) 0-10VDC; 0-20mA analog output and Potentiometer terminal.

It features CustomView, AppView, MainsFree, and QuickView programming and configuration tools and it combines a wide range of communication and motor control options that make it ideal for different applications in different industries. Its compact design and zero stacking capability in atmospheric temperatures between 0 and 45 degrees Celsius help to maximize panel space during installation. The detachable control modules of the 25B-D2P3N114 PowerFlex drive can be connected to a PC through USB cables for fast uploading and downloading of drive data and configuration through MainsFree configuration and this drive supports the use of up to 2 accessory cards simultaneously without altering its footprint. To provide trouble-free operation in ungrounded distribution systems, the 25B-D2P3N114 PowerFlex drive leverages the power of its removable Metal Oxide Varistor (MOV) that is connected to the ground. It incorporates some other protective features including the BUS under-voltage trip, BUS overvoltage trip, 100 milliseconds power ride through, motor overload protection, over-current protection, and the phase-to-phase and phase-to-ground protection on the drive output. Four (4) independently programmable acceleration and deceleration times are available on the 25B-D2P3N114 PowerFlex drive and they can be configured to any setting between 0 and 600 seconds. This drive has an A-frame size and it is housed in an IP20 NEMA enclosure suitable for use in different environments provided it is not exposed to corrosive gases, vapor, or direct rain and sunlight.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
