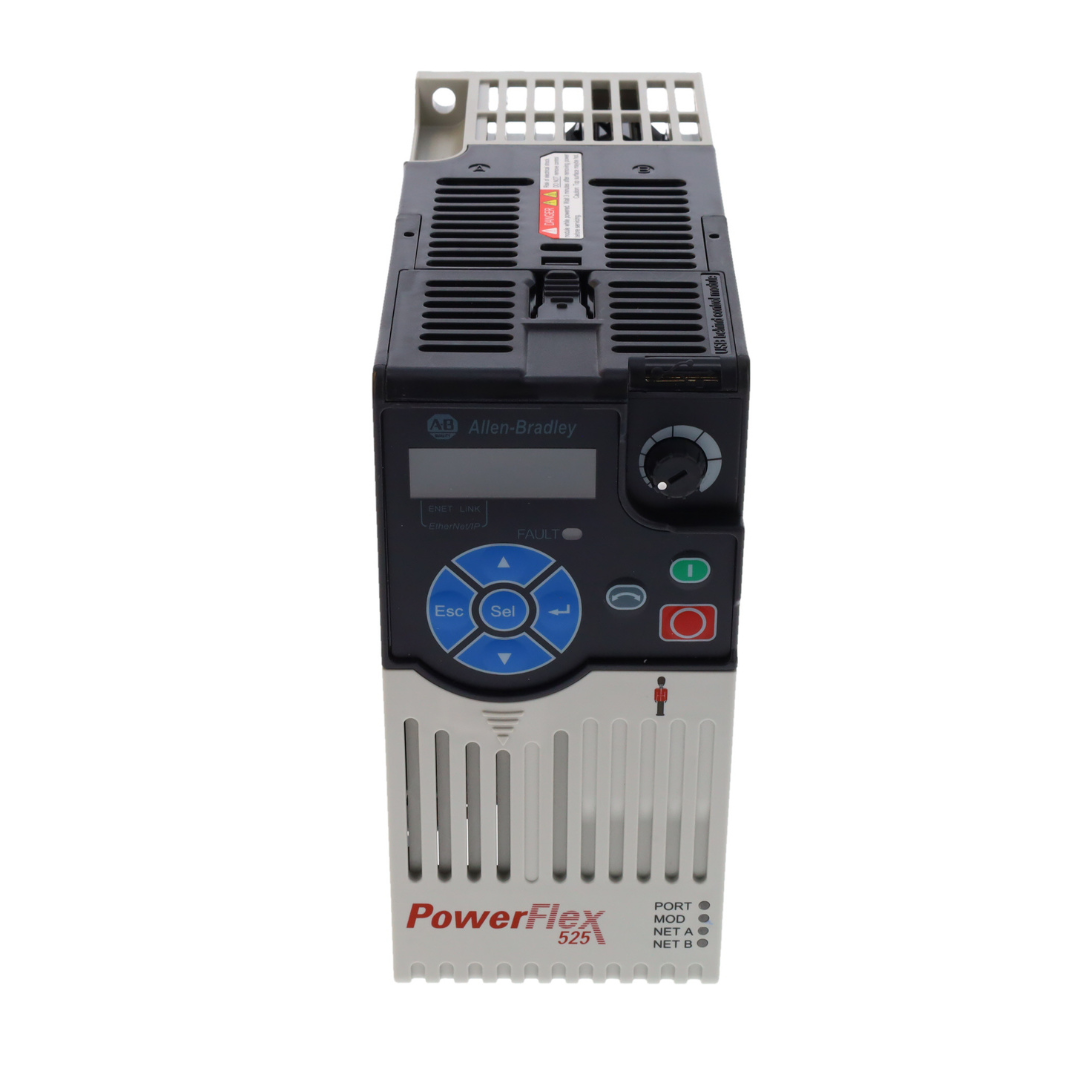

25B-D4P0N114 | Allen-Bradley PowerFlex 525 AC Drive 480V, 3-Ph, 1.5kW, 2HP
- Regular price
- $460.00
- Sale price
- $460.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 25B-D4P0N114
Description
The Allen-Bradley 25B-D4P0N114 is a PowerFlex 525 adjustable frequency AC drive with a 480V AC three-phase input. It delivers 1.5 kW (2 HP) of motor power at 4.0 A output current and comes in an IP20 NEMA open-type enclosure.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Series | PowerFlex 525 Drive |
| Part Number | 25B-D4P0N114 |
| Product Family | PowerFlex 40P |
| Control Method | Ethernet I/P |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Zero Stacking | Supported |
| Installation | Panel Mount / DIN Rail |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Output Power | 1.5 kW (2.0 HP) |
| Output Voltage | 0-460VAC |
| Input Current | 5.7 A |
| Input Phase | 3-Phase |
| Manufacturer | Rockwell Automation |
| Output Current | 4.0 A |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | Filter |
Information About 25B-D4P0N114
The 25B-D4P0N114 belongs to the PowerFlex 525 family of drives, which are designed to combine compact size with high performance and network-ready integration. It supports input voltages of 323–528V AC and can handle both normal and heavy-duty operations. The drive provides advanced control options such as Volts per Hertz, Sensorless Vector Control (SVC), Closed Loop Vector Control, and Permanent Magnet motor control. Additional positioning features like PointStop™, point-to-point positioning, and optional encoder feedback expand its versatility. With its internal PID controller, the 25B-D4P0N114 can regulate processes without external controllers. The drive includes integrated EMC filtering for noise reduction, supports EtherNet/IP connectivity for seamless integration, and allows flexible mounting options with DIN rail and panel configurations.
Key Features:
- Input and Output: Accepts three-phase 323–528V AC input and delivers 1.5 kW (2 HP) motor power with 4.0 A output current for normal and heavy-duty applications.
- Motor Control Methods: Offers multiple control modes including V/Hz, Sensorless Vector Control, Closed Loop Vector Control, and Permanent Magnet motor control for precise performance.
- Positioning Capabilities: Supports PointStop™ technology for consistent stopping, optional closed-loop encoder feedback, and point-to-point positioning functions.
- PID Controller: Integrated PID control allows stand-alone regulation of motor speed and process variables without requiring additional hardware.
- Communication: EtherNet/IP connectivity ensures direct integration with Logix platforms, reducing programming time and improving system efficiency.
- Input/Output Configuration: Provides seven discrete inputs, multiple optocoupler outputs, one analog input (0–10V or 0–20 mA), and one analog output for flexible application needs.

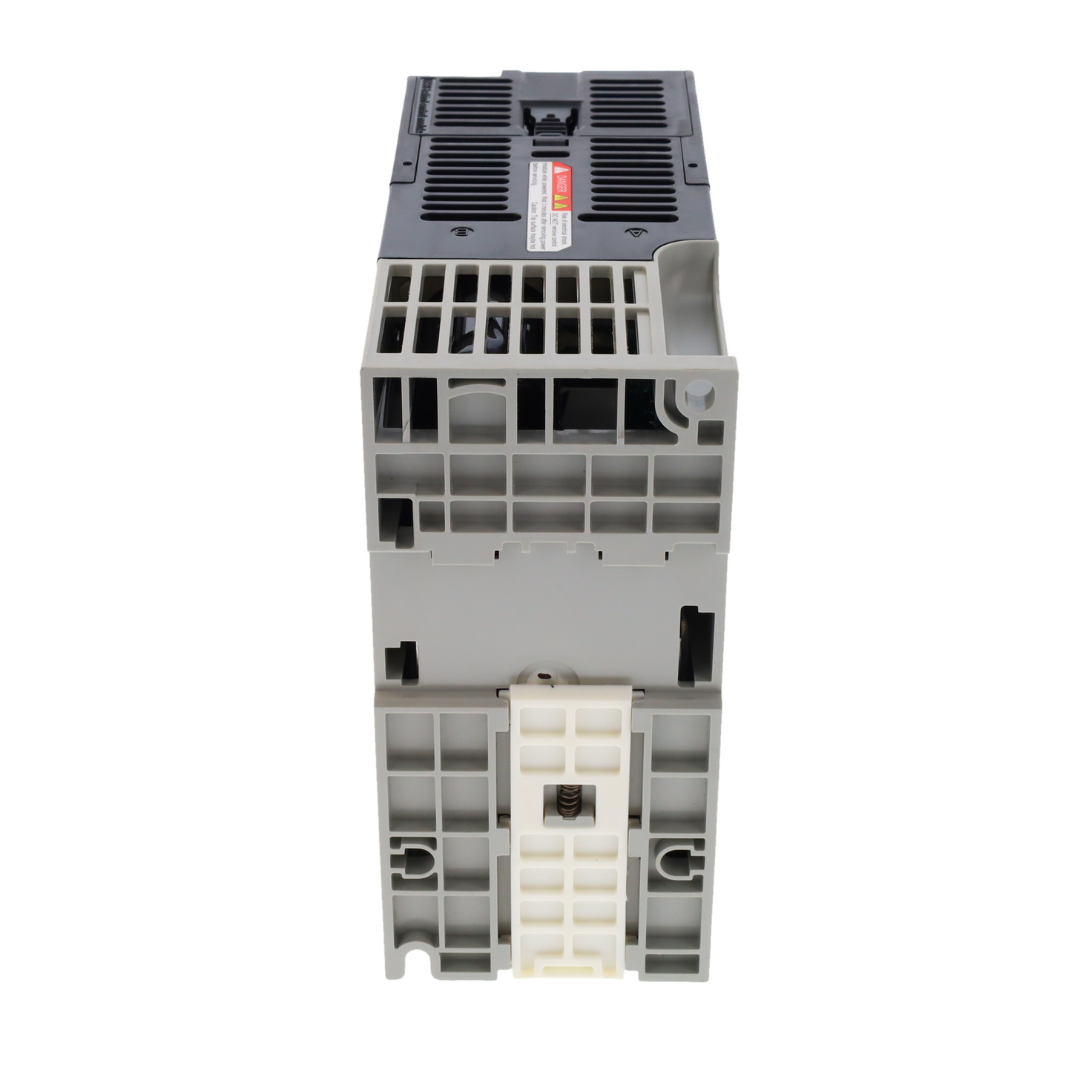

- Enclosure and Mounting: IP20/NEMA open-type enclosure with support for panel mounting, DIN rail installation, and zero stacking for space-saving deployment.
- Safety and Protection: Includes overload protection (150% for 60s, 200% for 3s), ground fault protection, and internal brake IGBT with dynamic braking capability.
The 25B-D4P0N114 delivers advanced motor control, integrated safety, and seamless connectivity, making it a powerful and flexible solution for industrial drive applications.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
