2711-B6C9L1 | Allen-Bradley Operator Interface

Description

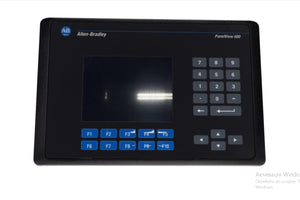

The Allen-Bradley 2711-B6C9L1 is a PanelView 600 operator interface terminal featuring a 5.7-inch color display with both keypad and touch screen input.

Technical Specifications

Information About 2711-B6C9L1

The Allen-Bradley 2711-B6C9L1 is a PanelView 600 Standard Operator Terminal designed to provide intuitive and efficient human-machine interaction in industrial settings. Below is a detailed overview of its features and specifications:

Key Features:

• Display:

  • Type: 5.7-inch Color Active Matrix TFT

  • Resolution: 320 x 234 pixels

  • Display Area: 115 x 86 mm (4.54 x 3.4 inches)

• Input Methods:

  • Keypad: Full numeric keypad with function keys

  • Touchscreen: Analog resistive touchscreen with 128 touch cells

• Communication Ports:

  • Primary Port: RS-232 (DH-485 protocol) for controller communication

  • Secondary Port: RS-232 Printer Port for alarm and event printing

• Memory:

  • Application Runtime: 170 KB

  • Non-volatile Storage: 240 KB for application objects, text, and bitmaps

• Power Requirements:

  • Input Voltage: 24V DC nominal (operating range: 18…32V DC)

  • Power Consumption: Approximately 24 Watts (1.0 Amp at 24V DC)

• Environmental Specifications:

  • Operating Temperature: 0 to 50°C (32 to 122°F)

  • Storage Temperature: -25 to 70°C (-13 to 158°F)

  • Relative Humidity: 5 to 95% non-condensing

  • Shock Rating: 15 g (operating), 30 g (non-operating)

• Enclosure Ratings:

  • Designed for NEMA Type 12, 13, 4X (indoor use only), and IEC IP54, IP65 rated enclosures

• Dimensions:

  • Physical Size: Approximately 152 x 185 x 68 mm (6.0 x 7.28 x 2.68 inches)

  • Panel Cutout: Approximately 142 x 241 mm (5.61 x 9.50 inches)
