Product Description P/N: 2711-K3A2L1
Description

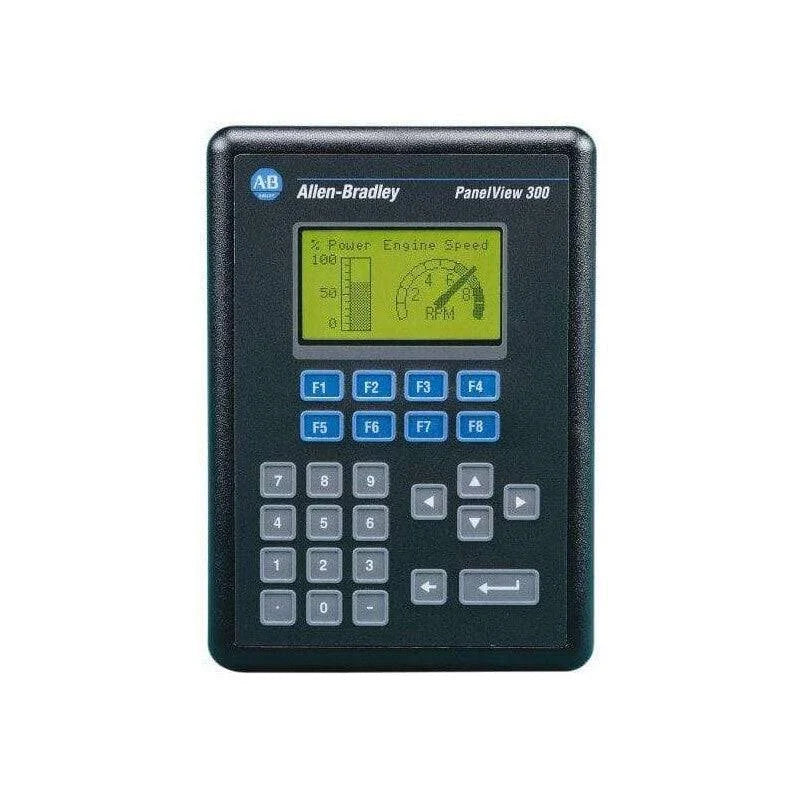

The Allen-Bradley 2711-K3A2L1 PanelView 300 Monochrome Terminal is a compact, monochrome operator interface designed for industrial applications. It features a 3-inch screen for displaying control data and diagnostics, and supports user input via a keypad.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | HMI / MMI / OIT |
| Part Number | 2711-K3A2L1 |
| Subcategory | Operator Interface |
|
Product Type
|
PanelView 300 Standard Operator Terminals |
| Display Type | Monochrome transflective LCD with LED backlight |
|
Display Area |
73 mm (w) x 42 mm (h) 2.87 in. (w) x 1.67 in. (h)
|
|
Resolution
|
128 x 64 Pixels |
| Keypad Assembly | 8 function keys (F1…F8); Cursor keys; Numeric entry keys |
| Application Memory | 170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication Ports | DH485 |
| Input Voltage Range | 18…32V DC (24V DC nom) |
| Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Status Indicators | COMM: Green Fault: Red |
| Product Line | Panelview 300 |
| Display Size | 3 in. |
| Display Color | Monochrome |
| Input Type | Keypad |
| Input Power | 24 VDC |
| Memory | 240 KB |
| Series | A, B |
| Weight | 0.99 lbs |
Information About 2711-K3A2L1
The Allen-Bradley 2711-K3A2L1 is a PanelView 300 Monochrome Terminal designed for simple operator interface applications in industrial environments. It offers a compact and cost-effective solution for basic control and monitoring of machinery or processes.
Key Features:
-
Display: 3-inch monochrome display, suitable for viewing basic control data and system diagnostics.
-
Keypad: Equipped with a 10-function keypad, providing a straightforward method for user input and control.
-
Communication: Supports communication with Allen-Bradley PLCs and other control systems, offering reliable data exchange for monitoring and control functions.
-
Compact Design: Its small form factor allows for easy integration into tight spaces or existing control panels, making it ideal for smaller applications.
-
User Interface: Provides basic graphical displays and text-based messaging for real-time monitoring, diagnostics, and control.
-
Durable Construction: Built to withstand the demands of industrial environments, ensuring long-term reliability and performance.
The 2711-K3A2L1 is best suited for industrial settings where basic monitoring and control are required, such as simple machinery, pumps, conveyors, and other equipment. It is an ideal choice for users who need a straightforward HMI for controlling and troubleshooting operations without the complexity of more advanced systems.
