2711-K5A1 | Allen-Bradley PanelView 550 Monochrome/Keypad/RIO/RS232-Print Port, AC
- Regular price
- $2,695.00
- Sale price
- $2,695.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711-K5A1
Description

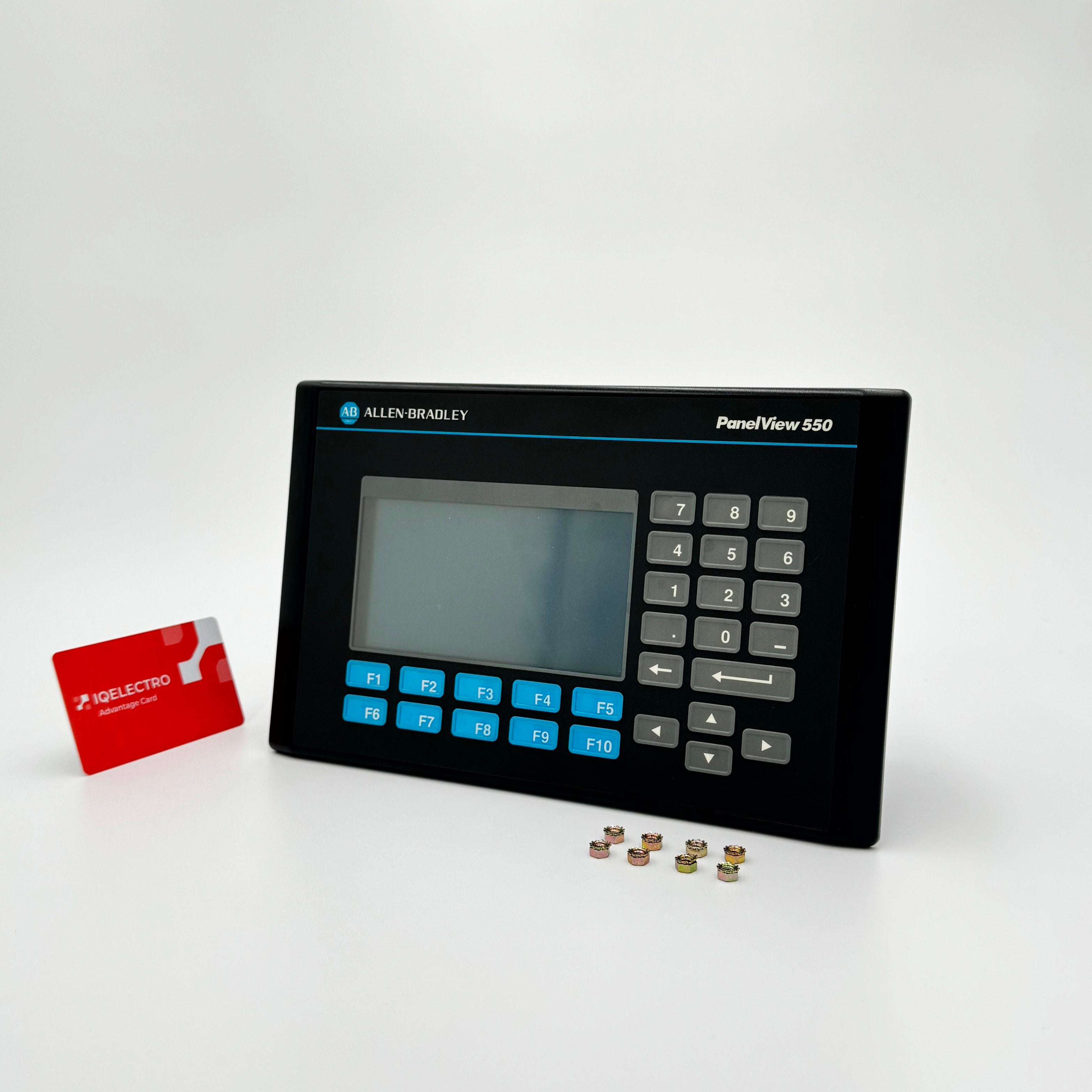

The Allen-Bradley 2711-K5A1 is a Panelview 550 Standard Operator Terminal. This operator terminal is powered by an external 85-264V AC supply voltage and has a 5.5 inch monochrome display with embedded Remote I/O communication (RIO) communication and RS232 printer port. It has Ten (10) Function keys and a Keypad operator interface.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 2711-K5A1 |
| Backlight | 100,000 hr LED backlight life |
| Status Indicators | COMM: Green Fault: Red |
| Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Input Frequency | 47…63 Hz |
| Input Voltage range | 85…264V AC |
| Communication ports | Remote I/O (RIO); RS232 (printer) |
| Application memory | 170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Keypad Assembly | 10 function keys (F1…F10) |
| Resolution | 256 x 128 |
| Display Area | 120 x 60 mm (4.75 x 2.38 in.) |
| Display Type | Monochrome transflective LCD with LED backlight |
| Operator Input | Keypad |
| Product Type | PanelView 550 Standard Operator Terminals |
| Product Family | PanelView Standard Operator Terminals |
| Product Line | Panelview 550 |
| Display Size | 5.5 in. |
| Display Color | Monochrome LCD blue mode |
| Input Type | Keypad(F1-F10) |
| Communication | Remote I/O Communication and RS-232 Printer Port |
| Input Power | 120 VAC |
| Memory | 170 KB application runtime |
| Communication Cable | 2711-NC13 |
| Shipping Dimensions | 14x11x8 inches |
| Series | A,B,C,D,E,F,G,H |
Information About 2711-K5A1
The 2711-K5A1 is a Human Machine Interface (HMI) device that is part of Allen-Bradley’s bulletin 2711 PanelView Standard Operator terminals. This product category is an obsolete product line with an industrially approved assembly, able to operate and withstand the demanding requirements of the automation industry.
The 2711-K511 comes with a rugged design which primarily features a 5.5-inch display screen, with display area of 120 x 60 mm (4.75 x 2.38 in.) where a monochrome process or machine mimic display may be designed to effectively reflect the status of operation of any connected application. This HMI is capable of displaying industrial graphical representation, texts and symbols related to the process. This monochrome screen provides the process visualization.

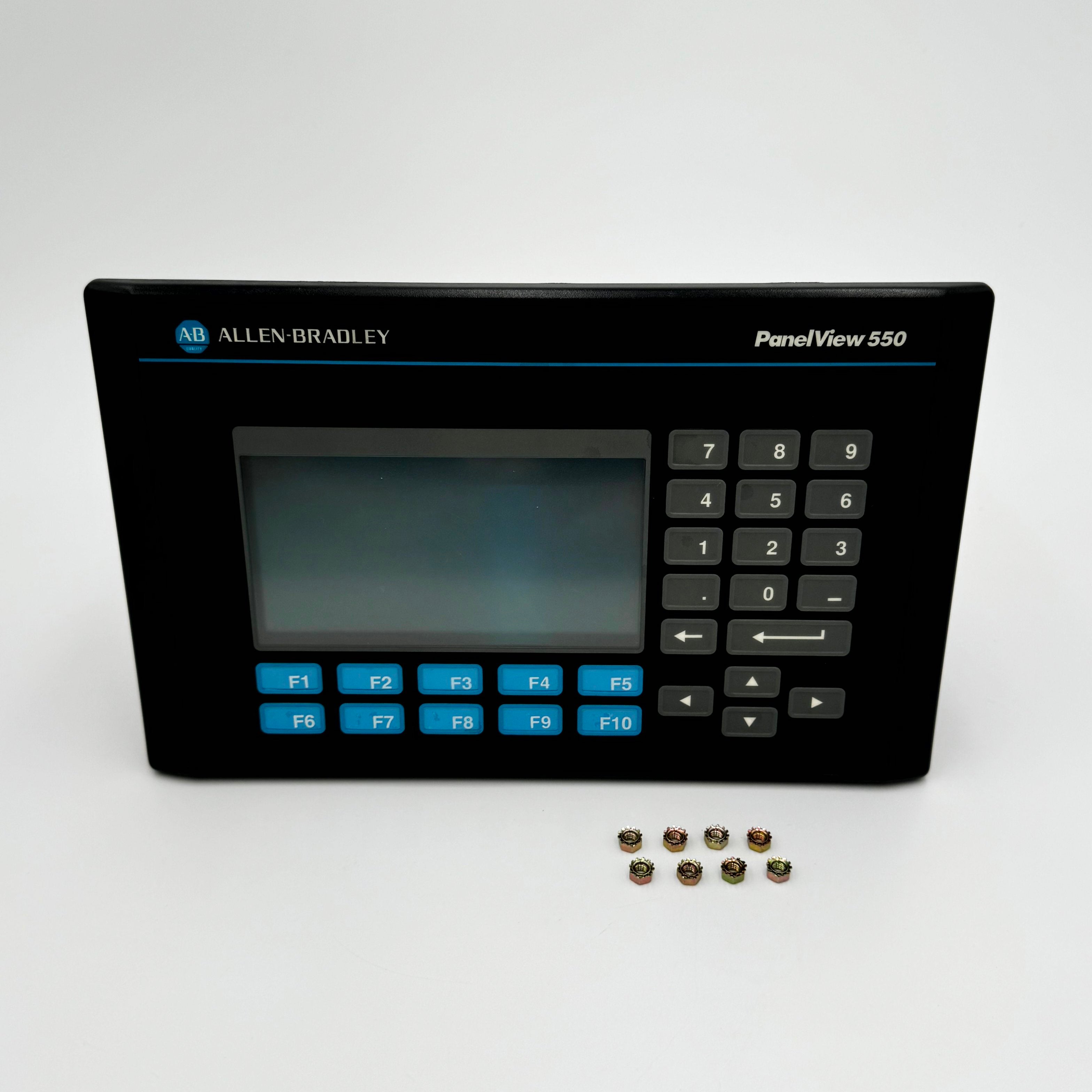

Control and interaction to the machine or process is initiated through the embedded keypad which is composed of Then (10) function keys, numerical key set and navigational buttons. These keypads enable the operator to enter commands, modify parameters, interact with system alarms and messages and navigate to different HMI screens.

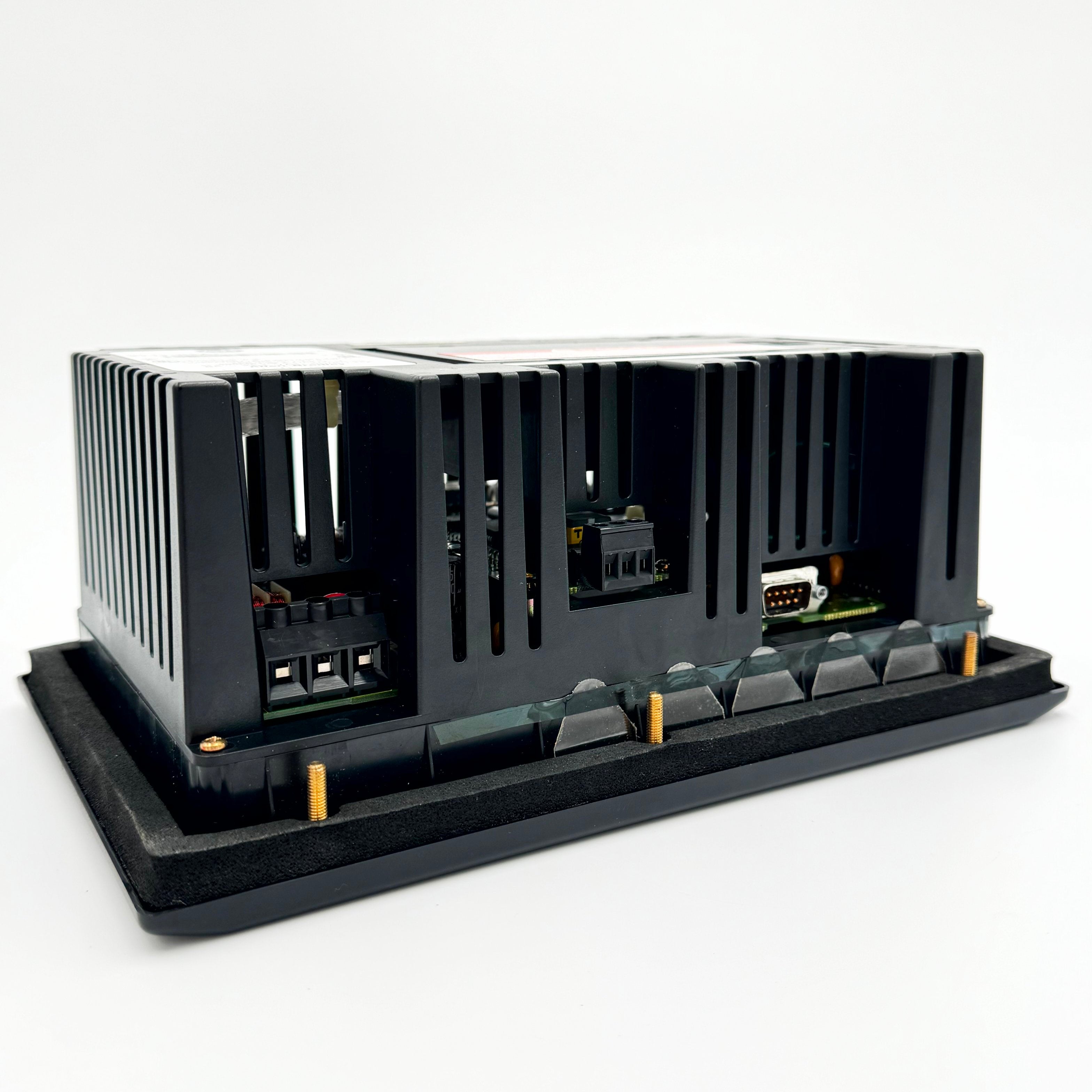

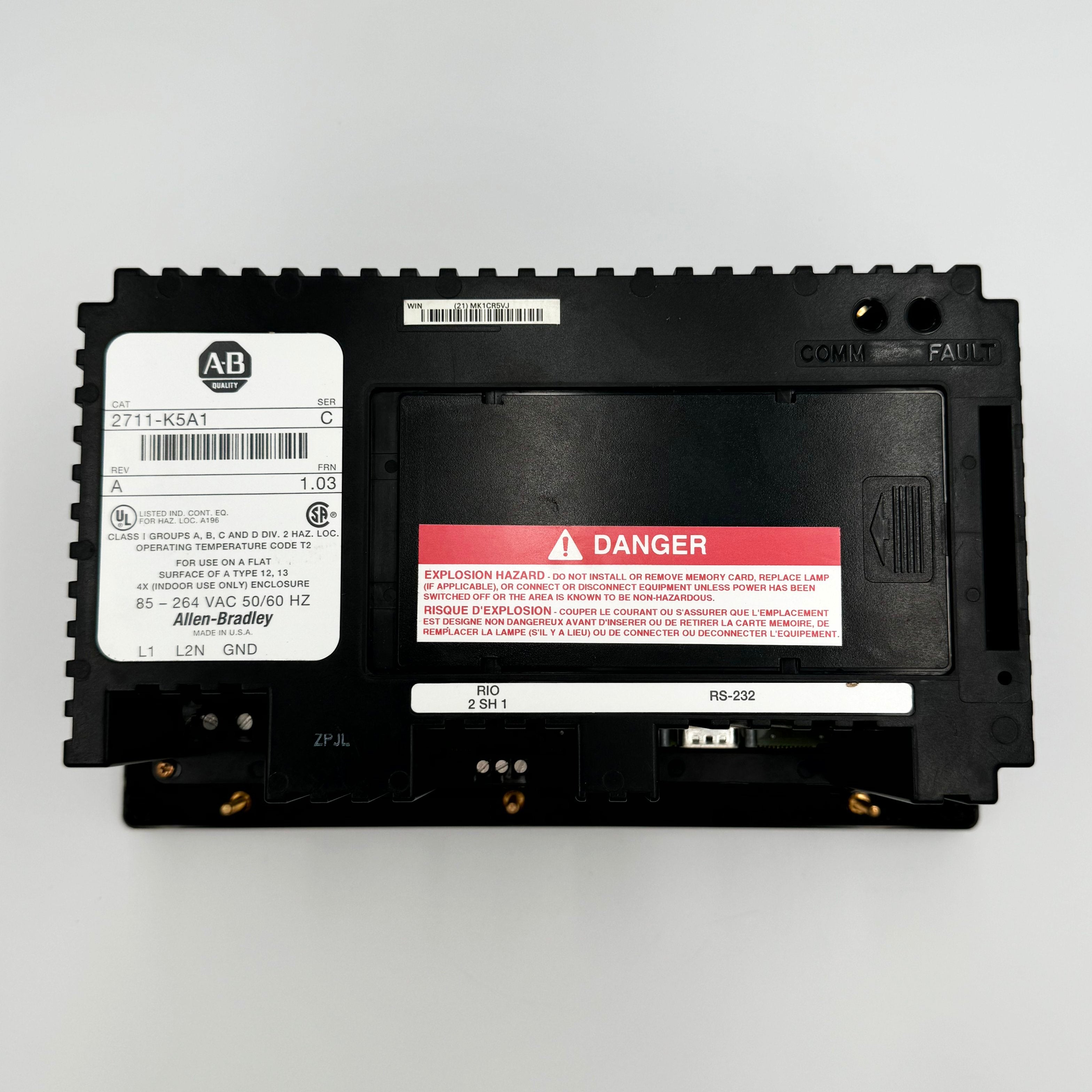

Communication with controllers is implemented through the built-in Remote I/O (RIO) communication terminal that supports daisy-chain topology, using Belden 9463 cable. It also has a single RS232 Printer port that is specifically used for communicating with printers for documentation of alarm logs.
The 2711-K5A1 comes with built-in memory pre-allocated for 170 KB application runtime and 240 KB nonvolatile RAM used for application objects plus text and bitmaps.
The 2711-K5A1 is an Allen-Bradley Panelview 550 terminal. The 2711-K5A1 Panelview terminal has a 5.5-inch monochrome LCD blue mode screen. This terminal has an internal backlight that is designed to last up to 100,000 operational hours. It comes with a built-in Remote I/O (RIO) communication port and RS-232 printer port.
The user is able to monitor and control the process using the built-in keypad where process information, data, and commands are initiated. The keypad has 10 programmable function keys labeled from F1 to F10 that can be assigned and perform specific functions. The 2711-K5A1 PanelView terminal is powered by 85-264V AC supply voltage. This unit has an internal memory of 170 KB of application runtime. Accessories that users can add on to the 2711-K5A1 terminal for different functions include a PC memory card, a function key legend, and an anti-glare shield for the display.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
