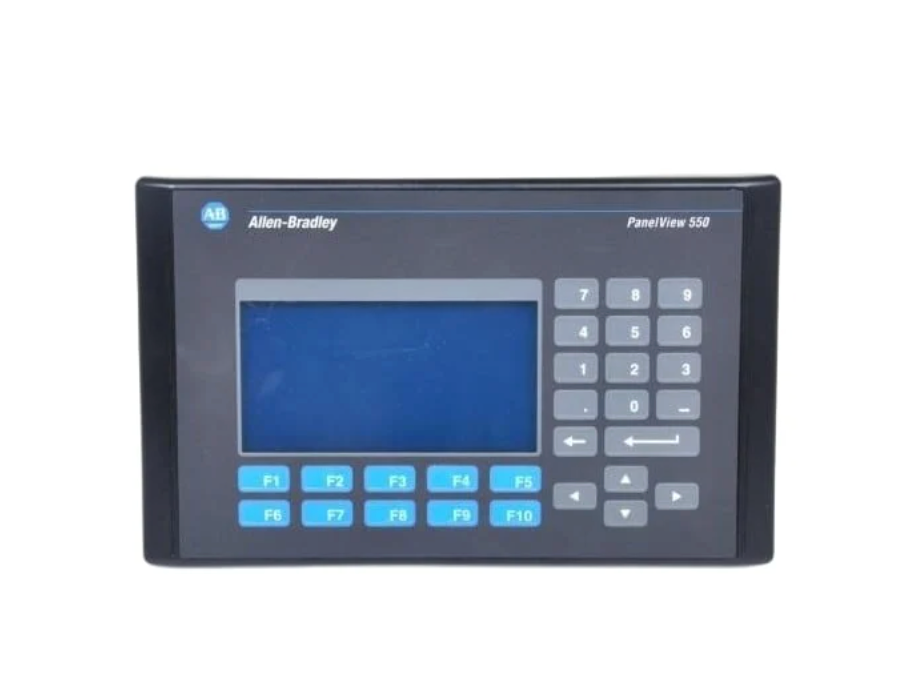

2711-K5A8L1 | Allen-Bradley PanelView 550 5.5-Inch Monochrome Keypad HMI Terminal
- Regular price
- $4,259.00
- Sale price
- $4,259.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2711-K5A8L1
Description
The Allen-Bradley 2711-K5A8L1 is a PanelView 550 standard operator terminal designed for compact industrial visualization and control. It features a 5.5-inch monochrome LCD display with a keypad interface and supports DH+ communication. The terminal operates on 24 V DC power and includes an RS-232 printer port for data output.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | HMI / MMI / OIT |
| Part Number | 2711-K5A8L1 |
| Subcategory | Operator Interface |
| Product Line | PanelView 550 |
| Product Family | PanelView Standard Operator Terminals |
| Display Size | 5.5 in |
| Display Type | Monochrome transflective LCD |
| Display Resolution | 256 × 128 |
| Display Area | 120 × 60 mm (4.75 × 2.38 in) |
| Operator Input | Keypad (F1–F10) |
| Communication Ports | DH+, RS-232 (printer) |
| Input Voltage Range | 18–32 V DC |
| Input Power | 24 V DC |
| Application Memory | 170 KB runtime |
| Nonvolatile Memory | 240 KB |
| Backlight Life | 100,000 hours LED |
| Enclosure Rating | NEMA 12/13, 4X (indoor), IP54/IP65 |
| Status Indicators | COMM (green), Fault (red) |
| Communication Cable | 2711-NC13 |
| Shipping Weight | 6 lb |
| Shipping Dimensions | 14 × 11 × 8 in |
| Series | A through H |
Information About 2711-K5A8L1
The 2711-K5A8L1 is part of the Allen-Bradley PanelView Standard operator terminal family, developed for reliable human-machine interface functionality in industrial environments. It is constructed with a transflective monochrome LCD and LED backlight to ensure readability in varying lighting conditions. The terminal integrates into legacy automation systems using DH+ networking and supports peripheral connectivity through its serial printer port. It is commonly used in manufacturing, material handling, and process control applications where compact size and dependable operator input are required.
Key Features:
- PanelView 550 platform: Designed for compact industrial HMI applications.
- 5.5-inch monochrome display: Provides clear visualization of process data.
- Keypad operator interface: Includes ten programmable function keys.
- DH+ communication support: Enables integration with legacy Allen-Bradley networks.
- RS-232 printer port: Allows direct connection to compatible printers.
- 24 V DC operation: Compatible with standard industrial power systems.
- Transflective LCD technology: Enhances visibility under different lighting conditions.
- Long-life LED backlight: Supports extended continuous operation.
- Industrial enclosure ratings: Suitable for indoor industrial environments.
The 2711-K5A8L1 delivers the reliability and precision required for operator interface and data interaction in industrial automation systems.
Description
The Allen-Bradley 2711-K5A8L1 is a PanelView 550 standard operator terminal designed for compact industrial visualization and control. It features a 5.5-inch monochrome LCD display with a keypad interface and supports DH+ communication. The terminal operates on 24 V DC power and includes an RS-232 printer port for data output.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | HMI / MMI / OIT |
| Part Number | 2711-K5A8L1 |
| Subcategory | Operator Interface |
| Product Line | PanelView 550 |
| Product Family | PanelView Standard Operator Terminals |
| Display Size | 5.5 in |
| Display Type | Monochrome transflective LCD |
| Display Resolution | 256 × 128 |
| Display Area | 120 × 60 mm (4.75 × 2.38 in) |
| Operator Input | Keypad (F1–F10) |
| Communication Ports | DH+, RS-232 (printer) |
| Input Voltage Range | 18–32 V DC |
| Input Power | 24 V DC |
| Application Memory | 170 KB runtime |
| Nonvolatile Memory | 240 KB |
| Backlight Life | 100,000 hours LED |
| Enclosure Rating | NEMA 12/13, 4X (indoor), IP54/IP65 |
| Status Indicators | COMM (green), Fault (red) |
| Communication Cable | 2711-NC13 |
| Shipping Weight | 6 lb |
| Shipping Dimensions | 14 × 11 × 8 in |
| Series | A through H |
Information About 2711-K5A8L1
The 2711-K5A8L1 is part of the Allen-Bradley PanelView Standard operator terminal family, developed for reliable human-machine interface functionality in industrial environments. It is constructed with a transflective monochrome LCD and LED backlight to ensure readability in varying lighting conditions. The terminal integrates into legacy automation systems using DH+ networking and supports peripheral connectivity through its serial printer port. It is commonly used in manufacturing, material handling, and process control applications where compact size and dependable operator input are required.
Key Features:
- PanelView 550 platform: Designed for compact industrial HMI applications.
- 5.5-inch monochrome display: Provides clear visualization of process data.
- Keypad operator interface: Includes ten programmable function keys.
- DH+ communication support: Enables integration with legacy Allen-Bradley networks.
- RS-232 printer port: Allows direct connection to compatible printers.
- 24 V DC operation: Compatible with standard industrial power systems.
- Transflective LCD technology: Enhances visibility under different lighting conditions.
- Long-life LED backlight: Supports extended continuous operation.
- Industrial enclosure ratings: Suitable for indoor industrial environments.
The 2711-K5A8L1 delivers the reliability and precision required for operator interface and data interaction in industrial automation systems.
