2711-K6C16 | Allen-Bradley PanelView 600 Membrane Keypad Switch
- Regular price
- $3,519.00
- Sale price
- $3,519.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711-K6C16
Description
The 2711-K6C16 is a PanelView 600 operator terminal with a 6-inch color display and a membrane keypad interface. Designed for industrial environments, it features DH+ and RS-232 (Printer) communication ports and 240 KB of application memory.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
HMI / MMI / OIT
|
| Part Number | 2711-K6C16 |
| Subcatecory |
Operator Interface
|
| Product Type | PanelView 300 Component |
|
Display Type |
Color active matrix TFT |
| Display Area | 115 x 86 mm (4.54 x 3.4 in.) |
| Resolution | 320 x 234 |
| Keypad Assembly | 10 function keys (F1…F10) |
| Application Memory | 190 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication Ports | RS232 (DF1); RS232 (printer) |
| Input Voltage Range | 85…264V AC |
| Input Frequency |
47…63 Hz
|
| Enclosure |
NEMA Type 12/13, 4X (Indoor use only), IP54, IP65
|
| Status Indicators |
COMM: Green Fault: Red
|
| Product Line | Panelview 600 |
| Display Size | 5 in. |
| Display Color | Color |
| Input Type | Keypad |
| Memory | 240 KB |
| Weight | 5.45 lbs |
Information About 2711-K6C16

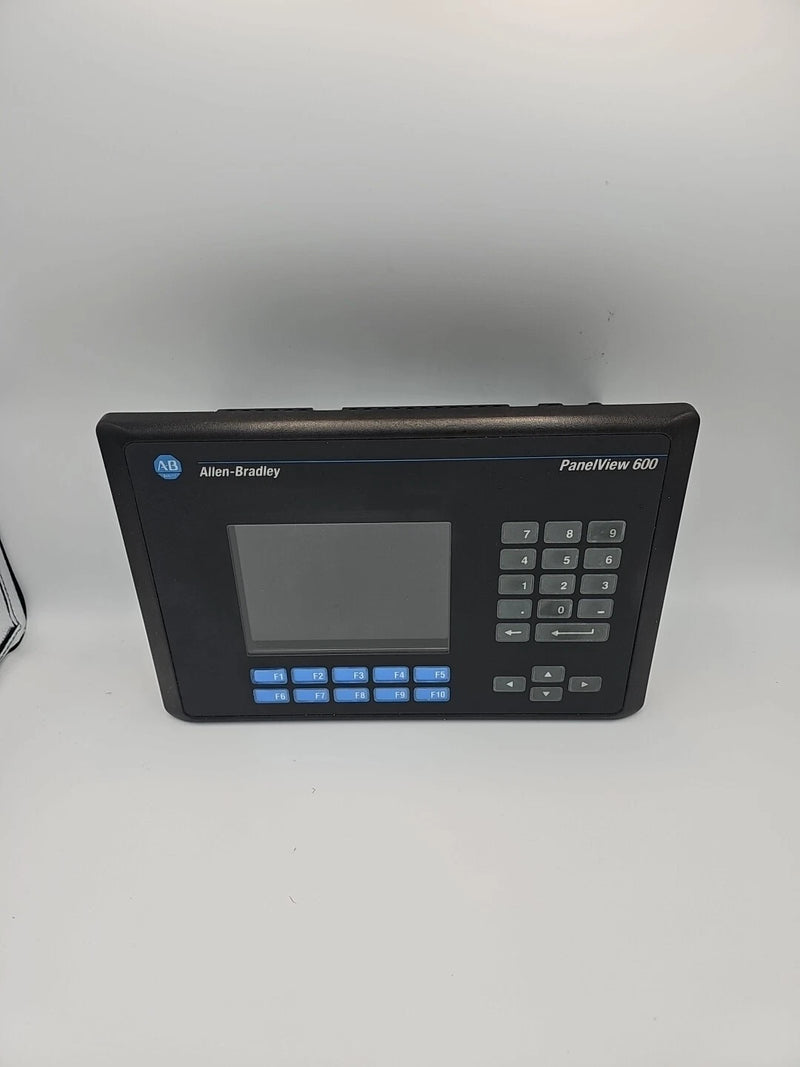

The Allen-Bradley 2711-K6C16 is a robust PanelView 600 Standard Operator Terminal, designed for use in industrial automation environments. It features a 5.7-inch color TFT display with a membrane keypad input interface, supporting efficient operator control and visualization. With dual RS-232 ports (DF1 and printer), it enables flexible communication, and offers reliable performance powered by 85–264V AC input. Its durable panel-mountable design ensures compatibility with harsh industrial conditions and enclosures rated for NEMA 12/13 and 4X (indoor use).
Key Features:
-
Display: 5.7-inch color TFT active matrix LCD
-
Resolution: 320 x 234 pixels
-
Backlight Life: Approx. 50,000 hours
-
Keypad Input: 10 programmable function keys (F1–F10), navigation arrows, numeric keys
-
Memory: 190 KB application runtime, 240 KB non-volatile storage
-
Communication Ports: RS-232 (DF1) and RS-232 (printer port)
-
Power Supply: 85–264V AC, 47–63 Hz
-
Mounting: Panel-mounted; compatible with NEMA Type 12/13 and 4X enclosures
-
Environmental Ratings:
-
Operating Temp: 0 to 55°C (32 to 131°F)
-
Storage Temp: -20 to 70°C (-4 to 158°F)
-
Altitude: Up to 2000 m (6561 ft)
-
-
Status: Discontinued; available via surplus and refurbishment sources
This terminal is an ideal solution for reliable, user-friendly machine interface in legacy or supported industrial control systems.
