2711-M3A18L1 | Allen-Bradley PanelView 300 Micro Monochrome, RS-232 (DF1) 24V DC
- Regular price
- $1,799.00
- Sale price
- $1,799.00
- Regular price
-
Do you need help?
Product Description P/N: 2711-M3A18L1
Description

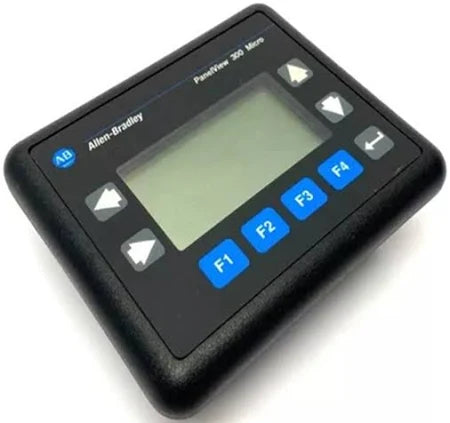

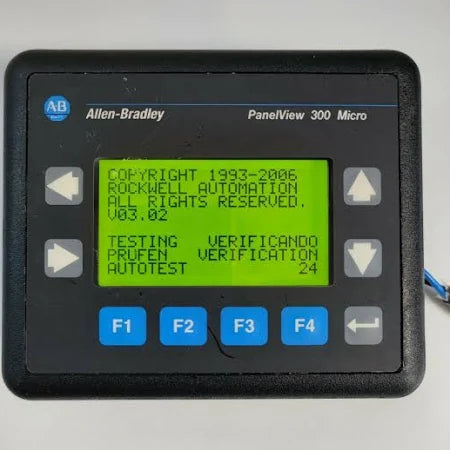

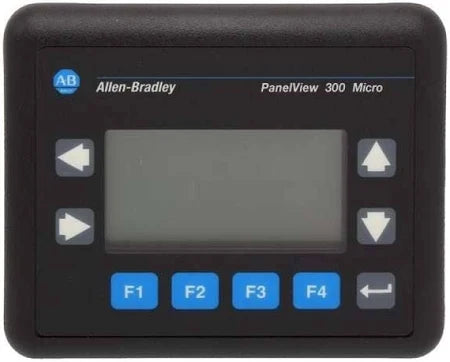

The Allen-Bradley 2711-M3A18L1 is a Panelview Standard 300 Micro Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 3-inch Monochrome display screen with 8-Pin RS232 interface that supports DF1 protocol. It has Four (4) Function keys and a Keypad operator interface.
Technical Specifications
Brand | Allen-Bradley |
Series | A and B |
Part Number | 2711-M3A18L1 |
Input Voltage range | 18-32VDC |
Resolution | 128 x 64 |
Display Area | 73 x 42 mm (2.87 x 1.67 in.) |
Display Type | Monochrome transflective LCD with LED backlight |
Operator Input | Keypad |
Product Family | PanelView Standard Operator Terminals |
Manufacturer | Rockwell Automation |
Keypad Assembly | 4 function keys (F1…F4) |
Application memory | 170 KB application runtime 240 KB nonvolatile memory (application objects plus text and bitmaps) |
Communication ports | RS232 (DF1) |
Product Type | PanelView Micro 300 Standard Operator Terminals |
Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
Status Indicators | COMM: Green Fault: Red |
Product Line | Panelview 300 |
Display Size | 3 in. |
Display Color | Monochrome |
Input Type | Micro Keypad |
Communication | RS-232 (DF1) Communication Port (8-Pin Mini DIN) |
Input Power | 24 Volt DC |
Backlight | Non-Replaceable |
Communication Cable | 1761-CBL-PM05 |
Shipping Dimensions | 11 x 8 x 6 in. |
Memory | 240 KB |
Information About 2711-M3A18L1
The Allen-Bradley 2711-M3A18L1 is an PanelView Micro 300 Operator Terminal. This is an electronic hardware that is powered by an external 18-32VDC power supply with nominal supply of 24VDC. This operator terminal is primarily used to provide real-time monitoring and interface to the machine or process.
The 2711-M3A18L1 features a monochrome display 3-inch screen with a resolution of 128 x 64 pixels and display area of 73 x 42 mm (2.87 x 1.67 in.). It comes with an internal backlight that is expected to operate up to 100,000 hr.
The 2711-M3A18L1 is also installed with a group of buttons that compose the keypad assembly. These buttons include the Function keys (F1 to F4), numeric keys and navigation keys. It has an internal real-time clock that is battery backed and used to timestamps critical process data.
Due to the small screen size, this HMI is ideal for installation in small machines or simple processes. Textual or simple graphical process mimic may be displayed in this HMI. It comes with a built-in 8-pin mini-DIN RS232 interface that is compatible with DF1. It has an internal memory amounting to 170 KB allotted for application runtime and 240KB used as the terminal's non-volatile memory.
The PanelView Standard 300 is available in several sizes and configurations to meet application requirements. All these variations improve operator productivity and simplify programming. The 2711-M3A18L1 PanelView Standard 300 Micro comes with an operator input keypad with four function keys and an LCD monochrome color display that has an LED backlight with a standby life of 100,000 hours. Its display dimension is 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64.
It has an RS-232 (DF1) communication port. The 2711-M3A18L1 PanelView's input voltage is between 11 to 30 Volts DC (24 Volts DC nominal), with a power consumption of 25 Watts max (0.105 amps at 24 Volts DC). The approximate weight of the 2711-M3A18L1 PanelView Standard 300 Micro is 284 grams (10 ounces), and it has a dimension of 133 x 111 x 48 millimeters (5.23 x 4.38 x 1.87 inches) (length, breadth, and height). The 2711-M3A18L1 PanelView Standard 300 Micro has an operating temperature between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), a storage temperature between -20 and 85 degrees Celsius (-4 and 185 degrees Fahrenheit) and a working relative humidity range from 5-95% noncondensing at 0 to 55 degrees Celsius (32 to 131 deg. F) working temperature. It has a Shock rating of 30 g and operational vibration of 2 g.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
Description
The Allen-Bradley 2711-M3A18L1 is a Panelview Standard 300 Micro Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 3-inch Monochrome display screen with 8-Pin RS232 interface that supports DF1 protocol. It has Four (4) Function keys and a Keypad operator interface.
Technical Specifications
Brand | Allen-Bradley |
Series | A and B |
Part Number | 2711-M3A18L1 |
Input Voltage range | 18-32VDC |
Resolution | 128 x 64 |
Display Area | 73 x 42 mm (2.87 x 1.67 in.) |
Display Type | Monochrome transflective LCD with LED backlight |
Operator Input | Keypad |
Product Family | PanelView Standard Operator Terminals |
Manufacturer | Rockwell Automation |
Keypad Assembly | 4 function keys (F1…F4) |
Application memory | 170 KB application runtime 240 KB nonvolatile memory (application objects plus text and bitmaps) |
Communication ports | RS232 (DF1) |
Product Type | PanelView Micro 300 Standard Operator Terminals |
Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
Status Indicators | COMM: Green Fault: Red |
Product Line | Panelview 300 |
Display Size | 3 in. |
Display Color | Monochrome |
Input Type | Micro Keypad |
Communication | RS-232 (DF1) Communication Port (8-Pin Mini DIN) |
Input Power | 24 Volt DC |
Backlight | Non-Replaceable |
Communication Cable | 1761-CBL-PM05 |
Shipping Dimensions | 11 x 8 x 6 in. |
Memory | 240 KB |
Information About 2711-M3A18L1
The Allen-Bradley 2711-M3A18L1 is an PanelView Micro 300 Operator Terminal. This is an electronic hardware that is powered by an external 18-32VDC power supply with nominal supply of 24VDC. This operator terminal is primarily used to provide real-time monitoring and interface to the machine or process.
The 2711-M3A18L1 features a monochrome display 3-inch screen with a resolution of 128 x 64 pixels and display area of 73 x 42 mm (2.87 x 1.67 in.). It comes with an internal backlight that is expected to operate up to 100,000 hr.
The 2711-M3A18L1 is also installed with a group of buttons that compose the keypad assembly. These buttons include the Function keys (F1 to F4), numeric keys and navigation keys. It has an internal real-time clock that is battery backed and used to timestamps critical process data.
Due to the small screen size, this HMI is ideal for installation in small machines or simple processes. Textual or simple graphical process mimic may be displayed in this HMI. It comes with a built-in 8-pin mini-DIN RS232 interface that is compatible with DF1. It has an internal memory amounting to 170 KB allotted for application runtime and 240KB used as the terminal's non-volatile memory.
The PanelView Standard 300 is available in several sizes and configurations to meet application requirements. All these variations improve operator productivity and simplify programming. The 2711-M3A18L1 PanelView Standard 300 Micro comes with an operator input keypad with four function keys and an LCD monochrome color display that has an LED backlight with a standby life of 100,000 hours. Its display dimension is 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64.
It has an RS-232 (DF1) communication port. The 2711-M3A18L1 PanelView's input voltage is between 11 to 30 Volts DC (24 Volts DC nominal), with a power consumption of 25 Watts max (0.105 amps at 24 Volts DC). The approximate weight of the 2711-M3A18L1 PanelView Standard 300 Micro is 284 grams (10 ounces), and it has a dimension of 133 x 111 x 48 millimeters (5.23 x 4.38 x 1.87 inches) (length, breadth, and height). The 2711-M3A18L1 PanelView Standard 300 Micro has an operating temperature between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), a storage temperature between -20 and 85 degrees Celsius (-4 and 185 degrees Fahrenheit) and a working relative humidity range from 5-95% noncondensing at 0 to 55 degrees Celsius (32 to 131 deg. F) working temperature. It has a Shock rating of 30 g and operational vibration of 2 g.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
