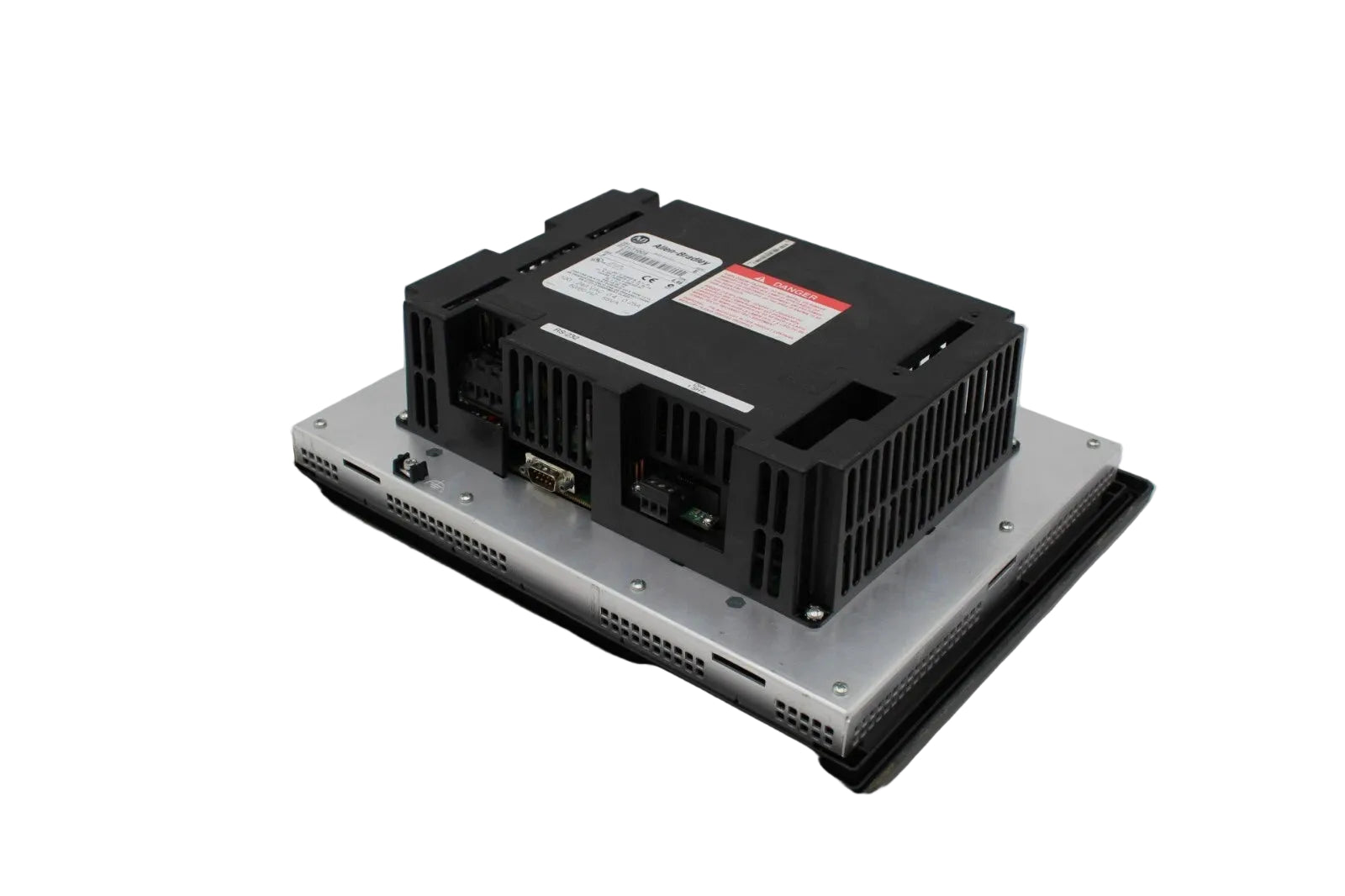

2711-T10C8 | Allen-Bradley PanelView 1000 Touchscreen HMI DH+ 120/240V AC
- Regular price
- $4,175.00
- Sale price
- $4,175.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2711-T10C8
Description
The Allen-Bradley 2711-T10C8 is a PanelView 1000 Standard operator terminal featuring a 10-inch full-color touchscreen, Data Highway Plus (DH+) communication, and an RS-232 printer port. Designed for reliable machine-level monitoring and control, this AC-powered HMI provides a durable, user-friendly interface suitable for a wide range of industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Series | PanelView Standard |
| Part Number | 2711-T10C8 |
| Product Type | PanelView 1000 Operator Terminal |
| Display Size | 10.1 in. |
| Display Type | Color TFT with CCF backlight |
| Resolution | 640 × 480 pixels |
| Touchscreen Type | Analog resistive |
| Touch Cells | 384 (24 columns × 16 rows) |
| Communication Ports | DH+ and RS-232 printer port |
| Input Voltage Range | 85–264V AC, 47–63 Hz |
| Power Source | AC |
| Heat Dissipation | 39 W (132 BTU/hr) |
| Application Memory | 1008 KB |
| Backlight Life | 100,000 hours |
| Operating Temperature | 0–55°C (32–131°F) |
| Storage Temperature | –25 to 70°C (varies by documentation) |
| Enclosure Rating | NEMA Type 12/13, Type 4X (indoor), IP54/IP65 |
| Display Area | 8.3 × 6.2 in. (211 × 158 mm) |
| Mounting | Panel mount |
| Dimensions | Approx. 11.11 × 14.58 × 4.40 in. |
| Weight | 7–8 lb (3.2–3.6 kg) |
| Memory Expansion | ATA Flash card support |
| Backlight | Field replaceable |
| Runtime Memory | 310 KB |
Information About 2711-T10C8
The Allen-Bradley 2711-T10C8 is a robust operator interface belonging to the PanelView 1000 Standard family. With its 10.1-inch color Active Matrix TFT display, 640 × 480 resolution, and intuitive analog resistive touchscreen, the terminal enables operators to easily view process data, interact with machine controls, and acknowledge alarms. This model includes a DH+ (Data Highway Plus) communication port, allowing dependable communication with legacy controllers such as SLC 500 and PLC-5, and many other DH+-enabled devices. Additionally, an RS-232 printer port is available for logging alarms, events, and operational reports. The terminal is AC-powered, supporting a wide voltage range of 85–264V AC at 47–63 Hz, making it compatible with global power standards. It utilizes a long-life LED backlight rated for 100,000 hours, and supports up to 1008 KB of application memory, suitable for environments requiring medium-to-large HMI projects.
Key Features:
- 10.1-inch color TFT touchscreen
- 640 × 480 VGA resolution
- DH+ communication for legacy and industrial networks
- RS-232 printer port for alarm/event logging
- Wide AC input range: 85–264V AC
- NEMA Type 12/13 and 4X (indoor) rated
- 1008 KB application memory
- Long-life LED backlight (100,000 hours)
- Supports ATA Flash memory cards
- Rugged, panel-mounted industrial design
The unit supports ATA Flash memory cards for external storage expansion and includes a field-replaceable backlight and battery-powered real-time clock. Overall, the 2711-T10C8 is a dependable operator terminal ideal for OEM machinery, process control operations, and upgrade scenarios involving DH+ systems.
