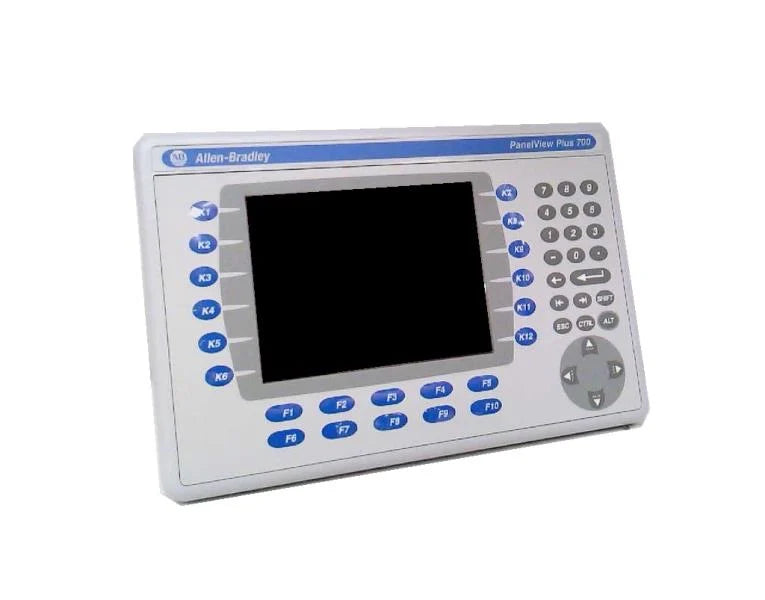

2711P-B7C4D8 | Allen-Bradley PanelView Plus 6 700 Color Terminal 6.5-Inch
- Regular price
- $3,139.90
- Sale price
- $3,139.90
- Regular price
-
$3,694.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711P-B7C4D8
Description
The Allen-Bradley 2711P-B7C4D8 is a 6.5-inch graphic operator terminal from the PanelView Plus 6 700 series. Designed with both touchscreen and keypad input interfaces, it delivers an intuitive HMI experience through its color TFT display and offers flexible communication with Ethernet, RS-232, DH485, and USB ports. This terminal is ideal for real-time machine monitoring and control in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
HMI / MMI / OIT
|
| Part Number | 2711P-B7C4D8 |
| Subcategory | Operator Interface |
| Operator Input | Touch / Keypad |
| Display Type | Color active-matrix TFT |
| Display Area | 115 x 86 mm (4.5 x 3.4 in.) |
| Resolution | 320 x 240, 18-bit color graphics |
| Communication ports | Ethernet, RS-232, DH485, 2 USB host |
| Power Supply Input Voltage range | 18-30VDC |
| Power Consumption | 70 W max (2.9 A at 24V DC), 39 W typical (1.6 A at 24V DC) |
| Product Line | Panelview 6 Plus |
| Display Color | Color |
| Input Type | Keypad/Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 18-32 Volts DC |
| Memory | 512 MB RAM |
| Backlight | 2711P-RL7C2 |
| Communication Cable | 2711-NC14 |
| Shipping Weight | 8 lbs. |
| Shipping Dimensions | 14 x 11 x 8 in |
Information About 2711P-B7C4D8
The 2711P-B7C4D8 combines visual clarity with functional durability to support a wide range of automation tasks. It features a vibrant 6.5-inch color TFT display with a resolution of 320 x 240 pixels, offering sharp 18-bit graphics for operator visualization. The dual-input configuration (keypad and touchscreen) enhances user flexibility in diverse applications. This HMI runs on 24V DC (18–30V DC input range), with typical and maximum power consumption of 39 W and 70 W, respectively. Integrated communication options include Ethernet, RS-232, DH485, and dual USB host ports, making it easy to connect to controllers, flash devices, or programming terminals.
Key Features:
- 6.5-Inch Color TFT Display: Active matrix screen with 18-bit graphics and a 320 x 240 resolution provides clear and detailed operator visuals.
- Dual Input Interface: Combines touchscreen functionality with an integrated keypad for flexible user interaction.
- Multiple Communication Ports: Includes 1 Ethernet, 1 RS-232, 1 DH485, and 2 USB host ports for wide connectivity options.
- 24V DC Input Power: Operates within an 18–30V DC range, typical in industrial control systems.
- Robust Memory and Storage: Equipped with 512 MB RAM to support responsive HMI applications and runtime performance.
- Replaceable Backlight: Compatible with 2711P-RL7C2, enabling extended lifecycle through backlight maintenance.
- Compact and Lightweight: Measures 14 × 11 × 8 inches with a shipping weight of 8 lbs, ideal for compact panel installations.
- Reliable Operation: Power-efficient design with 70 W maximum and 39 W typical consumption ensures consistent performance.
- Field-Replaceable Parts: Simplifies maintenance with replaceable components and standard Rockwell accessory support.
- Versatile Integration: Designed for FactoryTalk View ME environments and integration with CompactLogix, ControlLogix, or MicroLogix controllers.
The 2711P-B7C4D8 provides dependable, user-friendly HMI capabilities for monitoring and controlling automated systems across industrial settings.
