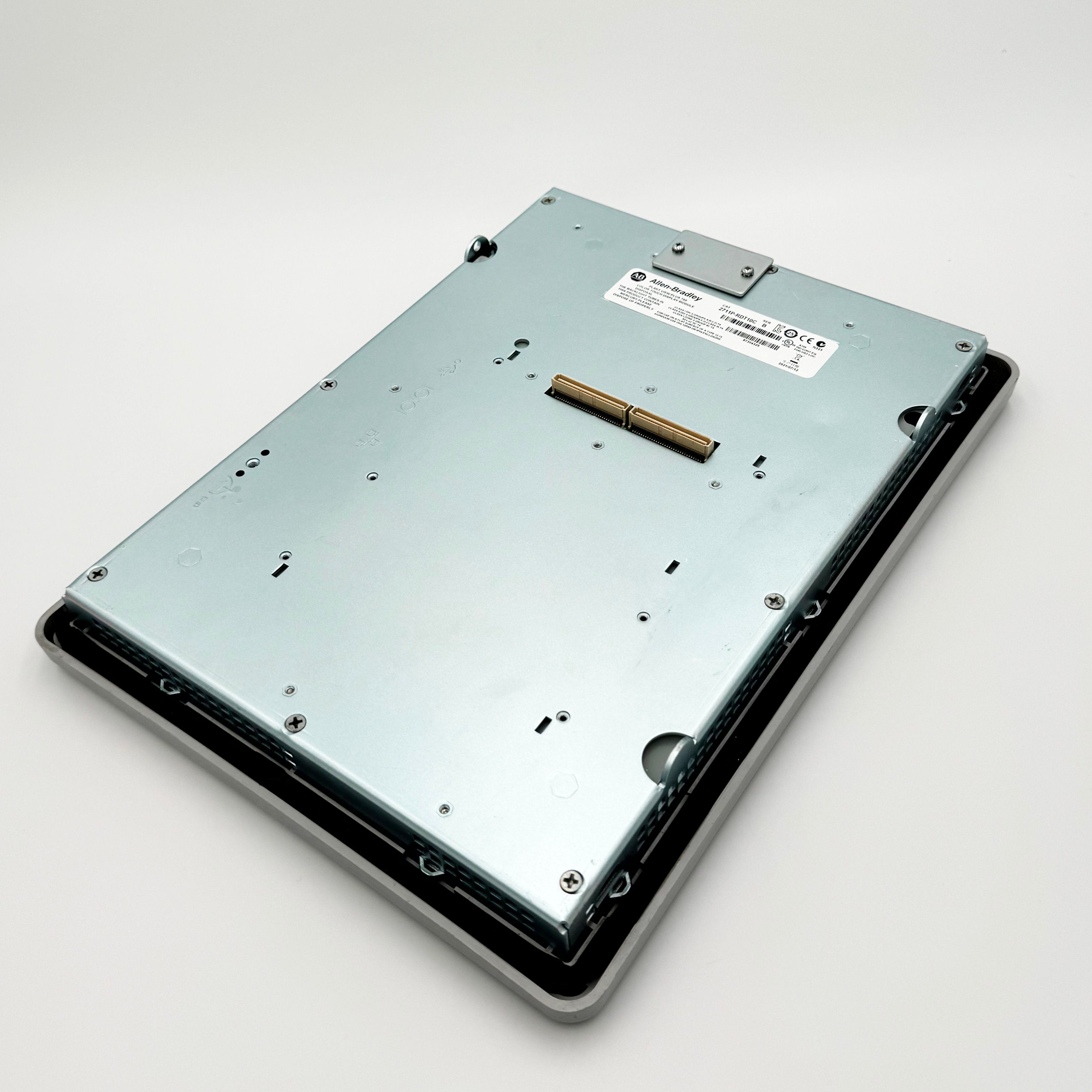

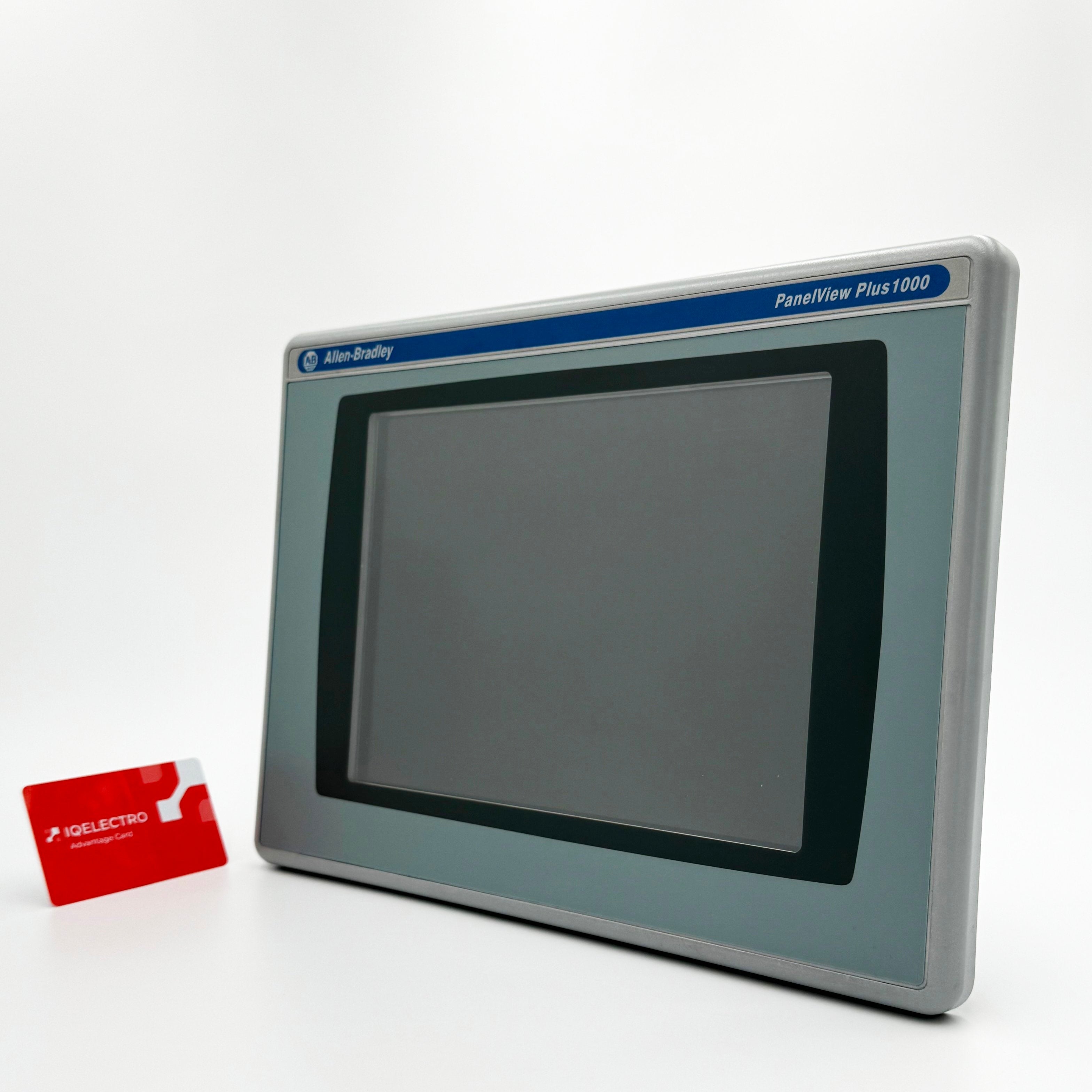

2711P-RDT10C | Allen-Bradley Color Touch 10.4-in PanelView Plus Display Module
- Regular price
- $1,142.00
- Sale price
- $1,142.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711P-RDT10C
Description
The Allen-Bradley 2711P-RDT10C is a display module designed for PanelView Plus and PanelView Plus 6 operator terminals. It features a 10.4-inch color touchscreen interface with high visibility and reliable operation. This module serves as a replacement part for PanelView Plus 1000 units, widely used in industrial control and automation systems.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Series | Panelview Plus 1000 series |
| Part Number | 2711P-RDT10C |
| Touch Input | 8-wire analog resistive |
| Anti-Glare overlay | not included |
| Input interface | Touch |
| Luminance | 300 cd/m2 (Nits)(3) |
| Display colors | 18-bit color graphics |
| Resolution | 211 x 158 mm (8.31 x 6.22) Resolution: 640 x 480 |
| Display Area | 211 x 158 mm (8.31 x 6.22) |
| Compatibility | PanelView Plus 1000 / PanelView Plus 6 Touch terminals |
| Product Family | PanelView Plus Graphic Terminals |
| Manufacturer | Rockwell Automation |
| Touch interface lifespan | 1 Million actuations |
| Actuation force | 10-110 g |
| Display Type | Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) |
| Display Size | 10.4 inches |
| Product Type | Display Module |
| Dimensions | 224 x 375 millimeters |
| Input Type | Touchscreen |
| Power Consumption | 160 VA max |
| Graphics | 18-Bit |
| Enclosure | NEMA, UL or IP-rated |
| Input Voltage | 100 to 240 Volts AC |
| Communication Ports | RS-232 and Ethernet |
Information About 2711P-RDT10C
The 2711P-RDT10C belongs to the PanelView Plus 1000 family and functions as a replacement display assembly for touch-enabled operator terminals used throughout industrial control environments. It features a 10.4-inch TFT color LCD with a 640 × 480 resolution, an 18-bit color depth, and an analog resistive touchscreen rated for up to one million actuations with an actuating force of 10–110 g. The module supports touch calibration, adjustable brightness, and contrast settings, and integrates directly with PanelView Plus logic modules while maintaining compatibility with both PanelView Plus and PanelView Plus 6 terminals. Built with a wide viewing area, long service life, and industrial-rated construction, the 2711P-RDT10C offers reliable human–machine interface performance in demanding environments.
Key Features:
- 10.4-Inch TFT Color Display: Provides a clear, active-matrix LCD with 640 × 480 resolution and an 18-bit color depth for precise graphical representation.
- Durable Resistive Touchscreen: Uses an 8-wire analog resistive interface rated for one million actuations to support long-term intensive operation.
- Full PanelView Compatibility: Designed for use with PanelView Plus and PanelView Plus 6 terminals as a direct replacement module.
- Adjustable Display Controls: Supports touchscreen calibration along with adjustable brightness and contrast for improved visibility in diverse lighting conditions.
- Large Viewing Area: Features a 211 × 158 mm (8.31 × 6.22 in) active display area for expanded operator interaction and monitoring.
- Long Operational Lifespan: Engineered for an approximate 50,000-hour backlight life and includes screen-saver functionality to extend service duration.
- Industrial-Rated Build: Designed for NEMA, UL, or IP-rated enclosures to ensure dependable performance in harsh operating environments.
- Integrated Touch Input: Accepts direct touch input without requiring external pointing devices, enhancing usability for machine operators.
The 2711P-RDT10C delivers the reliability and clarity required for stable operator interface performance in industrial HMI applications.
