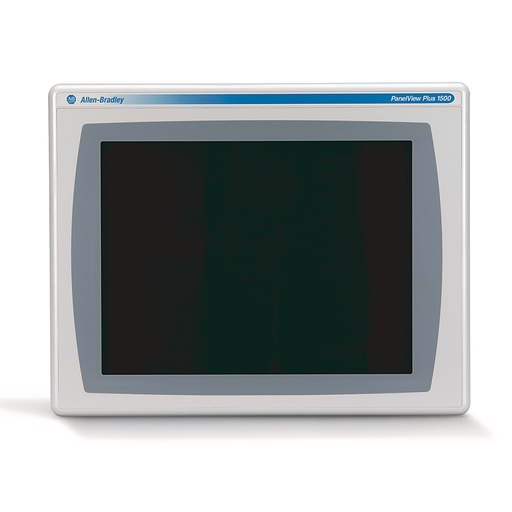

2711P-RDT15C | Allen-Bradley Color 15-in Display Module for PanelView Plus 1500
- Regular price
- $2,512.00
- Sale price
- $2,512.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711P-RDT15C
Description
The Allen-Bradley 2711P-RDT15C is an Allen-Bradley display module that is compatible with PanelView Plus and PanelView Plus 6 1500 Touch operated terminals. It has 15.0-inch screen and supports colored graphic display and animations.
Technical Specifications
| Brand | Allen-Bradley |
| Part Number | 2711P-RDT15C |
| Description | Display Module |
| Actuation force | 10-110 g |
| Touch interface lifespan | 1 Million actuations |
| Touch Input | 8-wire analog resistive |
| Anti-Glare overlay | not included |
| Input interface | Touch |
| Luminance | 300 cd/m2 (Nits)(3) |
| Display colors | 18-bit color graphics |
| Resolution | 1024 x 768 |
| Display Area | 304 x 228 mm (12.0 x 9.0 in.) |
| Compatibility | PanelView Plus 1000 / PanelView Plus 6 Touch terminals |
| Display Type | Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) |
| Product Family | PanelView Plus Graphic Terminals |
| Display Size | 12.1 inches |
| Product Line | PanelView Plus |
| Input | Touchscreen |
| Backlight | 2711P-RL15C |
| Communication | Ethernet, RS-232, USB |
| Series | B and C |
Information About 12711P-RDT15C
The 2711P-RDT15C an Allen-Bradley display module that is used as a replacement part of the pre-installed display module of PanelView Plus and PanelView Plus 6 1500 touch operated and colored screen terminals.
This display module mainly features a display screen with size of 15-inches, having an effective display area of 304 x 228 mm (12.0 x 9.0 in.) and pixel resolution of 1024 x 768 in 18-bit color graphics. This display module is not limited to providing a process visualization as it also hosts the analog resistive touchscreen. This touchscreen interface may be operated up to 1 Million actuations with an actuation force of 10-110 g.
The display module is the most active and utilized component of the PanelView operator terminal. However, this component may be protected and maintained to maximize the designed lifespan of the component. To maintain the display module, the surface of this component may be wiped with soft cloth to eliminate build-up of contaminants such as oil, grease and dirt as well as to prevent viewing obstruction. Additionally, a window kit may be used to protect the display module and prevent unwanted and unauthorized access.
There are adjustable parameters available in the operator terminal configuration mode that may affect the operation of the display module. For the Touchscreen feature, the calibration setup may be initiated by accessing the touch parameters to fine tune and maintain accuracy of the touch interface. The brightness and contrast may also be adjusted to improve the viewing experience of the screen.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
