2711P-RDT7C | Allen-Bradley PanelView Plus and Plus CE 700 Color Touch Screen
- Regular price
- $1,659.00
- Sale price
- $1,659.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711P-RDT7C
Description

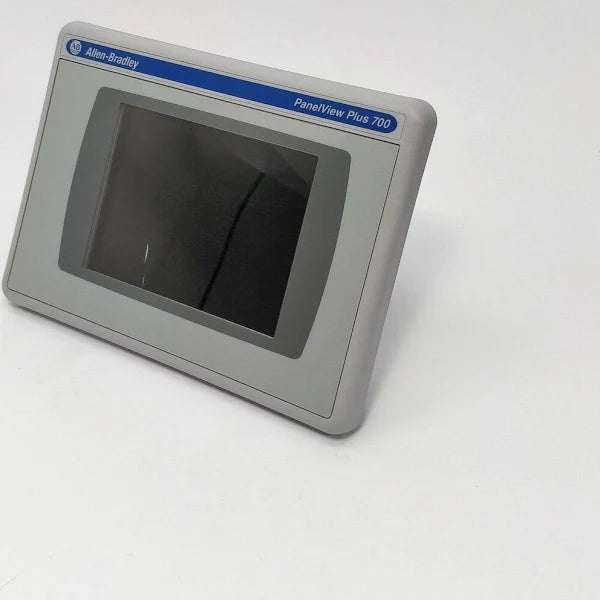

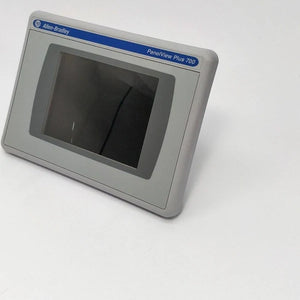

The Allen-Bradley 2711P-RDT7C display module is a small interface device from the Allen-Bradley/Rockwell Automation Panelview Plus 700 series. The screen on this display module is only 7 inches wide but it has color graphics. The 2711P-RDT7C display module is controlled by a touchscreen. This display module is meant to operate with a logic module connected to it. The 2711P-RDT7C display module and its logic module can also be connected to a communication module.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 2711P-RDT7C |
| Description | Display Module |
| Actuation force | 10-110 g |
| Touch interface lifespan | 1 Million actuations |
| Touch Input | 8-wire analog resistive |
| Anti-Glare overlay | not included |
| Luminance | 300 cd/m2 (Nits)(3) |
| Display colors | 18-bit color graphics |
| Resolution | 640 x 480 |
| Display Area | 132 x 99 mm (5.2 x 3.9 in.) |
| Display Size | 12.1 inches |
| Product Family | PanelView Plus Graphic Terminals |
| Series | PanelView Plus |
| Input | Touch |
| Display | 7-inch Color |
| Logic Module | Yes |
| ActiveX Controls | Yes |
| Enclosure | NEMA |
| Series | PanelView Plus |
Information About 2711P-RDT7C
The Allen-Bradley 2711P-RDT7C is a PanelView Plus 700 operator panel display module. This module has a 7-inch display which is made for graphically displaying industrial processes while using few elements. The 2711P-RDT7C has a flat-panel color display with a minimum resolution of 640 x 480 and 18-bit graphics.
The Allen-Bradley 2711P-RDT7C is installed with a logic module that delivers power to this unit. These 2 components combined need 179 millimeters x 246 millimeters x 55 millimeters (7.04 inches x 9.68 inches x 2.18 inches) of installation space in enclosures. This is a panel-mountable device that is intended to be mounted on the door of a NEMA or an IP rated enclosure. To be able to hold the 2711P-RDT7C display module in place, the supporting panels must have a thickness of between 1.5 millimeters and 4.8 millimeters. All the holding screws of the unit must provide an adequate gasket seal between the display module and the door panel. If this is not the case, water or chemicals can damage the unit or the other equipment within the enclosure. The 2711P-RDT7C can connect to external devices and it supports ActiveX controls and remote connectivity, and it uses vector-based graphics and provides data management through CSV files. With the login feature, it facilitates data storage and modification.
This display module is designed for use in locations identified as Class I, Division 2, Groups A, B, C, D / Class I, Zone 2, Group IIC / Class II, Division 2, Groups F, G / Class III and (ordinary) non-hazardous installation areas. The unit’s temperature code is T4 with a maximum operating temperature of 55 °C (131 °F) maximum ambient temperature.
The touch screen interface of the 2711P-RDT7C supports calibration to fine tune the touch sensitive membrane. This property may be accessed via the screen properties. Calibration of the screen requires operator interaction as the operator terminal will instruct the operator to press specific areas of the screen. Similarly, the display module has an adjustable brightness and contrast properties. These properties are useful especially in poorly or over-lighted areas. These adjustments can be found in the configuration environment of the operator terminal.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
