2711P-RP8D | Allen-Bradley PanelView Plus 6 700-1500 Logic Module
- Regular price
- $1,946.50
- Sale price
- $1,946.50
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711P-RP8D
Description

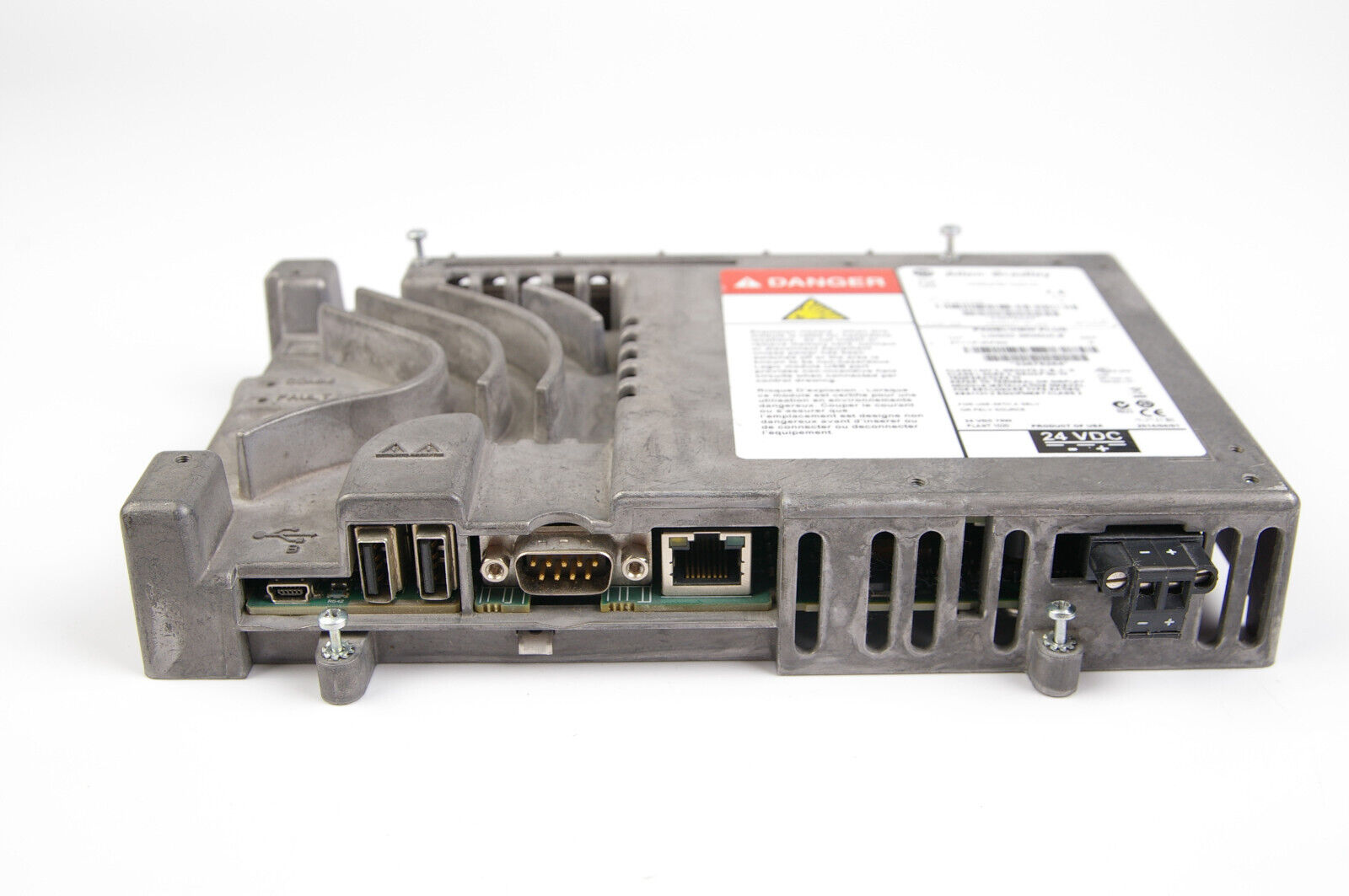

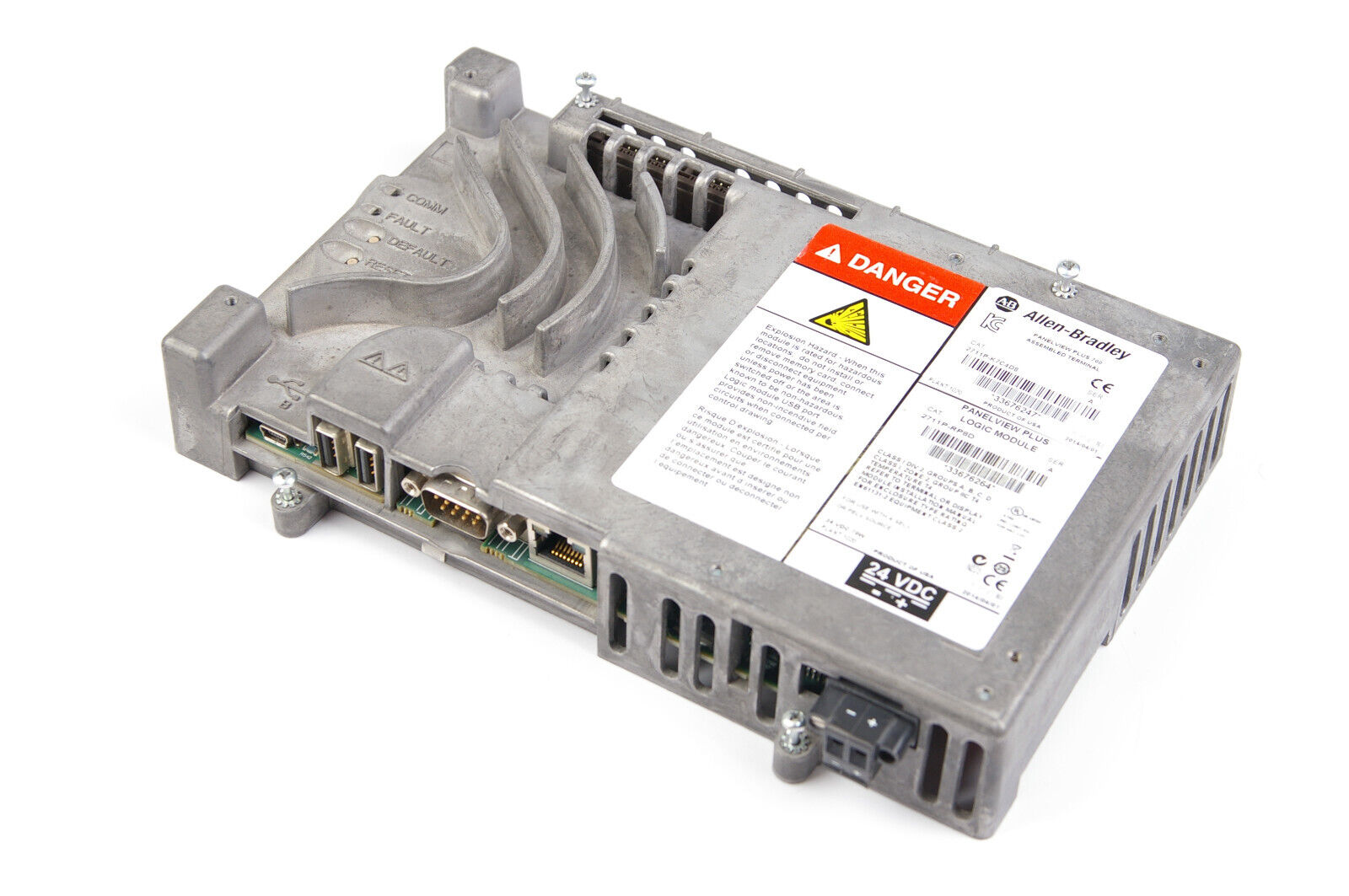

The Allen-Bradley 2711P-RP8D is a logic module for the PanelView Plus 6 operator terminals, designed to provide processing, memory, and communication capabilities. It features 512 MB of RAM and 512 MB of flash memory, offering storage and performance for machine-level applications. Powered by 24 VDC, the module includes Ethernet, RS-232, and dual USB ports for flexible connectivity.
Technical Specifications
| Communication | One (1) RS232; One (1) Ethernet; Two (2) USB |
| Power Dissipation | 70 Watts |
| Power input | 24VDC |
| Operating Temperature | 0-55 Degree Celsius |
| Interfaces | Ethernet port, serial port, two USB ports, CompactFlash card slot |
| Status indicators | Red and Green LED |
| Compatible Hardware | PanelView Plus 6 700-1500 |
| Memory | 512 MB Flash/ 512 MB RAM (79 MB free user memory) |
| Product Family | PanelView Plus 6 Operator Terminal |
| Product Type | Logic Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2711P-RP8D |
| Nonvolatile Memory | 512 MB |
| Input | 24 VDC |
| RAM Memory | 512 MB |
| Series | 2711p-RP8D/A Ser A |
Information About 2711P-RP8D
The 2711P-RP8D is part of the PanelView Plus 6 family from Rockwell Automation, built to support operator terminals ranging from the 700 to 1500 series. It is designed as a replacement or upgrade module, providing the logic and memory needed for efficient human-machine interface (HMI) operation. This unit integrates multiple communication options, including Ethernet for networked control, RS-232 for direct device connection, and USB ports for external peripherals. Installed at the back of the display module via an embedded PCI slot, the 2711P-RP8D is well-suited for on-machine visualization systems requiring reliable data processing and connectivity.
Key Features
- PanelView Plus 6 Compatible: Supports 700–1500 operator terminals in the PanelView Plus 6 series.
- Integrated Memory: Provides 512 MB RAM and 512 MB flash for application storage and processing.
- Versatile Interfaces: Equipped with Ethernet, RS-232, and two USB ports for system communication and peripheral integration.
- PCI Connection: Installs directly to the back of the display module through the embedded PCI slot.
- Power Input: Operates with 24 VDC supply and dissipates up to 70 watts.
- Peripheral Support: USB interfaces allow connection of keyboards, printers, and external storage devices.
- Environmental Rating: Designed to operate within 0–55 °C industrial environments.
- Marine Certified: Suitable for marine and industrial applications requiring compliance with certification standards.
The 2711P-RP8D delivers the reliability and precision required for machine visualization and operator interface systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
