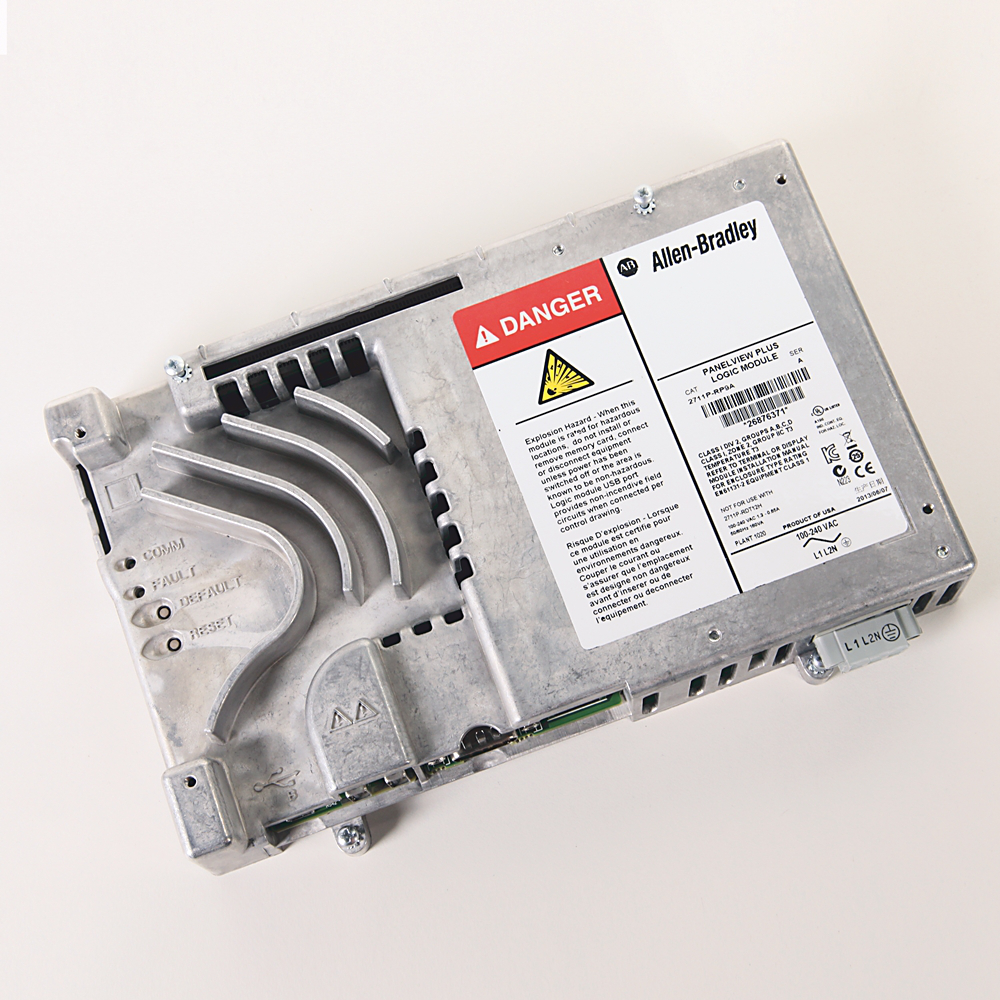

2711P-RP9A | Allen-Bradley Logic Module for PanelView Plus 6 700–1500 Terminals
- Regular price
- $3,299.00
- Sale price
- $3,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711P-RP9A
Description
The Allen-Bradley 2711P-RP9A is a logic module for the PanelView Plus 6 700–1500 operator terminals. It provides memory, communication ports, and power input, enabling reliable operation of HMI systems. Designed for industrial and marine environments, it supports both control and monitoring applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Human-Machine Interface (HMI) |
| Part Number | 2711P-RP9A |
| Subcategory | Logic Modules |
| Manufacturer | Rockwell Automation |
| Product Family | PanelView Plus 6 Operator Terminal |
| Product Type | Logic Module |
| Series | PanelView Plus 6 – 700 to 1500 |
| Compatible Hardware | PanelView Plus 6 700–1500 operator terminals |
| Memory | 512 MB Flash / 512 MB RAM (79 MB free user memory) |
| Nonvolatile Memory | 512 MB |
| RAM Memory | 512 MB |
| Communication Ports | 1 x RS232, 1 x Ethernet (100 Mbps), 2 x USB |
| Additional Interfaces | CompactFlash card slot |
| Indicators | Red and Green LED diagnostic lights |
| Reset Function | Factory reset button included |
| Power Input | 100–240 VAC |
| Frequency | 50–60 Hz |
| Power Dissipation | 160 VA |
| Marine Certified | Yes |
| Hazardous Location Ratings | Class I Div 2 Groups A, B, C, D; Class I Zone 2 Group IIC; Class II Div 2 Groups F, G; Class III |
| Operating Temperature | 0–55 °C |
| Mounting | Attaches to display module via PCI slot |
| Weight | 0.91 kg (2.0 lbs) |
Information About 2711P-RP9A
The 2711P-RP9A is a replacement logic module in the Allen-Bradley PanelView Plus 6 series, designed to attach directly to display modules via a PCI slot connection. It is compatible with 700 to 1500 models, supporting touch, keypad, or dual input display configurations. The unit includes Ethernet, RS232, and USB interfaces, allowing integration with networks, external devices, and storage media. Built with 512 MB of Flash and 512 MB of RAM, this module offers dependable memory resources while remaining marine certified and approved for hazardous location use.
Key Features:
- Memory Capacity: 512 MB Flash and 512 MB RAM with 79 MB free user memory for applications.
- Interfaces: Includes Ethernet (100 Mbps), RS232, and two USB ports for communication and peripherals.
- CompactFlash Support: Slot available for removable storage and data transfer.
- Compatibility: Designed for PanelView Plus 6 operator terminals (700–1500 series).
- Power Supply: Operates on 100–240 VAC input at 50–60 Hz with 160 VA power dissipation.
- Durability: Marine certified and compliant with Class I, Division 2 hazardous location ratings.
- Status Indicators: Red and green LED diagnostic lights plus reset button for system recovery.
- Operating Range: Functions reliably in environments between 0°C and 55°C.
The 2711P-RP9A delivers the reliability and precision required for operator interface control in industrial and marine automation systems.
