Part #: 2711P-T10C4D8 Manufactured by: Allen-Bradley
Regular price
$2,999.00
Sale price
$2,999.00
Regular price
3 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 2711P-T10C4D8 PanelView Plus 6 1000 terminal provides touchscreen control and monitoring with a bright 1...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2711P-T10C4D8
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2711P-T10C4D8

Description / Specifications

Description

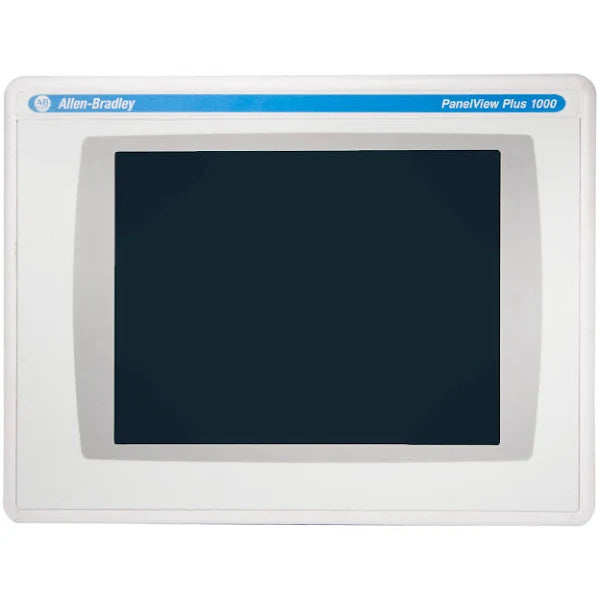

The Allen-Bradley 2711P-T10C4D8 is a PanelView Plus 6 1000 operator terminal with a 10.4-inch color TFT touchscreen display. It is powered by 18–30V DC and includes Ethernet, RS-232, and dual USB ports for communication and data transfer.





Technical Specifications

Brand Allen-Bradley
Series Series A and Series B
Part Number 2711P-T10C4D8
Input Voltage range 18-30VDC
Integrated ports Ethernet, RS-232, 2 USB host
Internal memory 512MB Flash Memory / 512 MB Random Access Memory
Backlight CCFL, 50,000 hours min at 25 ° C (77 °F), field replaceable
Touch Analog Resistive
Resolution 640 x 480, 18-bit color graphics
Display Area 211 x 158 mm (8.3 x 6.2 in.)
Product Type PanelView Plus 6 1000 Operator Terminals
Display Type Color active-matrix TFT
Display Size 10.4 in. inches
Operator Input Touch
Product Family PanelView Plus 6 Operator Terminals
Manufacturer Rockwell Automation
Input Type Touchscreen
Communication Ethernet and RS-232
Input Power 18 to 32 Volts DC
Memory 512 MB RAM
Communication Cable 2711-NC13
Shipping Dimensions 16 x 14 x 8 inches





Information About 2711P-T10C4D8

The 2711P-T10C4D8 is part of the PanelView Plus 6 operator terminal family, designed to provide operators with real-time process monitoring and control. It integrates a 10.4-inch active-matrix TFT display with an 18-bit color depth, offering 640 x 480 resolution and a display brightness of 300 cd/m². The unit features an analog resistive touchscreen input rated for high durability, with a display area of 211 x 158 mm (8.3 x 6.2 in.). Internally, it is equipped with 512 MB of RAM and 512 MB of flash memory to handle HMI applications efficiently. Communication options include an Ethernet port, RS-232 interface, and two USB host ports for peripherals and data backup. Designed with modular architecture, the 2711P-T10C4D8 supports easy upgrades and maintenance, with factory-assembled display and logic modules. Though now end-of-life, it remains widely used in legacy systems for its reliability, robust communication support, and straightforward integration.

Key Features:

  • Display: 10.4-inch color TFT screen, 640 x 480 resolution, 18-bit color, 300 cd/m² brightness.
  • Touchscreen: Analog resistive input interface with durable actuation rating.
  • Memory: Equipped with 512 MB RAM and 512 MB flash memory for program execution and storage.
  • Communication: Integrated Ethernet, RS-232, and dual USB ports for connectivity and data exchange.
  • Input Voltage: Operates on 18–30V DC external supply power.
  • Modular Design: Factory-assembled with display and logic modules, allowing flexible configuration and upgrades.
  • Display Area: 211 x 158 mm (8.3 x 6.2 in.) active viewing space.
  • Lifecycle: Listed as end-of-life but still supported in many existing industrial automation applications.

The 2711P-T10C4D8 delivers robust operator interface capabilities, combining reliable communication, durable design, and clear visualization for industrial HMI systems.





Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 2711P-T10C4D8
Question: What is the 2711P-T10C4D8?
Date Update:03/06/2025
Answer:

The 2711P-T10C4D8 is a PanelView Plus 6 operator interface terminal with a 10.4-inch color touchscreen. It’s used to display real-time data, alarms, and controls for industrial processes, making it a central piece of HMI (Human-Machine Interface) applications.

Question: What communication options does it support?
Date Update:03/06/2025
Answer:

The 2711P-T10C4D8 supports:

  • Ethernet/IP – for controller and network communication
  • RS-232 serial – for older PLCs or serial devices
  • USB – for file transfer, application loading, or peripheral connection (e.g., barcode scanners)
Question: How do I load a new runtime application (MER file) onto the HMI?
Date Update:03/06/2025
Answer:
  • Copy the MER file to a USB flash drive.
  • Insert the USB drive into the PanelView Plus 6 USB port.
  • Use the Configuration Mode on the HMI to select Copy Applications and transfer it to the device.
  • Run the application from the Terminal Settings menu.
Question: What maintenance is recommended for the 2711P-T10C4D8?
Date Update:03/06/2025
Answer:
  • Keep the display clean – use a soft, damp cloth to clean the touchscreen.
  • Inspect wiring periodically for loose connections.
  • Monitor for backlight degradation – replace the display module if brightness or touch response degrades significantly.
  • Use proper ventilation – ensure ambient temperature is within limits to avoid overheating.
Question: Where can I find the manual for the 2711P-T10C4D8?
Date Update:03/06/2025
Answer:

The main user manual is 2711P-UM006 – PanelView Plus 6 User Manual, you can download it from the Rockwell Automation Literature Library.
