2711P-T12W21D8S | Allen-Bradley PanelView Plus 7 Color Touch 12", Ethernet, 24VDC
- Regular price
- $2,217.00
- Sale price
- $2,217.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2711P-T12W21D8S
Description

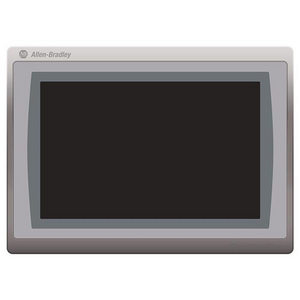

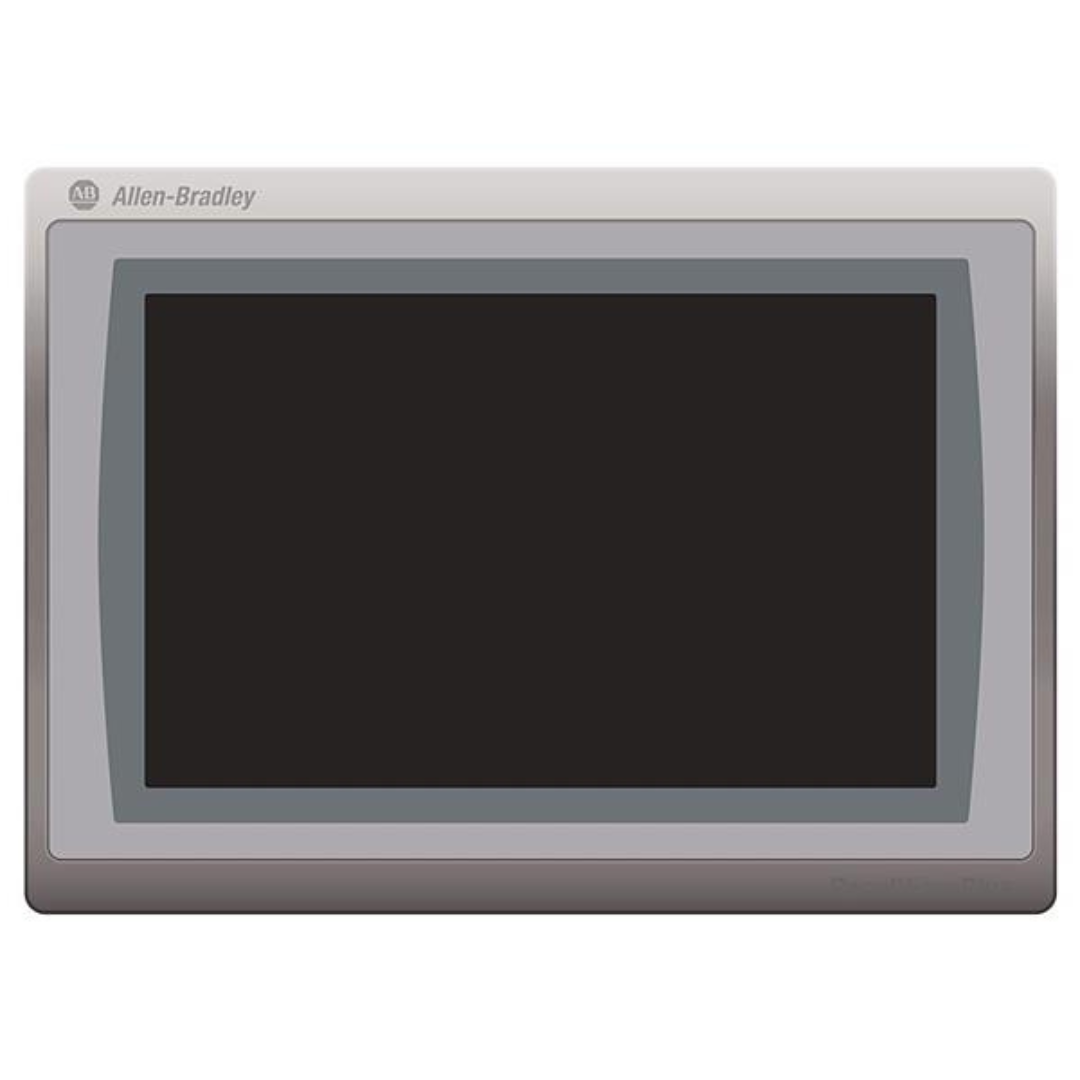

The Allen-Bradley 2711P-T12W21D8S is a PanelView Plus 7 Standard operator terminal designed for machine visualization and operator control. It features a 12.1-inch widescreen TFT LCD with 1280 × 800 resolution and resistive touchscreen input. Powered by 18–30 VDC, the terminal provides Ethernet and USB connectivity, making it suitable for mid-range HMI applications in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | HMI Graphic Terminals |
| Part Number | 2711P-T12W21D8S |
| Subcategory | PanelView Plus 7 Standard |
| Type | 12.1" Touch Graphic Terminal |
| Display Size | 12.1 in. widescreen |
| Display Technology | TFT color |
| Resolution | 1280 × 800 pixels |
| Display Brightness | ~300 cd/m² |
| Display Colors | 262k |
| Backlight Life | 50,000 hours (typical) |
| Touchscreen Type | Resistive |
| Processor | ARM-based |
| Operating System | Windows CE 6.0 (Extended Features) |
| Memory (RAM) | 512 MB |
| Non-Volatile Memory | 100 MB |
| Memory Expansion | 1 × SD/MMC slot |
| Power Input | 18–30 VDC |
| Power Consumption | ~50 W |
| Ethernet Interface | 1 × 10/100 Mbps |
| USB Ports | 1 × USB Host, 1 × USB Device |
| Communication Protocols | EtherNet/IP, EtherNet/OCPP |
| Applications | Safety systems, EtherNet/IP networks, machine HMI |
| Mounting | Wall/direct panel mount |
| Enclosure (Front Panel) | IP66 |
| Operating Temperature | 0…55 °C |
| Storage Temperature | –20…80 °C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | 240 × 340 × 56.5 mm |
| Cutout Size | 218 × 312 mm |
| Weight | ~1.95 kg |
| Vibration Rating | 2 m/s², up to 500 Hz |
| Shock Rating | 15 g, 11 ms |
| Certifications | CE, UL, CSA, KC, RCM, C-TICK, ATEX, ISA 12.12.01, NEMA 4X |
Information About 2711P-T12W21D8S
The 2711P-T12W21D8S belongs to the Allen-Bradley PanelView Plus 7 Standard series, which provides modern visualization capabilities in a rugged design. It includes a 12.1-inch TFT color display with 18-bit graphics, widescreen aspect ratio (5:3), and 300 nits brightness. The backlight has a minimum life of 50,000 hours at 40 °C to half-brightness, ensuring long-term reliability. The terminal integrates a single Ethernet port and two USB ports for communication, along with an SD card slot for memory expansion using 1784-SD1 (1 GB) or 1784-SD2 (2 GB) cards. Standard memory includes 512 MB RAM and 512 MB flash, with approximately 80 MB of user memory available. Built-in features include email/text notification, VNC remote monitoring, and support for Windows CE 6.0 applications. The unit is designed for harsh environments, with a stainless steel 304 bezel, IP66/NEMA/UL Type 4X/12/13 protection, and optional IP69K compliance for washdown areas. It can be mounted on a swing arm, pedestal, or fixed surface, with orientation flexibility for installation.
Key Features:
-
Display: 12.1-inch TFT LCD, 1280 × 800 resolution, 18-bit color, 300 nits brightness.
-
Touchscreen: Analog resistive, durable for industrial use.
-
Memory: 512 MB RAM, 512 MB flash, expandable via SD card.
-
Connectivity: 1 Ethernet port, 2 USB ports, SD card slot.
-
Power Supply: Operates on 18–30 VDC input.
-
Enclosure: Stainless steel bezel, IP66 protection, optional IP69K washdown rating.
-
Durability: Backlight rated for 50,000 hours at 40 °C; designed for harsh industrial environments.
-
Functionality: Supports email/text notifications, remote monitoring with VNC, and Windows CE 6.0 applications.
The 2711P-T12W21D8S delivers durable, flexible, and modern HMI functionality for industrial applications requiring a reliable operator interface
