2711P-T15C22D9P | Allen-Bradley PanelView Plus 7 Color Touch 15", Ethernet, DC
- Regular price
- $3,742.00
- Sale price
- $3,742.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711P-T15C22D9P
Description

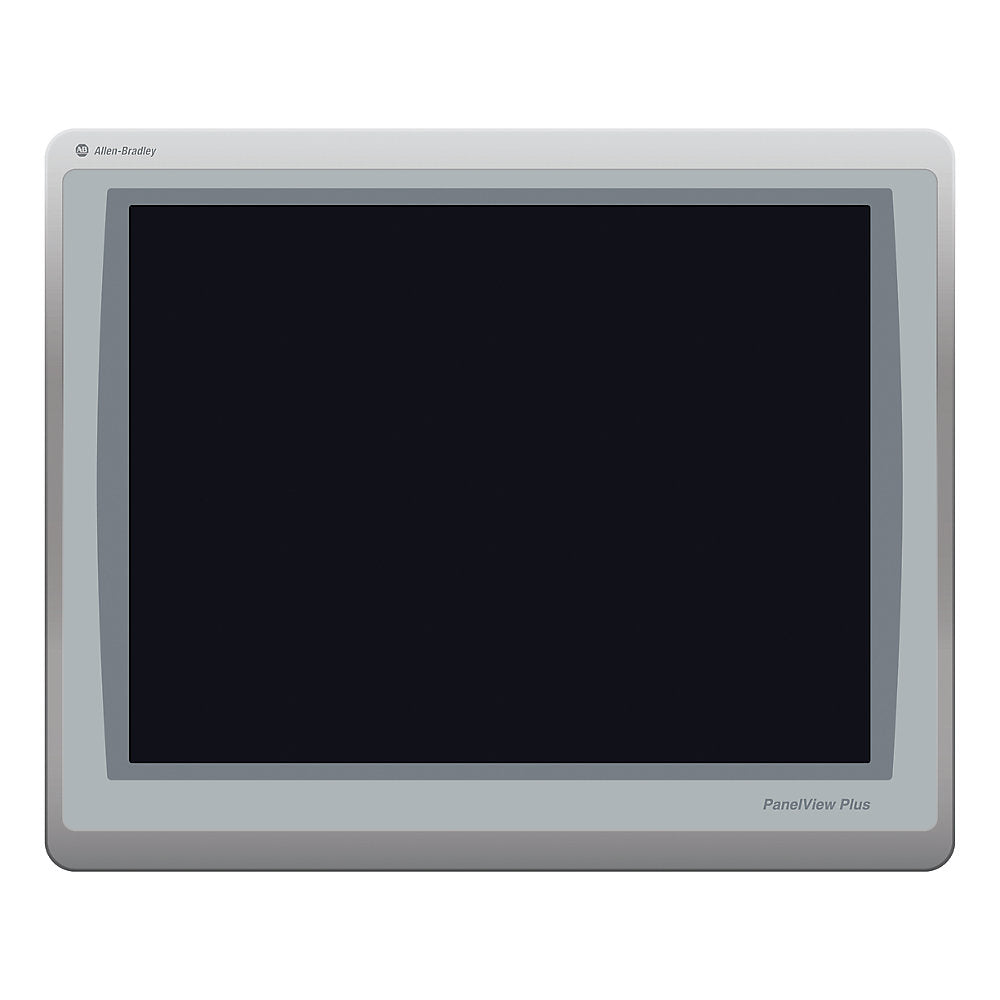

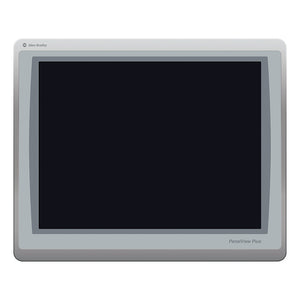

The Allen-Bradley 2711P-T15C22D9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-32VDC. It has a 15-inch Color active matrix, thin-film transistor (TFT) LCD screen with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 2711P-T15C22D9P |
| Product Type | PanelView Plus 7 15-inch Performance Terminals |
| Power Consumption | 50 W max (2.1 A at 24V DC) |
| System Memory | 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Touch | Analog resistive Actuation: 1 million presses; operating force: 100 g |
| Input Voltage range | 18-30 VDC |
| Communication ports | Two (2) Ethernet, Three (3) USB host |
| Application memory | 1GB system; User memory 512 MB |
| Backlight | White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable |
| Resolution | 1024 x 768 XGA, 18-bit color graphics |
| Display Area | 304 x 228 mm (12.0 x 9.0 in.) |
| Display Type | Color active-matrix TFT |
| Operating force | 100 grams |
| Actuation rating | 1 million presses |
| Touch screen | Analog resistive touchscreen |
| Operator Input | Touch |
| Product Family | PanelView Plus 7 Performance terminals |
| Display Size | 15 in. |
| Product Line | Panelview Plus 7 |
| Input Type | Touchscreen |
| Memory | 512 Mb |
| Input Voltage | 24 VDC |
| Backlight | LED |
Information About 2711P-T15C22D9P
The 2711P-T15C22D9P is a PanelView Plus 7 Performance operator terminal. This operator terminal primarily features a 15-inch colored TFT display screen, touch input interface and dual ethernet communication interface.
The display screen of this operator has a viewing area of 304 x 228 mm (12.0 x 9.0 in.) and display resolution of 1024 x 768 XGA that supports 18-bit color graphics. This display screen supports an aspect ratio of 4:3, coupled with a backlight with typical brightness of 300 cd/m2 (Nits). This backlight is made of a solid-state, white light emitting diode with minimum half-life operation of 50,000 hrs. when operated at 40 °C (104 °F). The touch interface is made of an analog resistive touch sensitive cells that is designed to be actuated at up to 1 million presses with an actuation force of 100 grams. It is recommended to operate this operator terminal with a gloved finger or plastic stylus.
Screen management and maintenance may be conducted as needed. The display screen supports calibration, brightness and contrast adjustment as well as screen saver. These adjustments lengthen the operational life of the backlight thus, maximizing the terminal’s usage.
This operator terminal has supply voltage requirement of 18-32VDC and maximum power consumption of 50 W max or 2.1 A at 24V DC. This operator terminal has a physical dimension of 318 (H) x 381 (W) x 69.6 (D) or mm 12.52 (H) x 15.00 (W) x 2.74 in (D). To mount this operator terminal, the required panel cutout is 290 (H) x 353 (W) mm or 11.42 (H) x 13.90 in (W).
This operator terminal may be installed with external memory storage such as Allen-Bradley’s 1784-SDx and 1784-SDHCx cards or external flash drives inserted at the Host USB interface. This operator terminal is powered by an external DC voltage range of 18-30 VDC. The 2711P-T15C22D9P has built-in dual Ethernet communication ports that is compatible for connecting or implementing Linear, Star and Ring topologies.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
