2711P-T19C22D9P | Allen-Bradley PanelView Plus 7 Color Touch 19", Ethernet, DC
- Regular price
- $7,954.00
- Sale price
- $7,954.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711P-T19C22D9P
Description

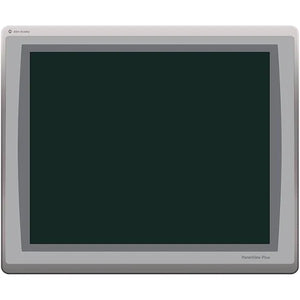

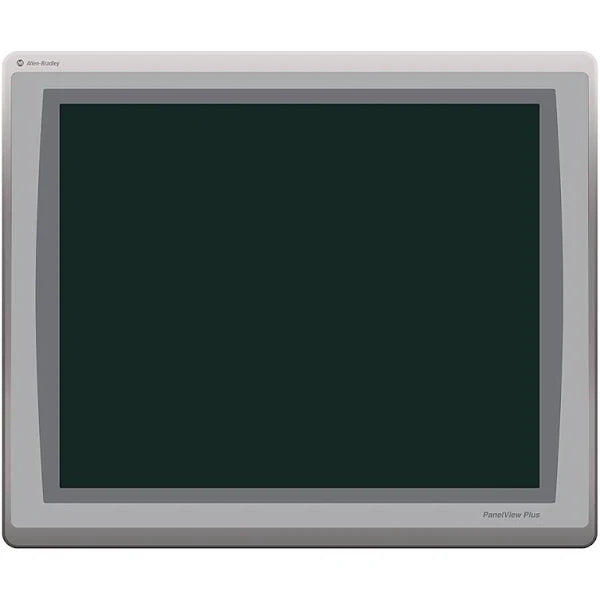

The Allen-Bradley 2711P-T19C22D9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-32VDC. It has a 19-inch Color active matrix, thin-film transistor (TFT) LCD screen with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 2711P-T19C22D9P |
| Product Family | PanelView Plus 7 Performance terminals |
| Backlight | White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable |
| Power Consumption | 50 W max (2.1 A at 24V DC) |
| Input Voltage range | 18-30 VDC |
| Communication ports | Two (2) Ethernet, Three (3) USB host |
| System Memory | 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Touch | Analog resistive Actuation: 1 million presses; operating force: 100 g |
| Resolution | 1280 x 1024 SXGA, 18-bit color graphics |
| Display Area | 376 x 301 mm (14.8 x 11.9 in.) |
| Display Type | Color active-matrix TFT |
| Operator Input | Touch |
| Display Size | 19 in. |
| Product Line | Panelview Plus 7 |
| Input Type | Touchscreen |
| Memory | 512 Mb |
| Input Voltage | 24 VDC |
| Backlight | LED |
Information About 2711P-T19C22D9P
The Allen-Bradley 2711P-T19C22A9P is a PanelView Plus 7 Performance operator terminal. It is an electronic device that is powered by an external supply voltage of 18-32VDC. It performs proves visualization and control and provide user and operators to control a process or machine near the application or remotely from a convenient location.
Being a 19-inch PanelView Plus 7 terminal, it has the largest display screen. It features 18-bit color screen with display resolution of 1280 C 1024 pixels and viewing area of 376 x 301 mm (14.8 x 11.9 in.). This allows designing of a process mimic with a high degree of detail and information. It is equipped with a backlight that is capable of providing contrast and lighting to screen at a minimum lifespan of 50,000 hrs when operated at the recommended temperature of 40 Degree Celsius or 104 Degree Fahrenheit. It allows operator to initiate control inputs, data change commands and navigation actions via the analog resistive touchscreen that is rated to operate up to 1 million actuation at an operating force of 100 grams.
The 2711P-T19C22A9P is especially compatible communicating with Allen-Bradley’s modern Programmable Automation Controller (PAC) platform, the Logix family of controllers such as the CompactLogix and ControlLogix controllers. It can also communicate with the previous controller platform and 3rd party devices. Communication with these devices is through the dual Ethernet communication interfaces that supports Ethernet network topologies specifically linear, star and Device Level Ring (DLR).
The power consumption of this module is a maximum 50W (2.1 A at 24 V DC). This module has a flash memory of 512 MB. This module is equipped with 512 MB of RAM (with 80 MB free user memory). This module offers backup restoration functionality and is equipped with an automatic repair operations feature. This module can connect to the internet and it supports remote connectivity through both VNC and FTP. The 2711P-T19C22D9P allows the management of data that saved in the .CSV file format. The Allen-Bradley 2711P-T19C22D9P has approximate dimensions of 411 x 485 x 69.6 mm (16.18 x 19.09 x 2.74 inch). The weight of this module is 5.62 kg (12.40 lb). The ambient temperature around the modules must be between 0 and 55 °C (32 and 131 °F). Make adequate spacing around the module inside the enclosure and ensure adequate ventilation. Be sure to consider the heat generated by other devices inside the enclosure.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
