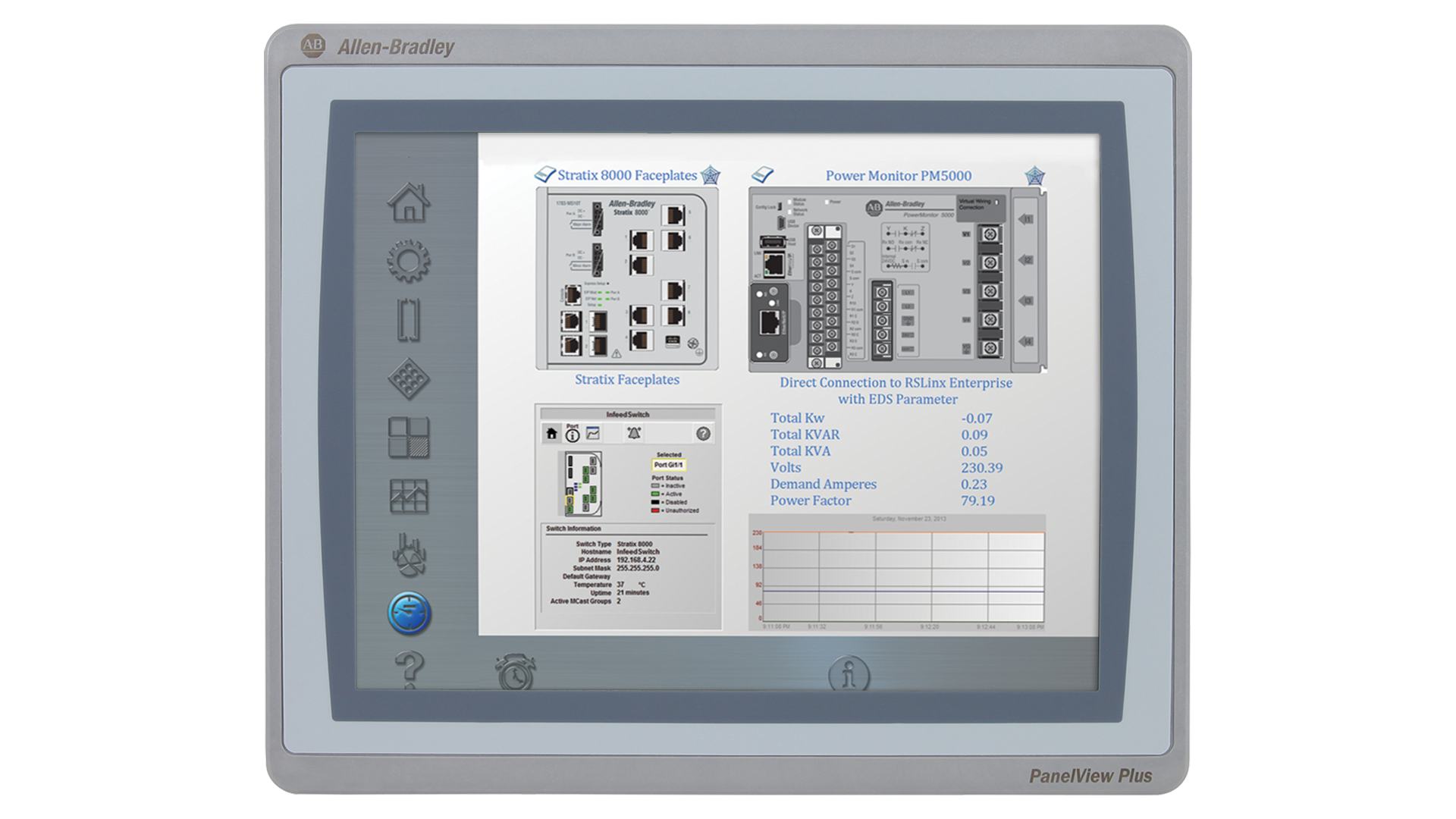

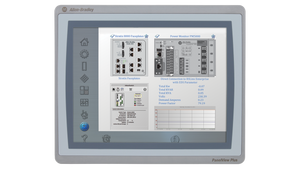

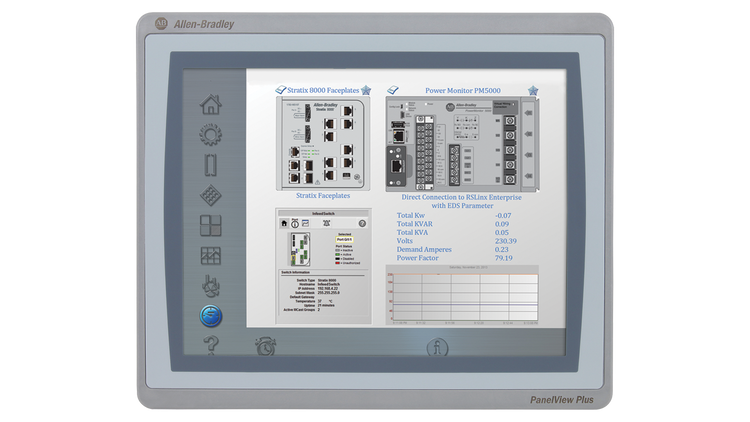

2711P-T7C21D8S | Allen-Bradley PanelView Plus 7 Color Touch 7", Ethernet, 24VDC

Description

The Allen-Bradley 2711P-T7C21D8S is a Panelview Plus 7 Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 6.5-inch widescreen colored display with embedded One (1) Ethernet and Two (2) USB communication ports. This operator terminal has a touchscreen input interface.

Technical Specifications

Information About 2711P-T7C21D8S

The Allen-Bradley 2711P-T7C21D8S belongs to the PanelView Plus 7 operator terminals. This operator terminal features a 6.5-inch colored display screen, with viewing area of 132 x 99 mm and resolution of 640 x 480 VGA in 18-bit color graphics with an aspect ratio of 4:3. The same display screen is installed with an analog resistive touch input area, allowing operator to directly touch the appropriate runtime object to initiate control, navigation, data modification and other functions. This embedded touch interface may be actuated up to 1 million presses at an actuation force equivalent to 100 grams.

The Allen-Bradley 2711P-T7C21D8S is installed with a battery backed Real-Time Clock (RTC) with accuracy of ±2 minutes per month and expected lifespan of 4 years min at 25 °C (77 °F). It also come with internal memory such as 512 MB Random Access Memory (RAM), 512 MB storage and user memory of 80 MB for file storage. Additionally, external SD cards and USB flash drives may be installed to provide higher storage memory.

The 2711P-T7C21D8S is powered by an external power supply voltage of 18-30VDC with nominal value of 24VDC. It has a power consumption of 50W, maximum. When installing this operator terminal flush mounted to an enclosure, create a panel cut-out with dimension of 142 x 184 mm (5.59 x 7.24 in.).

Appropriate enclosure for use with operator terminal are electrical panels with protection ratings of NEMA and UL Type 12, 13, 4X (indoor use only), also rated IP54 or IP66 as Classified by UL.

The 2711P-T7C21D8S has an operating voltage range of 18 to 30 Volts DC, with a maximum power consumption of 35 Watts at 1.46A and 24 Volts DC, and a range of 85 to 265 Volts AC at 47 to 63 Hertz DIN-railed power supply source. Its operational temperature ranges between 32 and 131 degrees Fahrenheit at 5 to 95% non-condensing relative humidity, and it is stored at a temperature range of -13 and 158 degrees Fahrenheit. It dissipates 15 Watts of maximum heat when operational, and it is designed to withstand an operational shock of 15G and an operational vibration of 2G at 57 to 600 Hertz. it comes in a NEMA 4X, 12, and 13-rated enclosure, and it is cUL-us, ATEX, CE, KCC, and RoHS-certified. The 2711P-T7C21D8S weighs approximately 0.85 kilograms (1.86 pounds), and it has net dimensions of 170 x 212 x 56.5 millimeters (6.69 x 8.35 x 2.22 inches).
