Part #: 2711P-T7C4D1 Manufactured by: Allen-Bradley
$2,562.00
$2,562.00
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Panelview Plus 700 Touchscreen 6.5 in Color Display Ethernet, RS-232, and two USB DC Power Logic Module with 64MB
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2711P-T7C4D1
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2711P-T7C4D1

Description / Specifications

Description

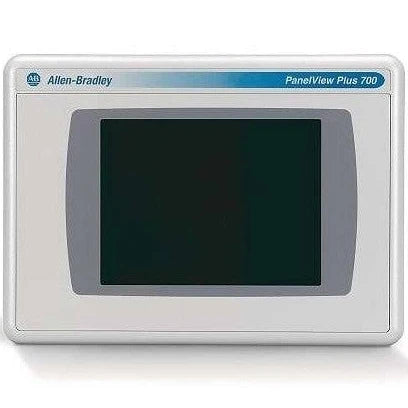

The Allen-Bradley 2711P-T7C4D1 is a PanelView Plus 700 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 6.5-inch colored display with embedded RS232 and Ethernet communication ports. This operator terminal has a Touchscreen input interface.



Technical Specifications

Brand Allen-Bradley
Series Series A, B, C, D, E, F, G
Part Number 2711P-T7C4D1
Resolution 640 x 480
Product Type PanelView Plus 700 Operator Terminals
Product Family PanelView Plus Operator Terminals
Manufacturer Rockwell Automation
Operator Input Touch
Display Type Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Display Area 132 x 99 mm (5.2 x 3.9 in.)
Backlight CCFL 50,000 hours life, min.
Touchscreen 1 million presses
Actuation force 10-110 g
Internal memory 64MB Flash Memory / 64MB Random Access Memory
Integrated ports Ethernet, Data Highway Plus (DH+), Remote I/O (RIO), DH485, RS232, USB communication ports.
Input Voltage range 18-32VDC
Display Size 6.5 in. inches
Product Line Panelview Plus 700
Input Type Touchscreen
Communication Ethernet and RS-232
Input Power 18-32 VDC
Memory 64 MB
Communication Cable 1761-NET-ENI
Shipping Dimensions 14 x 11 x 8 in





Information About 2711P-T7C4D1

The 2711P-T7C4D1 is an Allen-Bradley PanelView Plus 700 operator terminal. The discontinued 2711P-T7C4D1 is an operator terminal that enables the user to interface with their machine. This PanelView Plus terminal is ideal for applications with a need to observe, change, and display information graphically. The 2711P-T7C4D1 is programmed with RSView Studio Machine Edition. This HMI has a 6. The user is able to control the HMI using the Touchscreen to input information and data.

The 2711P-T7C4D1 is powered using 18 to 32 Volts of DC power. This terminal has 64 MB of internal memory. The approximate shipping weight and dimensions are 8 lbs. and 14 x 11 x 8 inches. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real-time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.

The 2711P-T7C4D1 provides graphic representation of the important monitoring and control areas of a particular machine or process. Through the 6.5-inch display screen which support colored animation, plant areas, materials flowing within a pipe or stored in a vessel as well as state of the instrument and devices may be easily depicted. Control may also be conveniently initiated through the analog resistive touchscreen interface that is designed to withstand up to 1 million presses. Using the touch input interface, control actions and data manipulation may be easily entered as this can be done by directly touching the appropriate HMI’s runtime object.

HMI files are kept in the PanelView’s 64 MB Flash non-volatile memory while runtime application consumes the 64 MB Random Access Memory (RAM). Communication with Programmable Logic Controllers (PLC), data bridge and gateways as well as converters is achieved via the embedded RS232 and Ethernet communication ports. These communication ports works independently from each other and may be utilized simultaneously.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 2711P-T7C4D1
Question: What type of display does the 2711P-T7C4D1 have?
Date Update:04/06/2025
Answer:

The terminal features a 6.5-inch color TFT LCD screen with a resolution of 640 x 480 pixels. This display supports vivid graphical interfaces with sharp color definition, ideal for real-time monitoring of plant operations. The backlight is a CCFL type with a minimum life expectancy of 50,000 hours, ensuring long-term visibility. This makes the screen well-suited for 24/7 industrial environments where display clarity and reliability are essential. Operators benefit from easy-to-read animations, alarms, and process indicators.

Question: How is the 2711P-T7C4D1 programmed?
Date Update:04/06/2025
Answer:

The terminal is programmed using FactoryTalk View Studio (formerly RSView Studio) Machine Edition software. Developers create screen graphics, alarm configurations, and tag connections which are then downloaded to the terminal via Ethernet or USB. The configuration environment is intuitive and supports animation, scripting, and logic-based behavior. Once the project is transferred, the HMI runs it automatically on power-up. Software tools also allow simulation and troubleshooting during design.

Question: What is the actuation durability of the touchscreen?
Date Update:04/06/2025
Answer:

The resistive touchscreen on the 2711P-T7C4D1 is rated for up to 1 million actuations. This means it can withstand repeated daily use in high-traffic industrial environments without degradation. The screen is built to resist minor scratches and withstand contact with fingers, gloves, or styluses. Its analog design ensures reliable response even in dusty or slightly oily conditions. Long-term durability makes it a practical choice for operator stations that require rugged input reliability.

Question: How much does the 2711P-T7C4D1 weigh?
Date Update:04/06/2025
Answer:

The shipping weight of the 2711P-T7C4D1 is approximately 8 pounds (around 3.6 kilograms). This weight includes packaging and makes it relatively easy to handle and install during panel assembly. Despite its moderate weight, the terminal houses a durable screen, robust electronics, and integrated communication ports. The unit is designed to be mounted securely in fixed enclosures for vibration-resistant applications. Its weight reflects its industrial-grade construction while still allowing for convenient transport and installation.

Question: Is the 2711P-T7C4D1 still being manufactured?
Date Update:04/06/2025
Answer:

No, the 2711P-T7C4D1 has been officially discontinued by Rockwell Automation. While it was a widely used model in the PanelView Plus 700 series, newer models such as the PanelView Plus 7 have since replaced it. However, many of these terminals are still in operation, and spare parts or refurbished units may be available from third-party vendors. Users of this model are encouraged to consider migration paths for long-term system compatibility and support. Despite its discontinued status, it remains a reliable solution in many legacy systems.
