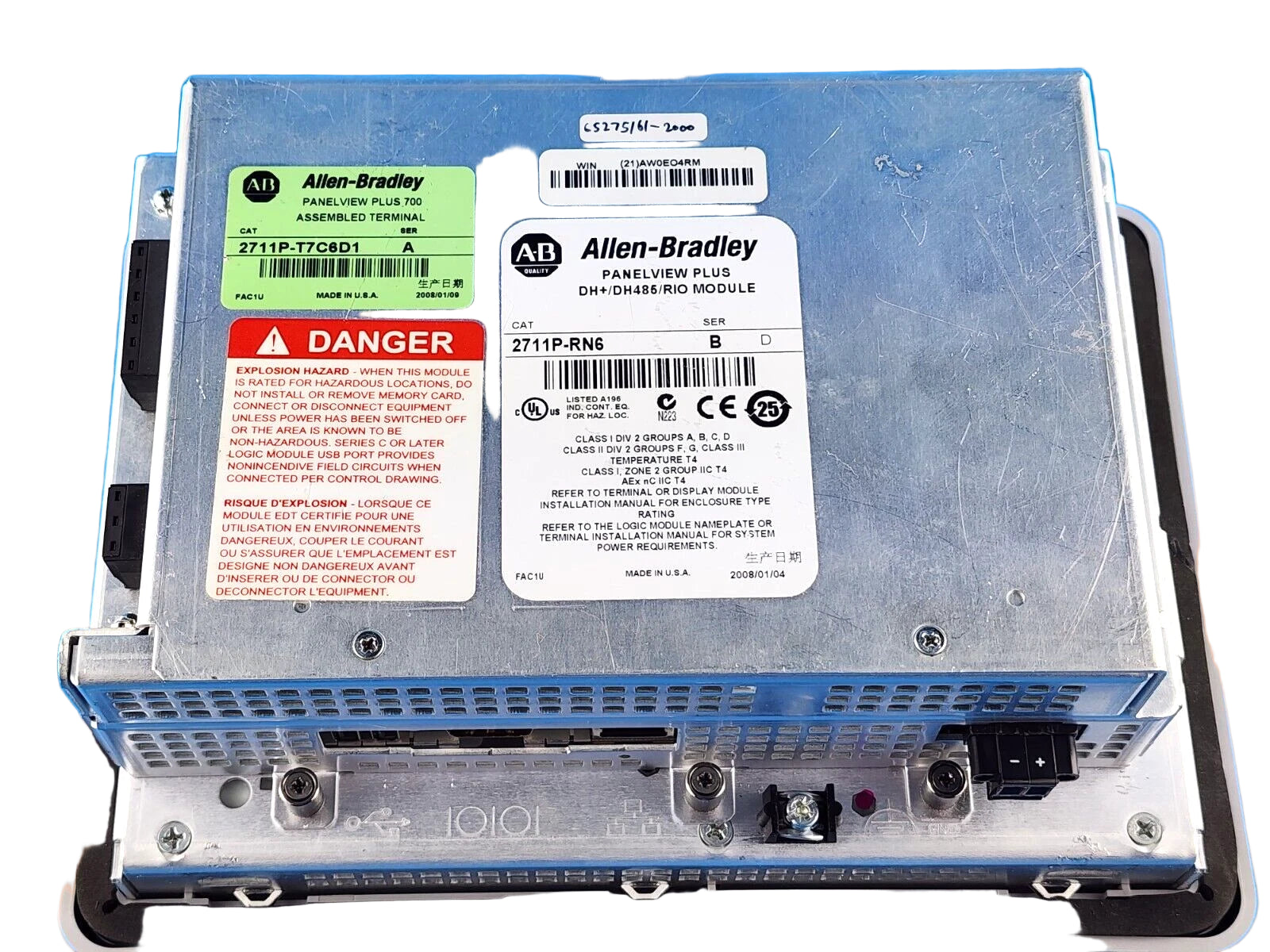

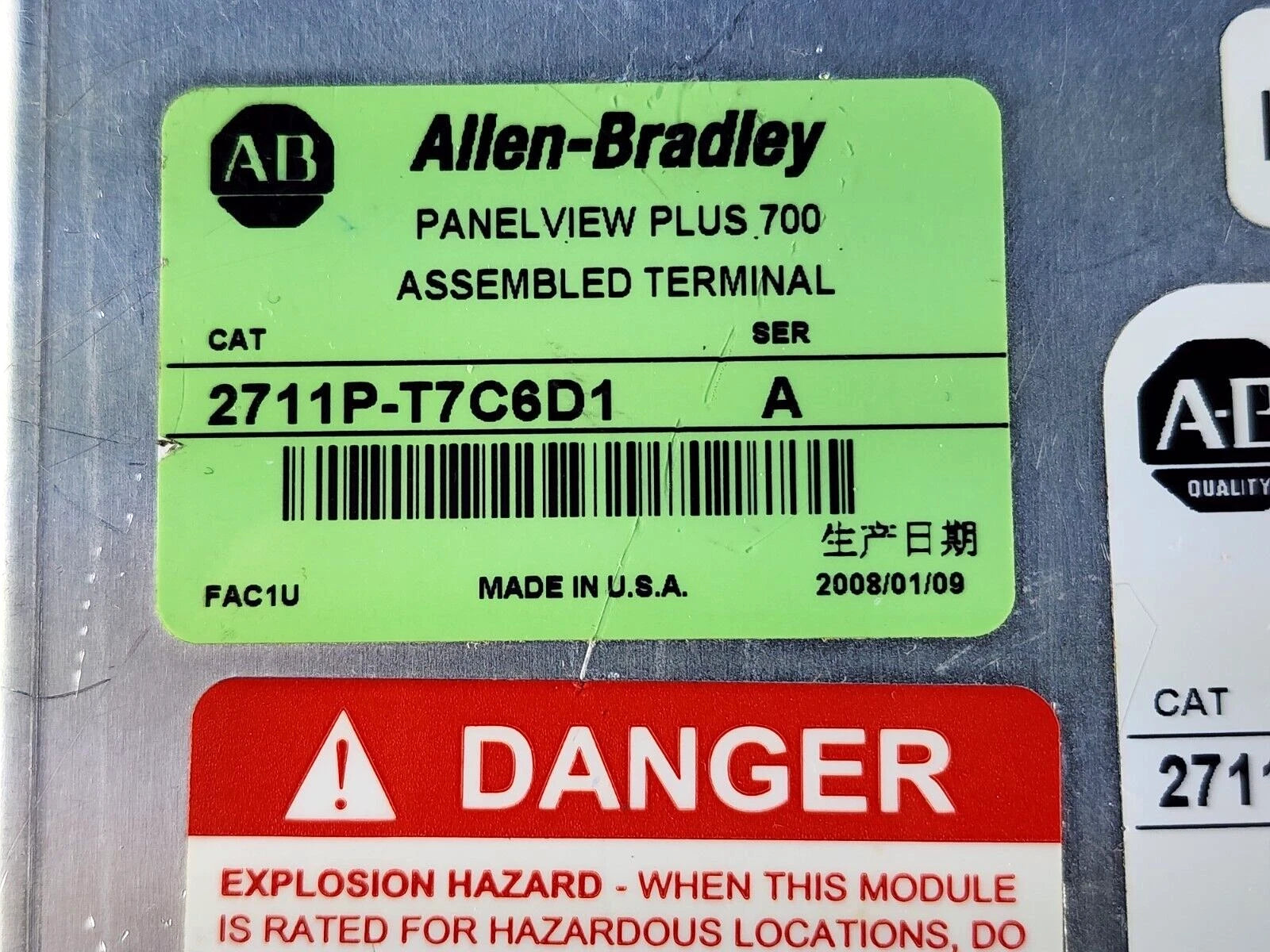

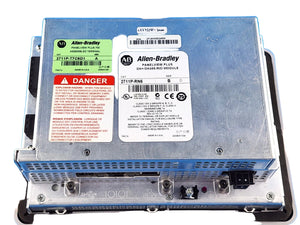

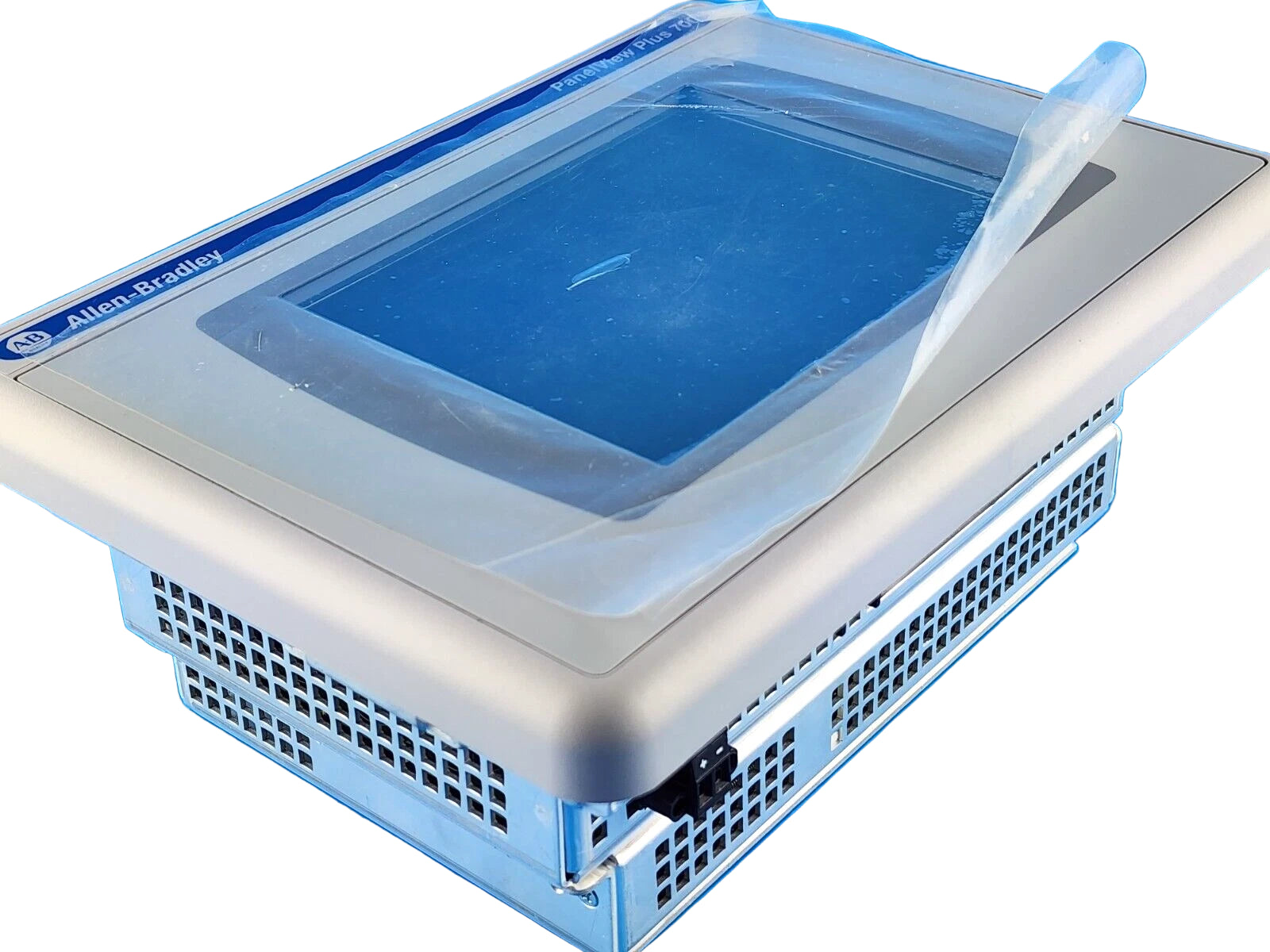

2711P-T7C6D1 | Allen-Bradley PanelView Plus 700 6.5" Color Touchscreen HMI, 18–32 VDC
- Regular price
- $4,599.00
- Sale price
- $4,599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2711P-T7C6D1
Description
The Allen-Bradley 2711P-T7C6D1 is a PanelView Plus 700 operator terminal designed for monitoring and controlling automation systems. It features a 6.5-inch color TFT LCD with resistive touchscreen input and supports legacy and modern controllers through DH+, DH-485, RS232, and USB interfaces. Operating on 18–32 VDC, this HMI provides reliable functionality for industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Human-Machine Interface (HMI) |
| Part Number | 2711P-T7C6D1 |
| Subcategory | Operator Terminals |
| Manufacturer | Rockwell Automation |
| Product Family | PanelView Plus Terminals |
| Product Line | PanelView Plus 700 |
| Series | A, B, C, D, E, F, G |
| Display Size | 6.5 in. (132 x 99 mm / 5.2 x 3.9 in.) |
| Display Type | Color TFT LCD with CCF backlight |
| Resolution | 640 x 480 pixels |
| Input Type | Analog resistive touchscreen |
| Touchscreen Lifespan | 1 million actuations |
| Operating Force | 10–110 g |
| Logic Module Memory | 64 MB RAM, 64 MB nonvolatile Flash |
| Communication Ports | DH+, DH-485, RS232, 2 x USB |
| Power Supply Input | 18–32 VDC |
| Power Consumption | 70 W max (2.9 A @ 24 VDC), 39 W typical |
| Operating Temperature | 0–55 °C (32–131 °F) |
| Environmental Ratings | NEMA 12, 13, 4X (indoor), IP54, IP65 |
| Vibration | 10–57 Hz at 0.012 pk-pk; 57–500 Hz at 2 g |
| Shock | 15 g at 11 ms |
| Altitude | Up to 2000 m (6561 ft) without derating |
| Heat Dissipation | 240 BTU/hr |
| Backlight Module | 2711P-RL7C2 |
| Communication Cable | 1770-CD and 1761-CBL-AS03 |
| Product Lifecycle Status | Discontinued/Obsolete (surplus available) |
| Shipping Dimensions | 14 x 11 x 8 in. |
| Weight | 3.6 kg (8 lbs) |
Information About 2711P-T7C6D1
The 2711P-T7C6D1 is part of the Allen-Bradley PanelView Plus 700 series of operator terminals, offering compact visualization and control capabilities. It includes a logic module with 64 MB of RAM and 64 MB of nonvolatile memory for application storage and execution. Built with an analog resistive touchscreen, the unit is rated for up to one million actuations, ensuring durability in demanding environments. With multiple communication interfaces including DH+, DH-485, RS232, and dual USB, it provides versatile connectivity to both legacy and current Rockwell Automation controllers.
Key Features:
- Display Size: 6.5-inch color TFT LCD with 640 x 480 resolution for clear visualization.
- Touchscreen Interface: Analog resistive input rated for one million actuations with 10–110 g operating force.
- Memory: Equipped with 64 MB RAM and 64 MB nonvolatile memory for HMI applications.
- Power Supply: Operates within an 18–32 VDC input range, consuming up to 70 W maximum.
- Communication Ports: Supports DH+, DH-485, RS232, and two USB host ports for device and network integration.
- Environmental Ratings: Meets NEMA Type 12, 13, 4X (indoor use), IP54, and IP65 enclosure requirements.
- Durability: Withstands 0–55 °C operating temperature, 15 g shock, and vibration up to 2 g.
- Series Compatibility: Available across Series A through G, suitable for a range of system configurations.
The 2711P-T7C6D1 delivers the reliability and precision required for industrial HMI applications and legacy system integration.
