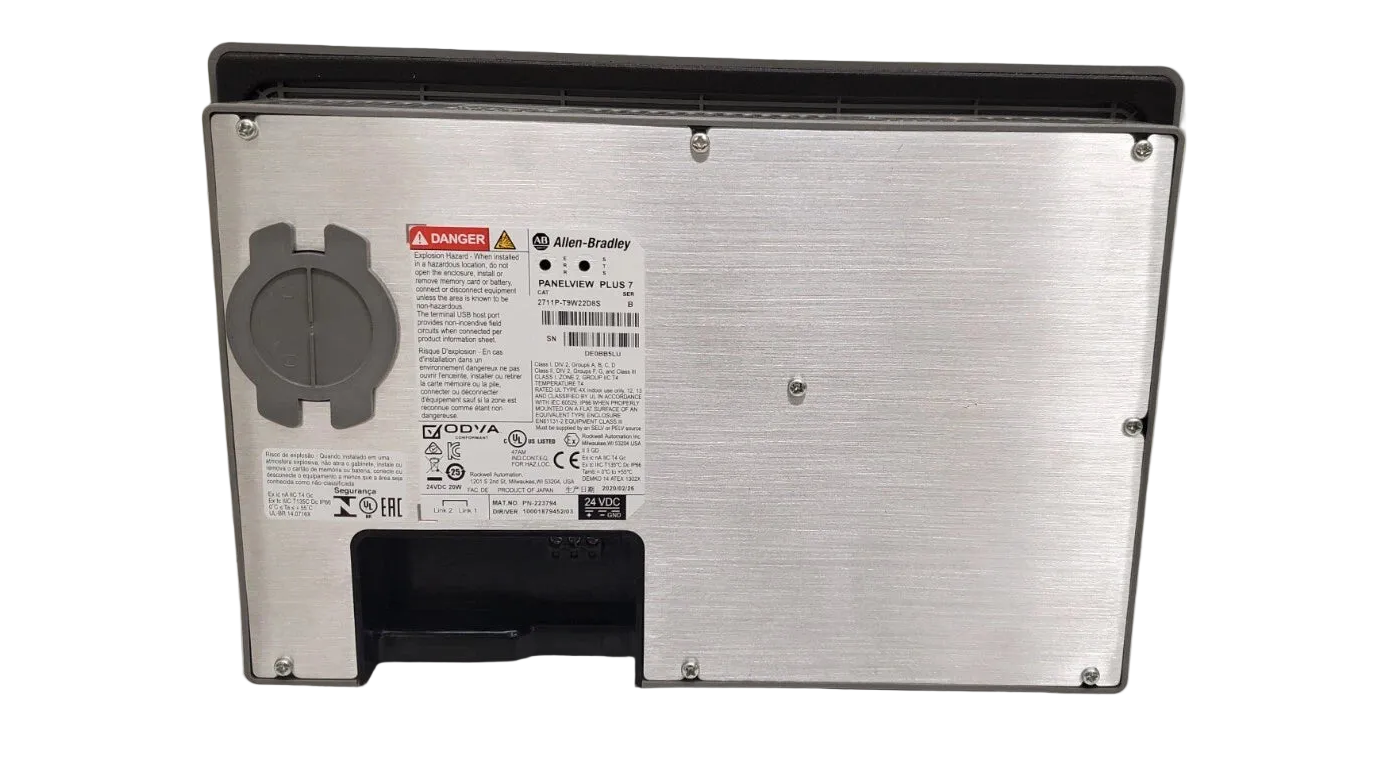

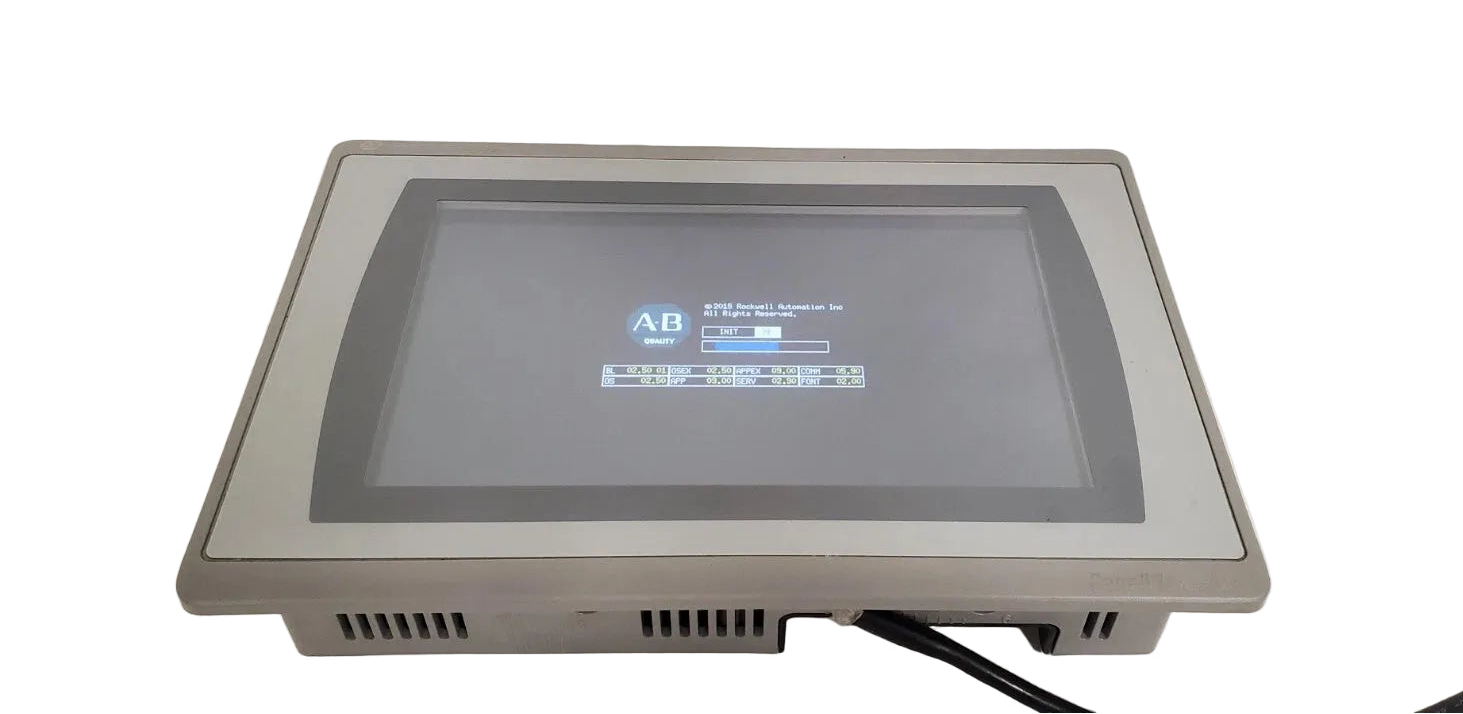

2711P-T9W22D8S | Allen-Bradley PanelView Plus 7 9-Inch Wide Color Touch HMI
- Regular price
- $2,697.00
- Sale price
- $2,697.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2711P-T9W22D8S
Description
The Allen-Bradley 2711P-T9W22D8S is a PanelView Plus 7 HMI terminal designed for industrial monitoring and control applications. It features a 9-inch widescreen color touchscreen with WVGA resolution, providing clear visualization and intuitive operator interaction. Powered by 24 V DC, the terminal supports reliable communication and performance in standard industrial automation environments.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Controls & Indicators |
| Part Number | 2711P-T9W22D8S |
| Subcategory | Human Machine Interface (HMI) |
| Product Family | PanelView Plus 7 |
| Display Size | 9 in. widescreen |
| Display Type | Color active-matrix TFT |
| Resolution | 800 × 480 (WVGA), 18-bit color |
| Display Area | 196 × 118 mm |
| Operator Input | Touchscreen |
| Touch Technology | Analog resistive |
| Actuation Rating | 1 million presses |
| Operating Force | 100 g |
| Backlight Type | LED |
| Backlight Life | 50,000 h minimum at 40 °C |
| System Memory | 512 MB RAM |
| Nonvolatile Memory | 512 MB |
| Communication Ports | 2 × Ethernet, 2 × USB |
| Input Voltage | 24 V DC |
| Input Voltage Range | 18…30 V DC |
| Power Consumption | 50 W max |
| Operating System | Windows CE |
| Weight | 3.48 lb |
Information About 2711P-T9W22D8S
The 2711P-T9W22D8S is part of the Allen-Bradley PanelView Plus 7 family, engineered to provide reliable operator interface functionality in industrial automation systems. Its widescreen 9-inch display allows efficient presentation of process data, alarms, and control elements. The terminal integrates Ethernet and USB connectivity to support communication with PLCs, data transfer, and peripheral devices. Typical applications include machine-level control, process visualization, and operator panels in manufacturing and industrial facilities.
Key Features
- 9-Inch Widescreen Color Display: Provides clear WVGA graphics for effective visualization of industrial processes.
- Touchscreen Operator Interface: Enables intuitive navigation and control using analog resistive touch technology.
- PanelView Plus 7 Platform: Designed for dependable HMI operation in industrial automation environments.
- Integrated Ethernet Connectivity: Supports network communication with controllers and automation systems.
- Sufficient System Memory: Includes 512 MB RAM and 512 MB nonvolatile memory for HMI applications.
- 24 V DC Power Input: Compatible with standard industrial control power supplies.
- Industrial-Grade Construction: Engineered for continuous operation in demanding industrial settings.
The 2711P-T9W22D8S delivers the reliability and precision required for effective operator interaction, visualization, and control in Allen-Bradley–based industrial automation systems.
