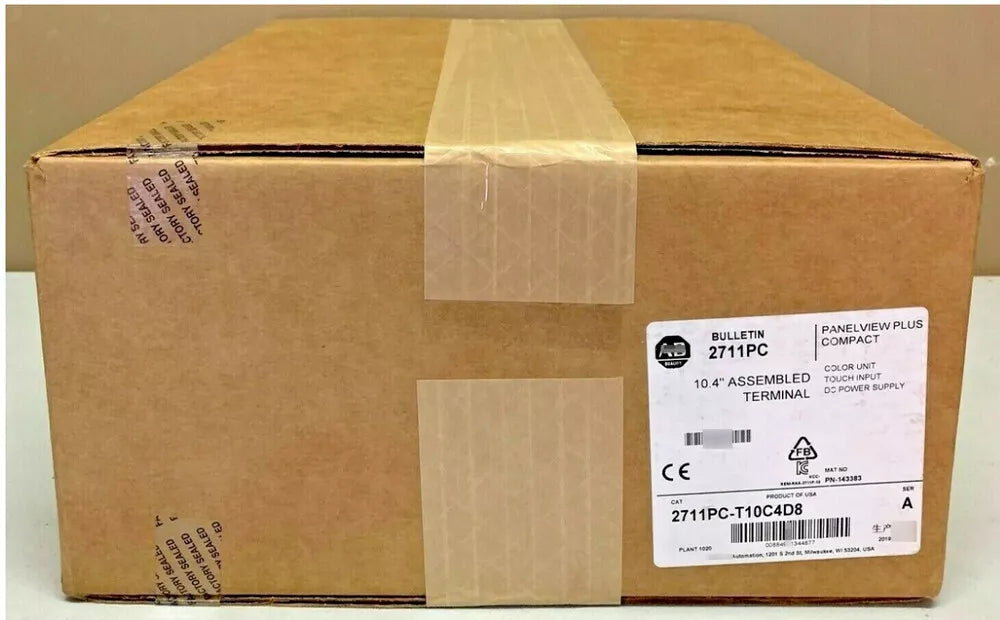

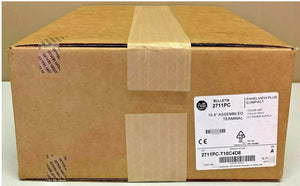

Part #: 2711PC-T10C4D8 Manufactured by: Allen-Bradley
$3,195.00
$3,195.00
2 in Stock
Condition: New – Open box
Shipping calculated at checkout.
Product Overview
Allen-Bradley 2711PC-T10C4D8 PanelView Plus 6 Compact series with Color display with Ethernet and RS-232 communication, 24...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Contact Us!

Talk to a real expert.

phone
+1 (828) 222-3490
email
sales@iqelectro.com
Mon–Sat, 7:00 AM – 12:00 PM (EST)
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2711PC-T10C4D8
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2711PC-T10C4D8

Description / Specifications

Description

The Allen-Bradley 2711PC-T10C4D8 is a PanelView Plus 6 Compact operator terminal designed for machine and process visualization. It features a 10.4-inch color TFT display with resistive touchscreen input and supports Ethernet, RS-232, and USB communication. Powered by 18–32 VDC, this HMI provides a cost-effective solution for CompactLogix controller applications in industrial automation.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Category HMI Terminals
Part Number 2711PC-T10C4D8
Subcategory PanelView Plus 6 Compact
Type Wall/Direct Mount HMI Terminal
Display Size 10.4-inch
Display Type Color active-matrix TFT
Resolution 640 × 480 (18-bit color)
Touchscreen Analog resistive
Display Area 211 × 158 mm (8.3 × 6.2 in.)
Backlight CCFL, 50,000+ hours (field replaceable)
Memory 512 MB Flash / 512 MB RAM
Input Voltage 18–30 VDC
Power Consumption ~50 W class (typical for this model family)
Communication Ports Ethernet, RS-232, 2× USB host
Supported Networks EtherNet/IP, DeviceNet (via controller integration)
Mounting Wall / direct panel mount
Enclosure Open-style terminal
Operating Temperature 0…55 °C
Certifications CE, C-TICK, CCC, KC
Application Machine HMI, diagnostics, operator control, compact automation
Special Features PanelView Plus 6 performance, multi-port connectivity





Information About 2711PC-T10C4D8

The 2711PC-T10C4D8 belongs to the Allen-Bradley PanelView Plus 6 Compact series, developed as streamlined HMI terminals for smaller control systems. It comes with a 10.4-inch TFT display, 640 × 480 resolution, and 18-bit color graphics, offering clear and informative visualization with support for animation and international color standards. Operator interaction is handled through an analog resistive touchscreen rated for one million actuations. The terminal integrates standard communication ports including one Ethernet, one RS-232 serial, and two USB ports, enabling easy connection to controllers and peripherals. It includes 512 MB RAM, 512 MB non-volatile memory, and an SD card slot for additional storage. The unit is powered by 24 VDC (18–32 VDC range) with a maximum consumption of 70 W. For installation, it supports panel mounting in enclosures rated NEMA/UL Type 12, 13, 4X, and IP54/IP65. Designed with Windows CE 6.0, it supports ActiveX controls, backup and restore functions, and remote connectivity, making it a flexible HMI choice for CompactLogix-based systems.

Key Features:

  • Display: 10.4-inch TFT LCD, 640 × 480 resolution, 18-bit color graphics.

  • Touchscreen: Analog resistive type rated for 1 million actuations.

  • Memory: 512 MB RAM, 512 MB flash, plus SD card slot for expansion.

  • Connectivity: Ethernet, RS-232, and two USB ports for devices and storage.

  • Power Supply: 18–32 VDC input, nominal 24 VDC, max 70 W consumption.

  • Software/OS: Windows CE 6.0 with ActiveX, backup/restore, and remote access support.

  • Mounting: Panel-mounted with NEMA/UL 12, 13, 4X, IP54/IP65 protection.

  • Usability: Supports animation, color standards, and external peripherals such as keyboard and mouse.

The 2711PC-T10C4D8 delivers compact, reliable, and user-friendly HMI functionality for industrial applications requiring efficient process monitoring and control.

Frequently Asked Questions about 2711PC-T10C4D8
Question: What is the main purpose of the 2711PC-T10C4D8 terminal?
Date Update:02/06/2025
Answer:

The 2711PC-T10C4D8 is a Human-Machine Interface (HMI) from the PanelView Plus 6 Compact series, designed for operator interaction with industrial control systems. It allows users to monitor, control, and visualize processes through touchscreen input and graphic displays. This HMI is commonly used in applications that require reliable and compact visualization for CompactLogix controllers.

Question: What type of touchscreen does the terminal use?
Date Update:02/06/2025
Answer:

The terminal uses an analog resistive touchscreen that supports up to 1 million actuations. It responds reliably to both finger and stylus input, even when the operator wears gloves. This makes it suitable for harsh and variable industrial environments.

Question: Is the 2711PC-T10C4D8 suitable for use with CompactLogix controllers?
Date Update:02/06/2025
Answer:

Yes, this terminal is optimized for CompactLogix and other Logix controllers. Its communication ports and memory resources are well-matched for small to mid-sized applications. Integration with FactoryTalk View ME software ensures seamless data handling and screen development.

Question: What size and type of display does this HMI use?
Date Update:02/06/2025
Answer:

It features a 10.4-inch color TFT display with a resistive touchscreen interface. The screen supports 18-bit color graphics and a resolution of 640 x 480 pixels, providing sharp and clear visuals. It also supports animation and international color standards for improved operator awareness.

Question: Is the 2711PC-T10C4D8 terminal still in production?
Date Update:02/06/2025
Answer:

No, the 2711PC-T10C4D8 has been officially discontinued by Rockwell Automation as of December 30, 2021. It is no longer available for sale and has been replaced by the updated model 2711P-T10C21D8S. Users are advised to transition to the newer unit, which offers enhanced performance and ongoing support. The discontinued status means spare parts and repairs may also become limited over time.
