2711R-T4T | Allen-Bradley PanelView 800 Color HMI Touch Screen Terminal 4-inch

Description

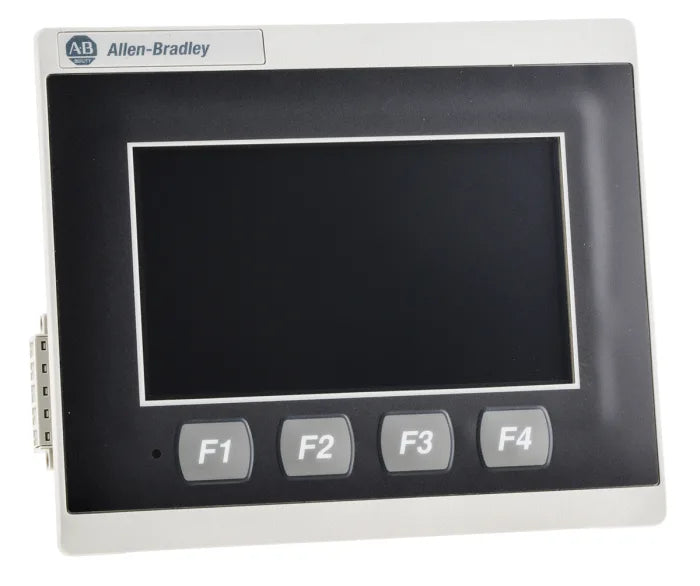

The 2711R-T4T terminal is an Allen-Bradley/Rockwell Automation HMI terminal. It is manufactured as part of the Allen-Bradley Panelview 800 series. The 2711R-T4T HMI terminal can be used to monitor and control applications that are being run by the control system that it is part of. The 2711R-T4T HMI terminal has a touchscreen and 4 function keys as its control options.

Technical Specifications

Information About 2711R-T4T

The 2711R-T4T is an Allen-Bradley graphic operator terminal that is part of the 2711R Product bulletin. This specific catalog number is a PanelView Micro 800 operator terminal that features a colored display screen, touch and keypad input interface and a variety of embedded communication ports that provides flexibility of connection.

It supports offline configuration and comes with commissioning tools for rapid engineering of the Micro 800 operator terminal.

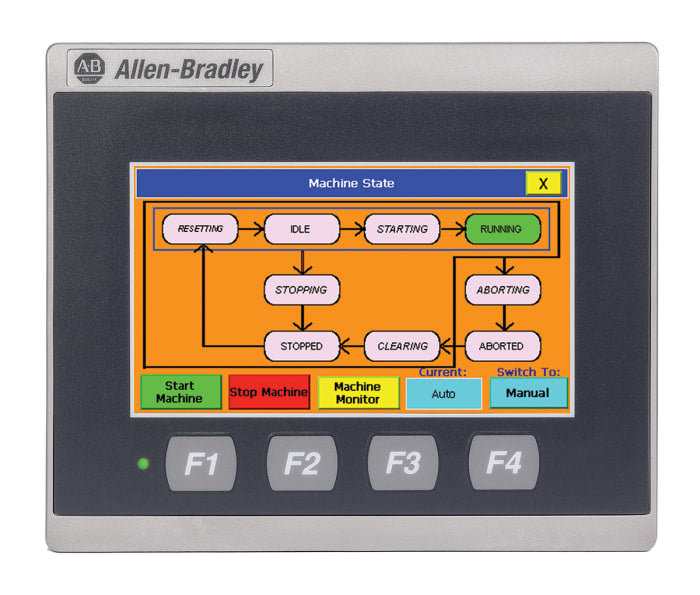

The 2711R-T4T features a 4-inch Color transmissive TFT active matrix LCD screen supporting widescreen format with viewing area of 95 x 53.9 mm (3.74 x 2.12 in.) and pixel resolution of 480 x 272. It is installed with a backlight that is expected to operate at a minimum of 40,000 hours. This operator terminal is provided with analog resistive touchscreen and keypad interface. The keypad buttons are composed of Four (4) function keys from F1-F4 which can be assigned with local and global configurations.

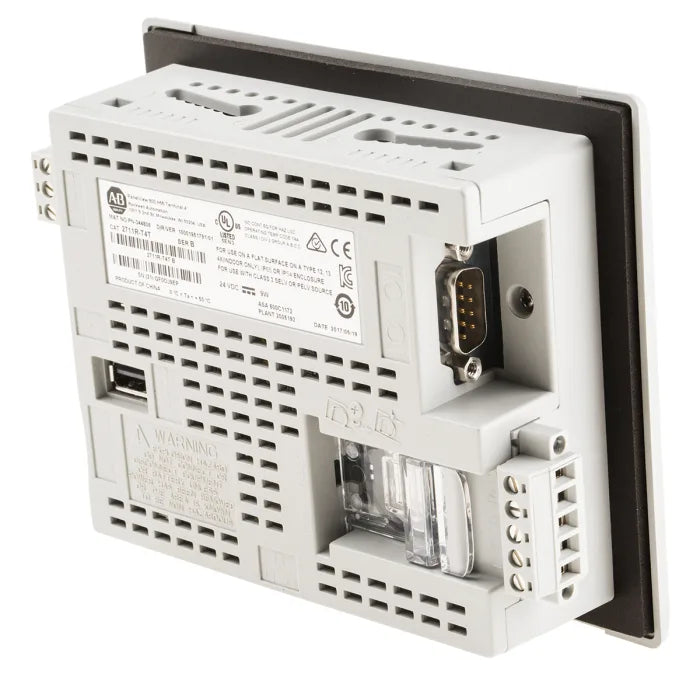

This operator terminal is provided with a number of communication ports that supports networked and point-to-point connection. For networked application, The RS422 / 485 and Ethernet port may be used while the RS232 port is used for point-to-point topology. Additionally, this operator terminal is installed with a single USB port that allows insertion of a peripheral device such as mouse or keyboard for a more convenient operation. It also has a single external storage medium that is designed for industrial grade memory cards while also compatible with SDSC and Class 6 & Class 10 SDHC micro-SD cards, FAT32/16 formats, up to 32 GB maximum size. This operator terminal is powered by an external supply voltage of 18-32VDC with nominal voltage of 24VDC.

It uses a color transmissive thin film transistor (TFT) active matrix LCD screen and has a pixel resolution of 480 x 272 and a display area of 3.74 x 2.12 inches. Its display comes with a backlight that has a minimum lifespan of 40,000 hours. Aside from its analog touch feature, this terminal also comes with a keypad that has 4 function keys available. The programming port present is an EtherNet port and the 2711R-T4T terminal’s memory can be expanded by connecting an external storage to its USB port or micro-SD slot. Note that this terminal can only support up to 32 GB micro-SD card memory and is only compatible with Class 6 and Class 10 SDCH micro-SD cards and SDSC cards with a FAT32/16 format. A real-time clock is also present on this terminal and it also has a battery with a minimum life of 5 years at 25 ËšC. The entire terminal measures approximately 4.56 x 5.43 x 1.69 inches and weighs 0.73 lbs or 0.33 kg.

Its input voltage ranges from 18-32V DC and it has a nominal input voltage of 24V DC. It also has a maximum power consumption of 9 W or 0.39 A at 24V DC. The maximum surrounding air temperature is 50 Degree Celsius, the operating temperature is 0 to 50 Degree Celsius, and the non-operating temperature is -25-70 Degree Celsius. It also has a non-condensing relative humidity of 5-95% and a heat dissipation of 23 BTU/hr. The operating shock is 15 g, the non-operating shock is 30 g, and the operating vibration is 2 g at 10-500 Hz.

Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
