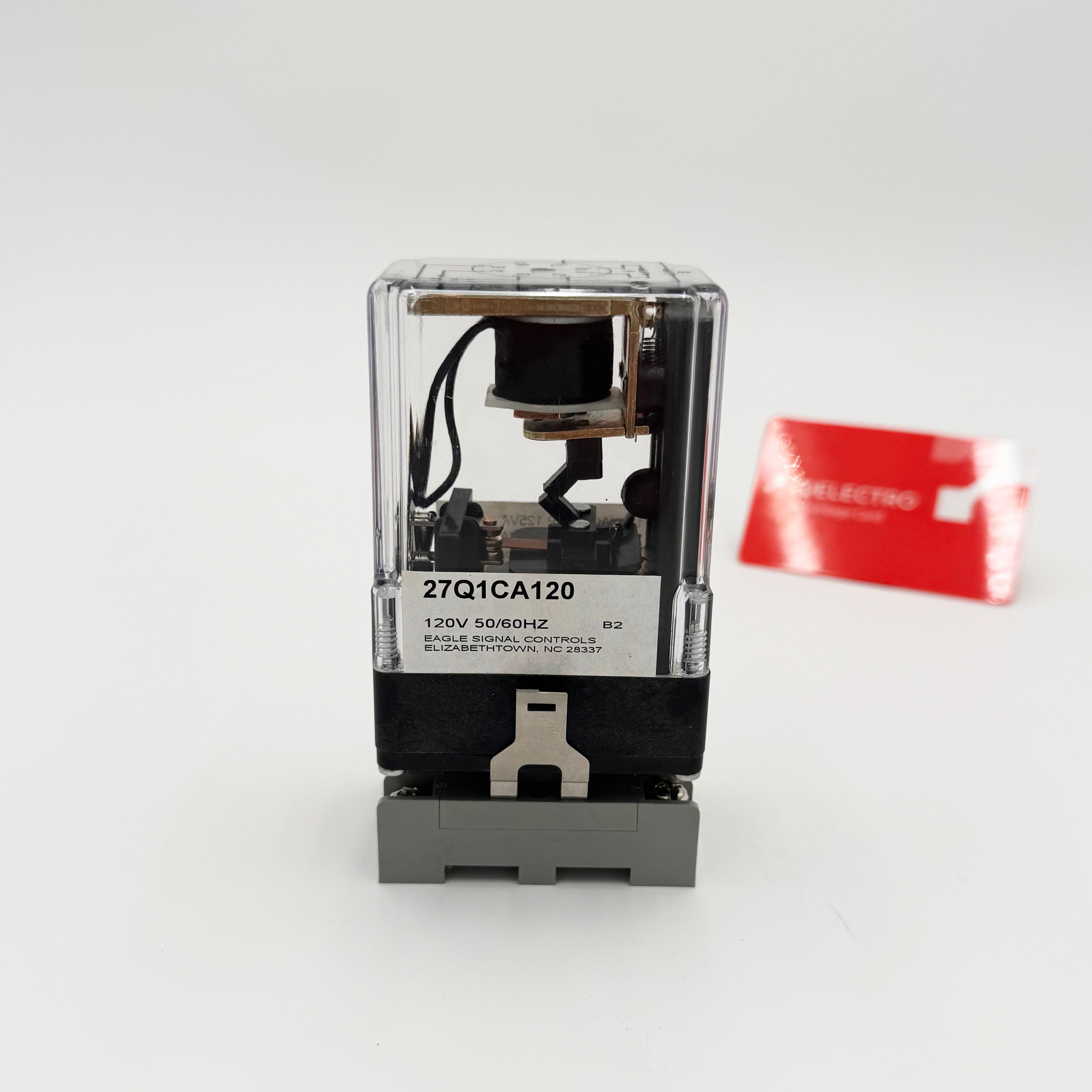

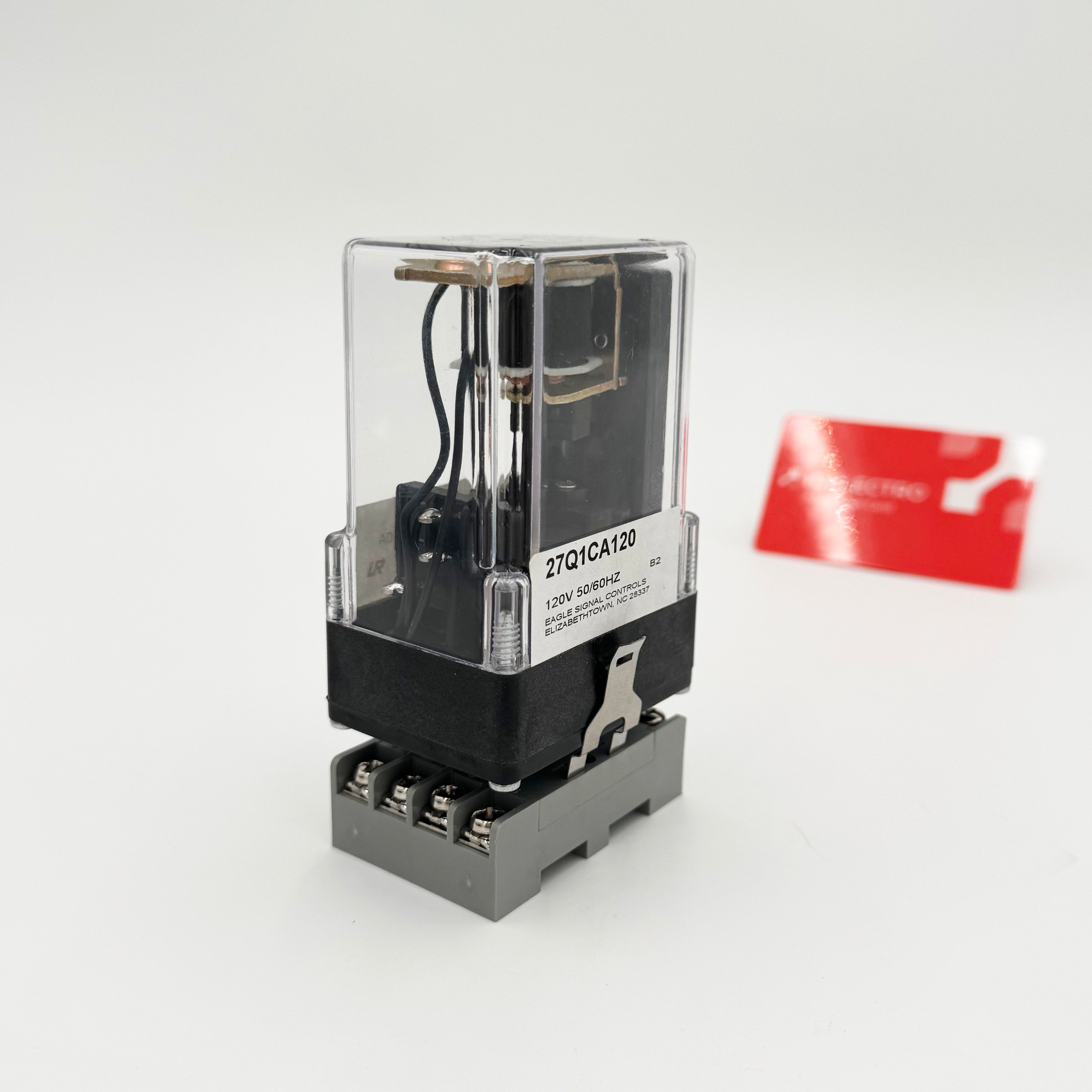

27Q1CA120 | Eagle Signal Relay Mechanical Latch
- Regular price
- $829.00
- Sale price
- $829.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 27Q1CA120
Description
The Eagle Signal 27Q1CA120 is a mechanical latch relay designed for dependable holding and switching of electrical circuits using a single-pole contact configuration. It operates at 120 VAC and features a 50/60 Hz coil for compatibility with standard AC power systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eagle Signal |
| Category |
Panel Accessories
|
| Part Number | 27Q1CA120 |
| Subcatecory |
Relay/Socket
|
| Contact Configuration | 1 Pole (SPST or similar) |
| Coil Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Horsepower Rating | 1/6 HP |
| Latching Mechanism | Mechanical |
| Application | Control Circuits, Low-Power Motors |
| Weight | 0.24 lb |
Information About 27Q1CA120
The 27Q1CA120 is a one-pole mechanical latch relay that maintains its last state without continuous coil power, improving energy efficiency and reducing coil wear. Designed to handle loads up to 1/6 HP, it is suitable for low-power motor and signal applications. The unit operates on a standard 120V AC input at both 50 and 60 Hz, providing versatility across global installations. Its mechanical latching design ensures reliable retention during power interruptions or system fluctuations.
Key Features:
- Mechanical Latch Design: retains position without continuous coil power, conserving energy and reducing wear.
- Single-Pole Configuration: supports basic circuit switching with one pole relay contact.
- 120 VAC Operation: compatible with standard control voltage environments at 50/60 Hz.
- 1/6 HP Rating: capable of switching fractional horsepower loads for light-duty motor applications.
- Stable Switching: mechanical hold ensures secure relay status even during power loss or transient events.
The 27Q1CA120 offers dependable latching performance with single-pole switching and low-power load support for control and signaling systems.
