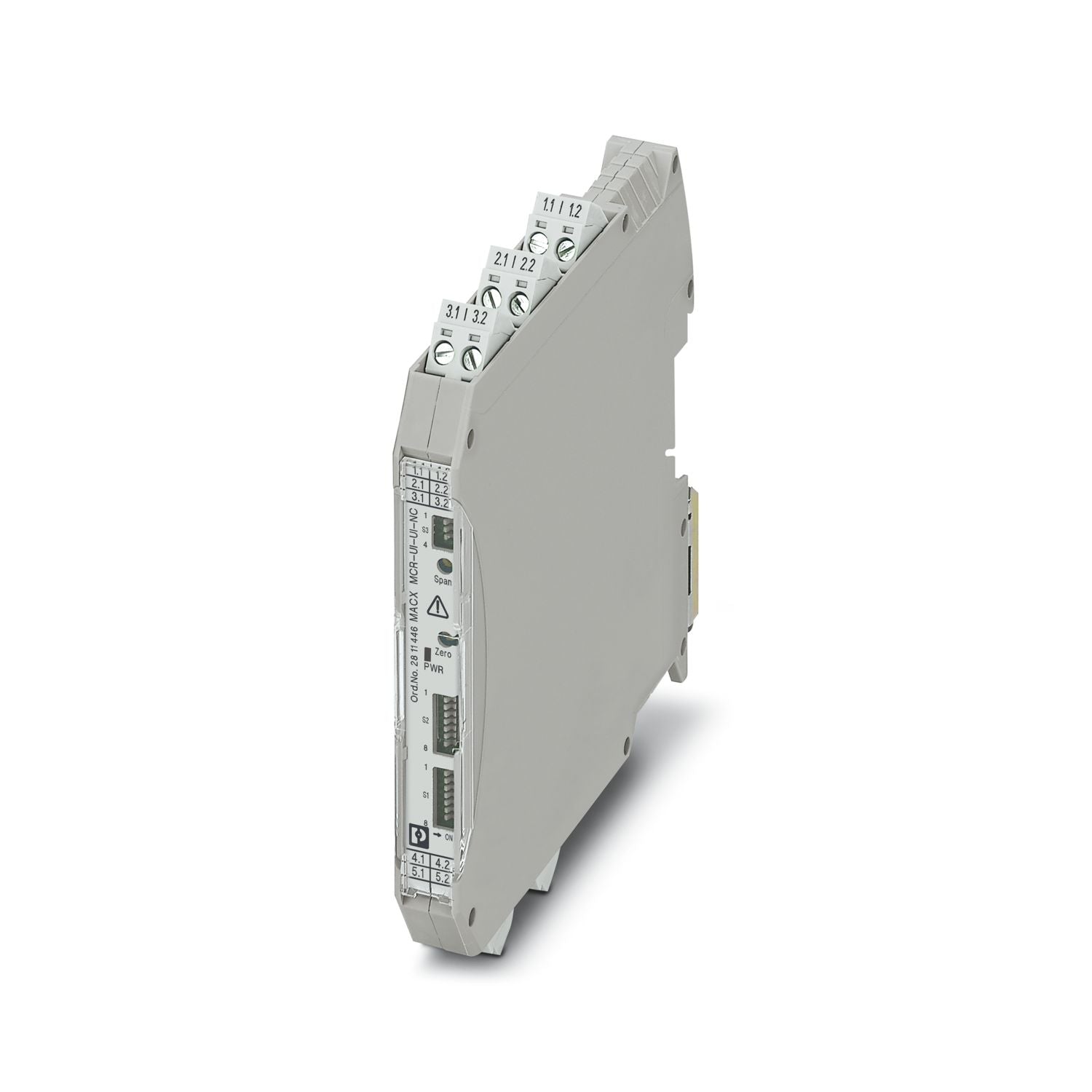

2811446 | Phoenix Contact | Single Channel Isolating Transducer
2811446 | Phoenix Contact | Single Channel Isolating Transducer
Part #: 2811446 Manufactured by: Phoenix Contact

2811446 | Phoenix Contact | Single Channel Isolating Transducer

Regular price
$461.00
Sale price
$461.00
Regular price
Never Used Surplus
1 in Stock
Product Overview
The Phoenix Contact 2811446 Single Channel Isolating Transducer is part of the MACX ANALOG Series, designed to offer excep...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 2811446
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Phoenix Contact
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
2811446 | Phoenix Contact | Single Channel Isolating Transducer
    2811446 | Phoenix Contact | Single Channel Isolating Transducer
2811446 | Phoenix Contact | Single Channel Isolating Transducer
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 2811446

Description / Specifications

Description

The Phoenix Contact 2811446 Single Channel Isolating Transducer, part of the MACX ANALOG Series, is designed to deliver reliable signal conditioning and conversion capabilities for various industrial applications. This transducer offers exceptional safety features suitable for environments requiring comprehensive explosion protection and functional safety. It ensures interference-free analog and digital signal processing while adhering to explosion protection standards for all zones and material groups.

The MACX Analog Series provides functional safety compliant with SIL IEC/EN 61508 and PL EN ISO 13849, offering peace of mind in safety-critical applications. Key benefits include high signal quality facilitated by safe electrical isolation and minimal self-heating, contributing to a long service life.



Technical Specifications





Part #

MACX MCR-UI-UI-NC

Manufacturer

PHOENIX CONTACT

Category

Controls & Indicators

Subcategory

Signal Conditioner/Transmitter

Product type

Signal conditioner

Product family

MACX Analog

No. of channels

1

Type

Signal conditioners with SIL functional safety

Configuration

DIP switches

Alignment span

± 4 %

Alignment zero

± 4 %

Electrical isolation between input and output

yes

Limit frequency (3 dB)

10 kHz (Can be switched to 30 Hz)

Maximum power dissipation for nominal condition

< 0.7 W (20 mA)

Protective circuit

Transient protection

Step response (10-90%)

35 µs (10 kHz)

Maximum temperature coefficient

0.0075 %/K

Maximum transmission error

≤ 0.1 % (Compared to the final value)

Test voltage

2.5 kV AC (50 Hz, 60 s)

Overvoltage category

II

Pollution degree

2

Standards/regulations

IEC/EN 61010-1

Rated insulation voltage

300 Vrms

Insulation

Safe isolation

Standards/regulations

IEC/EN 60079-7

Rated insulation voltage

250 V AC/DC

Nominal supply voltage range

12 V DC ... 24 V DC -20 % ... +25 %

Supply voltage range

9.6 V DC ... 30 V DC

Power dissipation

500 mW (at 24 V DC / 20 mA)

Power consumption

≤ 700 mW

Connection method

Screw connection

Stripping length

7 mm

Screw thread

M3

Conductor cross section rigid

0.2 mm² ... 2.5 mm²

Conductor cross section flexible

0.2 mm² ... 2.5 mm²

Conductor cross section AWG

24 ... 14

Tightening torque

0.5 Nm ... 0.6 Nm

Color

gray (RAL 7042)

Housing material

PA 6.6-FR

Degree of protection

IP20 (not assessed by UL)

Ambient temperature (operation)

-20 °C ... 70 °C

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Height range

> 2000 m ... 3000 m

Ambient temperature (operation)

-20 °C ... 60 °C

Rated insulation voltage

190 V

Height range

> 3000 m ... 4000 m

Ambient temperature (operation)

-20 °C ... 55 °C

Rated insulation voltage

63 V

Height range

> 4000 m ... 5000 m

Ambient temperature (operation)

-20 °C ... 45 °C

Rated insulation voltage

63 V



Information About 2811446



The Phoenix Contact 2811446 Single Channel Isolating Transducer is part of the MACX ANALOG Series, designed for signal conditioning and conversion, particularly catering to applications demanding robust explosion protection and functional safety. The MACX Analog signal conditioners offer diverse solutions for secure and interference-free analog and digital signal processing, adhering to safety standards such as SIL IEC/EN 61508 and PL EN ISO 13849.

Key Benefits:

  • High Signal Quality and Electrical Isolation: The MACX Analog Series ensures high signal quality, coupled with safe electrical isolation. This design enhances the reliability of signal transmission and contributes to an extended service life, facilitated by low self-heating.
  • Space-Efficient Design: With a compact overall width of only 12.5 mm, the MACX Analog Series achieves significant space savings. This is especially beneficial for applications where space constraints are a consideration. The design accommodates single and two-channel standard functions.
  • Flexible Power Supply: The signal conditioners offer flexibility in power supply options. They support modular 24 V power bridging with group error messaging, providing a reliable power solution. Additionally, they can handle a wide-range input spanning up to 230 V AC/DC, offering adaptability to varying power scenarios.
  • Service-Friendly Connection Technology: The MACX Analog Series features service-friendly connection technology, employing coded, pluggable terminal blocks. Users have the option to choose between screw or Push-in connections based on their preference or specific application requirements.
  • Fast Signal Connection with Termination Carriers: For efficient system cabling, the signal conditioners facilitate fast signal connection using compact and robust Termination Carriers. This feature streamlines the installation and maintenance processes, contributing to overall system reliability.



The Phoenix Contact 2811446 Single Channel Isolating Transducer, as part of the MACX ANALOG Series, aligns with industry standards and regulations, providing a reliable solution for applications in hazardous environments. Its focus on safety, space efficiency, flexible power supply, service-friendly design, and fast signal connection makes it a suitable choice for diverse industrial scenarios where precision and reliability are paramount.





Manufacturer information

Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications..

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
