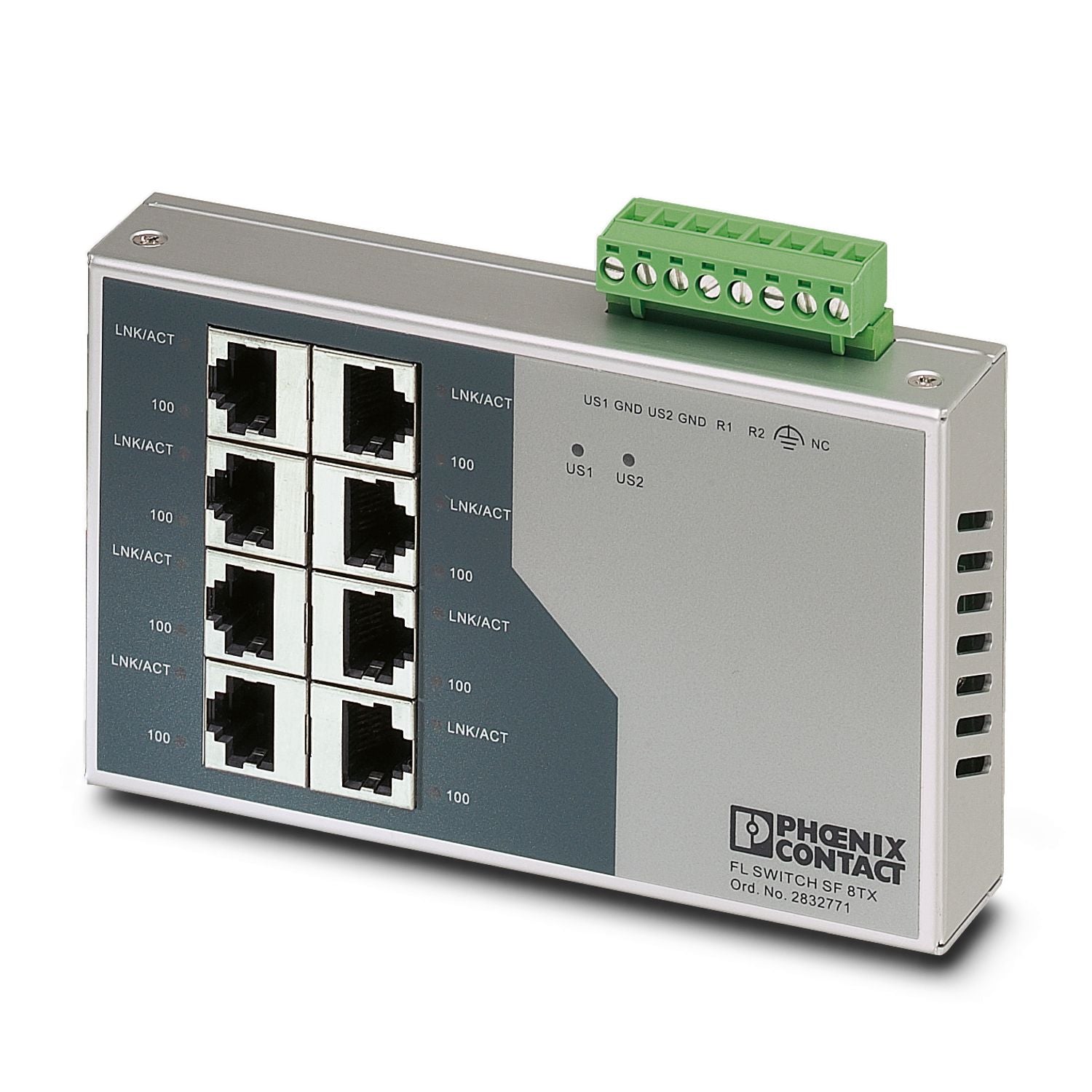

2832771 | Phoenix Contact Industrial Ethernet Switch
- Regular price
- $319.00
- Sale price
- $319.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2832771
Description
The Phoenix Contact 2832771 Industrial Ethernet Switch, identified by part number FL SWITCH SF 8TX, belongs to the FL Switch SF Series, designed for industrial networking applications. Featuring 8 TP (Twisted Pair) RJ45 ports, this unmanaged switch enables reliable Ethernet connectivity in industrial environments.
Equipped with automatic detection of data transmission speed, the switch can operate at either 10 or 100 Mbps (megabits per second) on each RJ45 port, ensuring compatibility with various network devices and applications. Additionally, it incorporates an autocrossing function, allowing for automatic configuration of the crossover connection, simplifying installation and reducing setup time.
Technical Specifications
|
Part # |
FL SWITCH SF 8TX |
|
Manufacturer |
PHOENIX CONTACT |
|
Category |
Computer |
|
Subcategory |
Networking Router |
|
Housing material |
Aluminum |
|
Connection method |
RJ45 |
|
Note on the connection method |
Auto negotiation and autocrossing |
|
Transmission speed |
10/100 Mbps |
|
Transmission physics |
Ethernet in RJ45 twisted pair |
|
Transmission length |
100 m (per segment) |
|
Signal LEDs |
Data receive, link status |
|
No. of channels |
8 (RJ45 ports) |
|
Type |
Block design |
|
Product type |
Switch |
|
Product family |
Unmanaged Switch SF |
|
MTTF |
45.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
|
Basic functions |
Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
|
Signal contact control voltage |
24 V DC (typical) |
|
Status and diagnostic indicators |
LEDs: US1, US2 (redundant voltage supply), link and activity per port |
|
Additional functions |
Autonegotiation |
|
Maximum power dissipation |
4.8 W |
|
Test section |
500 V DC 1 min. |
|
Transmission medium |
Copper |
|
Supply voltage (DC) |
24 V DC (redundant) |
|
Supply voltage range |
18.5 V DC ... 30.2 V DC |
|
Power supply connection |
Via COMBICON, max. conductor cross section 2.5 mm² |
|
Residual ripple |
3.6 VPP (within the permitted voltage range) |
|
Typical current consumption |
200 mA (at US = 24 V DC) |
|
Degree of protection |
IP20 |
|
Ambient temperature (operation) |
0 °C ... 55 °C |
|
Ambient temperature (storage/transport) |
-20 °C ... 70 °C |
|
Altitude |
2000 m |
|
Permissible humidity (operation) |
5 % ... 95 % (non-condensing) |
|
Permissible humidity (storage/transport) |
5 % ... 95 % (non-condensing) |
|
Vibration (operation) |
in acc. with IEC 60068-2-6: 5g, 150 Hz |
|
Air pressure (operation) |
86 kPa ... 108 kPa (up to 1500 m above sea level) |
|
Air pressure (storage/transport) |
66 kPa ... 108 kPa (up to 3500 m above sea level) |
|
Resistance to gases |
Sulfur dioxide (SO2) 10 ±0.3 cm3/m3, hydrogen sulfide (H2S) 1 ±0.3 cm3/m3, at 25°C and 75% humidity and exposure of four days |
Information About 2832771
The Phoenix Contact 2832771 Industrial Ethernet Switch, designated as FL SWITCH SF 8TX, is an unmanaged switch designed for industrial applications. Featuring 8 TP RJ45 ports, it offers seamless connectivity for Ethernet networks.
With its automatic detection of data transmission speed, this switch ensures optimal performance by adapting to either 10 or 100 Mbps transmission rates. Additionally, the autocrossing function simplifies installation by automatically configuring the crossover connections as needed.
The FL SWITCH SF 8TX is built to withstand the rigors of industrial environments, offering reliable operation in demanding conditions. Its robust construction and industrial-grade components ensure long-term durability and uninterrupted performance.
This industrial Ethernet switch operates on a 24 VDC power supply, making it suitable for deployment in industrial settings where such power sources are common. Its compatibility with standard power inputs simplifies integration into existing systems.
As part of the FL Switch SF Series from Phoenix Contact, the FL SWITCH SF 8TX adheres to high standards of quality and reliability. It is designed to provide stable and efficient network connectivity, essential for industrial automation and control systems.
The switch's 8 TP RJ45 ports allow for the connection of multiple devices, facilitating the creation of expansive industrial networks. Each port supports both 10 and 100 Mbps transmission speeds, ensuring flexibility and compatibility with various devices and network configurations.
With its unmanaged configuration, the FL SWITCH SF 8TX offers plug-and-play simplicity, requiring minimal setup and configuration. This makes it an ideal choice for applications where ease of deployment and operation are paramount.
Manufacturer information
Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.
