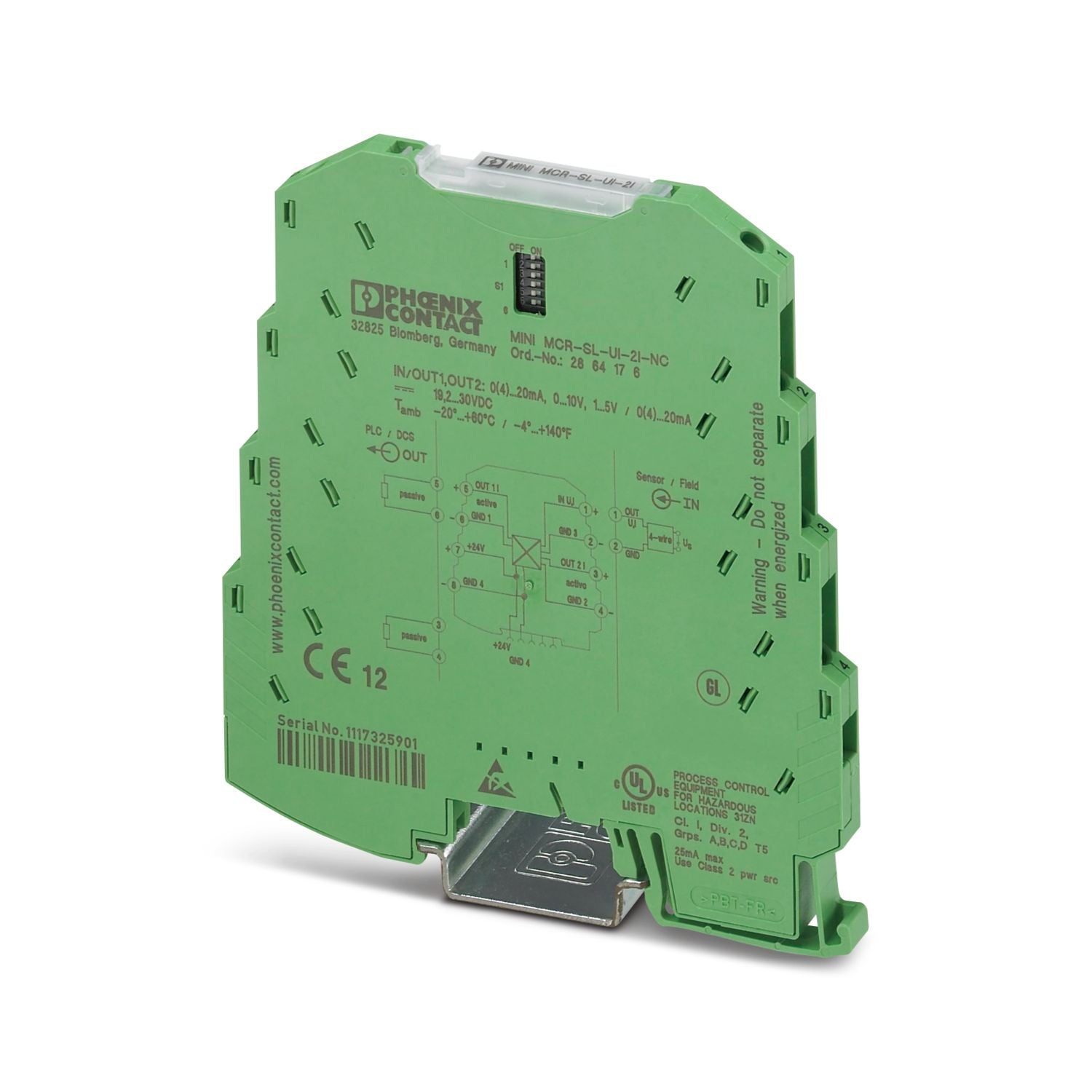

Part #: 2864176 Manufactured by: Phoenix Contact

2864176 | Phoenix Contact | Signal Duplicator

Regular price
$189.00
Sale price
$189.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The Phoenix Contact 2864176 Signal Duplicator, known as MINI MCR-SL-UI-2I-NC, is a 4-way signal duplicator designed for el...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 2864176
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Phoenix Contact
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
2864176 | Phoenix Contact | Signal Duplicator
    2864176 | Phoenix Contact | Signal Duplicator
2864176 | Phoenix Contact | Signal Duplicator
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 2864176

Description / Specifications

Description

The Phoenix Contact 2864176 is a signal duplicator belonging to the MINI MCR-SL-UI-2I-NC series. Designed for electrical isolation and duplication of analog signals, it features a 4-way configuration and screw connection terminals. The signal duplicator is unconfigured upon purchase, offering flexibility for customization according to specific application requirements. It facilitates the isolation and duplication of analog signals with reliability and precision. The standard configuration ensures compatibility with various analog signal duplication needs in industrial settings.


Technical Specifications



Part #

MINI MCR-SL-UI-2I-NC

Manufacturer

PHOENIX CONTACT

Category

Controls & Indicators

Subcategory

Signal Conditioner/Transmitter

Product type

Signal duplicator

Product family

MINI Analog

No. of channels

2

Configuration

DIP switches

Rated insulation voltage

50 V AC/DC

Electrical isolation

Basic insulation in accordance with EN 61010

Electrical isolation between input and output

Yes

Limit frequency (3 dB)

Approx. 35 Hz

Maximum power dissipation for nominal condition

500 mW

Test voltage (Input/output/supply)

1.5 kV AC (50 Hz, 60 s)

Protective circuit

Transient protection

Step response (0–99%)

≈ 10 ms

Maximum temperature coefficient

< 0.01 %/K

Temperature coefficient, typical

< 0.004 %/K

Maximum transmission error

≤ 0.2 % (of final value)

Transmission error, typical

< 0.1 %

Nominal supply voltage

24 V DC

Supply voltage range

19.2 V DC ... 30 V DC

Max. current consumption

< 30 mA (at 24 V DC incl. load)

Power consumption

< 600 mW

Max. current input signal

50 mA

Input resistance of voltage input

Approx. 100 kΩ

Input resistance current input

Approx. 50 Ω

Number of outputs

2

Configurable/programmable

Yes, unconfigured

Non-load voltage

9 V

Current output signal

0 mA ... 20 mA

Max. current output signal

Approx. 22 mA

Load/output load current output

≤ 250 Ω (at 20 mA)

Ripple

< 20 mVPP (at 250 Ω)

Degree of protection

IP20

Ambient temperature (operation)

-20 °C ... 60 °C

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Altitude

≤ 2000 m

Permissible humidity (operation)

5 % ... 95 % (non-condensing)


Information About 2864176

The Phoenix Contact 2864176 Signal Duplicator, designated as MINI MCR-SL-UI-2I-NC, is a signal duplicator designed for electrical isolation and the replication of analog signals through screw connection. This device is part of the MCR Series and comes in an unconfigured standard configuration.

The MINI MCR-SL-UI-2I-NC features a 4-way signal duplication capability, providing users with the ability to isolate and replicate analog signals effectively. With its screw connection interface, it offers ease of installation and secure connections in various industrial applications.

As part of the MCR Series, this signal duplicator ensures basic isolation, meeting standard safety requirements for electrical components. The unconfigured nature of the device allows for flexibility in application-specific settings and configurations based on user requirements and system demands.

Key specifications of the MINI MCR-SL-UI-2I-NC include its ability to handle up to two channels of analog signal duplication. The device maintains a basic insulation level to ensure proper electrical isolation between input and output channels.

With its 4-way design, this signal duplicator facilitates the replication and distribution of analog signals across different sections of a control or monitoring system. It is particularly suitable for applications where signal redundancy and isolation are critical requirements.

The screw connection mechanism enhances the device's durability and reliability in industrial environments, providing secure connections that withstand vibration and other mechanical stresses.





Manufacturer information

Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.
