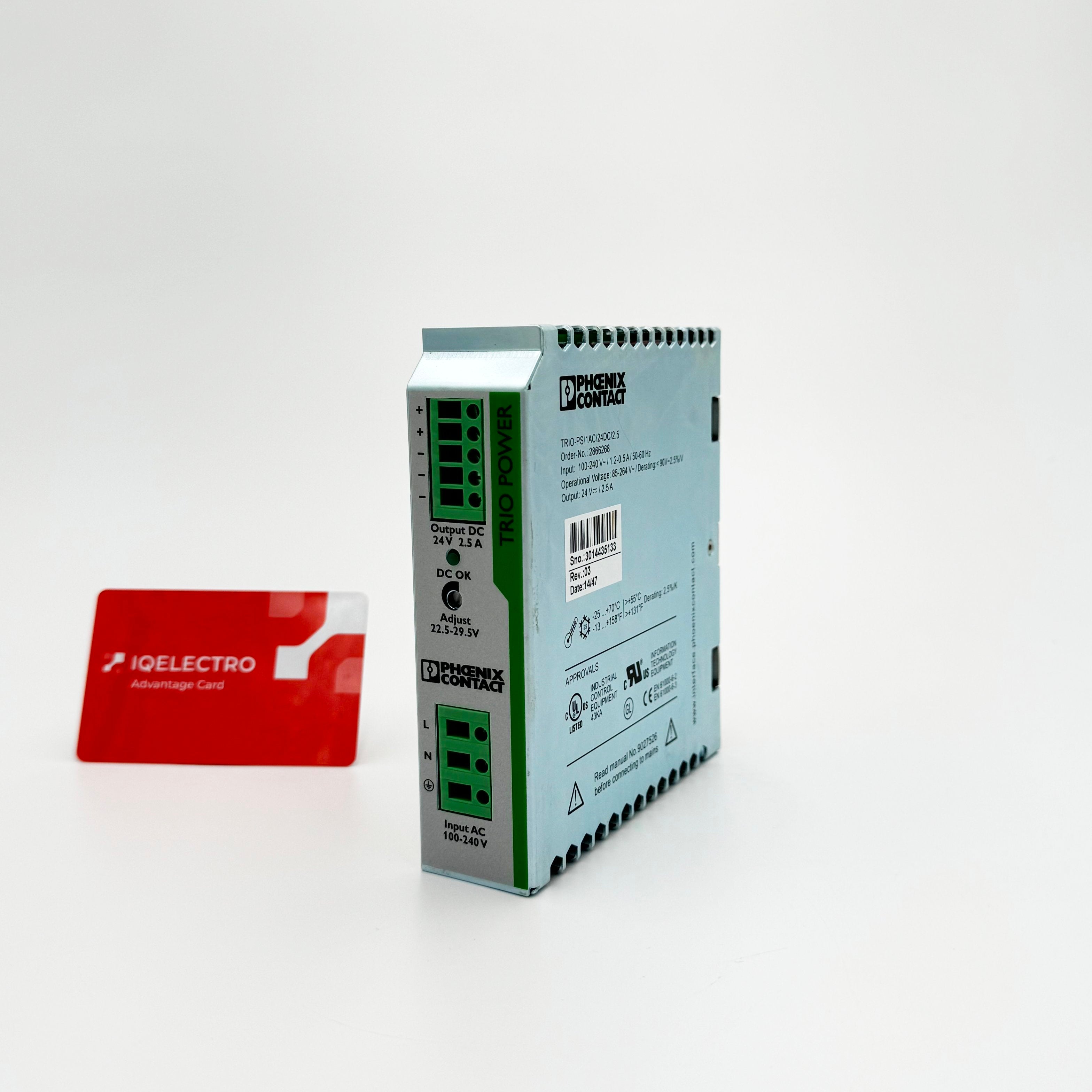

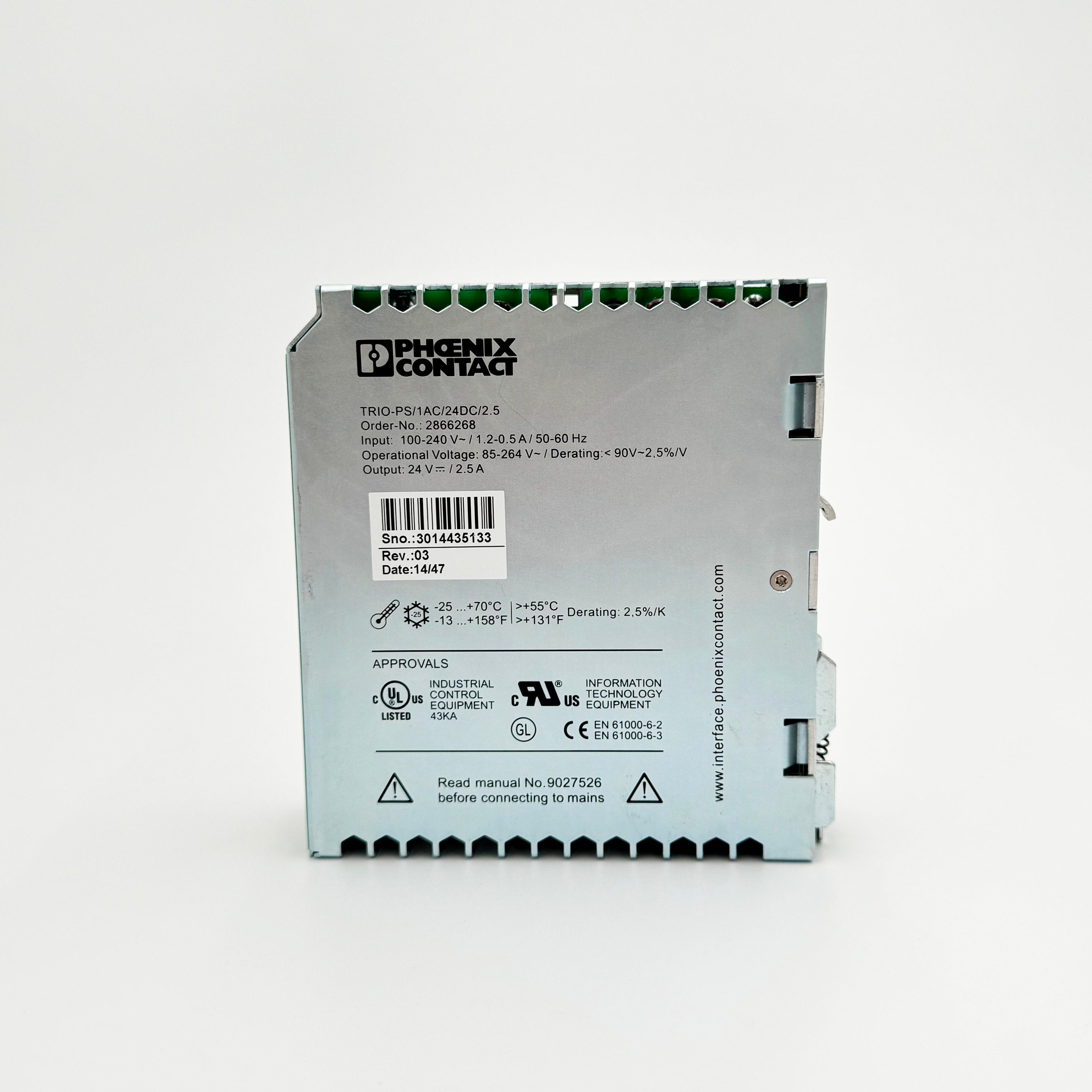

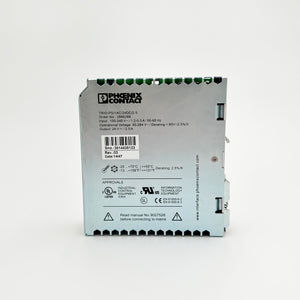

2866268 | Phoenix Contact Power Supply Unit

Description

The TRIO-PS/1AC/24DC/2.5 is a power supply unit designed to convert 1-phase AC input to 24V DC output. It delivers a maximum output current of 2.5A and is suitable for use in industrial applications requiring reliable DC power. The unit is intended for integration into control systems and provides stable power to various devices within an automation environment.

Technical Specifications

Information About 2866268

The TRIO-PS/1AC/24DC/2.5 is a robust power supply unit developed by Phoenix Contact, designed to provide reliable and stable DC power in industrial automation and control applications. As part of the Power Supplies category, this unit falls under the AC-DC Power Supply subcategory, specifically classified as a switching power supply. Its DIN Rail mounting style and compact design make it ideal for use in industrial control panels and automation systems, ensuring efficient power conversion and distribution for a wide range of devices.

The TRIO-PS/1AC/24DC/2.5 operates with a single-phase (1-Phase) input, supporting an input voltage range from 100 VAC to 240 VAC, making it compatible with most standard industrial and commercial power systems. This broad input voltage range allows for flexible installation in various environments, from factory floors to control rooms, without the need for additional voltage conversion equipment. The unit is capable of handling fluctuations in input voltage while maintaining stable output performance, ensuring consistent power delivery to connected devices.

This power supply offers a maximum output power of 60 watts and features a single output channel. The output voltage on Channel 1 is fixed at 24 VDC, which is a standard voltage for many industrial control systems, sensors, actuators, and other automation components. The unit delivers a maximum output current of 2.5 A, making it suitable for powering devices with moderate power requirements. The 24 VDC output ensures compatibility with a wide range of industrial equipment, including PLCs (Programmable Logic Controllers), HMIs (Human-Machine Interfaces), sensors, and communication devices, providing the necessary power for continuous and efficient operation.

The TRIO-PS/1AC/24DC/2.5 also features a high isolation voltage of 4 kV, providing enhanced electrical isolation between the input and output sides of the unit. This high isolation rating improves safety and reliability by preventing potential electrical faults or disturbances from affecting the performance of connected devices. The 4 kV isolation also ensures protection against surges, spikes, and other electrical anomalies that could damage sensitive electronics in industrial environments.

The unit's enclosure is designed to protect internal components from environmental factors such as dust and debris, contributing to its durability and long-term performance. The enclosed design ensures that the power supply can withstand the rigors of industrial environments, providing reliable operation in conditions where open-frame power supplies may be more vulnerable to damage. This design also reduces the need for frequent maintenance or replacement, contributing to lower operational costs over time.

Designed for DIN rail mounting, the TRIO-PS/1AC/24DC/2.5 can be easily installed within control cabinets or enclosures, saving space and simplifying the installation process. DIN rail mounting is the standard for most industrial control panels, making this unit compatible with a wide range of existing setups. Its compact form factor ensures that it can be integrated into tight spaces without compromising performance, allowing for efficient use of available panel space.

The switching technology employed in the TRIO-PS/1AC/24DC/2.5 ensures high efficiency and low power loss during operation. This technology allows the power supply to regulate its output effectively, converting the incoming AC voltage to a stable and reliable DC output. The switching design helps to reduce heat generation, improving the overall efficiency of the unit and minimizing energy waste. Additionally, the power supply’s high efficiency reduces the thermal load on control panels, contributing to extended component life and enhanced system reliability.

The TRIO-PS/1AC/24DC/2.5 power supply is ideal for use in a variety of industrial applications where reliable and stable DC power is required. Its 24 VDC output and 2.5 A current rating make it suitable for powering a range of devices in control systems, automation networks, and industrial machinery. The unit's robust design, high isolation voltage, and efficient performance ensure that it can meet the demands of modern industrial environments, providing consistent power delivery even in challenging conditions.

Overall, the TRIO-PS/1AC/24DC/2.5 from Phoenix Contact is a reliable and efficient power supply unit designed for industrial applications. With its 60 W output power, 24 VDC output, and 2.5 A current capacity, it provides stable and consistent power to a wide range of industrial devices. Its high 4 kV isolation voltage, DIN rail mounting capability, and enclosed design make it a durable and versatile solution for powering critical components in industrial control systems. Whether used in automation, manufacturing, or process control applications, the TRIO-PS/1AC/24DC/2.5 ensures reliable power delivery, contributing to the overall efficiency and performance of industrial systems.
