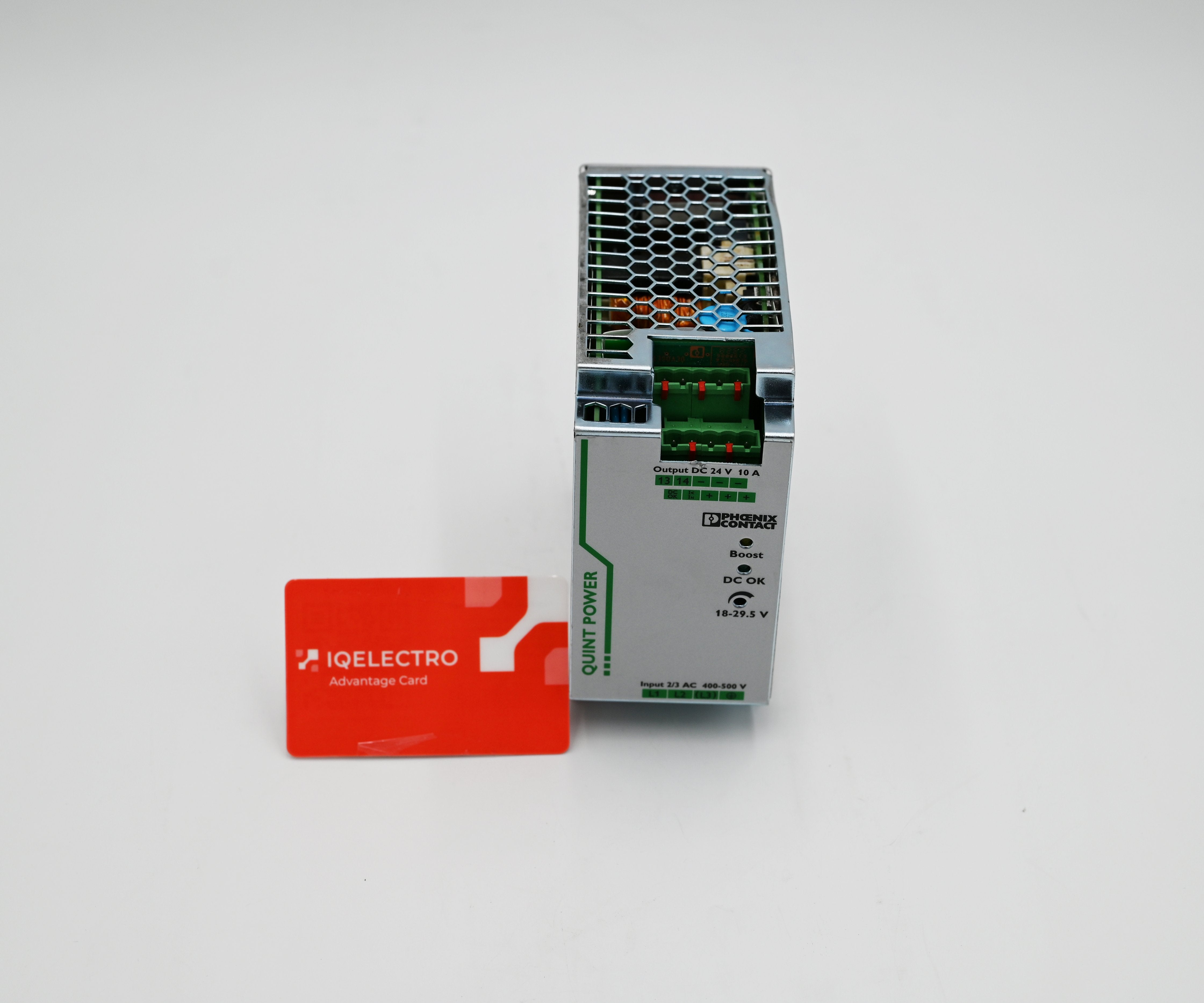

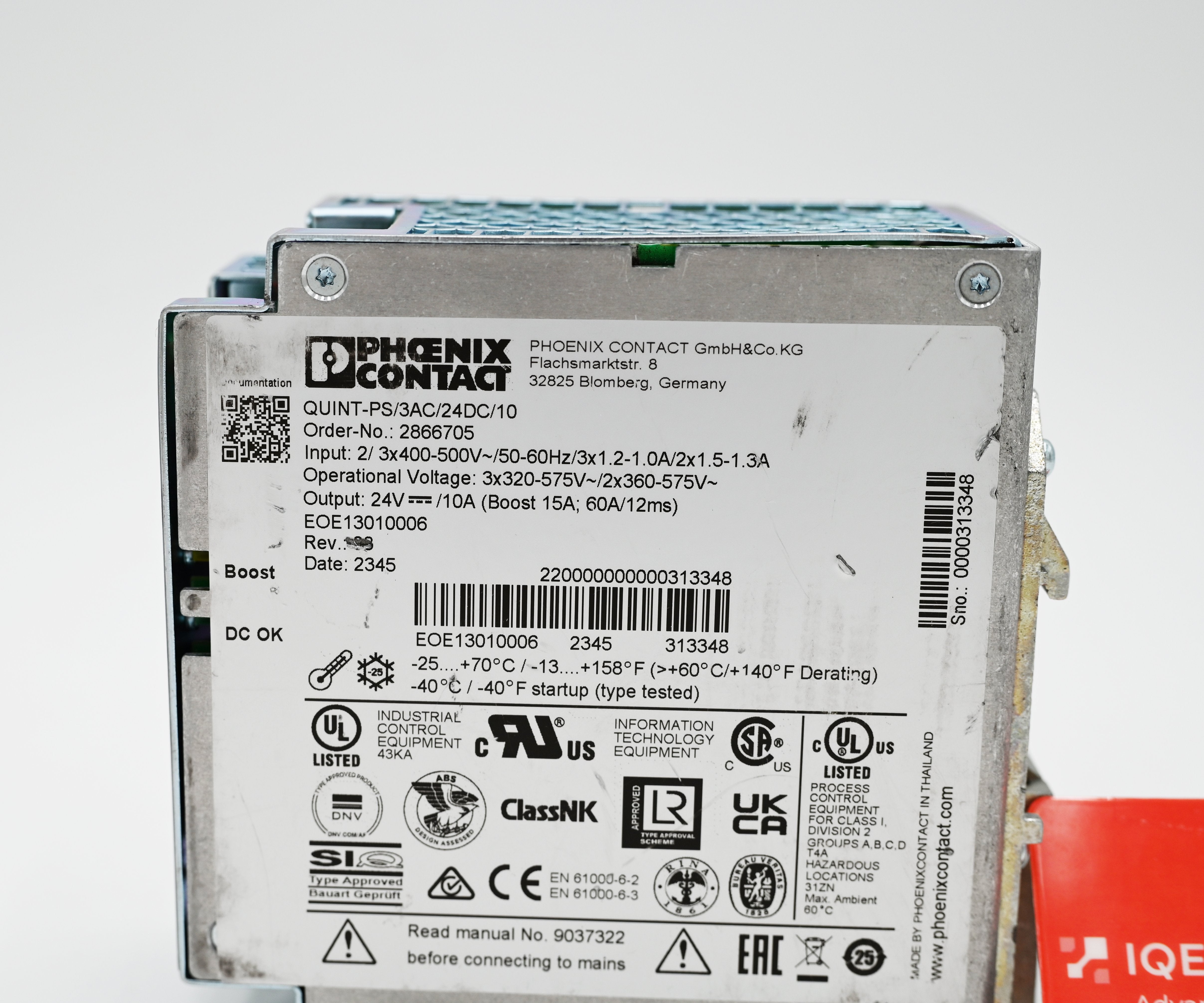

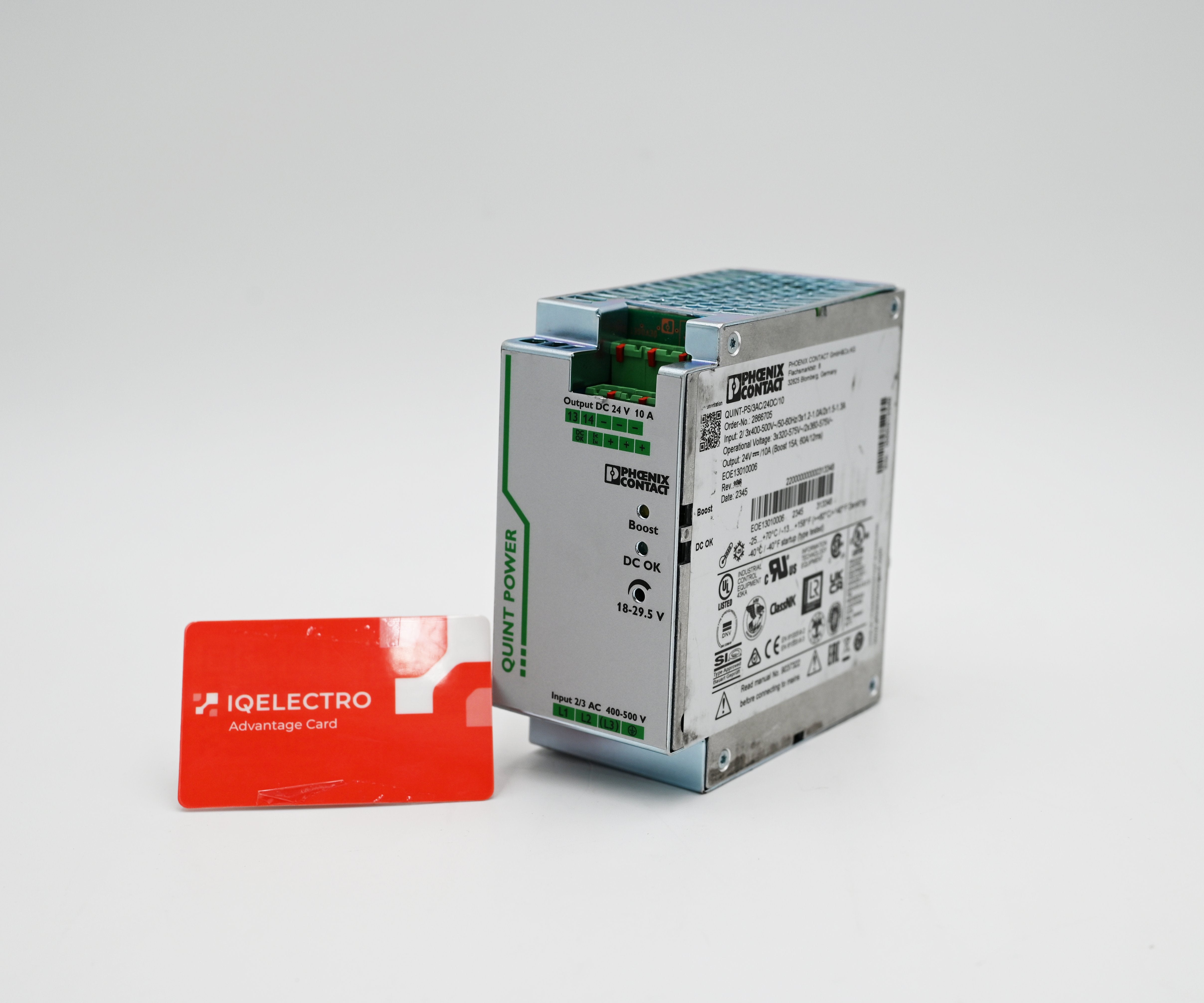

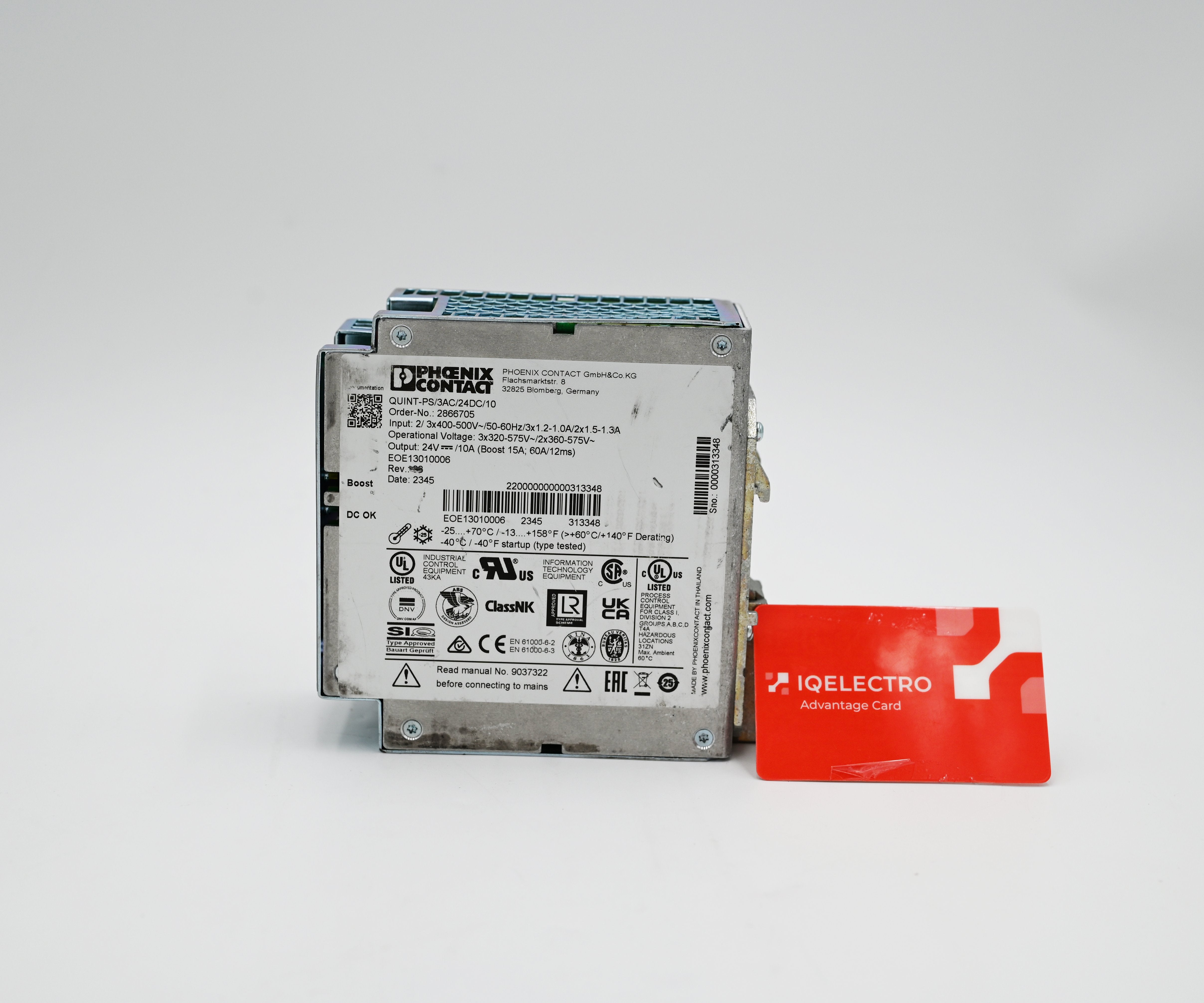

2866705 | Phoenix Contact | Power Supply
- Regular price
- $224.00
- Sale price
- $224.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 2866705
Description
Technical Specifications
Specifications
|
Part # |
2866705 |
|
Manufacturer |
Phoenix Contact |
|
Category |
Power Supply |
|
Rated input voltage range |
3x 400 V AC ... 500 V AC |
|
Input voltage range |
3x 400 V AC ... 500 V AC -25% ... +15% |
|
DC input voltage range |
450 V DC ... 800 V DC |
|
Voltage type of supply voltage |
AC DC |
|
Inrush current shock |
< 15 A (at 25°C) |
|
Inrush current integral (I 2 t) |
< 1.5 A 2 s |
|
Inrush current limitation |
15A |
|
AC frequency range |
45Hz...65Hz |
|
DC frequency range |
0Hz |
|
Bridging duration in the event of a power outage |
> 30 ms (400 V AC) |
|
Current absorbed |
3x 1.2 A (400 V AC) |
|
Rated consumption |
411 VA |
|
Protective circuit |
Protection against transients; Varistor, gas spark gap |
|
Power factor (cos phi) |
0.62 |
|
Typical switch-on time |
< 0.45 sec |
|
Approved power fuse |
B6 B10 B16 AC: |
|
Permissible DC upstream fuse |
DC: Install the appropriate fuse upstream |
|
Selecting the Appropriate Fuse for Input Protection |
6 A ... 16 A (AC: Characteristic B, C, D, K) |
|
Discharge current to PE |
< 3.5mA |
|
Rated input voltage range |
± 500 V DC ... 600 V DC |
|
Input voltage range |
500 V DC ... 600 V DC -10% ... +34% (mid-point earthed) |
|
Current absorbed |
1.3 A (520 V DC) |
|
Yield |
typ. 93% (400 V AC) |
|
Output characteristic |
U/I |
|
Rated output voltage |
24 VDC ±1% |
|
Output voltage setting range (U Set) |
18 V DC ... 29.5 V DC (> 24 V DC, limited power const.) |
|
Rated output current (I N) |
10A |
|
POWER BOOST (I Boost) |
15 A (-25 °C ... 40 °C permanent, U OUT = 24 V DC) |
|
Static Boost (I Stat.Boost) |
15A |
|
Selective Fuse Breaking (I SFB) |
60A (12ms) |
|
Magnetic fuse tripping |
B2 / B4 / B6 / C2 / C4 |
|
Decommissioning |
60°C ... 70°C (2.5%/K) |
|
Return Power Resistance |
max. 35 VDC |
|
Output overvoltage protection (OVP) |
< 35 V DC |
|
Adjustment tolerance |
< 1% (static load modification 10% ... 90%) |
|
Residual ripple |
< 20 mV DC (for nominal values) |
|
Output power |
240W |
|
Switching tips rated load |
< 20 mV DC (for nominal values, 20 MHz) |
|
Maximum no-load power dissipation |
7W |
|
Power dissipation nominal load max. |
19W |
|
Establishment time |
< 0.15 s (U OUT (10% ... 90%)) |
|
Parallel connection permitted |
yes, for redundancy and increased power |
|
Serial Connectivity |
Yes |
|
Output Description |
U OUT > 0.9 x U N : “High” signal |
|
Maximum switching voltage |
+ 24 V DC |
|
Switching voltage range |
18 V DC ... 24 V DC |
|
Output voltage |
+ 24 V DC |
|
Maximum inrush current |
≤ 20 mA (short circuit protection) |
|
Permanent charging current |
≤ 20mA |
|
Output Description |
Relay contact, U OUT > 0.9 x U N : contact closed |
|
Maximum switching voltage |
30 V AC |
Information About 2866705

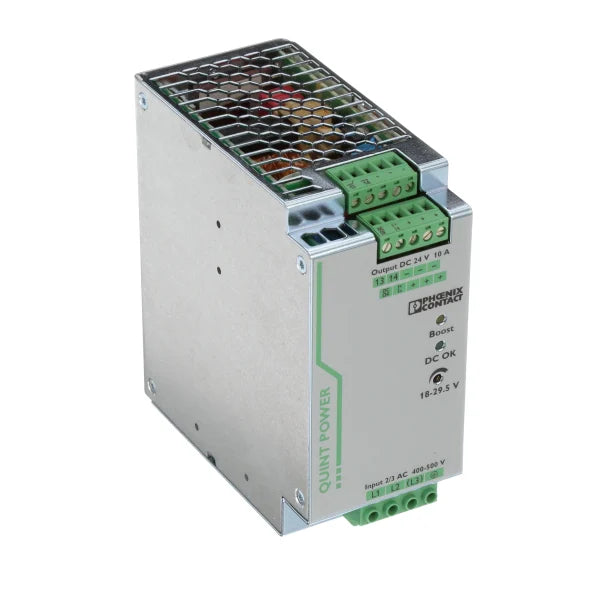

The Phoenix Contact 2866705 Power Supply from the QUINT POWER Series is a Single-Phase Primary-Switched Power Supply Unit designed for extreme operating conditions. It is ideally matched with the PLUGTRAB SEC surge protection device for optimal performance. In the event of damage to the fourth-generation QUINT POWER within the first five years of purchase, a free replacement is provided when used in conjunction with this combination.
Featuring Power Boost technology, the power reserve enables the smooth start-up of loads with high inrush currents and ensures reliable fuse tripping. Preventive function monitoring identifies impermissible operating states, minimizing system downtimes. Remote monitoring capabilities are facilitated by an active transistor switching output and a floating relay contact.
The power supply units are idling-proof and short-circuit-proof, offering a regulated and adjustable output voltage of 12, 24, and 48 V DC. Output currents ranging from 2.5 to 40 A accommodate diverse application requirements. Additionally, variants for use in Ex zone 2, uninterruptible solutions, AS-i power supply units, and a QUINT diode are available, contributing to a comprehensive product range.
The DIN Rail Mount design enhances installation flexibility and efficiency, making it suitable for various industrial settings. The QUINT POWER Series units prioritize operational reliability and safety, meeting stringent performance standards. They are engineered to withstand challenging environments and ensure uninterrupted power supply to critical systems.
Manufacturer information
Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
