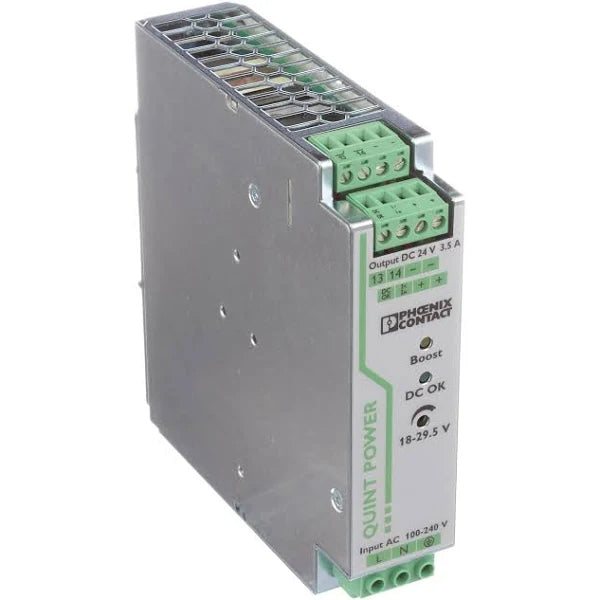

2866747 | Phoenix Contact Quint-PS/1AC/24DC/ 3.5 - Power Supply Unit
- Regular price
- $235.00
- Sale price
- $235.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2866747
Description
The Phoenix Contact 2866747 is a QUINT-PS/1AC/24DC/20 power supply designed to provide reliable 24V DC power to industrial automation systems. It delivers 24V DC at 20A (480W) from a single-phase AC input. This unit is widely used in machine building, process automation, and industrial control panels.
Technical Specifications
| Brand | Phoenix Contact |
| Product Category | DIN Rail Power Supplies |
| Product | Switching Supplies |
| Input Type | 1-Phase / Single Phase |
| Output Power | 84 W |
| Input Voltage | 100 VAC to 240 VAC |
| Number of Outputs | 1 |
| Output Voltage-Channel 1 | 24 VDC |
| Output Current-Channel 1 | 3.5 A |
| Length | 125 mm |
| Width | 32 mm |
| Height | 130 mm |
| IP Rating | IP20 |
| Maximum Operating Temperature | + 70 C |
| Minimum Operating Temperature | - 25 C |
Information About 2866747
The 2866747 is part of the Phoenix Contact QUINT POWER series, developed to ensure maximum system availability with high-performance DC power delivery. It operates from a single-phase 100–240V AC input and provides a 24V DC, 20A regulated output, capable of powering large loads such as PLC systems, motors, and solenoid banks. The power supply features dynamic boost (up to 200% for 5 seconds) and static boost (125% continuous) to start heavy loads and handle temporary overloads without shutdown. It also includes preventive function monitoring that continuously checks output voltage, current, and operational status to detect critical conditions early. The unit mounts on a DIN rail and includes LED indicators and a relay alarm contact for operational and fault signaling.
Key Features:
- Design: High-performance industrial power supply from the QUINT series.
- Input Voltage: 100–240V AC wide-range single-phase input.
- Output Power: 24V DC, 20A (480W) regulated output.
- Boost Functions: Static boost (125%) and dynamic boost (200% for 5s).
- Monitoring: Preventive function monitoring for voltage, current, and device status.
- Protection: Integrated overload, short-circuit, and overvoltage protection.
- Installation: DIN rail–mountable housing with plug-in terminals.
- Application Range: Suitable for large control systems, machine automation, and process plants.
The Phoenix Contact 2866747 delivers the power capacity, advanced monitoring, and reliability required for uninterrupted operation of demanding industrial automation systems.
Manufacturer information
Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.
