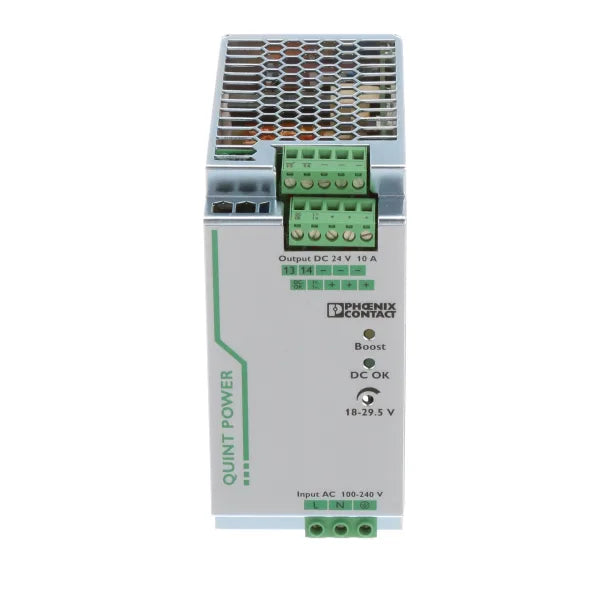

2866763 | Phoenix Contact | Power Supply
2866763 | Phoenix Contact | Power Supply
Part #: 2866763 Manufactured by: Phoenix Contact

2866763 | Phoenix Contact | Power Supply

Regular price
$195.00
Sale price
$195.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The Phoenix Contact 2866763 Power Supply is part of the QUINT POWER Series, offering a single-phase primary-switched power...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 2866763
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Phoenix Contact
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
2866763 | Phoenix Contact | Power Supply
    2866763 | Phoenix Contact | Power Supply
2866763 | Phoenix Contact | Power Supply
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 2866763

Description / Specifications

Description


The Phoenix Contact 2866763 is a part of the QUINT POWER Series, offering a single-phase primary-switched power supply unit with advanced functionality. The QUINT POWER circuit breakers are designed to trip quickly at six times the nominal current, ensuring selective and cost-effective system protection. System availability is enhanced through preventive function monitoring, which identifies critical operating states before errors occur.

The unit features a static power reserve POWER BOOST for reliable starting of heavy loads, and its adjustable voltage covers a wide range from 5VDC to 56VDC. With compact dimensions, these PSUs maximize system availability. Utilizing SFB technology (Selective Fuse Breaking Technology), the unit can reliably trigger standard power circuit breakers at six times the nominal current for 12ms, enhancing system reliability.





Technical Specifications



Specifications



Part #

QUINT-PS/1AC/24DC/10

Manufacturer

PHOENIX CONTACT

Category

Power Supplies

Subcategory

Power Supply

Nominal Input Voltage Range

100 V AC ... 240 V AC

Input Voltage Range

85 V AC ... 264 V AC

Derating IStat. Boost

< 100 V AC (1 %/V)

Input Voltage Range DC

110 V DC ... 350 V DC

Electric Strength, max.

300 V AC

Typical National Grid Voltage

120 V AC

Voltage Type of Supply Voltage

AC

Inrush Current

< 15 A

Inrush Current Integral (I2t)

< 1.5 A2s

Inrush Current Limitation

15 A

AC Frequency Range

45 Hz ... 65 Hz

Frequency Range DC

0 Hz

Mains Buffering Time

> 36 ms (120 V AC)

Current Consumption

2.2 A (120 V AC)

Nominal Power Consumption

302 VA

Protective Circuit

Transient Surge Protection

Power Factor (cos phi)

0.85

Typical Response Time

< 0.15 s

Input Fuse

10 A (slow-blow, internal)

Permissible Backup Fuse

B10 B16 AC

Recommended Breaker for Input Protection

10 A ... 20 A (Characteristics B, C, D, K)

Discharge Current to PE

< 3.5 mA

Efficiency

typ. (120 V AC)

Output Characteristic

U/I

Nominal Output Voltage

24 V DC ±1 %

Setting Range of the Output Voltage (USet)

18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)

Nominal Output Current (IN)

10 A

POWER BOOST (IBoost)

15 A (-25 °C ... 40 °C permanent, UOUT = 24 V DC )

Static Boost (IStat.Boost)

15 A

Selective Fuse Breaking (ISFB)

60 A (12 ms)

Magnetic Circuit Breaker Tripping

B2 / B4 / B6 / C2 / C4

Derating

60 °C ... 70 °C (2.5 %/K)

Feedback Voltage Resistance

≤ 35 V DC

Protection Against Overvoltage at the Output (OVP)

≤ 35 V DC

Control Deviation

< 1 % (change in load, static 10 % ... 90 %)

Residual Ripple

< 50 mVPP (with nominal values)

Short-Circuit-Proof

Yes

Output Power

240 W

Maximum No-Load Power Dissipation

9.1 W

Power Loss Nominal Load Max.

22 W

Rise Time

< 0.05 s (UOUT (10 % ... 90 %))

Connection in Parallel

Yes, for redundancy and increased capacity

Connection in Series

Yes

Signal: DC OK Active

UOUT > 0.9 x UN: High signal

Switching Voltage Range

18 V DC ... 24 V DC

Maximum Inrush Current

≤ 20 mA (short-circuit-proof)

Continuous Load Current

≤ 20 mA

Signal: DC OK Floating

Relay Contact, UOUT > 0.9 x UN: Contact Closed

Maximum Switching Voltage

30 V AC

Maximum Inrush Current

0.5 A

Continuous Load Current

≤ 1 A

Signal: POWER BOOST Active

IOUT < IN: High signal

Switching Voltage Range

18 V DC ... 24 V DC

Output Voltage

+ 24 V DC

Maximum Inrush Current

20 mA (short-circuit-proof)

Continuous Load Current

≤ 20 mA





Information About 2866763



The Phoenix Contact 2866763 Power Supply belongs to the QUINT POWER Series, offering single-phase primary-switched power supply functionality with maximum efficiency and reliability.

The QUINT POWER circuit breakers possess magnetic tripping mechanisms, which enable rapid response at six times the nominal current level, ensuring selective and cost-effective system protection. System availability is maintained at a high level through proactive function monitoring, which identifies critical operating states before errors manifest. The static power reserve, known as POWER BOOST, facilitates the reliable startup of heavy loads.

This power supply unit accommodates adjustable voltage settings, covering a wide range from 5VDC to 56VDC, enhancing its versatility across various applications.

The compact design of QUINT POWER PSUs optimizes system availability. Utilizing Selective Fuse Breaking (SFB) technology, these power supplies enable reliable and swift triggering of standard power circuit breakers, even at six times the nominal current for 12ms. In the event of faults, faulty current paths are selectively switched off, enabling the identification and isolation of the fault while ensuring the continued operation of vital system components.

Comprehensive diagnostics are integral to the QUINT POWER series, offering constant monitoring of output voltage and current. This proactive monitoring system visualizes critical operating modes, alerting the control unit to potential issues before they escalate into errors or failures, thereby enhancing system reliability and uptime.



Manufacturer information

Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description


The Phoenix Contact 2866763 is a part of the QUINT POWER Series, offering a single-phase primary-switched power supply unit with advanced functionality. The QUINT POWER circuit breakers are designed to trip quickly at six times the nominal current, ensuring selective and cost-effective system protection. System availability is enhanced through preventive function monitoring, which identifies critical operating states before errors occur.

The unit features a static power reserve POWER BOOST for reliable starting of heavy loads, and its adjustable voltage covers a wide range from 5VDC to 56VDC. With compact dimensions, these PSUs maximize system availability. Utilizing SFB technology (Selective Fuse Breaking Technology), the unit can reliably trigger standard power circuit breakers at six times the nominal current for 12ms, enhancing system reliability.





Technical Specifications



Specifications



Part #

QUINT-PS/1AC/24DC/10

Manufacturer

PHOENIX CONTACT

Category

Power Supplies

Subcategory

Power Supply

Nominal Input Voltage Range

100 V AC ... 240 V AC

Input Voltage Range

85 V AC ... 264 V AC

Derating IStat. Boost

< 100 V AC (1 %/V)

Input Voltage Range DC

110 V DC ... 350 V DC

Electric Strength, max.

300 V AC

Typical National Grid Voltage

120 V AC

Voltage Type of Supply Voltage

AC

Inrush Current

< 15 A

Inrush Current Integral (I2t)

< 1.5 A2s

Inrush Current Limitation

15 A

AC Frequency Range

45 Hz ... 65 Hz

Frequency Range DC

0 Hz

Mains Buffering Time

> 36 ms (120 V AC)

Current Consumption

2.2 A (120 V AC)

Nominal Power Consumption

302 VA

Protective Circuit

Transient Surge Protection

Power Factor (cos phi)

0.85

Typical Response Time

< 0.15 s

Input Fuse

10 A (slow-blow, internal)

Permissible Backup Fuse

B10 B16 AC

Recommended Breaker for Input Protection

10 A ... 20 A (Characteristics B, C, D, K)

Discharge Current to PE

< 3.5 mA

Efficiency

typ. (120 V AC)

Output Characteristic

U/I

Nominal Output Voltage

24 V DC ±1 %

Setting Range of the Output Voltage (USet)

18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)

Nominal Output Current (IN)

10 A

POWER BOOST (IBoost)

15 A (-25 °C ... 40 °C permanent, UOUT = 24 V DC )

Static Boost (IStat.Boost)

15 A

Selective Fuse Breaking (ISFB)

60 A (12 ms)

Magnetic Circuit Breaker Tripping

B2 / B4 / B6 / C2 / C4

Derating

60 °C ... 70 °C (2.5 %/K)

Feedback Voltage Resistance

≤ 35 V DC

Protection Against Overvoltage at the Output (OVP)

≤ 35 V DC

Control Deviation

< 1 % (change in load, static 10 % ... 90 %)

Residual Ripple

< 50 mVPP (with nominal values)

Short-Circuit-Proof

Yes

Output Power

240 W

Maximum No-Load Power Dissipation

9.1 W

Power Loss Nominal Load Max.

22 W

Rise Time

< 0.05 s (UOUT (10 % ... 90 %))

Connection in Parallel

Yes, for redundancy and increased capacity

Connection in Series

Yes

Signal: DC OK Active

UOUT > 0.9 x UN: High signal

Switching Voltage Range

18 V DC ... 24 V DC

Maximum Inrush Current

≤ 20 mA (short-circuit-proof)

Continuous Load Current

≤ 20 mA

Signal: DC OK Floating

Relay Contact, UOUT > 0.9 x UN: Contact Closed

Maximum Switching Voltage

30 V AC

Maximum Inrush Current

0.5 A

Continuous Load Current

≤ 1 A

Signal: POWER BOOST Active

IOUT < IN: High signal

Switching Voltage Range

18 V DC ... 24 V DC

Output Voltage

+ 24 V DC

Maximum Inrush Current

20 mA (short-circuit-proof)

Continuous Load Current

≤ 20 mA





Information About 2866763



The Phoenix Contact 2866763 Power Supply belongs to the QUINT POWER Series, offering single-phase primary-switched power supply functionality with maximum efficiency and reliability.

The QUINT POWER circuit breakers possess magnetic tripping mechanisms, which enable rapid response at six times the nominal current level, ensuring selective and cost-effective system protection. System availability is maintained at a high level through proactive function monitoring, which identifies critical operating states before errors manifest. The static power reserve, known as POWER BOOST, facilitates the reliable startup of heavy loads.

This power supply unit accommodates adjustable voltage settings, covering a wide range from 5VDC to 56VDC, enhancing its versatility across various applications.

The compact design of QUINT POWER PSUs optimizes system availability. Utilizing Selective Fuse Breaking (SFB) technology, these power supplies enable reliable and swift triggering of standard power circuit breakers, even at six times the nominal current for 12ms. In the event of faults, faulty current paths are selectively switched off, enabling the identification and isolation of the fault while ensuring the continued operation of vital system components.

Comprehensive diagnostics are integral to the QUINT POWER series, offering constant monitoring of output voltage and current. This proactive monitoring system visualizes critical operating modes, alerting the control unit to potential issues before they escalate into errors or failures, thereby enhancing system reliability and uptime.



Manufacturer information

Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.
