2897758 | Phoenix Contact IL EIP BK DI8 DO4 2TX-PAC - Bus coupler
- Regular price
- $1,100.00
- Sale price
- $1,100.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2897758
Description

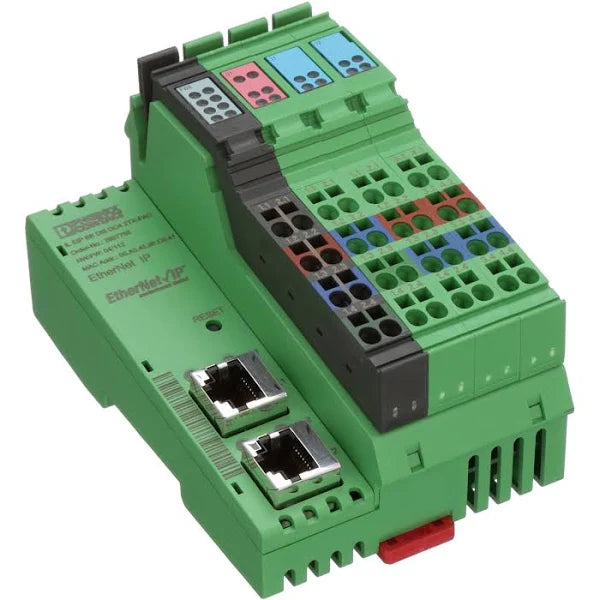

The Phoenix Contact 2897758 (IL EIP BK DI8 DO4 2TX-PAC) is an Ethernet/IP bus coupler designed for the Inline modular I/O system. It integrates 8 digital inputs and 4 digital outputs while providing network connectivity to Ethernet/IP controllers.
Technical Specifications
| Brand | Phoenix Contact |
| Product Category | I/O Modules |
| Product | Digital Input/Output Modules |
| Part Number | 2897758 |
| Input Voltage | 24 V |
| Input Current | 3 mA |
| Output Voltage | 24 V |
| Output Current | 2 A |
| Case Colour | Green |
| Output Type | Digital |
| Termination Style | Spring Cage |
| IP Rating | IP20 |
| Maximum Operating Temperature | + 60 C |
| Minimum Operating Temperature | - 25 C |
Information About 2897758
The 2897758 is part of the Phoenix Contact Inline I/O system, developed to offer modular and scalable distributed I/O solutions. As a bus coupler, it connects Inline I/O terminals to an Ethernet/IP network, acting as the interface between field I/O and higher-level controllers such as PLCs. It features two integrated RJ45 Ethernet ports with switch functionality for easy line or star network topologies. The device includes 8 digital inputs (24V DC) and 4 digital outputs (24V DC, 500 mA each) built into the coupler for direct I/O control. Diagnostic and status LEDs provide real-time feedback on module and network status, simplifying commissioning and maintenance. Configuration is done via standard Ethernet/IP tools, allowing seamless integration into existing automation architectures.
Key Features:
- Design: Ethernet/IP bus coupler with integrated digital I/O.
- Integrated I/O: 8 digital inputs (24V DC) and 4 digital outputs (24V DC, 500 mA).
- Communication: Two RJ45 Ethernet ports with embedded switch functionality.
- Network Protocol: Compliant with Ethernet/IP for controller integration.
- Diagnostics: LED indicators for module, I/O, and network status.
- Scalability: Supports expansion with additional Inline I/O modules.
- Installation: Compact design for DIN rail mounting in control panels.
- Application Range: Suitable for packaging, material handling, and machine automation systems.
The Phoenix Contact 2897758 delivers the connectivity, modularity, and reliability required for efficient Ethernet/IP-based distributed I/O in industrial automation systems.
Manufacturer information
Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.
