2903156 | Phoenix Contact Power Supply Unit
- Regular price
- $642.00
- Sale price
- $642.00
- Regular price
-
Do you need help?
Product Description P/N: 2903156
Description

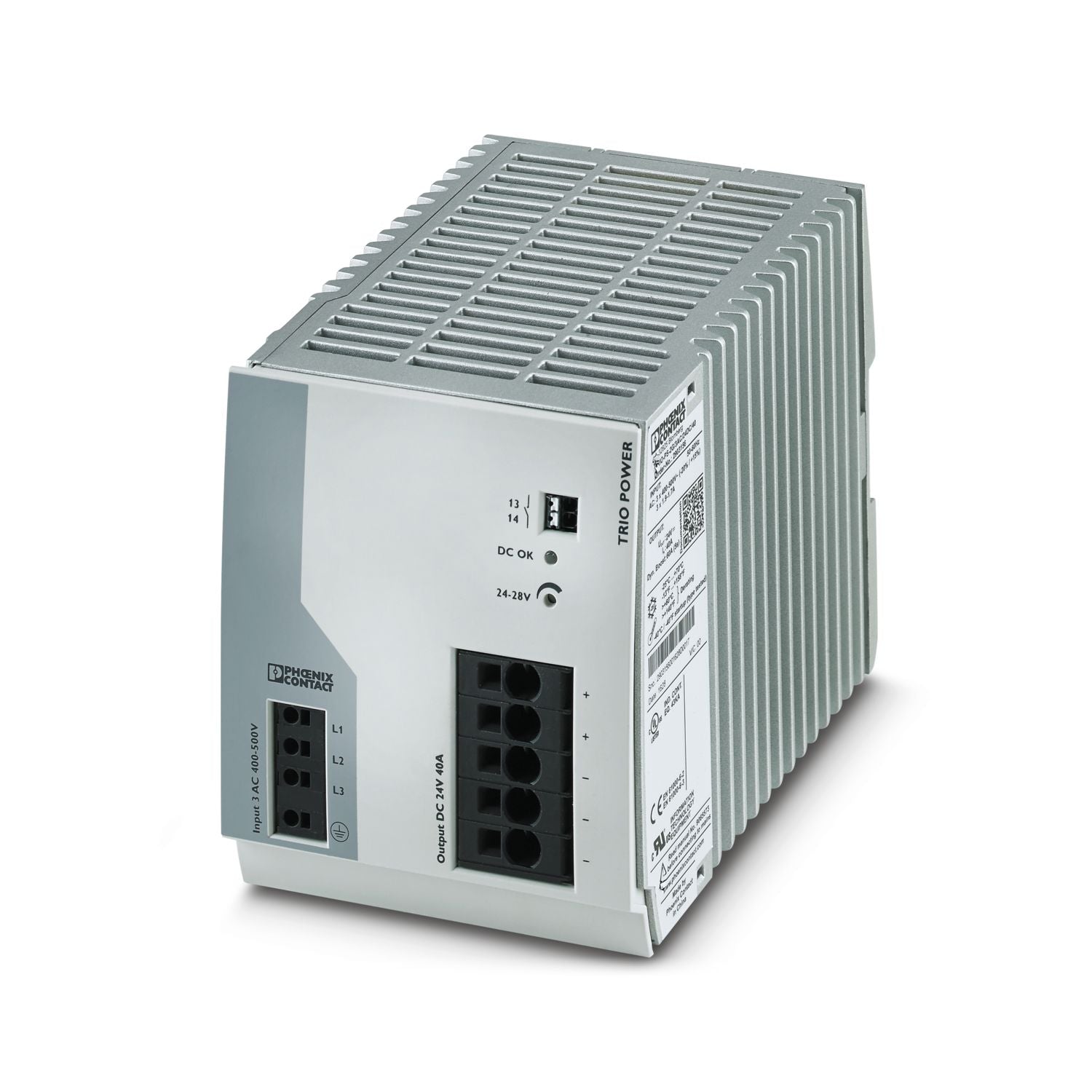

The 2903156 TRIO-PS-2G/3AC/24DC/40 is a primary-switched power supply unit designed for DIN rail mounting. It features a 3-phase input configuration and delivers a steady output of 24 V DC at 40 A. Equipped with dynamic boost technology, it ensures reliable performance under varying load conditions. The unit includes tool-free fast connection technology suitable for both solid and stranded conductors with ferrules, facilitating easy and secure installation in industrial environments.
Technical Specifications
Category |
Power Supplies |
Subcategory |
Power Supply Network type: Star network |
Nominal input voltage range |
3x 400 V AC ... 500 V AC |
Input voltage range |
3x 400 V AC ... 500 V AC -20 % ... +15 % |
Typical national grid voltage |
3x 400 V AC, 3x 480 V AC |
Voltage type of supply voltage |
AC |
Inrush current integral (I2t) |
≤ 1.1 A2s |
Inrush current limitation |
35 A (after 1 ms) |
AC frequency range |
50 Hz ... 60 Hz |
Frequency range (fN) |
50 Hz ... 60 Hz ±5 Hz |
Mains buffering time |
> 10 ms (400 V AC), > 20 ms (480 V AC) |
Current consumption |
3x 1.9 A (400 V AC), 3x 1.7 A (500 V AC) |
Nominal power consumption |
1335.1 VA |
Protective circuit |
Transient surge protection; Varistor |
Power factor (cos phi) |
0.77 |
Typical response time |
< 1 s |
Input fuse |
6.3 A (internal (device protection)) |
Recommended breaker for input protection |
10 A ... 16 A (Characteristics B, C, D, K) |
Discharge current to PE |
< 3.5 mA, < 2.5 mA (550 V AC, 60 Hz) |
POWER factor |
> 0.7 (400 V AC), > 0.7 (480 V AC) |
Efficiency |
typ. 93 % (400 V AC), typ. 93.3 % (480 V AC) |
Output characteristic |
U/I with dynamic load reserve |
Nominal output voltage |
24 V DC ±1 % |
Setting range of the output voltage (USet) |
24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted) |
Nominal output current (IN) |
40 A |
Dynamic Boost (IDyn.Boost) |
60 A (5 s) |
Derating |
> 60 °C ... 70 °C (2.5 %/K) |
POWER factor |
> 0.7 (400 V AC), > 0.7 (480 V AC) |
Feedback voltage resistance |
< 35 V |
Protection against overvoltage at the output (OVP) |
≤ 30 V DC |
Residual ripple |
≤ 50 mVPP |
Short-circuit-proof |
yes |
No-load proof |
yes |
Output power |
960 W |
Short-circuit current |
< 48 A DC (Permanent) |
Rise time |
≤ 1 s (UOUT (10 % ... 90 %)) |
Connection in parallel |
yes, for redundancy and increased capacity |
Connection in series |
yes |
Information About 2903156
The 2903156 TRIO-PS-2G/3AC/24DC/40 is a primary-switched power supply unit designed specifically for DIN rail mounting applications within industrial environments. It operates with a 3-phase input configuration and delivers a stable output of 24 V DC at 40 A. The unit incorporates dynamic boost technology, enhancing its capability to handle sudden increases in power demand effectively.
Installation is facilitated by tool-free fast connection technology, supporting both solid and stranded conductors with ferrules. This feature ensures secure and efficient electrical connections, reducing installation time and maintenance efforts.
