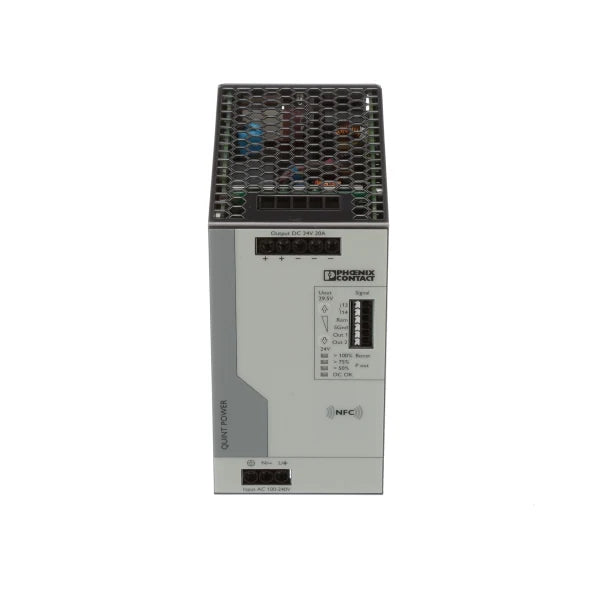

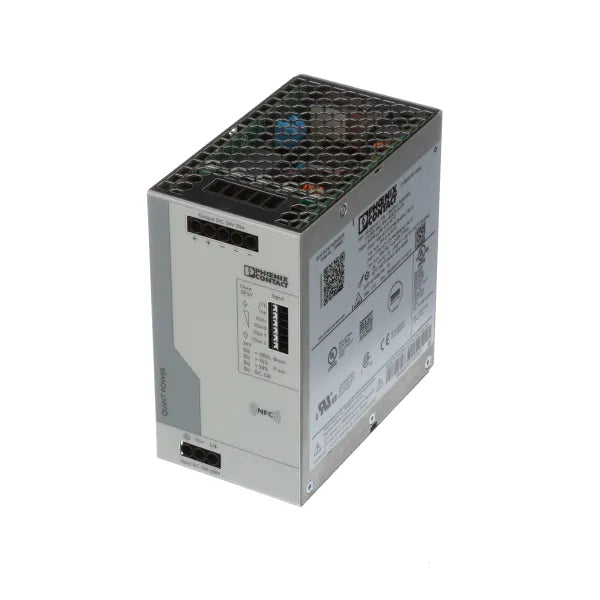

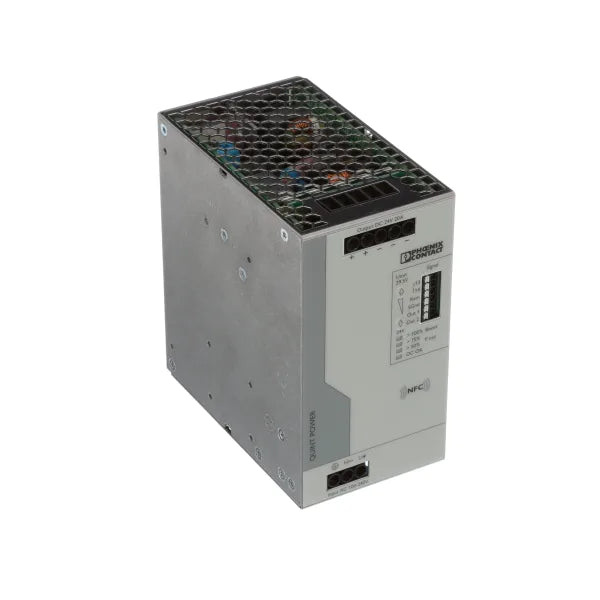

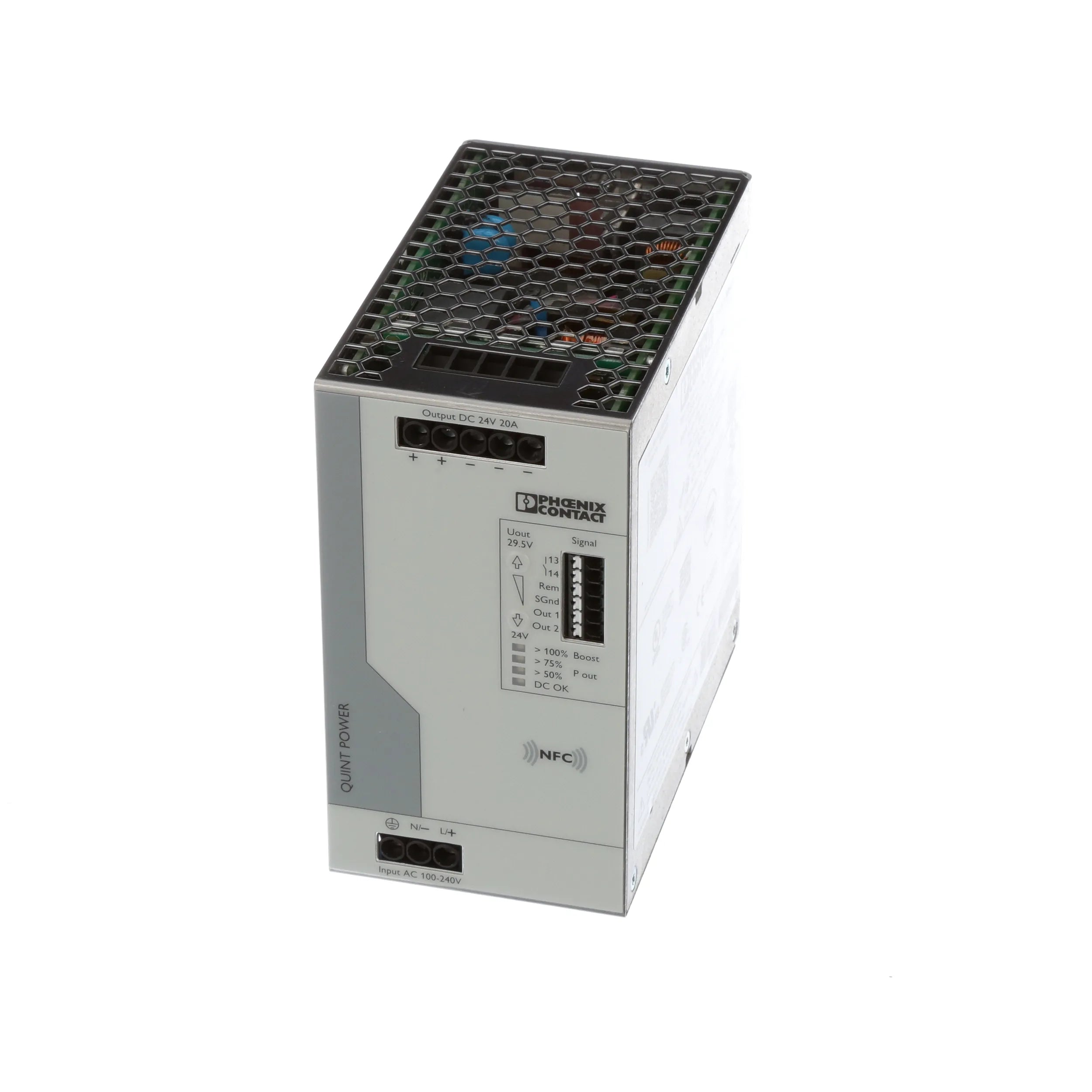

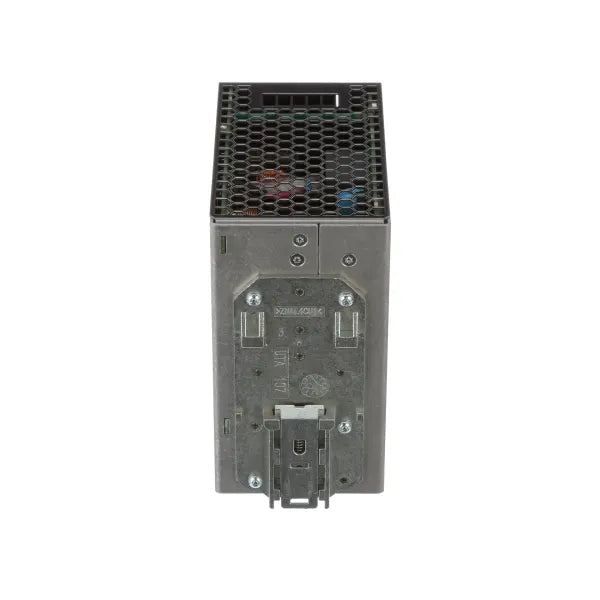

2904602 | PHOENIX CONTACT Power Supply, ACDC, 24VDC, 20A, 480W, DIN Rail Mount, QUINT POWER Series

Description

Regulated AC/DC switched-mode power supply unit (SMPS PSU) - Phoenix Contact (QUINT series) - QUINT4-PS/1AC/24DC/20 - Output voltage 24Vdc - Rated current 20A - Rated power 480W - input voltage 85-264Vac (120Vac / 208Vac / 230Vac / 240Vac nom.) / 90-350Vdc (110Vdc / 220Vdc / 250Vdc nom.) - Single-phase input - with Screw-clamp connections - DIN rail mounting - 70mm width - with SFB technology

Technical Specifications

Information About 2904602

Phoenix Contact QUINT POWER Series - Single-Phase Primary-Switched Power Supply Unit:

For extreme operating conditions, use the ideally matched combination of PLUGTRAB SEC surge protection device and the powerful QUINT POWER power supply of the fourth generation. However, should your fourth-generation QUINT POWER become damaged in the first five years following purchase despite the use of this combination, you will receive a free replacement .

The Power Boost power reserve easily starts loads with high inrush currents and ensures that fuses are reliably tripped. Preventive function monitoring diagnoses impermissible operating states and minimizes downtimes in your system. Remote monitoring is provided by an active transistor switching output and a floating relay contact. All devices are idling-proof and short-circuit-proof, and are available with a regulated and adjustable output voltage of 12, 24, and 48 V DC with output currents of 2.5, 5, 10, 20, 30, and 40 A. Power supply units for use in Ex zone 2, uninterruptible solutions, AS-i power supply units, and a QUINT diode complete this comprehensive product range.

Features:
Startup of heavy loads, thanks to dynamic boost
Preventive function monitoring reports critical operating states before errors occur
High efficiency and long service life with low power dissipation and low heating
Space savings in the control cabinet, thanks to a narrow, slim-line design
Free selection between Push-in and screw connection
QUINT POWER is the powerful 60 - 960 W DC power supply unit for universal use
With its wide-range input, single and three-phase versions, and international approval package, this solution is unrivalled
QUINT POWER provides reliable power supply: generously dimensioned capacitors ensure mains buffering of over 20 ms at full load
Full output power is provided by all three-phase devices, even in the event of a permanent phase failure
Quick, tool-free installation with Push-in connection technology
Increased service life and availability of the system, thanks to optimal protection of your industrial power supply

The powerful QUINT POWER power supplies with maximum functionality provide superior system availability thanks to SFB Technology and individual configuration of signaling thresholds and characteristic curves. SFB Technology trips standard miniature circuit breakers selectively. Loads connected in parallel continue working Preventive function monitoring reports critical operating states before errors occur Power reserve for easy system expansion with static boost, providing sustained power of up to 125%. Starting of difficult loads with a dynamic boost of up to 200% for 5 s High level of immunity with integrated gas discharge tube and mains failure buffer time of more than 20 ms Robust design in metal housing and a wide temperature range from -40°C to +70°C Power supplies with maximum functionality are part of the COMPLETE line system
