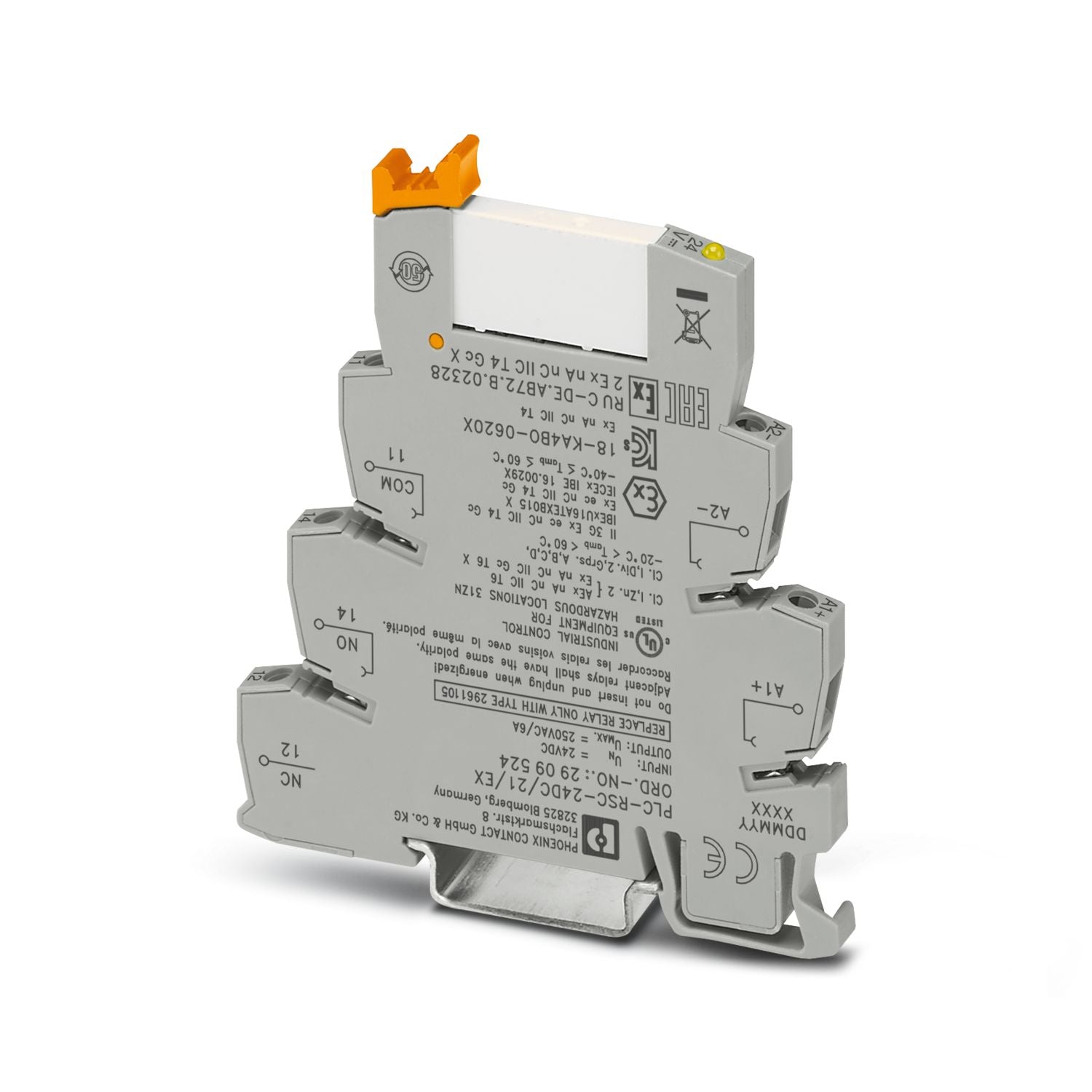

2909524 | Phoenix Contact LC-RSC-24DC/21/EX Relay Module PLC-INTERFACE, 24 VDC
- Regular price
- $55.00
- Sale price
- $55.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2909524
Description
The Phoenix Contact 2909524 is an LC-RSC-24DC/21/EX PLC-INTERFACE relay module designed for reliable signal switching in automation systems. It includes a 6.2 mm DIN-rail terminal block with screw connections and a plug-in miniature relay rated for 6 A switching performance. Approved for ATEX/IECEx Zone 2 and Class I, Division 2 environments, it ensures dependable operation in hazardous industrial locations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Phoenix Contact |
| Category | Panel Accessories |
| Part Number | 2909524 |
| Subcategory | Relay/Socket |
| Type | PLC-INTERFACE |
| Voltage Rating | 24 VDC |
| Amperage Rating | 9 mA (coil) |
| Relay Contact Type | 1 Changeover (SPDT/CO) |
| Switching Capacity | 6 A power contact |
| Number of Poles | 1 |
| Mounting Type | DIN-rail-mountable |
| Terminal Type | Screw connection |
| Wire Size | 26…14 AWG |
| Wire Strip Length | 8 mm |
| Color | Gray |
| Dimensions | 6.2 mm W × 80 mm H × 94 mm D |
| Hazardous Location Approval | ATEX/IECEx Zone 2; Class I, Div. 2 |
| Series | PLC-RSC / PLC-INTERFACE |
| Contact Form | 1 CO (SPDT) |
Information About 2909524
The 2909524 is a Phoenix Contact LC-RSC-24DC/21/EX relay module designed for signal and control switching applications requiring intrinsic safety approvals. Built as part of the PLC-INTERFACE system, it combines a 6.2 mm DIN-rail terminal block with a plug-in miniature relay, enabling efficient switching of loads up to 6 A via a single changeover contact. The module operates at 24 VDC and supports reliable switching performance in control panels with limited space. Engineered for hazardous areas, it carries ATEX/IECEx Zone 2 and Class I, Division 2 certifications, ensuring safe operation in environments with explosive gas risks.
Key Features:
- Compact 6.2 mm Interface Module: Saves panel space while providing high-performance relay switching.
- 1 Changeover (SPDT) Contact: Supports versatile control and signal routing in automation systems.
- 24 VDC Coil Operation: Matches common control-voltage standards in industrial panels.
- ATEX/IECEx Zone 2 Approved: Suitable for hazardous industrial areas requiring explosion-protection compliance.
- Class I, Division 2 Certification: Ensures safety in North American hazardous environments.
- DIN-Rail Mountable Design: Simplifies installation and removal in PLC enclosures.
- Screw-Type Terminals: Supports secure wiring with 26–14 AWG conductors and 8 mm strip length.
- Plug-In Relay Construction: Facilitates easy replacement and maintenance in the field.
The 2909524 delivers the reliability and precision required for safe and compact relay switching in industrial and hazardous-location control systems.
