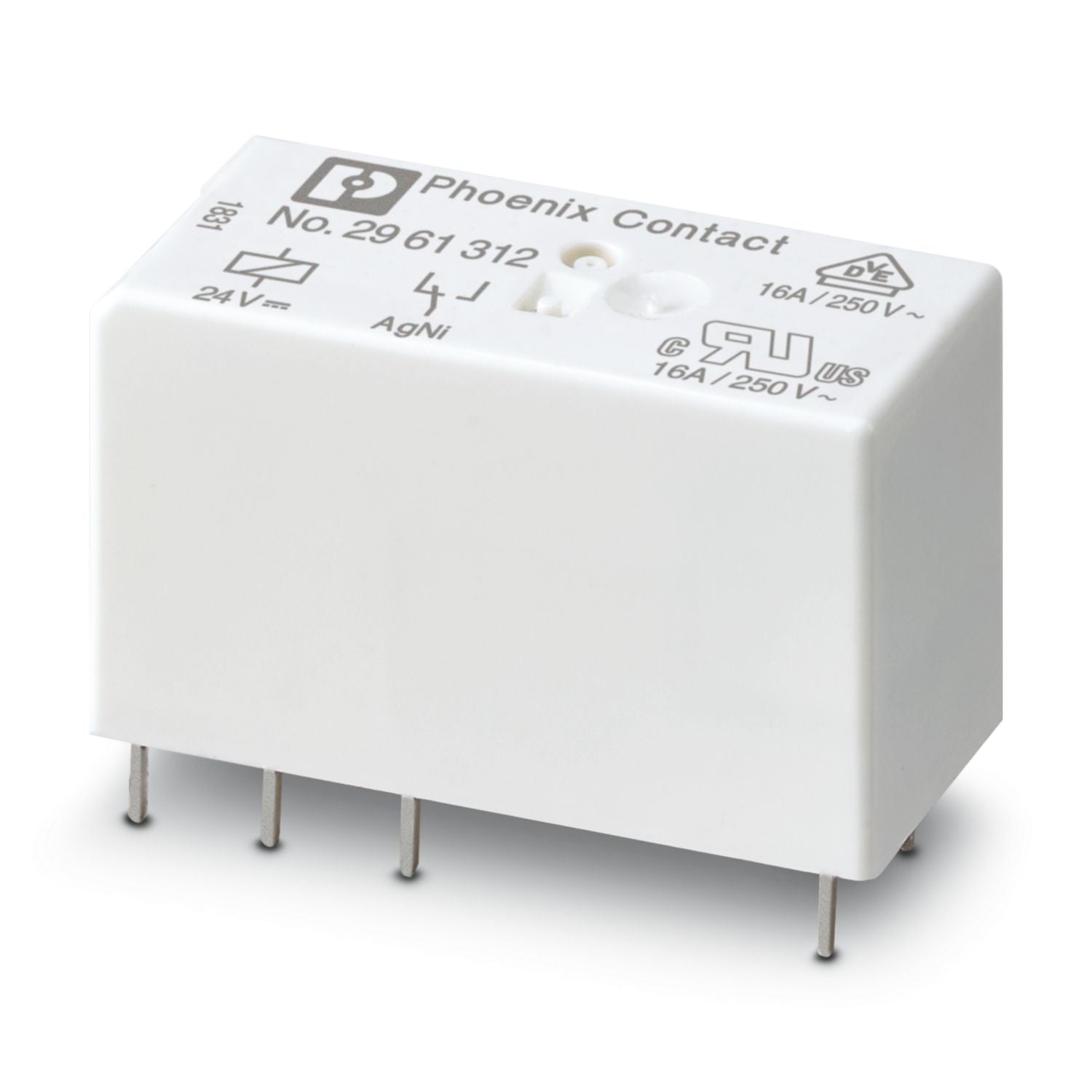

2961312 | Phoenix Contact Power Relays, Plug-in Miniature, Power Contact, High Current, In 24VDC, 1 PDT

Description

Switching Relay, Miniature, Number of Poles: 1, Coil Voltage: 24 VDC, Coil Current: 17 MILAMP, Contact Configuration: SPDT, Contact Rating: 16 AMP, Timing Range: 3 - 7 MS, Operating Cycles: 3 x 10^7, Environmental Conditions: Degree of Pollution 3, Connection: Plug-In, Resistance: 1440 OHM, Power Rating: 0.41 WTT, Contact Material: AgNi, Switching Current: 10 MILAMP, Switching Voltage: 250 VAC/DC, Inrush Current: 50 AMP, Surge Voltage Category: III, Width: 12.7 MM, Depth: 15.7 MM, Height: 29 MM, Ambient Temperature: -40 To 85 DEG C

Technical Specifications

Information About 2961312

On the logic module market, the PLC logic relay system is the first to combine logic, interface, and field connection levels in a single solution. This means that you can switch and control I/O signals using a single compact system.You can combine the logic module with the corresponding relays and analog modules as required. The modular structure opens up a wealth of applications. You can flexibly extend the system, thanks to the wide choice of different modules. In addition to the basic module, extension modules are also available for more complex tasks. Eight freely-selectable PLC-INTERFACE terminal blocks are available for each logic module. Acquire and switch up to 48 I/O signals with one basic module and two extension modules.

Features:
High availability, thanks to plug-in switching elements
Combine flexibly: assemble each channel individually as an input or output with relays or analog modules, depending on the application requirement
Efficient wiring, thanks to Push-in connection technology and special versions for the sensor or actuator wiring
Easy implementation of projects, thanks to intuitive software
Wireless operation and monitoring, by means of a Bluetooth adapter and PLC logic app

Manufacturer information

Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.
