2963763 | Phoenix Contact Safety Relay
- Regular price
- $198.00
- Sale price
- $198.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 2963763
Description

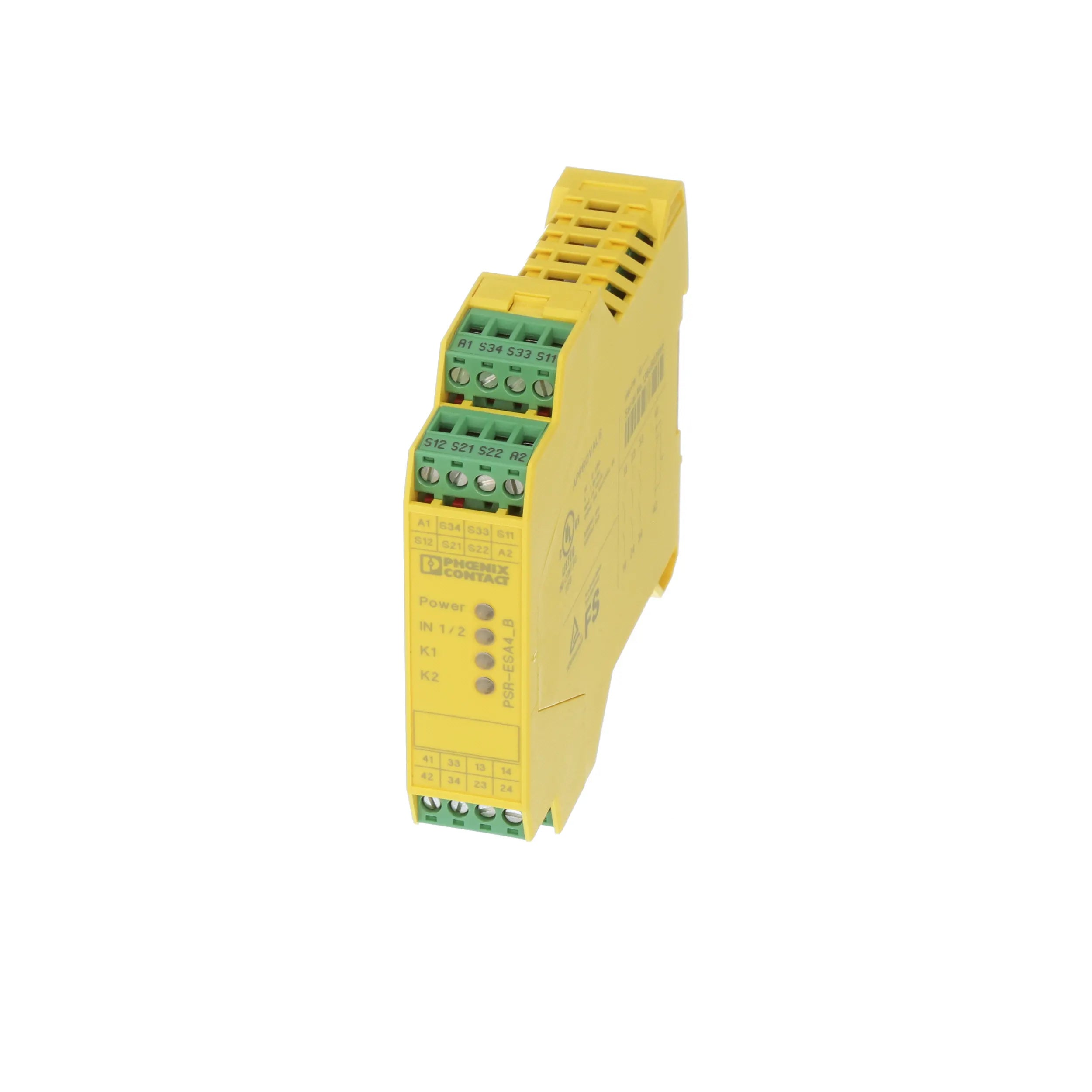

The Phoenix Contact 2963763 Safety Relay is an electromechanical device featuring 3 normally open (NO) and 1 normally closed (NC) contacts, rated at 6A. It operates with a control voltage (Ctrl-V) of 24V AC/DC and has a voltage rating (Vol-Rtg) of 250V AC/DC. The relay is designed for screw mounting.
The PSRmini and PSRclassic Safety Relays from Phoenix Contact offer versatile use, serving as the ideal solution for various safety functions in applications requiring a single function per device. These relays feature force-guided contacts, ensuring reliability in operation. Additionally, they facilitate fast installation and startup with user-friendly connection technology and DIN rail connector. The safety of these relays is certified by TUV, ensuring compliance with safety standards. Moreover, their slim overall width contributes to space-saving installation.
Technical Specifications
|
Part # |
PSR-SCP-24UC/ESA4/3X1/1X2/B |
|
Category |
Safety Systems |
|
Subcategory |
Safety Relay |
|
Product type |
Safety relays |
|
Product family |
PSRclassic |
|
Application |
Emergency stop |
|
Mechanical service life |
Approx. 107 cycles |
|
Relay type |
Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3 |
|
Maximum power dissipation for nominal condition |
16.44 W (US = 26.4 V, IL² = 72 A², PTotal max = 2.04 W + 14.4 W) |
|
Nominal operating mode |
100% operating factor |
|
Rated insulation voltage |
250 V |
|
Rated surge voltage/insulation |
See section “Insulation coordination” |
|
Rated control circuit supply voltage US |
24 V DC -15 % / +10 % |
|
Power consumption at US |
Typ. 1.68 W (DC) |
|
Rated control supply current IS |
Typ. 70 mA |
|
Input voltage range in reference to UN |
0.85 ... 1.1 |
|
Typical input current at UN |
70 mA DC (at US) |
|
Inrush current |
< 3.5 A (Δt = 3 ms at Us) |
|
Voltage at input/start and feedback circuit |
Approx. 24 V DC |
|
Filter time |
5 ms (at A1 in the event of voltage dips at Us) |
|
Typical response time |
150 ms (automatic start) |
|
Typical starting time with Us |
250 ms (with Us when controlled via A1) |
|
Typical release time |
20 ms (on demand via the sensor circuit) |
|
Protective circuit |
Surge protection; Suppressor diode |
|
Max. permissible overall conductor resistance |
Approx. 50 Ω (Input and start circuits at US) |
|
Operating voltage display |
Green LED |
|
Status display |
Green LED |
|
Contact material |
AgSnO2, + 0.2 µm Au |
|
Maximum switching voltage |
250 V AC |
|
Minimum switching voltage |
10 V AC/DC |
|
Limiting continuous current |
6 A (N/O contact) |
|
Maximum inrush current |
6 A |
|
Inrush current, minimum |
10 mA |
|
Sq. Total current |
72 A2 (Enabling current paths) |
|
Interrupting rating (ohmic load) max. |
See load limit curve |
|
Switching capacity min. |
100 mW |
|
Switching capacity in accordance with IEC 60947-5-1 |
6 A (DC13, enabling current paths) |
|
Connection method |
Screw connection |
|
Conductor cross section rigid |
0.2 mm² ... 2.5 mm² |
|
Conductor cross section flexible |
0.2 mm² ... 2.5 mm² |
|
Conductor cross-section AWG |
24 ... 12 |
|
Stripping length |
7 mm |
|
Screw thread |
M3 |
Information About 2963763
Phoenix Contact 2963763 Safety Relay is part of the PSRmini and PSRclassic Safety Relay series, designed to cater to various safety functions such as emergency stop, light grid, or safety door applications. These relays are versatile and offer a single-device solution for implementing safety functions efficiently. The PSRmodular modular safety relay system allows users to customize their safety systems according to specific requirements.
Key Features:
- Versatile use: The safety relays are suitable for a wide range of safety functions, making them an ideal solution for diverse applications.
- Reliable operation: Equipped with force-guided contacts, ensuring dependable performance in critical safety applications.
- Fast installation and startup: The relays feature user-friendly connection technology and a DIN rail connector, facilitating quick installation and startup processes.
- Tested safety: The safety relays are TUV certified, providing assurance of their compliance with safety standards and regulations.
- Space-saving design: With a slim overall width, the relays help save space in control panels and enclosures, optimizing the use of available space.
Overall, the Phoenix Contact 2963763 Safety Relay offers a comprehensive solution for implementing safety functions in industrial environments, ensuring reliable and efficient operation while meeting stringent safety requirements.
