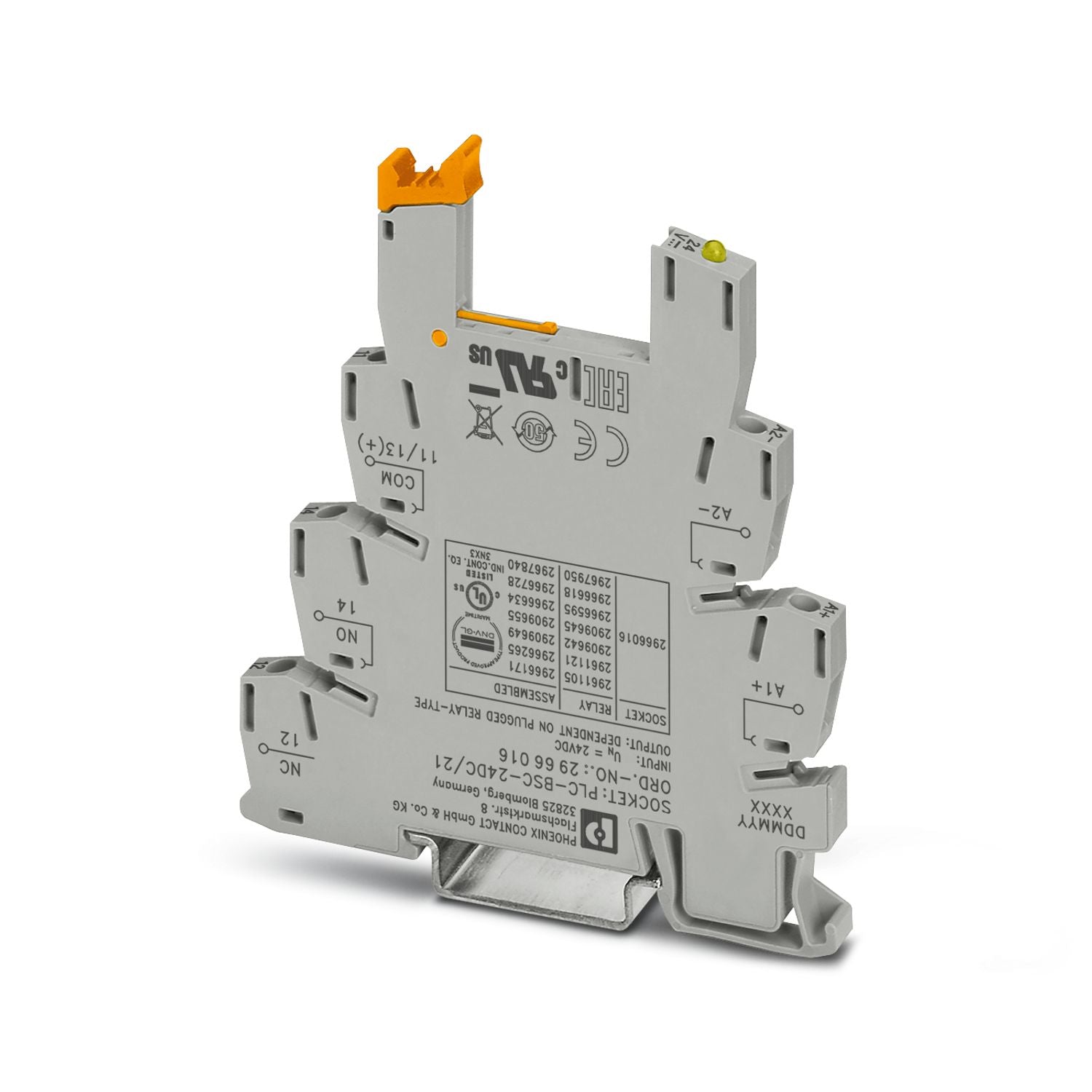

2966016 | Phoenix Contact PLC-INTERFACE Relay Socket Terminal Block 24 V DC
- Regular price
- $75.00
- Sale price
- $75.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2966016
Description
The Phoenix Contact PLC-BSC-24DC/21 is a slim relay socket terminal block designed for reliable relay interfacing in industrial control systems. Operating at 24 V DC, the PLC-BSC-24DC/21 supports screw connections and DIN rail mounting for secure and stable electrical integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Phoenix Contact |
| Category | Panel Accessories |
| Part Number | PLC-BSC-24DC/21 |
| Subcategory | Terminal Blk/Strip Wiring Dev |
| Manufacturer | Phoenix Contact |
| Product Type | Relay socket |
| Product Family | PLC-INTERFACE |
| Application | Universal |
| Operating Mode | 100% operating factor |
| Nominal Input Voltage | 24 V DC |
| Protective Circuit | Damping diode, polarity protection diode |
| Connection Method | Screw connection |
| Stripping Length | 8 mm |
| Screw Thread | M3 |
| Tightening Torque | 0.6…0.8 Nm |
| Conductor Cross Section (Rigid) | 0.14…2.5 mm² |
| Conductor Cross Section (Flexible) | 0.14…2.5 mm² |
| Conductor Size (AWG) | 26…14 |
| Color | Gray (RAL 7042) |
| Flammability Rating (UL 94) | V0 |
| Ambient Temperature (Operation) | -40…60 °C |
| Ambient Temperature (Storage/Transport) | -40…85 °C |
Information About 2966016
The PLC-BSC-24DC/21 is part of the Phoenix Contact PLC-INTERFACE product family developed for compact and efficient relay-based signal interfacing. It features a narrow 6.2 mm housing that allows high packing density on DIN rail NS 35/7.5 while maintaining clear wiring access. The relay socket uses screw connection technology to ensure mechanically stable and electrically reliable conductor termination across a wide range of wire sizes. Designed for continuous operation in demanding industrial environments, it integrates protective circuitry such as damping and polarity protection diodes to support stable and secure relay control.
Key Features
- Slim 6.2 mm housing: Enables space-efficient installation in control cabinets with high channel density requirements.
- PLC-INTERFACE system compatibility: Designed for seamless integration with Phoenix Contact PLC relay modules and accessories.
- 24 V DC nominal input: Supports standard industrial control voltages used in automation and signaling circuits.
- Integrated protective circuitry: Includes damping and polarity protection diodes to protect connected control electronics.
- Screw connection technology: Provides secure conductor termination with defined tightening torque for long-term reliability.
- Wide conductor compatibility: Accepts rigid and flexible conductors from 0.14 to 2.5 mm² (26–14 AWG).
- DIN rail mounting support: Allows fast and standardized installation on NS 35/7.5 rails in industrial panels.
The PLC-BSC-24DC/21 delivers the reliability and precision required for stable relay interfacing and signal control in industrial automation systems.
