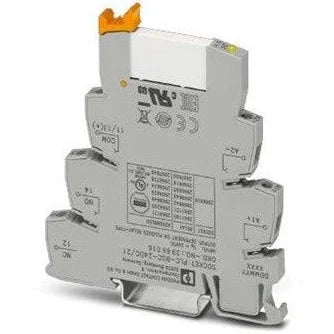

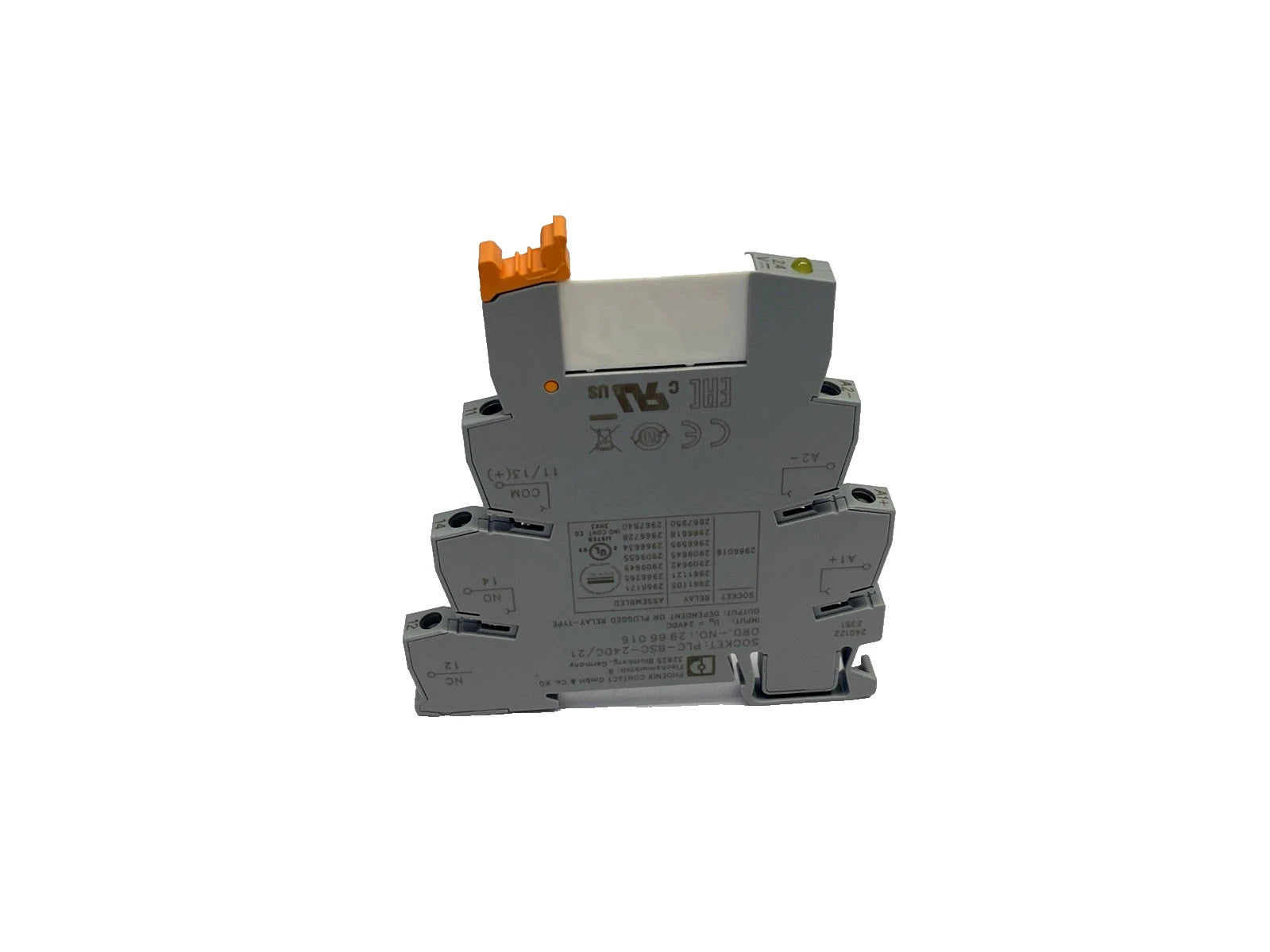

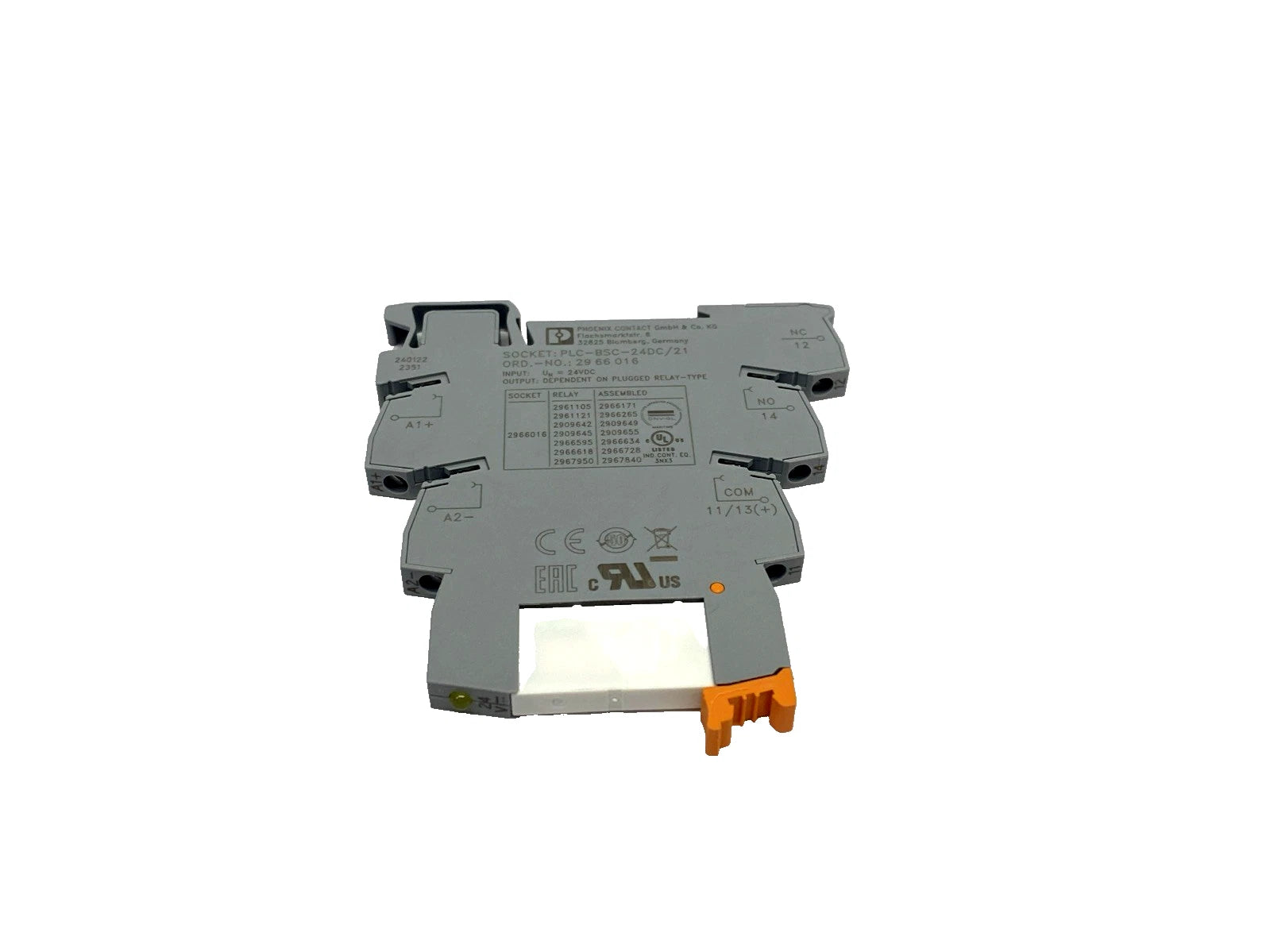

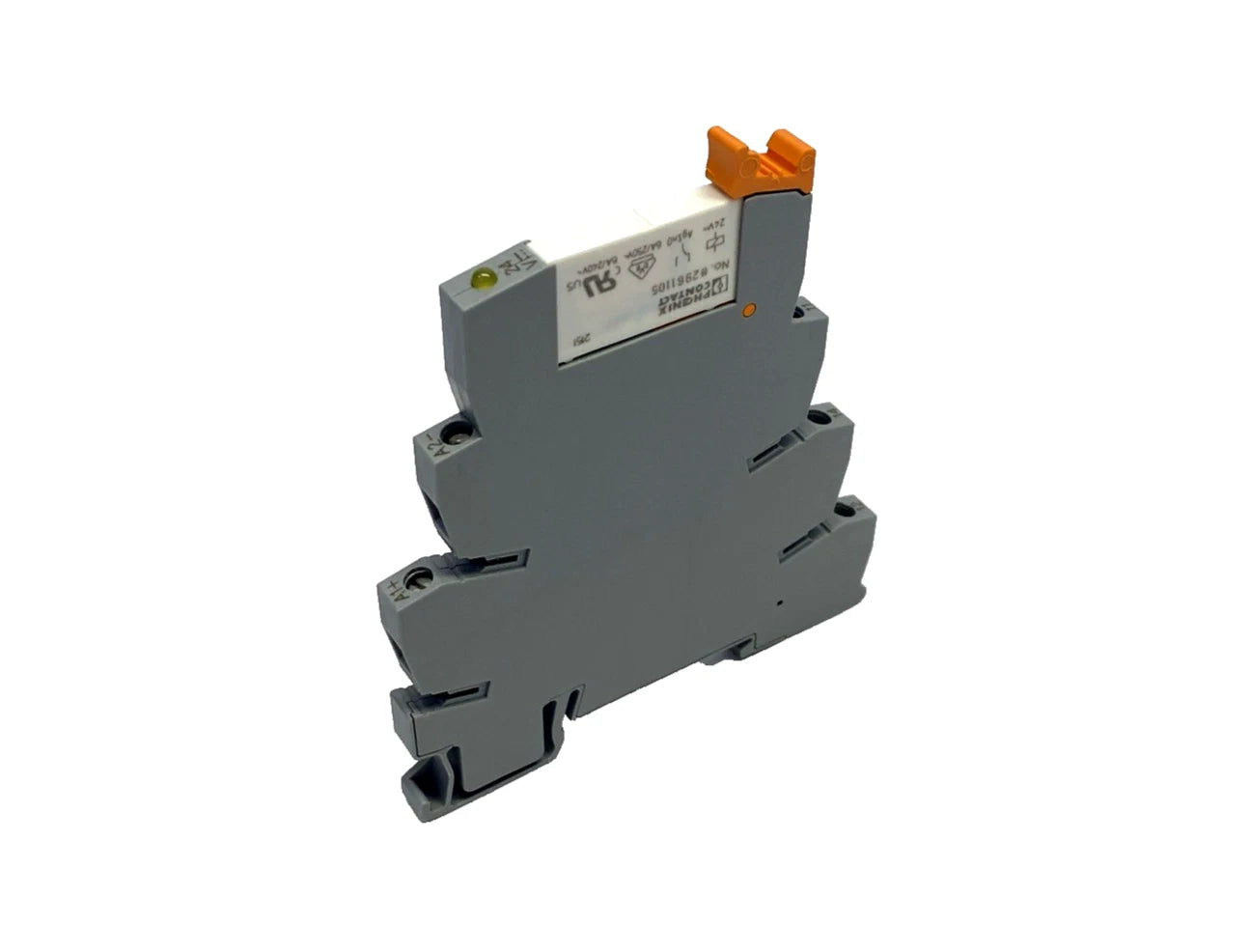

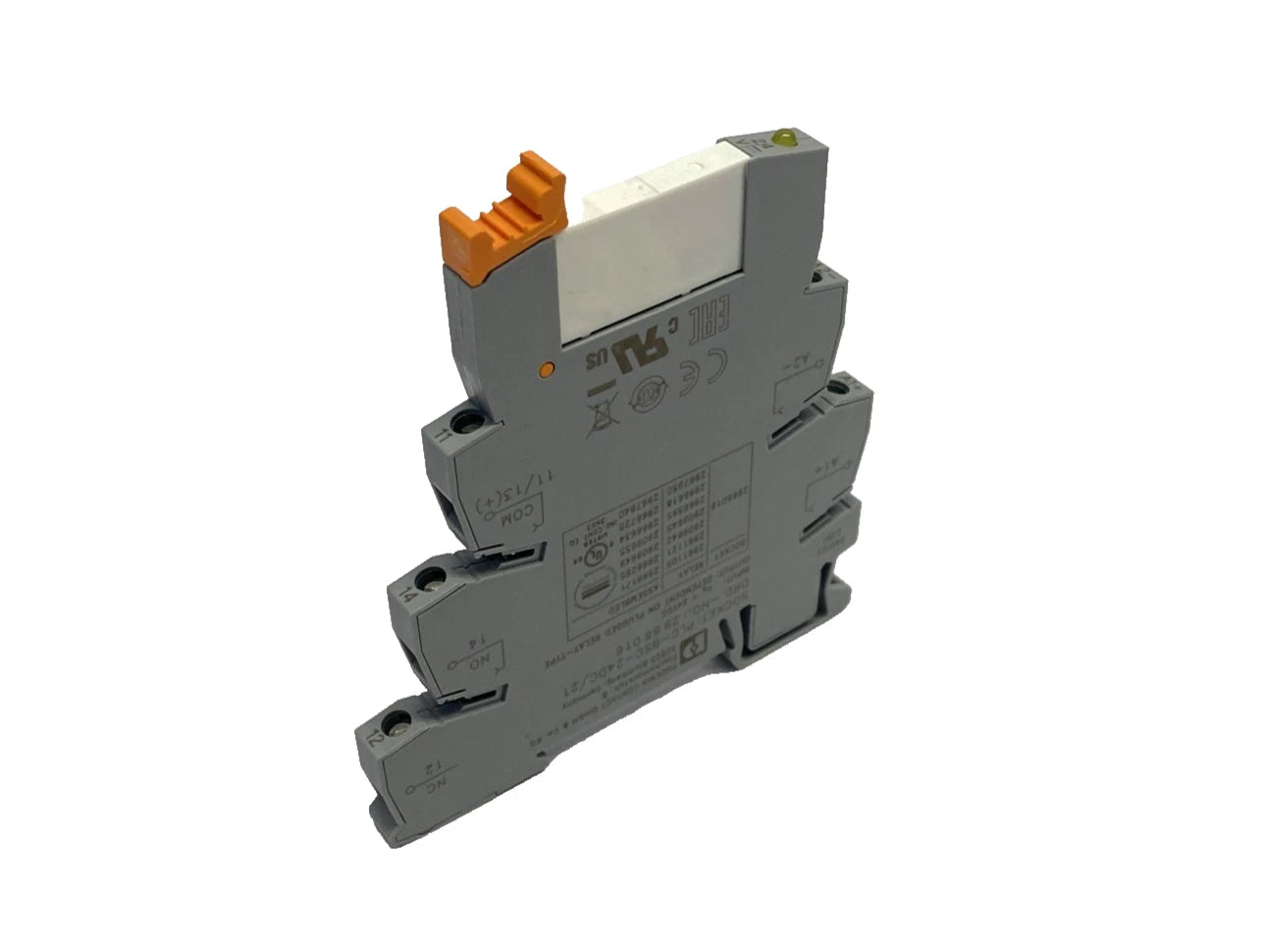

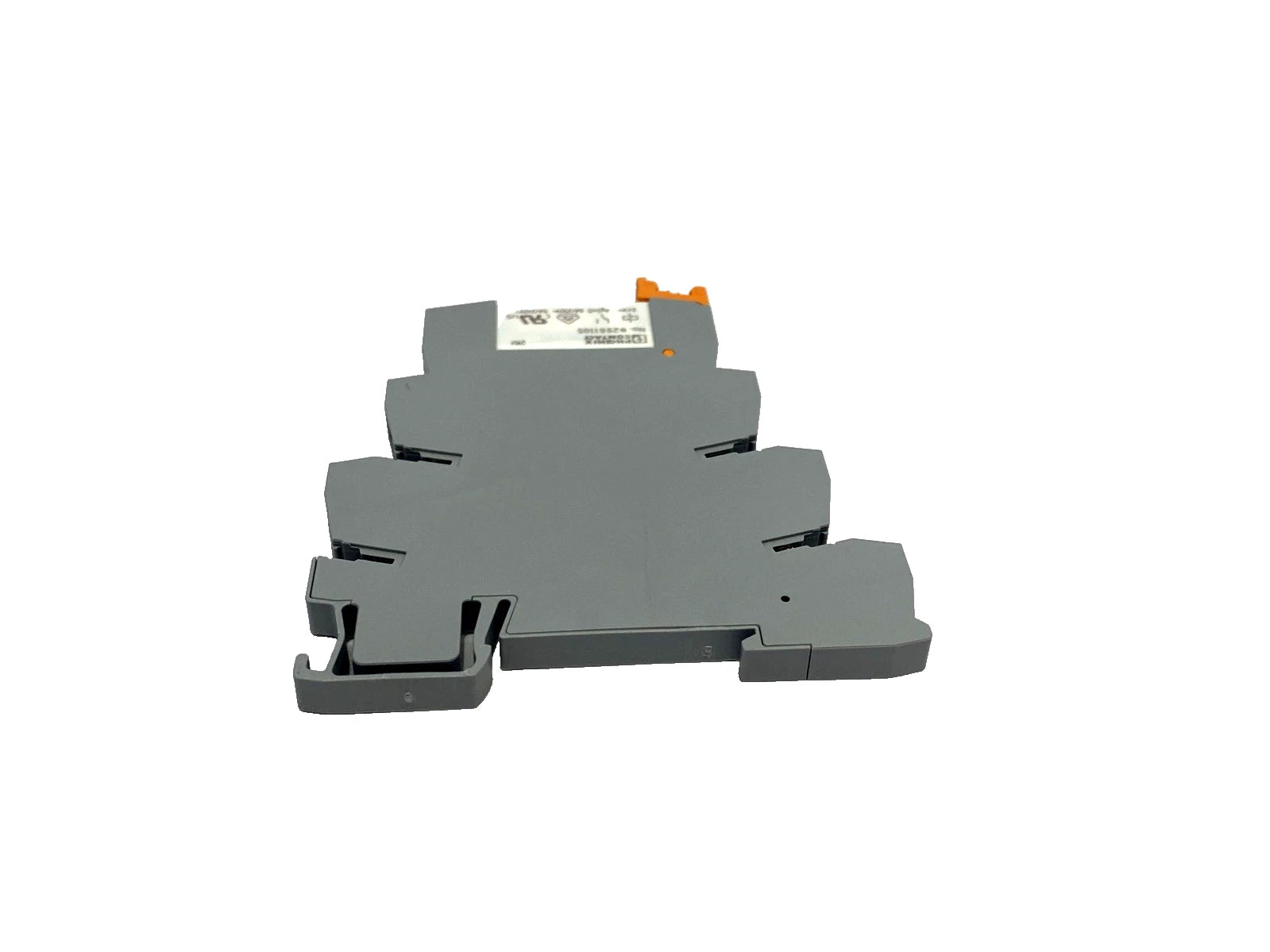

2966171 | Phoenix Contact PLC Interface SPDT Relay Module, 24VDC, 6A, DIN-Rail
- Regular price
- $52.00
- Sale price
- $52.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2966171
Description
The Phoenix Contact 2966171 is a DIN-rail-mounted PLC interface relay module designed for reliable switching and isolation between controllers and field devices. It features a slim SPDT relay with 24 VDC coil control, integrated suppression circuitry, and screw-terminal wiring for industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Phoenix Contact |
| Category | Relay Modules |
| Part Number | 2966171 |
| Subcategory | PLC Interface Relays |
| Contact Form | 1 Form C (SPDT) |
| Contact Current Rating | 6 A |
| Contact Material | Silver Tin Oxide |
| Contact Voltage Rating | 250 VAC / 250 VDC |
| Coil Voltage | 24 VDC |
| Coil Resistance | 2670 Ω |
| Coil Current | 9 mA |
| Relay Construction | Non-latching |
| Isolation | Safe isolation per DIN EN 50178 |
| Operating Temperature | –40 °C to 70 °C |
| Mounting | DIN rail NS 35/7.5 |
| Termination | Screw terminals |
| Integrated Features | Input circuit, suppression circuit, LED indicator |
| Operate Time | 5 ms |
| Seal Rating | RT III (sealed relay) |
| Manual Test | No button |
| Power Rating | 1.5 kVA |
| Pin Count | 5 |
| Product Length | 94 mm |
| Product Width | 6.2 mm |
| Product Height | 80 mm |
| Weight | 135 g |
Information About 2966171
The 2966171 belongs to the Phoenix Contact PLC-Interface relay family, engineered as a high-performance link between automation controllers and field-level peripherals. This module incorporates a slim 6.2 mm housing that enables high-density installation within control cabinets while maintaining robust electrical isolation. Its 24 VDC coil drives a sealed SPDT relay designed with silver tin oxide contacts to ensure long service life under inductive and resistive loads. The integrated suppression circuit protects electronics from voltage spikes, and the LED indicator simplifies status monitoring during operation. Designed for industrial maintenance and commissioning tasks, the relay is compatible with V8 adapter cabling and supports safe signal switching in a wide range of automation environments.
Key Features:
- Slim 6.2 mm Housing: Enables space-efficient DIN-rail installation with high-density channel packing.
- SPDT Power Relay: Provides reliable switching up to 6 A for industrial control circuits.
- 24 VDC Coil with Suppression: Built-in protective circuitry reduces electrical interference and extends lifespan.
- Robust Electrical Isolation: Safe isolation meets DIN EN 50178 standards for coil-to-contact separation.
- LED Status Indication: Offers clear visual confirmation of relay activation for diagnostics.
- Screw-Terminal Wiring: Provides secure, maintenance-friendly field connections.
- Sealed RT III Relay: Protects internal components against dust, moisture, and contamination.
- PLC Interface Design: Optimized for linking automation controllers to sensors, actuators, and system I/O.
- Fast Operating Time: 5 ms switching ensures responsiveness in control applications.
- Industrial Durability: Wide –40 °C to 70 °C operating range supports harsh environments.
The 2966171 delivers the reliability and precision required for signal isolation, switching, and interfacing tasks within modern PLC-controlled industrial automation systems.
