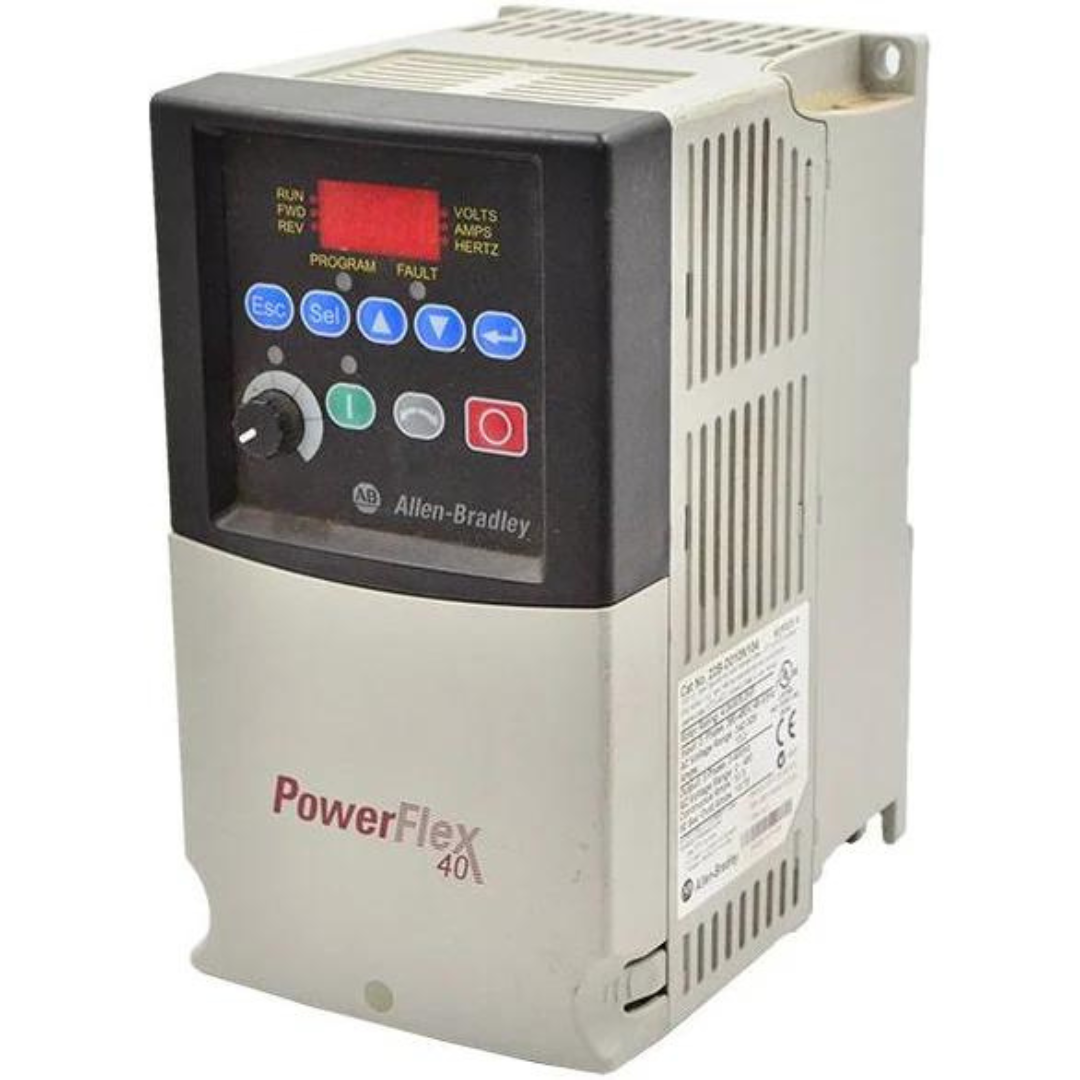

22B-D010N104 | Allen-Bradley PowerFlex 40 AC Drive 480VAC 3PH 10A 4kW 5HP Frame B

Description

The Allen-Bradley 22B-D010N104 is a PowerFlex 4 Variable Frequency Drive (VFD). This VFD is powered with an input voltage rating of 342-528, 3-phase with applicable motor output of 10.5 A and Power of 4.0 kW (5.0 HP).

Technical Specifications

Information About 2B-D010N104

The Allen-Bradley 22B-D010N104 Powerflex 40 is a 3-phase drive that is supplied with a nominal voltage of 480 Volts AC. This drive supports panel mounting with a human Interface Module (HIM) that users can use to configure, monitor and control the drive.

The 22B-D010N104’s input voltage range is 340 to 528 Volts AC with an apparent input power of 10.8 KV at 13 Amps. It has an output power of 4kW (5 Horsepower) and an output current of 10.5 Amps. The 22B-D010N104 recommended fuse rating is 20 A UL Class J, CC, T or Type BS88; 600V fuse type while the recommended motor circuit protection is 140M-C2E-C16. The 22B-D010N104 has an output programmable frequency range of 0 to 400 Hertz and an operational efficiency of 97.5%. It has a digital input voltage at SRC of 18 to 24 Volts in the on state, and 0 to 6 Volts in the off state. It also has a 0 to 6 Volts off sink mode and an 18 to 24 Volts on sink mode. The 22B-D010N104 also has an analog input with 4 to 20 mA at a 250 Ohm input impedance, and a 0 to 10 Volts DC voltage at a 100k Ohm input impedance. The 22B-D010N104 can communicate with other devices through an RS-485 communication port.

The 22B-D010N104 has 4 discrete programmable inputs and it is a frame B which measures 180.07 x 100 x 136 millimeters and a weight of 2.22 kilograms (4.9 pounds). drive rated IP20, NEMA/UL enclosure. It has a storage temperature range of -40 to 185 degrees Fahrenheit. The 22B-D010N104 drive features integral RS-485 communication and it is compatible with PC tools that assist with monitoring, troubleshooting, and programming. This PowerFlex 40 drive is equipped with sensorless vector control, which allows the drive to automatically provide auto-boost and slip compensation. With this feature, the 22B-D010N104 is also able to provide exceptional speed regulation and high torque levels across the speed range of the drive, even as its load increases.

Through the integrated Sensorless Vector control, the 22B-D010N104 is capable of providing high-starting Torque and excellent speed regulation. Combined with the Process Proportional + Integral + Derivative (PID) algorithm capability, the VFD itself can act as a controller and self-regulate.

To power ON the 22B-D010N104, an input voltage supply with range of 3420528 Volts, along a frequency range of 48-63 Hz and current of 13.0 Amperes must be supplied to the drive. The delivers a continuous current output of 10.5 Amperes, frequency range of 0-400 Hz and Voltage range of 0-460VAC, 3-Phase. The 22B-D010N104 is applicable for use with AC motors rated 4.0 kW or 5.0 Horsepower.

The drive may be operated out-of-the-box using the embedded keypad and LCD readout. Basic operations such as START / STOP / JOG and Frequency modification may be via the fixed keypad or optional Human Interface Modules (HIM) that can be mounted remotely or flush mounted to the panel door. Additionally, the 22B-D010N104 has embedded Input and Output channels that allows wiring of external signals and receiving devices to operate the drive based on the signals coming from the field. Operation of the drive is not limited to hardwiring as it may also be operated and configured via the RS485 communication interface of by installing add-on communication modules.
