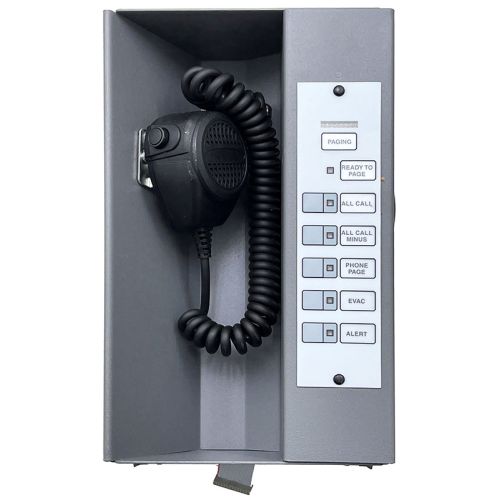

3-ASU/4 | Edwards Signaling Audio Source Unit for Voice Evacuation and Paging Systems
- Regular price
- $2,599.00
- Sale price
- $2,599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3-ASU/4
Description
The Edwards Signaling 3-ASU/4 Audio Source Unit is a modular audio distribution and signal control device designed for use with Edwards fire alarm and emergency communication systems. It provides reliable audio input and routing functions for voice evacuation, paging, and alerting operations. The unit ensures clear, consistent sound transmission in life-safety and mass notification systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire and Emergency Communication |
| Part Number | 3-ASU/4 |
| Subcategory | Audio Source Units |
| Series | 3-ASU Series |
| Type | Modular Audio Source Unit |
| Function | Audio Input and Routing Control |
| Compatible Systems | Edwards Fire Alarm and Voice Evacuation Systems |
| Input Channels | Single or Multiple (depending on configuration) |
| Output Type | Line-Level Audio Signal |
| Gain Adjustment | Manual / Trim-Pot Adjustable |
| Supervision | Built-In Audio Path Monitoring |
| Mounting | Edwards CAB Enclosure (Wall or Rack Mount) |
| Power Requirement | From System Control or Dedicated Supply (per model) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Enclosure | Metal Module Frame with Front Access Terminals |
| Dimensions | Approx. 5 x 7 x 2 in (typical) |
| Application | Voice Evacuation, Paging, and Emergency Audio Systems |
| Weight | Approx. 1.2 lbs |
Information About 3-ASU/4
The 3-ASU/4 is part of the Edwards 3-ASU Series, developed for multi-zone audio control and integration within emergency communication and fire alarm systems. It functions as the interface between external audio sources—such as microphones, tone generators, or prerecorded messages—and the amplifier or distribution network. The unit provides level adjustment, signal conditioning, and system supervision to ensure reliable audio performance. Designed for mounting in Edwards CAB series enclosures, the 3-ASU/4 simplifies installation and maintenance in centralized or distributed system configurations.
Key Features:
- Modular Audio Interface: Provides input routing and control for voice evacuation or paging systems.
- High Signal Integrity: Maintains clear, distortion-free transmission of audio signals.
- Compatible with Edwards Systems: Designed for integration into Edwards fire alarm and mass notification platforms.
- Supervised Operation: Continuously monitors audio circuits for faults or interruptions.
- Adjustable Gain Control: Allows tuning of input levels to match connected audio sources.
- Compact Design: Fits standard Edwards CAB enclosures for streamlined installation.
- Reliable Construction: Built for long-term performance in life-safety communication systems.
- Field-Serviceable Module: Enables easy replacement and maintenance without full system downtime.
The 3-ASU/4 delivers the reliability and precision required for supervised audio signal control in emergency communication and voice evacuation systems.
Description
The Edwards Signaling 3-ASU/4 Audio Source Unit is a modular audio distribution and signal control device designed for use with Edwards fire alarm and emergency communication systems. It provides reliable audio input and routing functions for voice evacuation, paging, and alerting operations. The unit ensures clear, consistent sound transmission in life-safety and mass notification systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire and Emergency Communication |
| Part Number | 3-ASU/4 |
| Subcategory | Audio Source Units |
| Series | 3-ASU Series |
| Type | Modular Audio Source Unit |
| Function | Audio Input and Routing Control |
| Compatible Systems | Edwards Fire Alarm and Voice Evacuation Systems |
| Input Channels | Single or Multiple (depending on configuration) |
| Output Type | Line-Level Audio Signal |
| Gain Adjustment | Manual / Trim-Pot Adjustable |
| Supervision | Built-In Audio Path Monitoring |
| Mounting | Edwards CAB Enclosure (Wall or Rack Mount) |
| Power Requirement | From System Control or Dedicated Supply (per model) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Enclosure | Metal Module Frame with Front Access Terminals |
| Dimensions | Approx. 5 x 7 x 2 in (typical) |
| Application | Voice Evacuation, Paging, and Emergency Audio Systems |
| Weight | Approx. 1.2 lbs |
Information About 3-ASU/4
The 3-ASU/4 is part of the Edwards 3-ASU Series, developed for multi-zone audio control and integration within emergency communication and fire alarm systems. It functions as the interface between external audio sources—such as microphones, tone generators, or prerecorded messages—and the amplifier or distribution network. The unit provides level adjustment, signal conditioning, and system supervision to ensure reliable audio performance. Designed for mounting in Edwards CAB series enclosures, the 3-ASU/4 simplifies installation and maintenance in centralized or distributed system configurations.
Key Features:
- Modular Audio Interface: Provides input routing and control for voice evacuation or paging systems.
- High Signal Integrity: Maintains clear, distortion-free transmission of audio signals.
- Compatible with Edwards Systems: Designed for integration into Edwards fire alarm and mass notification platforms.
- Supervised Operation: Continuously monitors audio circuits for faults or interruptions.
- Adjustable Gain Control: Allows tuning of input levels to match connected audio sources.
- Compact Design: Fits standard Edwards CAB enclosures for streamlined installation.
- Reliable Construction: Built for long-term performance in life-safety communication systems.
- Field-Serviceable Module: Enables easy replacement and maintenance without full system downtime.
The 3-ASU/4 delivers the reliability and precision required for supervised audio signal control in emergency communication and voice evacuation systems.
