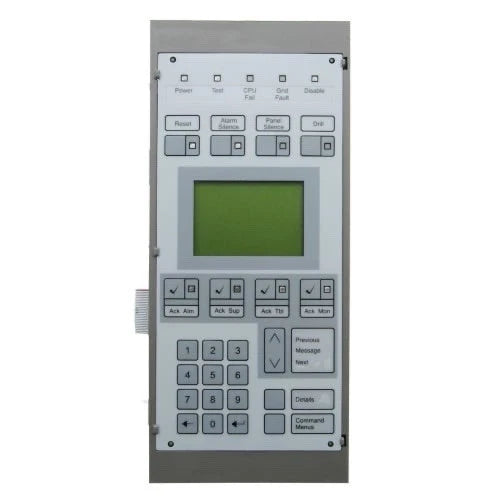

3-LCD | Edwards EST3 Liquid Crystal Display Module for Life Safety Systems
- Regular price
- $964.00
- Sale price
- $964.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3-LCD
Description
The Edwards EST 3-LCD is a liquid crystal display module designed as the primary user interface for EST3 life safety systems. It provides clear, prioritized event information with multilingual support, ensuring emergency users can quickly assess alarms, supervisory conditions, and system troubles. Compact and intuitive, the 3-LCD enhances system usability and response efficiency.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards / EST |
| Category | Components |
| Part Number | 3-LCD |
| Subcategory | LCD/LED Display |
| Module Type | Main Display Module for EST3 Systems |
| Display | 8 lines × 21 characters (168 total) graphic LCD |
| Supported Languages | English, French, Spanish, Russian |
| Event Sorting | Alarm, Supervisory, Trouble, Monitor queues |
| Input Voltage | 24 VDC |
| Current Draw | 40 mA standby / 42 mA alarm |
| Mounting | Designed to mount over 3-ANNCPU |
| Controls | Lights and switches with slide-in labels |
| Operation Mode | Hands-free first alarm and last event display |
| Dimensions | Approx. 7 in H × 6 in W × 1.5 in D (panel mount size) |
| Construction | Steel/aluminum frame with LCD module |
| Color | Black with labeled interface |
| Weight | 0.40 lbs |
Information About 3-LCD
The 3-LCD is part of the Edwards EST3 life safety platform, serving as the main display module for fire alarm and building management systems. Featuring an 8-line by 21-character graphic LCD, it delivers real-time system status messages and prioritizes the highest urgency events. Hands-free operation displays both the first and most recent high-priority events without requiring door access. The module supports English, French, Spanish, and Russian, making it suitable for multilingual installations. Designed to mount over the 3-ANNCPU, it offers simple light indicators, customizable switch labels, and intuitive controls for effective system management.
Key Features:
- Primary EST3 Display: Serves as the main user interface for EST3 life safety systems.
- Prioritized Event Display: Automatically shows the first and most recent high-priority events.
- Graphic LCD Screen: Eight lines × 21 characters (168 characters total) for clear event messaging.
- Multilingual Support: Displays messages in English, French, Spanish, and Russian.
- Queue-Based Sorting: Organizes alarms, supervisory, trouble, and monitor events for easy review.
- Hands-Free Operation: Enables users to view alarms without opening the panel door.
- Customizable Labels: Slide-in LED and switch labels for regional adaptability.
- Low Power Consumption: Operates at 40 mA (standby) and 42 mA (alarm) at 24 VDC.
The 3-LCD provides the reliability and clarity required for managing EST3 life safety system operations.
