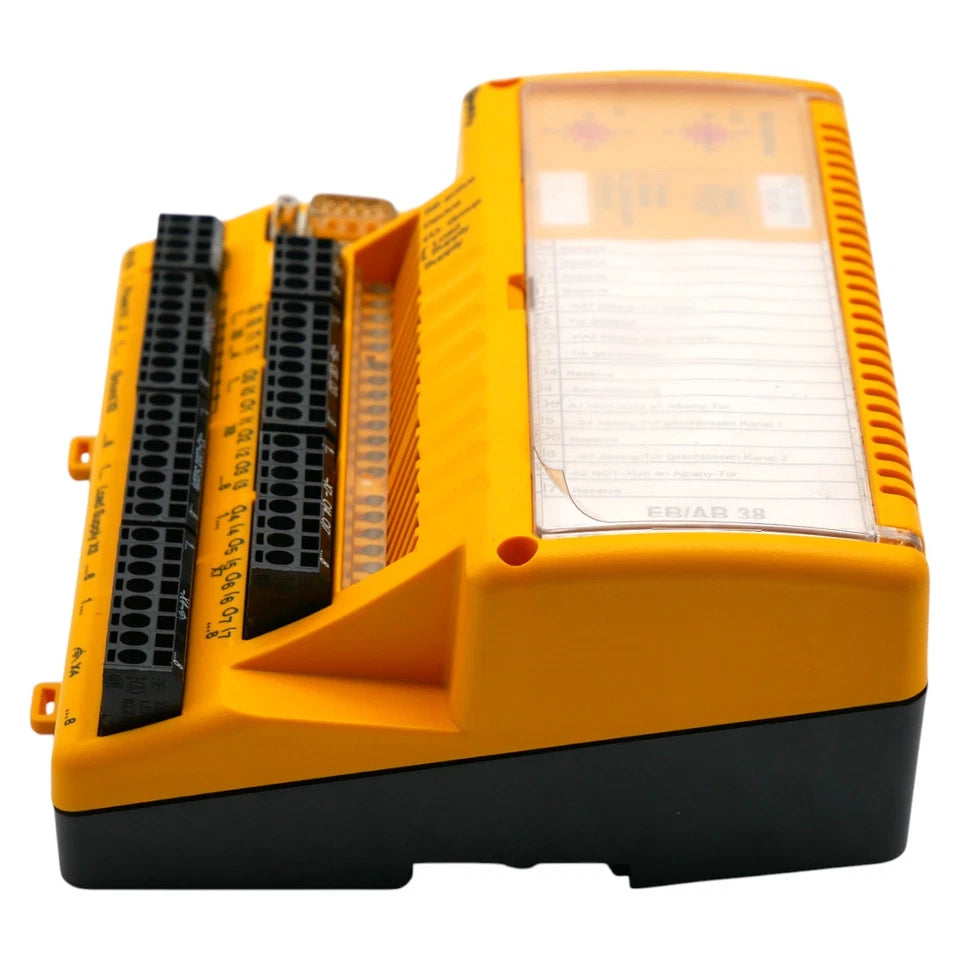

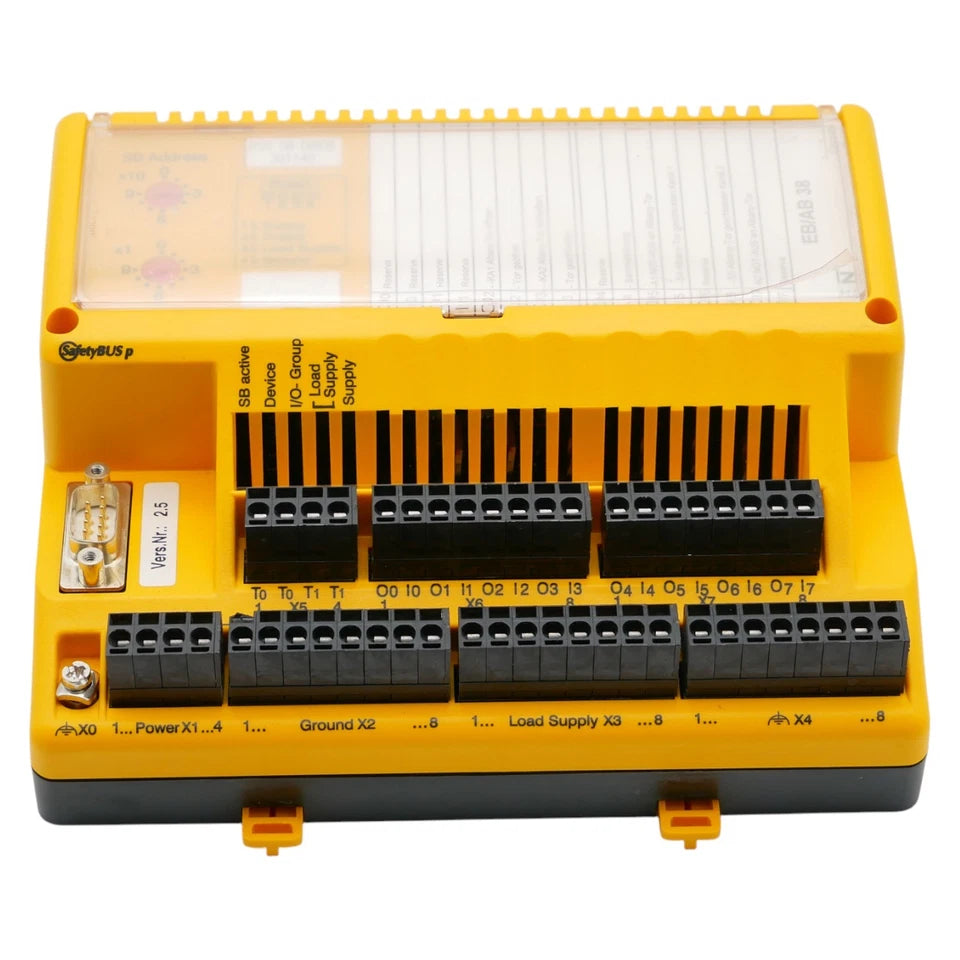

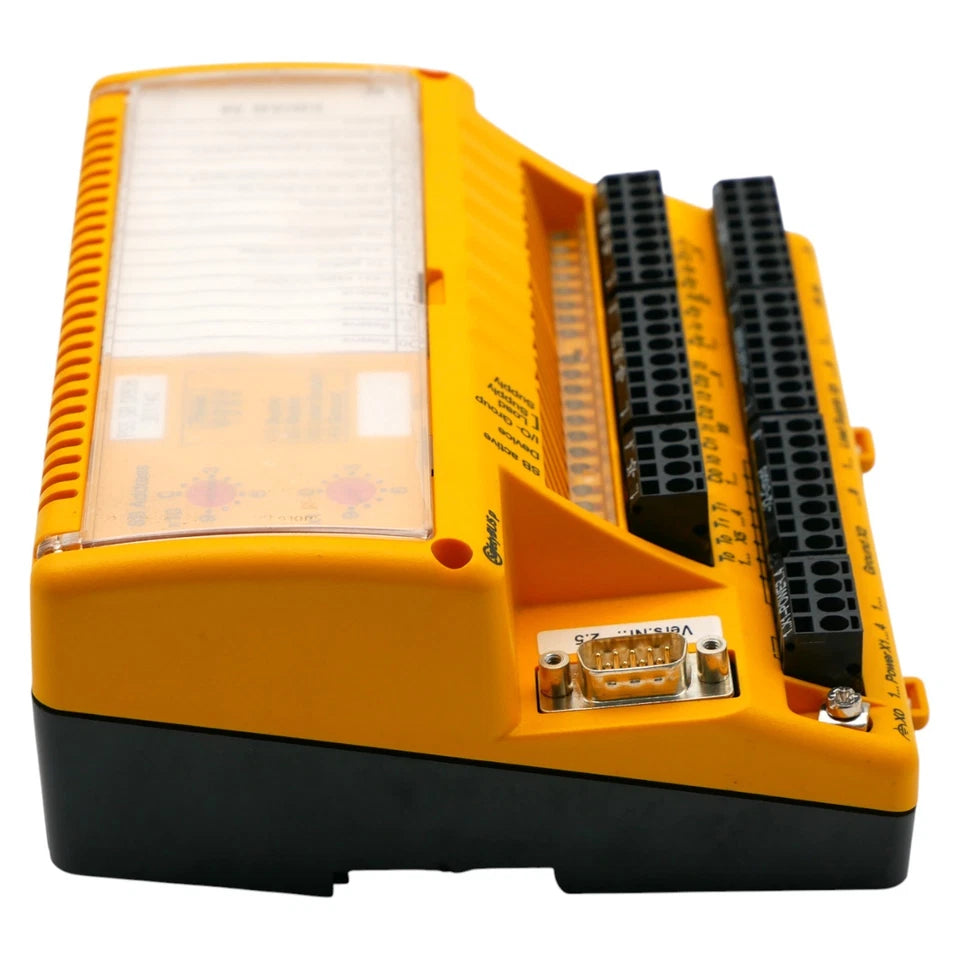

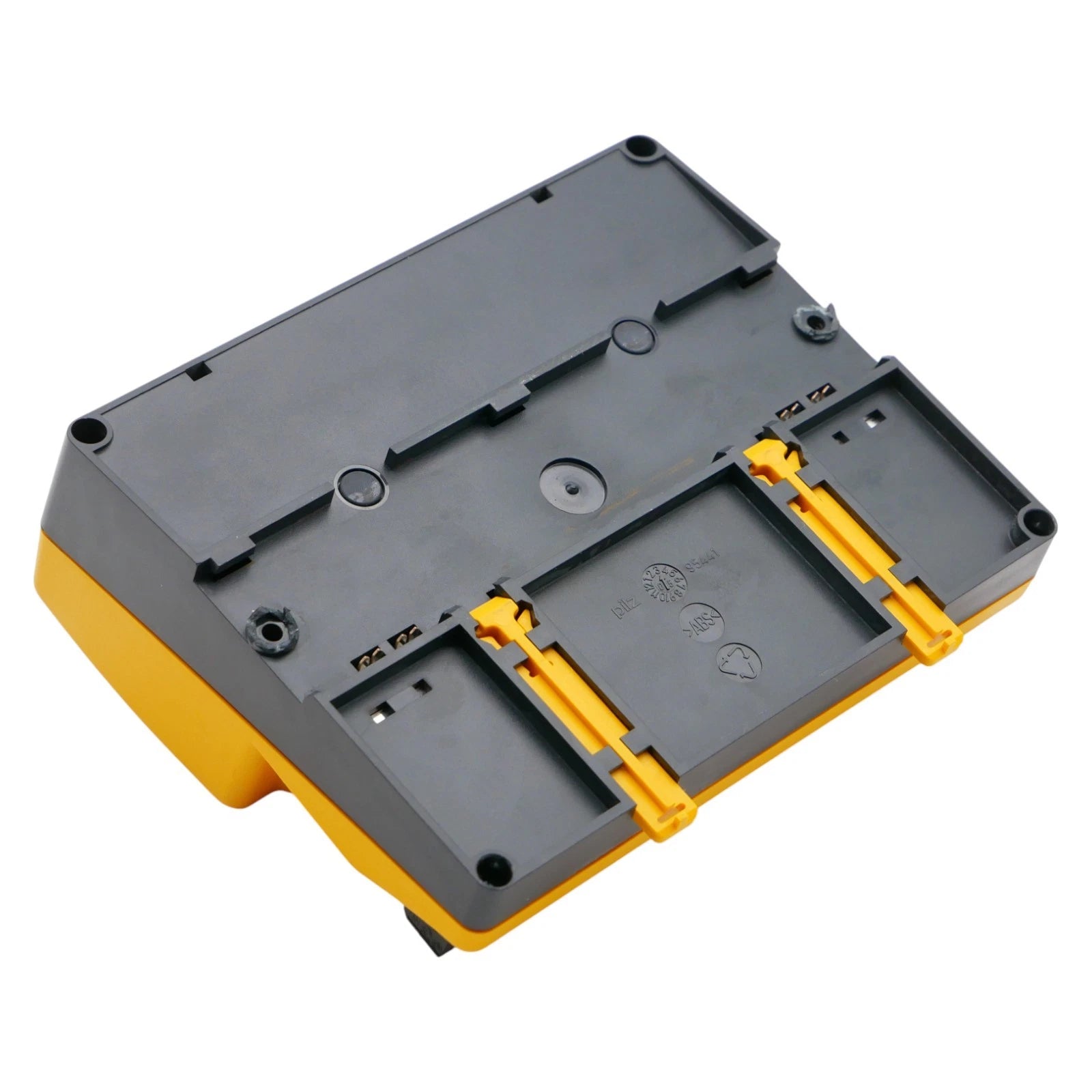

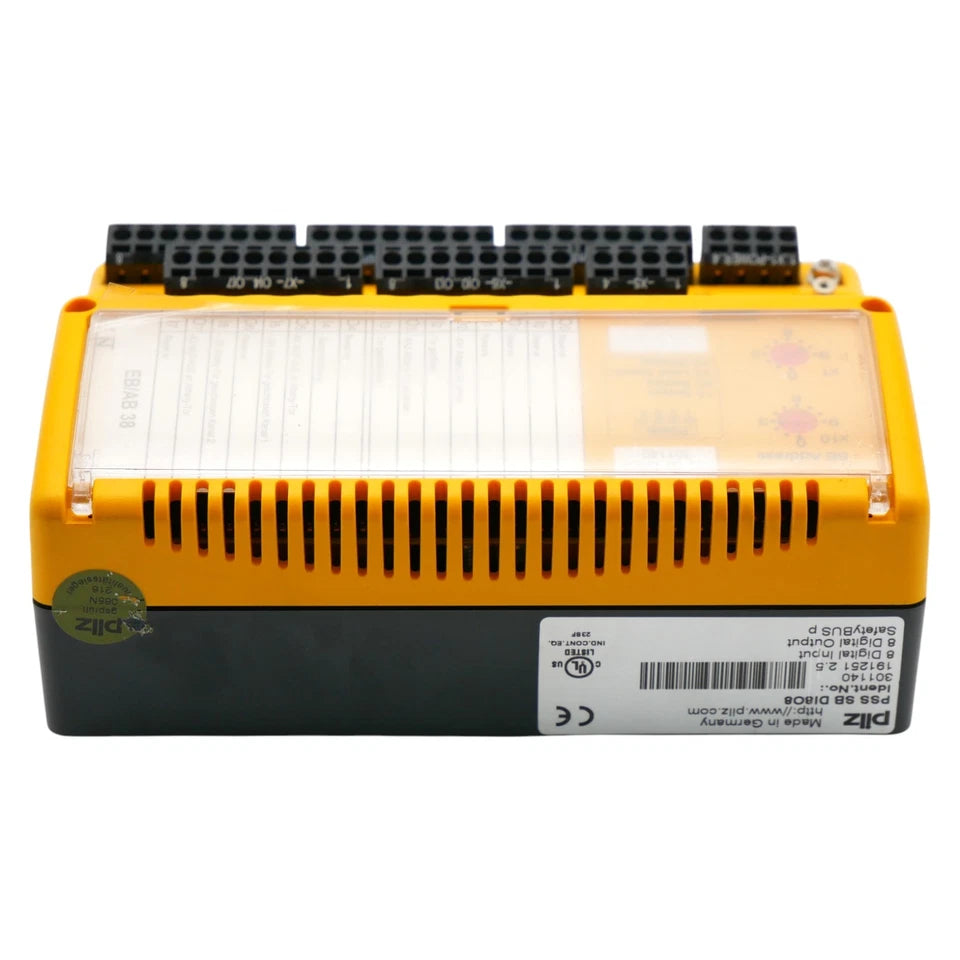

301140 | Pilz SafetyBUS p Digital I O Module With 8 Inputs And 8 Outputs
- Regular price
- $1,579.00
- Sale price
- $1,579.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 301140
Description
The Pilz 301140 is a decentralized digital I/O module designed for SafetyBUS p systems, providing safe and reliable signal exchange in distributed safety architectures. It combines multiple digital inputs and semiconductor outputs in a single module for efficient field-level safety integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Communication |
| Part Number | 301140 |
| Subcategory | SafetyBUS p Digital I/O Modules |
| Product Type | Decentralized digital I/O module |
| Communication System | SafetyBUS p |
| Digital Inputs | 8 |
| Digital Outputs | 8 |
| Semiconductor Outputs | 2-pole |
| 2-Pin Short-Circuit Outputs | 2 |
| Test Pulse Outputs | 2 |
| Supply Voltage U1 | 24 V DC (module supply) |
| Supply Voltage U2 | 24 V DC (periphery supply) |
| Power Consumption | 3.6 W |
| Housing Protection | IP20 |
| Ambient Temperature | 0 to +60 °C |
| Connection Type | Screw terminal / cage clamp |
| Terminal Style | Plug-in |
| Dimensions (H x W x D) | 140 x 170 x 65 mm |
| Weight | 519 g |
Information About 301140
The 301140 is part of the Pilz SafetyBUS p system and is designed for decentralized installation close to sensors and actuators. It enables reliable acquisition and control of safety-related signals using eight digital inputs and eight digital outputs within a fieldbus-based safety network. Separate module and periphery power supplies allow stable operation and flexible power distribution in distributed control systems. The module is intended for installation in control cabinets or protected enclosures and supports standardized SafetyBUS p communication.
Key Features
- SafetyBUS p Integration: Designed specifically for decentralized safety architectures using Pilz SafetyBUS p communication technology.
- Balanced I O Configuration: Provides 8 digital inputs and 8 digital outputs to handle multiple field devices within one compact module.
- Semiconductor Output Design: Uses 2-pole semiconductor outputs to ensure fast switching and high operational reliability.
- Integrated Test Pulse Outputs: Includes test pulse outputs for monitoring input circuits and improving diagnostic coverage.
- Dual Power Supply Concept: Separates module supply and periphery supply at 24 VDC for stable operation and flexible system design.
- Industrial Connection Options: Supports screw and cage clamp terminals with plug-in terminal style for secure and service-friendly wiring.
- Robust Environmental Rating: Designed for continuous operation in ambient temperatures from 0 to 60 °C in protected installations.
The 301140 delivers the reliability and precision required for decentralized digital input and output control within SafetyBUS p safety networks.
