3020-CM-100 | Schneider Electric Circuit Monitor Module
- Regular price
- $5,529.00
- Sale price
- $5,529.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 3020-CM-100
Description

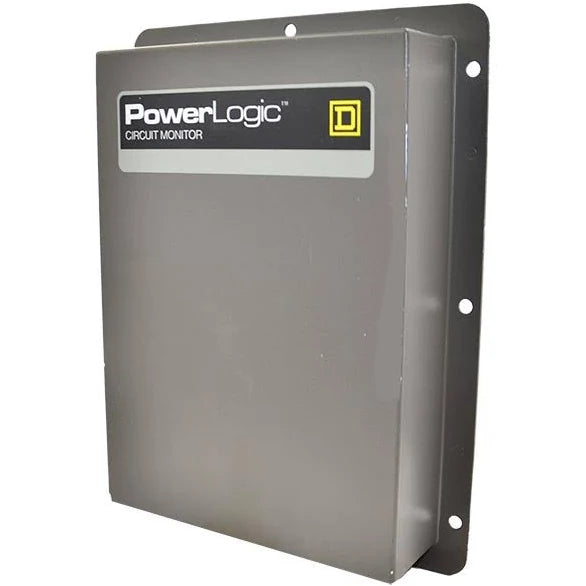

The 3020-CM-100 is a circuit monitor module manufactured by Square D (Schneider Electric) under the PowerLogic brand. It features extensive circuit instrumentation and incorporates RS-485 data communications for seamless connection to a personal computer.
Its back panel is equipped with clearly marked and labeled connections, including terminals for inputs from current transformers and potential transformers, as well as RS-485 input and output terminals for external communication. Additionally, there are terminals for control power input and communications shield.
Typically mounted semi-flush, the module may also be mounted using alternative methods when space is limited or multiple units are required. Connections are established using machine screws or a trim ring.
Technical Specifications
Manufacturer |
Square D (Schneider Electric) |
Product Name |
PowerLogic 3020-CM-100 Circuit Monitor Module |
Functionality |
Extensive circuit instrumentation |
Communication Interface |
RS-485 data communications for connection to a personal computer |
Mounting |
Typically semi-flush, projecting through a panel or breaker cell door; alternative mounting methods available |
Connection Method |
Eight machine screws or a trim ring |
Daisy-Chaining Capability |
Up to sixteen devices may be connected to a single RS-485 communications port |
IP Address Assignment |
Each module must have a unique IP address before connecting to ensure proper communication within the system; IP address can be accessed and changed via rotary switches |
Baud Rate Configuration |
Modules must be set to the same baud rate (options: 19.2k, 9600, 4800, 2400, or 1200) for proper communication |
Information About 3020-CM-100
The 3020-CM-100, part of the PowerLogic product line manufactured by Square D (Schneider Electric), functions as a circuit monitor module featuring extensive circuit instrumentation and RS-485 data communications for seamless connectivity to a personal computer.
The module's back panel hosts a comprehensive array of connections, each clearly marked and labeled:
- Terminals 1-6 (Ia-, Ia+, Ib-, Ib+, Ic-, Ic+): Inputs from Current Transformers
- Terminal 7 (Vn): Potential Transformer Neutral
- Terminals 8-10 (Va, Vb, Vc): Inputs from Potential Transformers
- Terminals 20-21 (In+, In-): RS-485 Input for External Communication
- Terminals 22-23 (Out+, Out-): RS-485 Output for External Communication
- Terminal 24: Shield Communications Shield
- Terminals 34-35 (L, N): 120 VAC Control Power Input Terminals
Typically mounted semi-flush, protruding through a panel or breaker cell door, alternative mounting methods are available for situations where space constraints or multiple unit installations necessitate different approaches. Connection is typically achieved using either eight machine screws or a trim ring.
